Model LG 27EA63V-P – Common Parts & Diagrams
Diagram 0

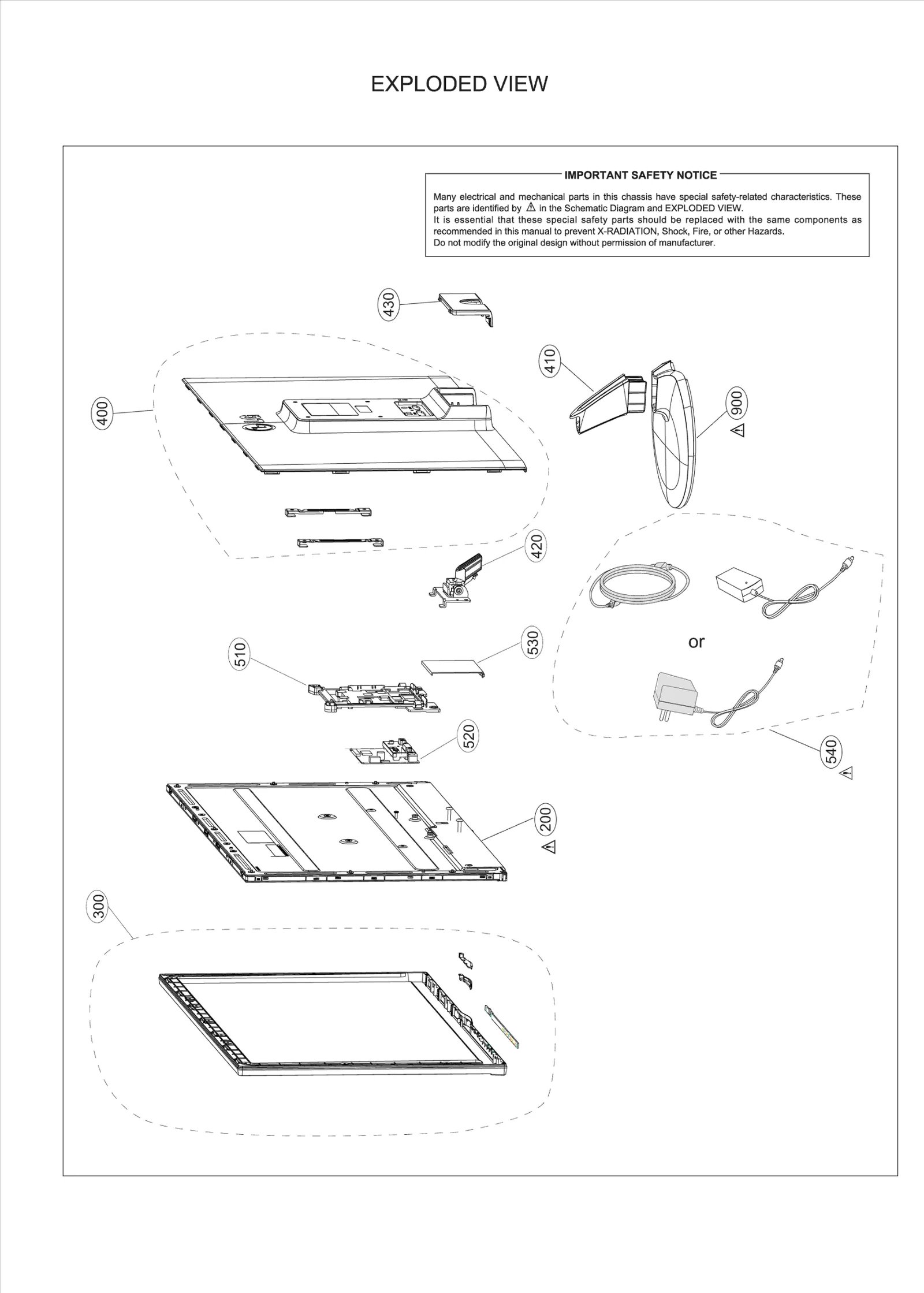

Diagram 1
Common parts from model LG 27EA63V-P
200
LCD Module LGE EAJ62113201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73948601 Contact Us For Availability
330
PCB Assembly LGE EBR76271601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86240401 Contact Us For Availability
410
Base Assembly LGE AAN74270501 Contact Us For Availability
420
Base Assembly LGE AAN74290501 Contact Us For Availability
430
Cover LGE MCK67450501 Contact Us For Availability
510
Bracket LGE MAZ63665901 Contact Us For Availability
520
Main Board,BPR Total Assembly LGE EBU62008701 Contact Us For Availability
530
Frame LGE MDQ63437001 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
900
Base Assembly LGE AAN74270901 Contact Us For Availability
A1
S/W Package LGE SAB35231021 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE MBM63863701 Contact Us For Availability
A12
Card LGE MBM63820303 Contact Us For Availability
C2
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C10
Harness,Single LGE EAD62186008 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C140
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36853501 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122594 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R11
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
VA203
Varistor LGE EAF61530301 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
