Model LG 27BQ75QB-B – Common Parts & Diagrams

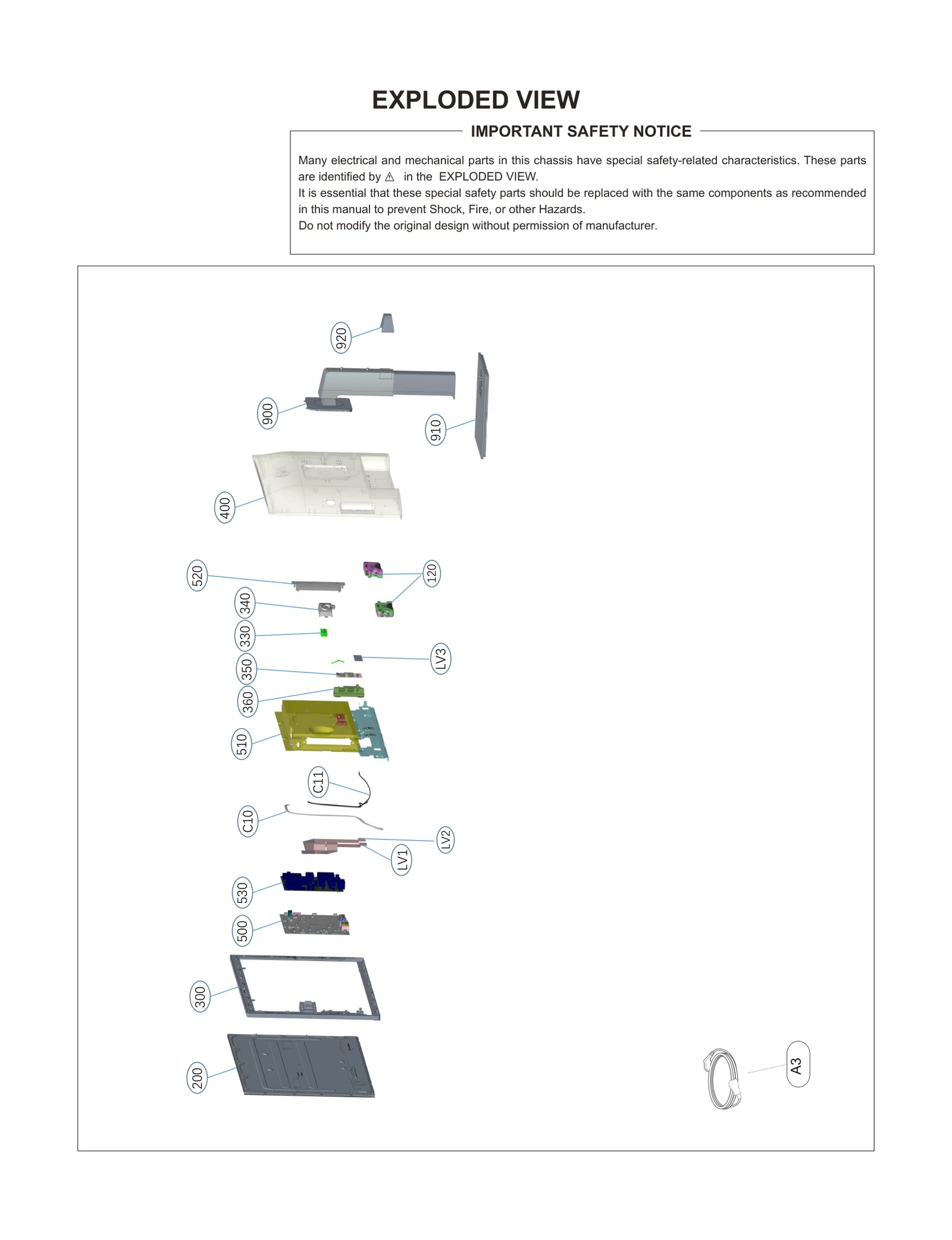

Diagram 0
Diagram 1
Common parts from model LG 27BQ75QB-B
200
LCD,Module-TFT LGE EAJ65491701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76755701 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR87542901 Contact Us For Availability
340
Cover LGE MCK71612201 Contact Us For Availability
350
PCB Assembly,Sub LGE EBR37879102 Contact Us For Availability
360
Cover LGE MCK71640701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30510802 Contact Us For Availability
500
BPR Total Assembly LGE EBU67163302 Contact Us For Availability
510
Frame Assembly LGE ADV30065203 Contact Us For Availability
520
Cover LGE MCK70125001 Contact Us For Availability
530
Power Supply Assembly LGE EAY65909901 Contact Us For Availability
900
Base Assembly LGE AAN75908940 Contact Us For Availability
A1
Manual Assembly LGE AFN30094180 Contact Us For Availability
A4
Card LGE MBM67514982 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE MBM67507701 Contact Us For Availability
A10
Card LGE MBM64637211 Contact Us For Availability
A15
Cable,Assembly LGE EAD63932607 Contact Us For Availability
A16
Cable,Assembly LGE EAD65185303 Contact Us For Availability
C10
Harness,Single LGE EAD65962401 Contact Us For Availability
C11
Harness,Multi LGE EAD63266928 Contact Us For Availability
HC1
Harness,Single LGE EAD58345803 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787930 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787853 Contact Us For Availability
LV3
Cable,FFC LGE EAD63825245 Contact Us For Availability
× ![]()
