Model LG 27BQ70QC-S – Common Parts & Diagrams

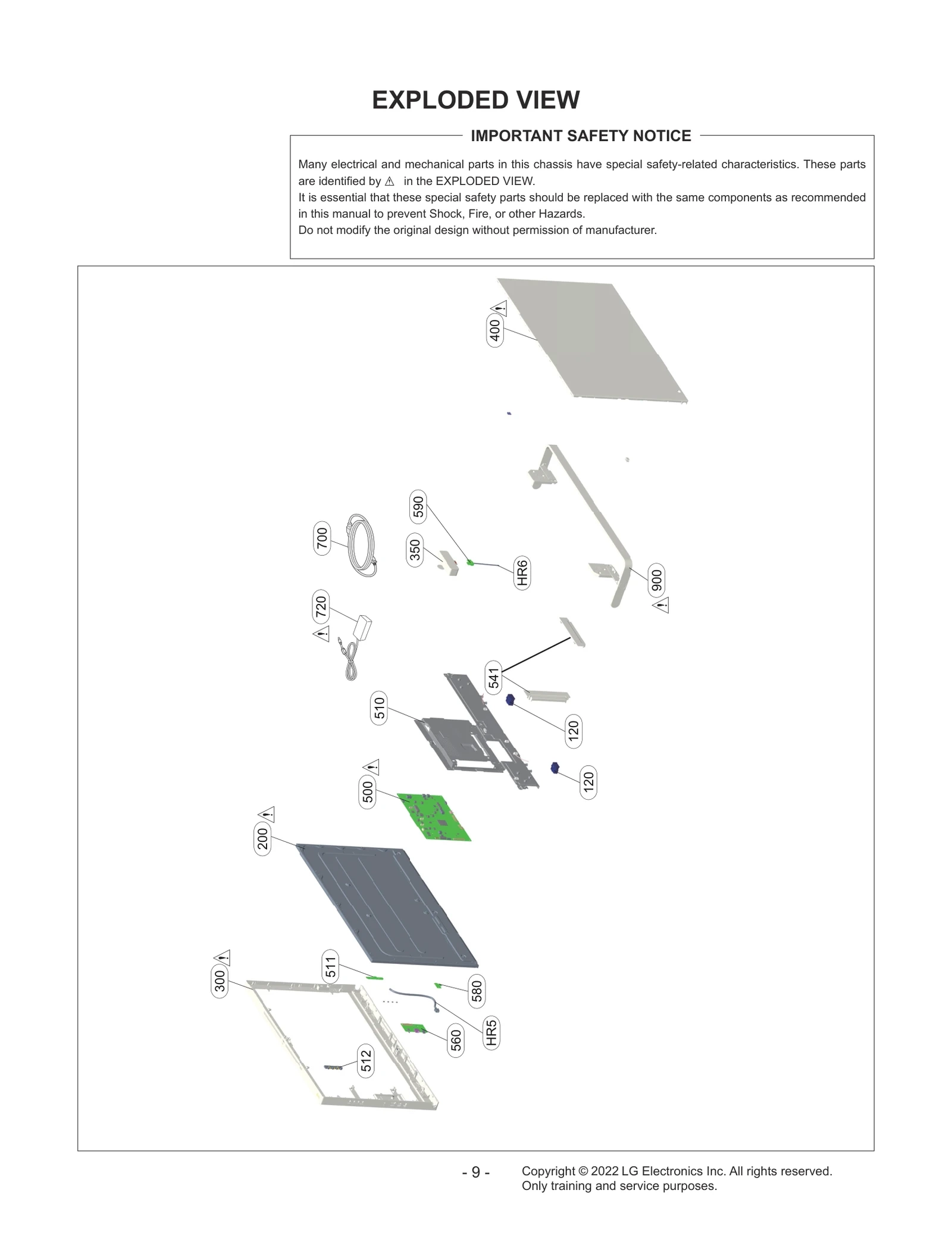

Diagram 0
Diagram 1
Common parts from model LG 27BQ70QC-S
200
LCD,Module-TFT LGE EAJ65491702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65491701 Contact Us For Availability
300
Cabinet LGE MBH65672201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30449001 Contact Us For Availability
500
Main Board,BPR Total Assembly LGE EBU65850811 Contact Us For Availability
512
Cover LGE MCK71583301 Contact Us For Availability
580
DMS Chassis Assembly LGE EBT64922114 Contact Us For Availability
590
Auto SMT PCB Assembly,Sub LGE EBR77779132 Contact Us For Availability
720
Adapters,Desktop LGE EAY65768903 Contact Us For Availability
900
Base Assembly LGE AAN30040301 Contact Us For Availability
A1
Manual Assembly LGE AFN30086721 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE MBM64637211 Contact Us For Availability
A8
Cable,Assembly LGE EAD65185209 Contact Us For Availability
A9
Card LGE 3840TWL001S Contact Us For Availability
A10
Card LGE MBM67507701 Contact Us For Availability
HR5
Harness,Multi LGE EAD65939301 Contact Us For Availability
LV1
Cable,FFC LGE EAD65611708 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787837 Contact Us For Availability
LV3
Cable,FFC LGE EAD63787919 Contact Us For Availability
× ![]()
