Model LG 27BQ65UB-B – Common Parts & Diagrams

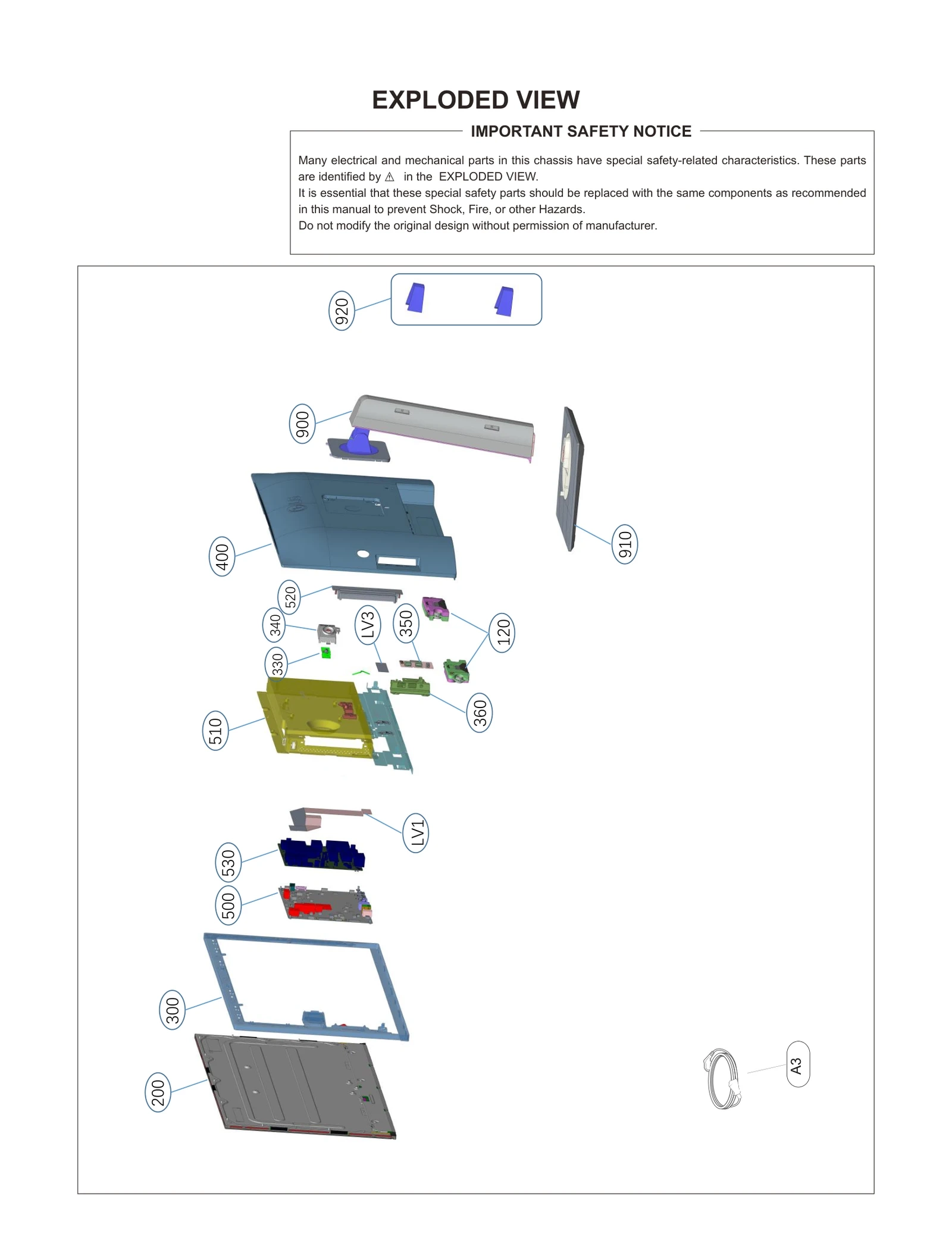

Diagram 0
Diagram 1
Common parts from model LG 27BQ65UB-B
200
LCD,Module-TFT LGE EAJ65731702 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR87542902 Contact Us For Availability
340
Cover LGE MCK71612201 Contact Us For Availability
350
PCB Assembly,Sub LGE EBR40560501 Contact Us For Availability
360
Cover LGE MCK71640701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30510803 Contact Us For Availability
500
BPR Total Assembly LGE EBU67344401 Contact Us For Availability
510
Frame Assembly LGE ADV30065202 Contact Us For Availability
520
Cover LGE MCK70125001 Contact Us For Availability
530
Power Supply Assembly LGE EAY65910001 Contact Us For Availability
900
LGE AAN75908713 LGE AAN75908713 Contact Us For Availability
910
Base Assembly LGE AAN75908808 Contact Us For Availability
920
Package Assembly LGE AGF77182250 Contact Us For Availability
A1
Manual Assembly LGE AFN30106780 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE MBM67530762 Contact Us For Availability
A10
Card LGE MBM64637211 Contact Us For Availability
A11
Card LGE 3840TWL061C Contact Us For Availability
A15
Cable,Assembly LGE EAD63932607 Contact Us For Availability
A16
Cable,Assembly LGE EAD65185303 Contact Us For Availability
A17
Cable,Assembly LGE EAD65185203 Contact Us For Availability
A18
Cable,Assembly LGE EAD65573101 Contact Us For Availability
A23
Card LGE MBM67507701 Contact Us For Availability
LV1
Cable,FFC LGE EAD63825255 Contact Us For Availability
LV3
Cable,FFC LGE EAD63825245 Contact Us For Availability
× ![]()
