Model LG 27BP88QD-B – Common Parts & Diagrams

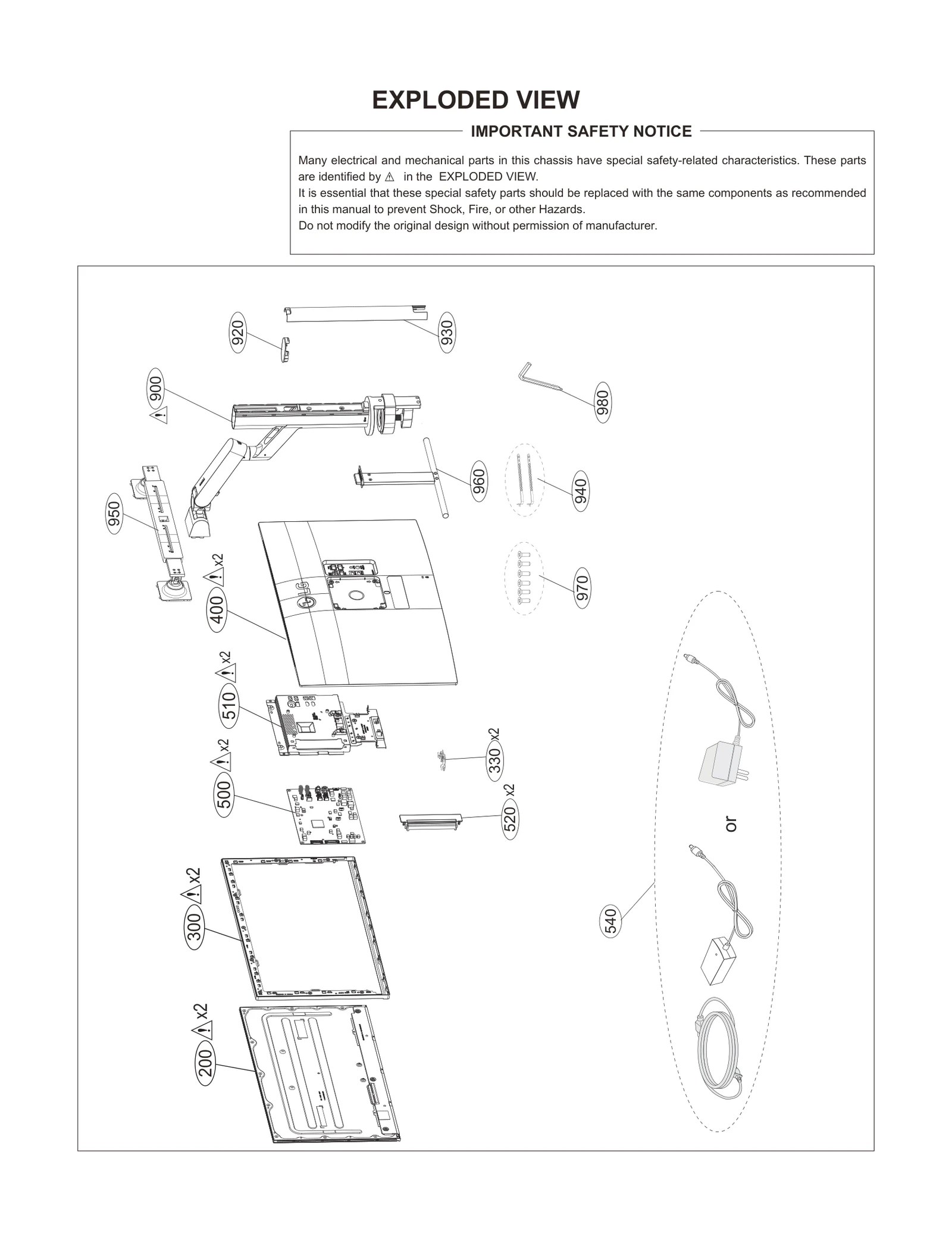

Diagram 0
Diagram 1
Common parts from model LG 27BP88QD-B
200
LCD,Module-TFT LGE EAJ65491701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65491702 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76567604 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR85292403 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91637011 Contact Us For Availability
500
BPR Total Assembly LGE EBU65850810 Contact Us For Availability
510
Frame Assembly LGE ADV77732218 Contact Us For Availability
520
Cover LGE MCK70125001 Contact Us For Availability
540
Adapters LGE EAY64929302 Contact Us For Availability
920
Package Assembly LGE AGF78666824 Contact Us For Availability
930
Package Assembly LGE AGF78666823 Contact Us For Availability
940
Package Assembly LGE AGF78666827 Contact Us For Availability
970
Package Assembly LGE AGF78666825 Contact Us For Availability
A1
Manual Assembly LGE AFN30090421 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE MBM67509501 Contact Us For Availability
A7
Card LGE MBM67507701 Contact Us For Availability
A9
Card LGE MBM67508702 Contact Us For Availability
A10
Card LGE MBM64637211 Contact Us For Availability
A11
Card LGE 3840TWL001S Contact Us For Availability
A12
Card LGE 3840TRL039A Contact Us For Availability
A15
Cable,Assembly LGE EAD65185309 Contact Us For Availability
A18
Cable,Assembly LGE EAD63932607 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285720 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285621 Contact Us For Availability
× ![]()
