Model LG 27BK67U-B – Common Parts & Diagrams

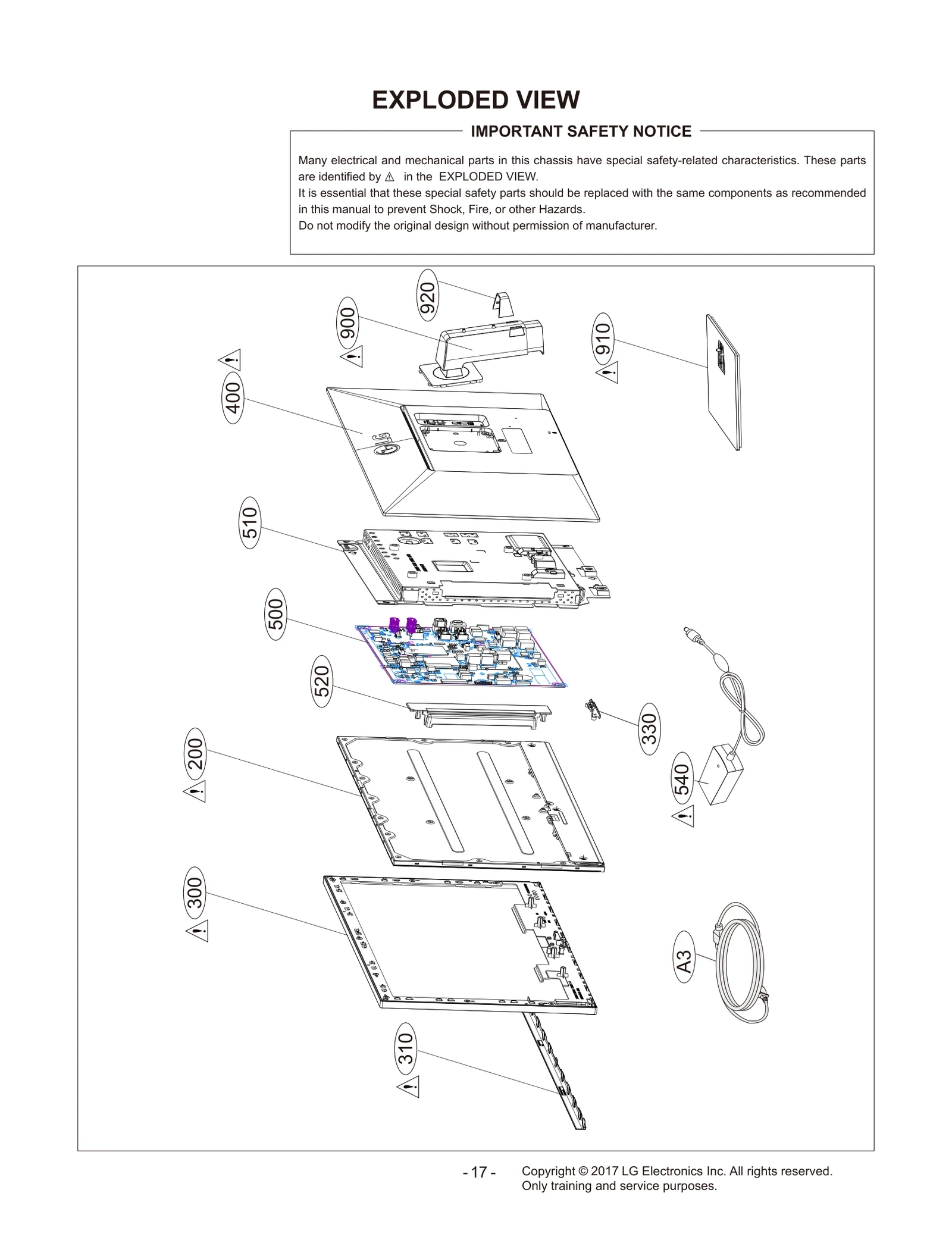

Diagram 0
Diagram 1
Common parts from model LG 27BK67U-B
200
LCD,Module-TFT LGE EAJ64207901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75787301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89963708 Contact Us For Availability
500
BPR Total Assembly LGE EBU64889004 Contact Us For Availability
510
Frame Assembly LGE ADV76706306 Contact Us For Availability
900
Base Assembly LGE AAN75908905 Contact Us For Availability
910
Base Assembly LGE AAN75909001 Contact Us For Availability
A1
Manual Assembly LGE AFN78573121 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL001S Contact Us For Availability
A8
Cable,Assembly LGE EAD63954403 Contact Us For Availability
A9
Card LGE MBM66657002 Contact Us For Availability
A11
Cable,Assembly LGE EAD63932604 Contact Us For Availability
BU100
Buzzer,Piezo LGE 6908VB0001A Contact Us For Availability
C10
Harness,Single LGE EAD63807102 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C279
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C409
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C542
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C549
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C625
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C626
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C629
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C652
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C820
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C840
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C920
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C927
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C932
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
LV1
Cable,FFC LGE EAD63825203 Contact Us For Availability
MT1
Tape,Double Faced LGE RAB34873121 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q204
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R401
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R434
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R638
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R647
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R650
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R652
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R672
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R758
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R848
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R854
Resistor,Chip LGE 0RJ0100J489 Contact Us For Availability
R855
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R871
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R889
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R900
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R956
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R983
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R991
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R992
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1001
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
× ![]()
