Model Whirlpool 2763W0A DOUBLE OVEN ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN DOOR
02 - POWER LOCK
05 - UPPER OVEN PEDESTAL
07 - CONTROL PANEL
06 - BLOWER
09 - SECTION

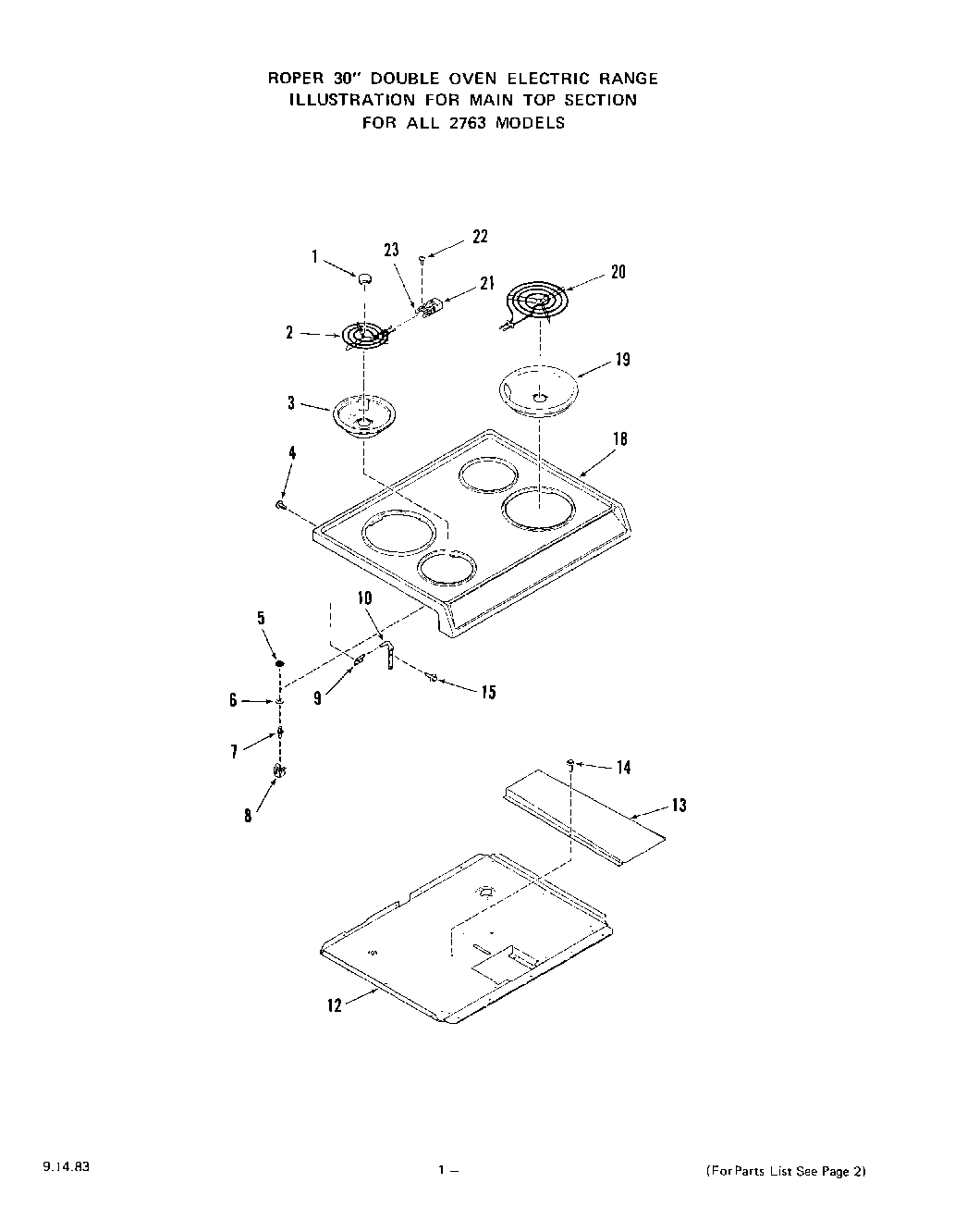

01 - MAIN TOP

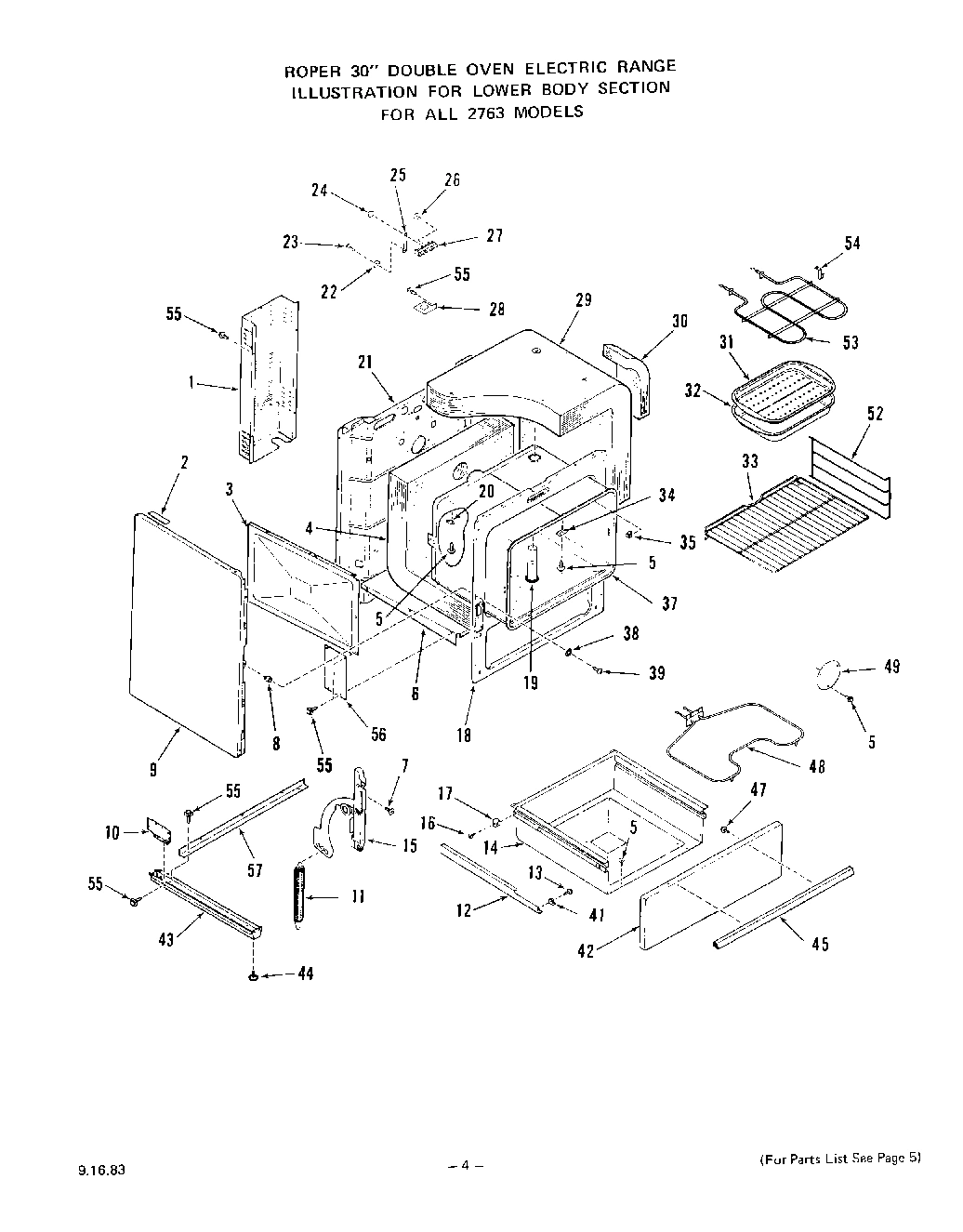

03 - LOWER BODY
Common parts from model Whirlpool 2763W0A DOUBLE OVEN ELECTRIC RANGE
1
Wire Shield WPL 296026 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Frame-Door Glass WPL 321850 Contact Us For Availability
1
White-Left WPL 325310 Contact Us For Availability
1
Golden Wheat-Left WPL 325313 Contact Us For Availability
1
Almond-Left WPL 325314 Contact Us For Availability
1
White-Right WPL 325316 Contact Us For Availability
1
Golden Wheat-Right WPL 325319 Contact Us For Availability
1
Almond-Right WPL 325320 Contact Us For Availability
1
Upper Oven Body Side WPL ARI11464A7 Contact Us For Availability
1
Cotter Pin WPL 318089 Contact Us For Availability
2
Spacer-Main Top WPL 303513 Contact Us For Availability
2
6`` Surface Unit (Lt. Front & Rt. Rear) WPL 325507 Contact Us For Availability
2
Oven Door Glass WPL 319299 Contact Us For Availability
2
Baffle - Airway WPL 325743 Contact Us For Availability
2
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
2
Solenoid Only WPL 319431 Contact Us For Availability
3
Retainer-Insulation (Lt. or Rt.) WPL 324188 Contact Us For Availability
3
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Black WPL 321842 Contact Us For Availability
3
White WPL 322161 Contact Us For Availability
3
Golden Wheat WPL 322164 Contact Us For Availability
3
Almond WPL 322165 Contact Us For Availability
3
Front Panel-Oven Door WPL ARI11463A8 Contact Us For Availability
3
Foam Strip WPL 306587 Contact Us For Availability
3
White - Right WPL 325283 Contact Us For Availability
3
Golden Wheat-Right WPL 325286 Contact Us For Availability
3
Almond-Right WPL 325287 Contact Us For Availability
3
White-Left WPL 325289 Contact Us For Availability
3
Golden Wheat-Left WPL 325292 Contact Us For Availability
3
Almond - Left WPL 325293 Contact Us For Availability
3
Pedestal-Upper Oven WPL ARI11465A1 Contact Us For Availability
4
Insulation-Oven Back & Bottom WPL 308861 Contact Us For Availability
4
Screw 10AB WPL 326974 Contact Us For Availability
4
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
4
Fuse-15 Amp. WPL 106208 Contact Us For Availability
4
Mounting Screw WPL 319433 Contact Us For Availability
5
hex nut 8-32 WPL 239764 Contact Us For Availability
5
Cushion (3 Required) WPL 112370 Contact Us For Availability
5
Fuse Holder WPL 277608 Contact Us For Availability
5
Cover Plate WPL 322992 Contact Us For Availability
6
Retainer-Bottom Insulation WPL 313281 Contact Us For Availability
6
Washer WPL 99279 Contact Us For Availability
6
Retainer-Insulation WPL 325056 Contact Us For Availability
6
Side-Compartment WPL 325702 Contact Us For Availability
6
Wire Cover - Upper Oven WPL 325773 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
7
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
7
Strike-Main Top (2 Req) WPL 299784 Contact Us For Availability
7
Insulation-Oven Door WPL 311012 Contact Us For Availability
7
Air Duct WPL 325723 Contact Us For Availability
7
Foam Strip-Rt. or Lt. WPL 326696 Contact Us For Availability
7
Oven Door Lock Asem. (Inc. Key 12) WPL 324833 Contact Us For Availability
8
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
8
Catch-Main Top Strike (2 Req.) WPL 71003 Contact Us For Availability
8
Oven Door Gasket WPL 292244 Contact Us For Availability
8
Washer WPL 21067 Contact Us For Availability
8
Front - Blower Mounting Plate WPL 326281 Contact Us For Availability
8
Wire Cover WPL 326536 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
9
White WPL 323938 Contact Us For Availability
9
Golden Wheat WPL 323941 Contact Us For Availability
9
Almond WPL 323942 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI11460A5 Contact Us For Availability
9
Bracket-Main Top Hinge (2 Req) WPL 320931 Contact Us For Availability
9
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
9
Fan Blade WPL 326280 Contact Us For Availability
9
Lower Backsplash WPL 325903 Contact Us For Availability
10
Bracket-Support & Base WPL 324212 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI11458A4 Contact Us For Availability
10
Support - Blower Motor WPL 326279 Contact Us For Availability
10
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
10
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
11
Spring-Oven Door (Lt. or Rt.) WPL 308838 Contact Us For Availability
11
Plug-Oven Door Lining WPL 324430 Contact Us For Availability
11
Motor - Blower WPL 326278 Contact Us For Availability
11
Left WPL 322933 Contact Us For Availability
11
Right WPL 322935 Contact Us For Availability
11
End-Vent WPL ARI11466A1 Contact Us For Availability
11
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
12
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
12
Burner Box Bottom WPL 322102 Contact Us For Availability
12
Stiffener-Oven Door WPL 282089 Contact Us For Availability
12
Keps Nut 6-32 WPL 236313 Contact Us For Availability
12
Right WPL 306543 Contact Us For Availability
12
Left WPL 326697 Contact Us For Availability
12
Foam Strip WPL ARI11467A6 Contact Us For Availability
12
Spring-Lock Handle WPL 299599 Contact Us For Availability
13
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Cover-Lock Rod WPL 308830 Contact Us For Availability
13
Screw 10-32x2 3/4`` WPL 319893 Contact Us For Availability
13
Set Screw 10-32 WPL 70286 Contact Us For Availability
13
Left WPL 325726 Contact Us For Availability
13
Right WPL 325728 Contact Us For Availability
13
Airway-Side WPL ARI11468A4 Contact Us For Availability
14
Storage Drawer WPL 296150 Contact Us For Availability
14
Lining-Oven Door WPL 324428 Contact Us For Availability
14
Mounting Plate - Blower WPL 325382 Contact Us For Availability
14
Retainer-Lt. or Rt. WPL 285523 Contact Us For Availability
14
Rod-Oven Door Lock WPL 308829 Contact Us For Availability
15
Right WPL 303132 Contact Us For Availability
15
Left WPL 303133 Contact Us For Availability
15
Hinge-Oven Door WPL ARI11461A9 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
15
Convenience Outlet (2 Req) WPL 109180 Contact Us For Availability
15
Pop Rivet WPL 101523 Contact Us For Availability
15
Spring-Solenoid WPL 299704 Contact Us For Availability
16
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
16
Insulation-Oven Door Plug WPL 292220 Contact Us For Availability
16
Right WPL 325330 Contact Us For Availability
16
Left WPL 325492 Contact Us For Availability
16
Side Trim WPL ARI11469A2 Contact Us For Availability
17
Rear Slide Block - Lt. or Rt. WPL 281913 Contact Us For Availability
17
Spacer (4 Req) WPL 325308 Contact Us For Availability
18
Front Frame WPL 324192 Contact Us For Availability
18
White WPL 320960 Contact Us For Availability
18
Golden Wheat WPL 320963 Contact Us For Availability
18
Almond WPL 320964 Contact Us For Availability
18
Chrome WPL 325479 Contact Us For Availability
18
Main Top WPL ARI11459A7 Contact Us For Availability
18
Box - Auxiliary Thermostat WPL 326303 Contact Us For Availability
19
Vent Tube WPL 308822 Contact Us For Availability
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
19
Spacer WPL 107158 Contact Us For Availability
19
Auxiliary Thermostat WPL 325401 Contact Us For Availability
20
Cover Plate-Thmst. Bulb WPL 237762 Contact Us For Availability
20
8`` Surface Unit (Rt. Front & Lt. Rear) WPL 325503 Contact Us For Availability
20
Handle WPL 316398 Contact Us For Availability
20
Foam Strip WPL 325029 Contact Us For Availability
21
Main Back WPL 326488 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
21
Screw 4-40x1/4`` WPL 230710 Contact Us For Availability
22
Washer WPL 299425 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
22
Cover - Wire Support WPL 326417 Contact Us For Availability
23
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
23
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
23
Brace-Cabinet Side WPL 325388 Contact Us For Availability
24
Hex Nut 10-32 WPL 97816 Contact Us For Availability
24
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
25
Ground Strap WPL 304987 Contact Us For Availability
25
Support - Microwave (4 Req) WPL 325704 Contact Us For Availability
26
Base - Microwave WPL 325303 Contact Us For Availability
27
Junction Block WPL 290105 Contact Us For Availability
27
Baffle - Vent WPL 322937 Contact Us For Availability
28
Range Service Mounting Plate WPL 281903 Contact Us For Availability
28
Vent Side-Left WPL 322949 Contact Us For Availability
29
Insulation-Oven Top & Sides (1 Piece) WPL 308860 Contact Us For Availability
29
Bottom-Vent WPL 320261 Contact Us For Availability
30
Insulation (Rt. or Lt.) WPL 316951 Contact Us For Availability
30
White WPL 321660 Contact Us For Availability
30
Golden Wheat WPL 321663 Contact Us For Availability
30
Almond WPL 321664 Contact Us For Availability
30
Cover-Vent WPL ARI11470A6 Contact Us For Availability
31
Broiler Pan Grid WPL 293099 Contact Us For Availability
31
White WPL 325346 Contact Us For Availability
31
Golden Wheat WPL 325349 Contact Us For Availability
31
Almond WPL 325350 Contact Us For Availability
31
Backsplash WPL ARI11471A7 Contact Us For Availability
32
Broiler Pan WPL 293098 Contact Us For Availability
32
White WPL 323820 Contact Us For Availability
32
Golden Wheat WPL 323823 Contact Us For Availability
32
Almond WPL 323824 Contact Us For Availability
32
trim-filter WPL ARI11472A9 Contact Us For Availability
33
Oven Rack (2 Req) WPL 305408 Contact Us For Availability
34
Cover WPL 304835 Contact Us For Availability
34
Lower Trim WPL 325471 Contact Us For Availability
35
Retainer-Thmst. Bulb (2 Req) WPL 238052 Contact Us For Availability
35
Left WPL 325337 Contact Us For Availability
35
Right WPL 325338 Contact Us For Availability
35
End Cap WPL ARI11473A7 Contact Us For Availability
36
Vent Side-Right WPL 320257 Contact Us For Availability
37
Oven Body WPL 324423 Contact Us For Availability
37
Bottom - Oven Cabinet WPL 325297 Contact Us For Availability
38
Washer WPL 303963 Contact Us For Availability
38
Insulation - Oven Cabinet Bottom WPL 325299 Contact Us For Availability
39
Insulation-Microwave Base (1 Req) WPL 326031 Contact Us For Availability
40
Stiffener WPL 325301 Contact Us For Availability
41
Front Slide Block-(Lt. or Rt.) WPL 281914 Contact Us For Availability
41
Top Trim WPL 325328 Contact Us For Availability
42
White WPL 308833 Contact Us For Availability
42
Golden Wheat WPL 309235 Contact Us For Availability
42
Almond WPL 309236 Contact Us For Availability
42
Front Panel-Storage Drawer (Black) WPL 312467 Contact Us For Availability
42
Front Panel-Storage Drawer WPL ARI11462A4 Contact Us For Availability
42
White WPL 325322 Contact Us For Availability
42
Golden Wheat WPL 325325 Contact Us For Availability
42
Almond WPL 325326 Contact Us For Availability
42
Oven T WPL ARI11474A7 Contact Us For Availability
43
Base w/Levelers (Lt or Rt) WPL 323929 Contact Us For Availability
43
WPL 324504 WPL 324504 Contact Us For Availability
44
Leg Leveler WPL 69065 Contact Us For Availability
44
WPL 320476 WPL 320476 Contact Us For Availability
44
WPL 321671 WPL 321671 Contact Us For Availability
44
WPL 321672 WPL 321672 Contact Us For Availability
44
WPL ARI11475A4 WPL ARI11475A4 Contact Us For Availability
45
Handle WPL 286357 Contact Us For Availability
45
WPL 325307 WPL 325307 Contact Us For Availability
45
WPL 325802 WPL 325802 Contact Us For Availability
45
WPL ARI11476A1 WPL ARI11476A1 Contact Us For Availability
46
WPL 313190 WPL 313190 Contact Us For Availability
47
WPL 239802 WPL 239802 Contact Us For Availability
48
Bake Element WPL 309359 Contact Us For Availability
49
Cover Plate WPL 324941 Contact Us For Availability
52
Guide-Oven Rack (Rt. or Lt.) WPL 305409 Contact Us For Availability
53
Broil WPL 316185 Contact Us For Availability
54
WPL 324808 WPL 324808 Contact Us For Availability
56
WPL 324305 WPL 324305 Contact Us For Availability
57
WPL 323931 WPL 323931 Contact Us For Availability
× ![]()
