Model Whirlpool 2700EEL ELECTRIC WALL OVEN – Common Parts & Diagrams

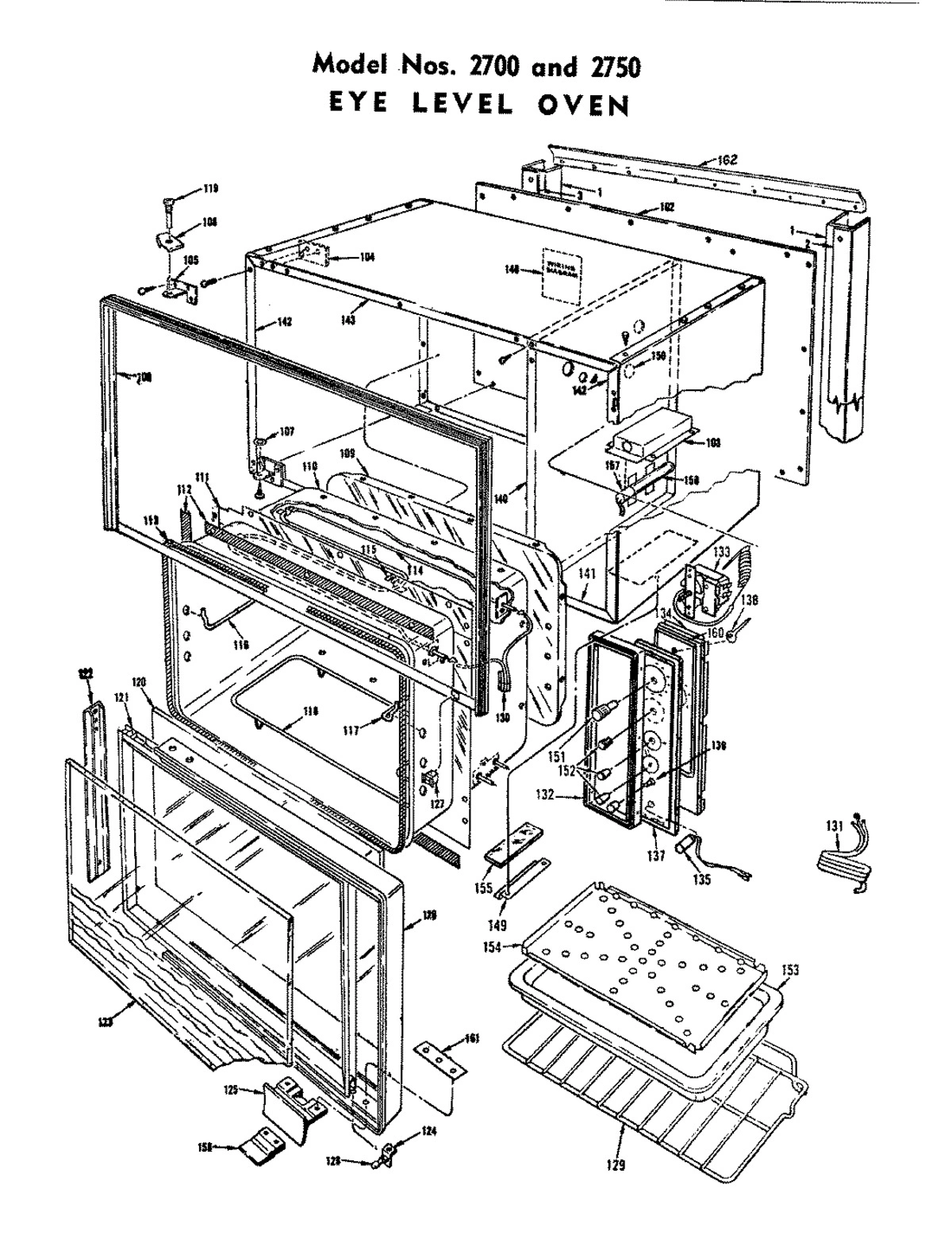

01 - OVEN
Common parts from model Whirlpool 2700EEL ELECTRIC WALL OVEN
1
REAR POST WPL 770032 Contact Us For Availability
2
POST OVERLAY WPL 770033 Contact Us For Availability
3
POST OVERLAY WPL 770034 Contact Us For Availability
102
CABINET BACK WPL 770082 Contact Us For Availability
103
LIGHT BOX WPL 770029 Contact Us For Availability
104
TAPPING PLATE WPL 770051 Contact Us For Availability
105
HINGE WPL 770050 Contact Us For Availability
106
PROTECTOR, TRIM WPL 778748 Contact Us For Availability
106
CABINET FRAME WPL 787240 Contact Us For Availability
107
GASKET WASHER WPL 770027 Contact Us For Availability
108
DOOR STOP WPL 770039 Contact Us For Availability
109
BACK, OVEN WPL 770083 Contact Us For Availability
109
BACK, OVEN WPL 770084 Contact Us For Availability
110
WRAPPER, OVEN WPL 770085 Contact Us For Availability
110
WRAPPER, OVEN WPL 770086 Contact Us For Availability
111
OVEN FRONT WPL 770063 Contact Us For Availability
112
MOLDING INSULATOR WPL 770016 Contact Us For Availability
112
INSULATOR, MOLDING WPL 770018 Contact Us For Availability
112
MOLDING INSULATOR WPL 770019 Contact Us For Availability
113
DOOR SEAL WPL 770058 Contact Us For Availability
114
BROIL UNIT, 208 V WPL 770066 Contact Us For Availability
114
BROIL ELEMENT WPL 770081 Contact Us For Availability
115
BROIL HOOD WPL 770020 Contact Us For Availability
116
GLIDE LH WPL 770073 Contact Us For Availability
117
GLIDE RH WPL 770072 Contact Us For Availability
118
ELEMENT 208V WPL 770065 Contact Us For Availability
118
BAKE ELEMENT WPL 770080 Contact Us For Availability
119
PIN, HINGE WPL 770037 Contact Us For Availability
120
INNER GLASS WPL 770070 Contact Us For Availability
121
DOOR SPACER WPL 770014 Contact Us For Availability
122
DOOR FRAME WPL 770023 Contact Us For Availability
123
OUTER GLASS WPL 770087 Contact Us For Availability
124
LATCH BRACKET WPL 770052 Contact Us For Availability
125
HANDLE, DOOR WPL 770040 Contact Us For Availability
126
FRAME, DOOR WPL 770024 Contact Us For Availability
127
DOOR CATCH WPL 770021 Contact Us For Availability
128
DOOR STRIKE WPL 770022 Contact Us For Availability
129
RACK, OVEN WPL 770074 Contact Us For Availability
130
HARNESS WPL 770088 Contact Us For Availability
131
CABLE, SUPPLY WPL 770064 Contact Us For Availability
132
PANEL FRAME WPL 770089 Contact Us For Availability
133
THERMOSTAT WPL 770090 Contact Us For Availability
134
CONTROL PANEL WPL 770091 Contact Us For Availability
135
PILOT LIGHT WPL 770092 Contact Us For Availability
137
PANEL LENS WPL 770093 Contact Us For Availability
138
POINTER WPL 770055 Contact Us For Availability
139
SWITCH CANOP WPL 770094 Contact Us For Availability
140
PARTITION WPL 770095 Contact Us For Availability
141
CABINET BOTTOM WPL 770048 Contact Us For Availability
142
CABINET END WPL 770046 Contact Us For Availability
143
TOP, CABINET WPL 770096 Contact Us For Availability
148
WIRE DIAGRAM WPL 770097 Contact Us For Availability
149
LENS RETAINER WPL 770031 Contact Us For Availability
150
BUTTON, PLUG WPL 770036 Contact Us For Availability
151
THERMOSTAT KNOB WPL 770059 Contact Us For Availability
152
KNOB WPL 770060 Contact Us For Availability
153
PAN, BROIL WPL 770078 Contact Us For Availability
154
BROIL GRID WPL 770079 Contact Us For Availability
155
LAMP LENS WPL 770035 Contact Us For Availability
156
BULB, LIGHT WPL 707090 Contact Us For Availability
157
LAMP SOCKET WPL 770030 Contact Us For Availability
158
DOOR SUPPORT WPL 770041 Contact Us For Availability
160
CLOCK WPL 770098 Contact Us For Availability
161
HANDLE NUT WPL 770026 Contact Us For Availability
162
HANGER PLATE WPL 770015 Contact Us For Availability
× ![]()
