Model LG 26LV255C – Common Parts & Diagrams

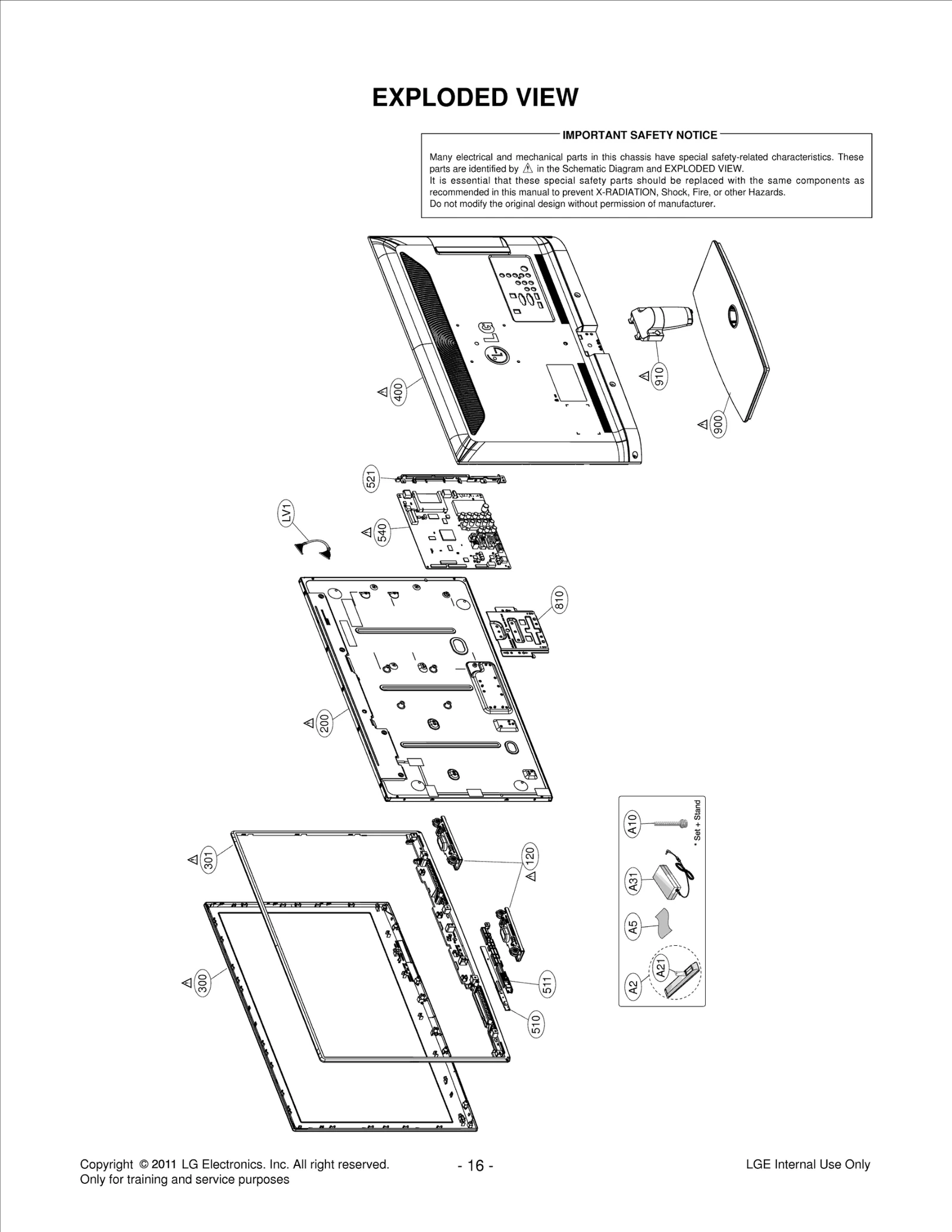

Diagram 0
Diagram 1
Common parts from model LG 26LV255C
120
Speaker,Full Range LGE EAB62088501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61753401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73328910 Contact Us For Availability
301
Cabinet LGE MBH62243401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ84673439 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671301 Contact Us For Availability
511
Bracket LGE MAZ62846402 Contact Us For Availability
521
Bracket LGE MAZ62846531 Contact Us For Availability
540
PCB Assembly LGE EBR74509801 Contact Us For Availability
810
Supporter LGE MJH62276502 Contact Us For Availability
900
Base Assembly LGE AAN73649613 Contact Us For Availability
910
Bracket Assembly LGE ABA73809606 Contact Us For Availability
A1
Manual,Owners LGE MFL62882741 Contact Us For Availability
A1
Manual,Owners LGE MFL62194621 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915266 Contact Us For Availability
A10
Screw,Machine LGE FAB30006405 Contact Us For Availability
A31
Adapters LGE EAY62289801 Contact Us For Availability
A31
Adapters LGE EAY62289901 Contact Us For Availability
A31
Adapters LGE EAY62290001 Contact Us For Availability
ADECFD
Label LGE 3850VK0001U Contact Us For Availability
AR1204
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR1218
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C242
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C248
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C529
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1108
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1205
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1451
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1663
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1911
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C1913
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C1917
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C1920
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C7502
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7522
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C7524
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C7526
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C7542
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C7559
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C7560
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C7925
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C7926
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C7952
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C10064
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
CA11
Harness,Single LGE EAD61059701 Contact Us For Availability
CA11
Harness,Single LGE EAD61646211 Contact Us For Availability
CA12
Harness,Single LGE EAD57675103 Contact Us For Availability
D902
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1625
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2405
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
D7500
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
GAS1
Gasket LGE MDS62110204 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61855201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC1001
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC1001
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1900
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC7503
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC7505
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC7507
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC7509
IC,Reset LGE EAN60670101 Contact Us For Availability
IC7951
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK1990
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK7500
Jack,DC Power LGE EAG61231301 Contact Us For Availability
JK9901
Jack,Phone LGE EAG61030002 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L7508
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L7513
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L7515
Filter,Bead LGE EAM58113401 Contact Us For Availability
L7517
Filter,Bead LGE EAM32500903 Contact Us For Availability
L7913
Inductor,Wire Wound,Chip LGE EAP61130001 Contact Us For Availability
L10055
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61651802 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P3904
Connector,Wafer LGE 6602T12004B Contact Us For Availability
P7901
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q7502
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7504
FET LGE EBK61311401 Contact Us For Availability
Q7506
FET LGE EBK60752501 Contact Us For Availability
Q7520
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q7522
FET LGE EBK60752601 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R853
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R881
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1089
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1223
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1621
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1910
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1990
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3752
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R3768
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4034
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R7507
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R7531
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R7538
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R7543
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R7544
RESISTOR,METAL GLAZE LGE 0RJ1053D477 Contact Us For Availability
R7547
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R7548
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R7556
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R7563
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R7566
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R7567
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R7570
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R7581
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R7956
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R7957
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R7958
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R9905
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
