Model LG 26LV2500 – Common Parts & Diagrams

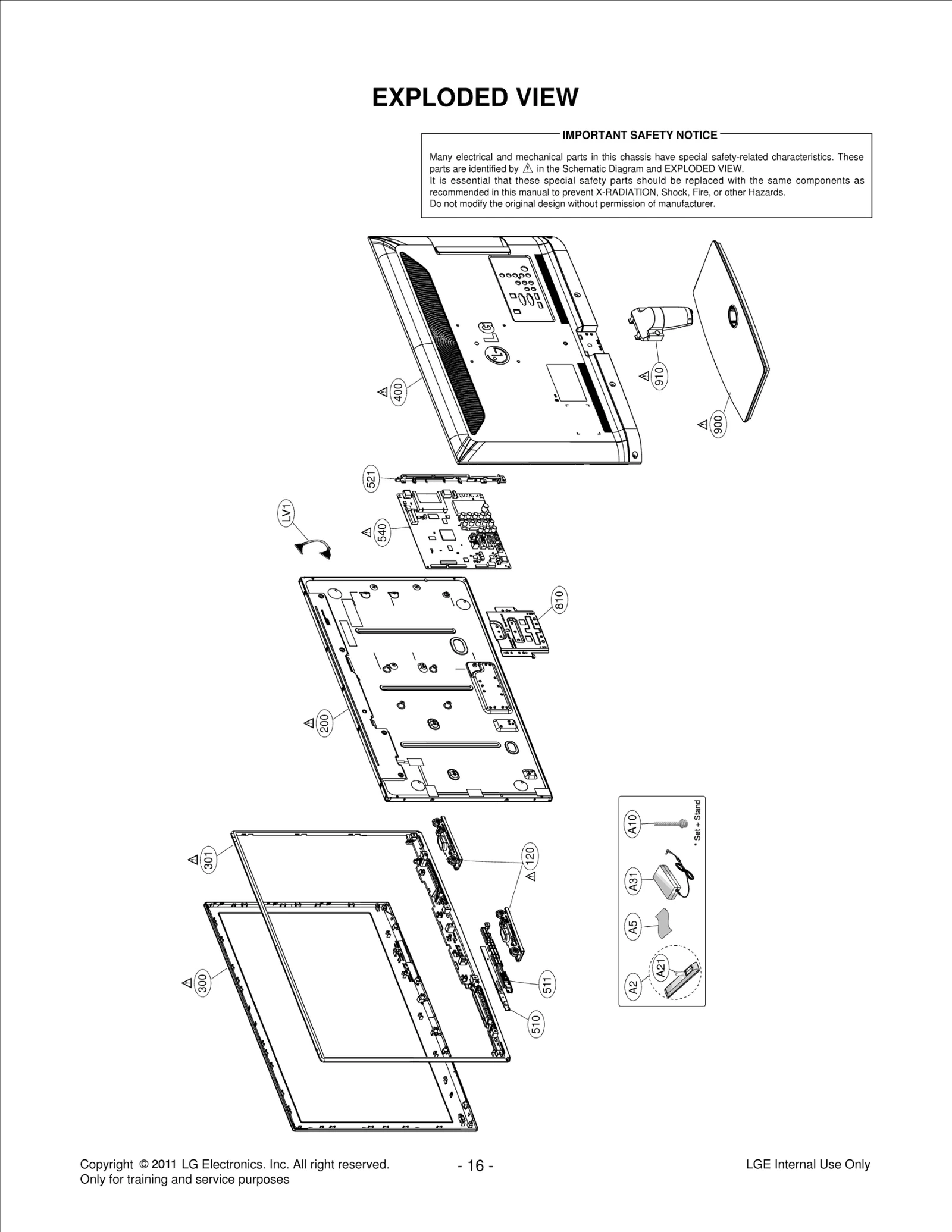

Diagram 0
Diagram 1
Common parts from model LG 26LV2500
120
Speaker,Full Range LGE EAB62088501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61751401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73328910 Contact Us For Availability
301
Cabinet LGE MBH62243401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ84673414 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671301 Contact Us For Availability
511
Bracket LGE MAZ62846402 Contact Us For Availability
540
BPR Insert PCB Assembly LGE EBR72914505 Contact Us For Availability
810
Supporter LGE MJH62276502 Contact Us For Availability
900
Base Assembly LGE AAN73649613 Contact Us For Availability
910
Bracket Assembly LGE ABA73809606 Contact Us For Availability
A1
Manual,Owners LGE MFL62882741 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw,Machine LGE FAB30006405 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
A31
Adapters LGE EAY62289801 Contact Us For Availability
A31
Adapters LGE EAY62290001 Contact Us For Availability
A31
Adapters LGE EAY62289901 Contact Us For Availability
AR103
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1202
Resistor,Array LGE EBC39283301 Contact Us For Availability
ASDFD
Pin,Customized LGE 366-017A Contact Us For Availability
C111
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C215
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C228
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C248
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C272
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C531
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1118
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1214
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1643
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1663
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C3703
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C7503
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C7507
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
C7522
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C7524
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C7527
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7536
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C7537
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C7566
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C7933
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C7953
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
CA10
Harness,Single LGE EAD61059701 Contact Us For Availability
CA11
Harness,Single LGE EAD61646211 Contact Us For Availability
CA12
Harness,Single LGE EAD57675103 Contact Us For Availability
D804
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D903
Diode,TVS LGE EAH42720601 Contact Us For Availability
D2402
Diode,TVS LGE EAH39491701 Contact Us For Availability
D2405
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
D7500
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
GAS1
Gasket LGE MDS62110204 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61855201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC804
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC804
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC1001
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61857201 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC7503
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC7505
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC7507
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC7509
IC,Reset LGE EAN60670101 Contact Us For Availability
IC7951
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC7952
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK7500
Jack,DC Power LGE EAG61231301 Contact Us For Availability
L205
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L423
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L423
Inductor,Wire Wound,Chip LGE EAP61206101 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1451
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L7508
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L7511
Filter,Bead LGE EAM58113401 Contact Us For Availability
L7517
Filter,Bead LGE EAM32500903 Contact Us For Availability
L7913
Inductor,Wire Wound,Chip LGE EAP61130001 Contact Us For Availability
LV1
Cable,FFC LGE EAD61651805 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P2402
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P7901
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1105
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q1106
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7504
FET LGE EBK61311401 Contact Us For Availability
Q7506
FET LGE EBK60752501 Contact Us For Availability
Q7506
FET LGE EBK61011501 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R452
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R881
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R887
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1015
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1220
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1224
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1615
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1620
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3741
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R3751
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R3760
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3766
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4035
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R7525
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R7531
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R7538
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R7543
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R7544
RESISTOR,METAL GLAZE LGE 0RJ1053D477 Contact Us For Availability
R7547
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R7548
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R7561
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R7562
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R7565
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R7570
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R7582
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R7861
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R7862
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R7954
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R7956
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R7957
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
