Model LG 26LN4500 – Common Parts & Diagrams

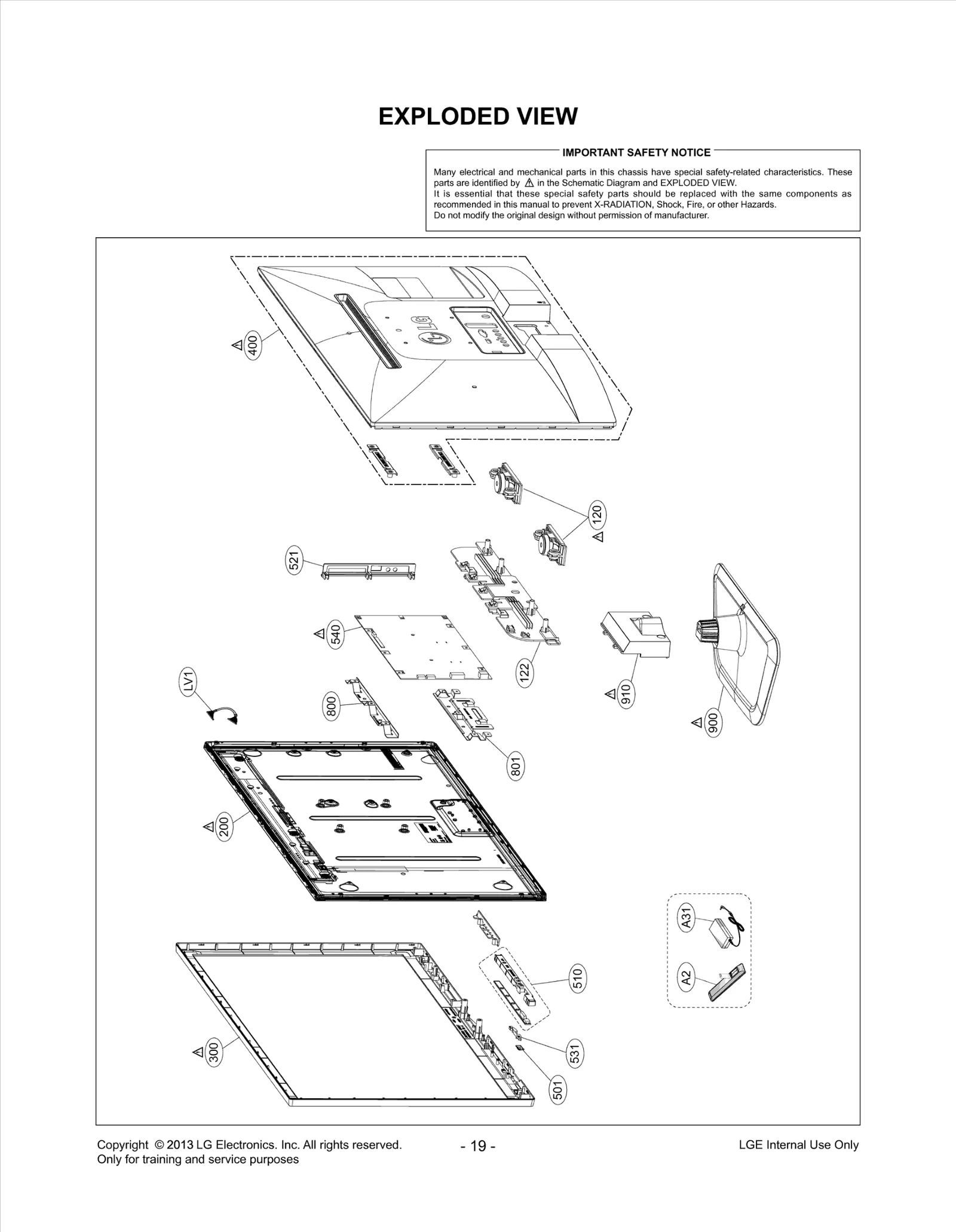

Diagram 0
Diagram 1
Common parts from model LG 26LN4500
120
Speaker,Full Range LGE EAB35995505 Contact Us For Availability
122
Cover LGE MCK67059004 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61751401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73949609 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86310313 Contact Us For Availability
501
Lens LGE MFB63033502 Contact Us For Availability
510
Package Assembly LGE AGF76500101 Contact Us For Availability
521
Cover LGE MCK67135004 Contact Us For Availability
531
Lens LGE MFB63013402 Contact Us For Availability
540
Package Assembly LGE AGF76718201 Contact Us For Availability
800
Plate,Metal LGE MGJ63422002 Contact Us For Availability
801
Plate,Metal LGE MGJ63366502 Contact Us For Availability
900
Base Assembly LGE AAN74254703 Contact Us For Availability
A31
Adapters LGE EAY61231405 Contact Us For Availability
C242
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C268
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C810
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C838
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C892
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D710
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
JK400
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
LV1
Cable,FFC LGE EAD62108509 Contact Us For Availability
R803
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
R815
Resistor,Chip LGE 0RH3003D622 Contact Us For Availability
× ![]()
