Model LG 26LD360L – Common Parts & Diagrams

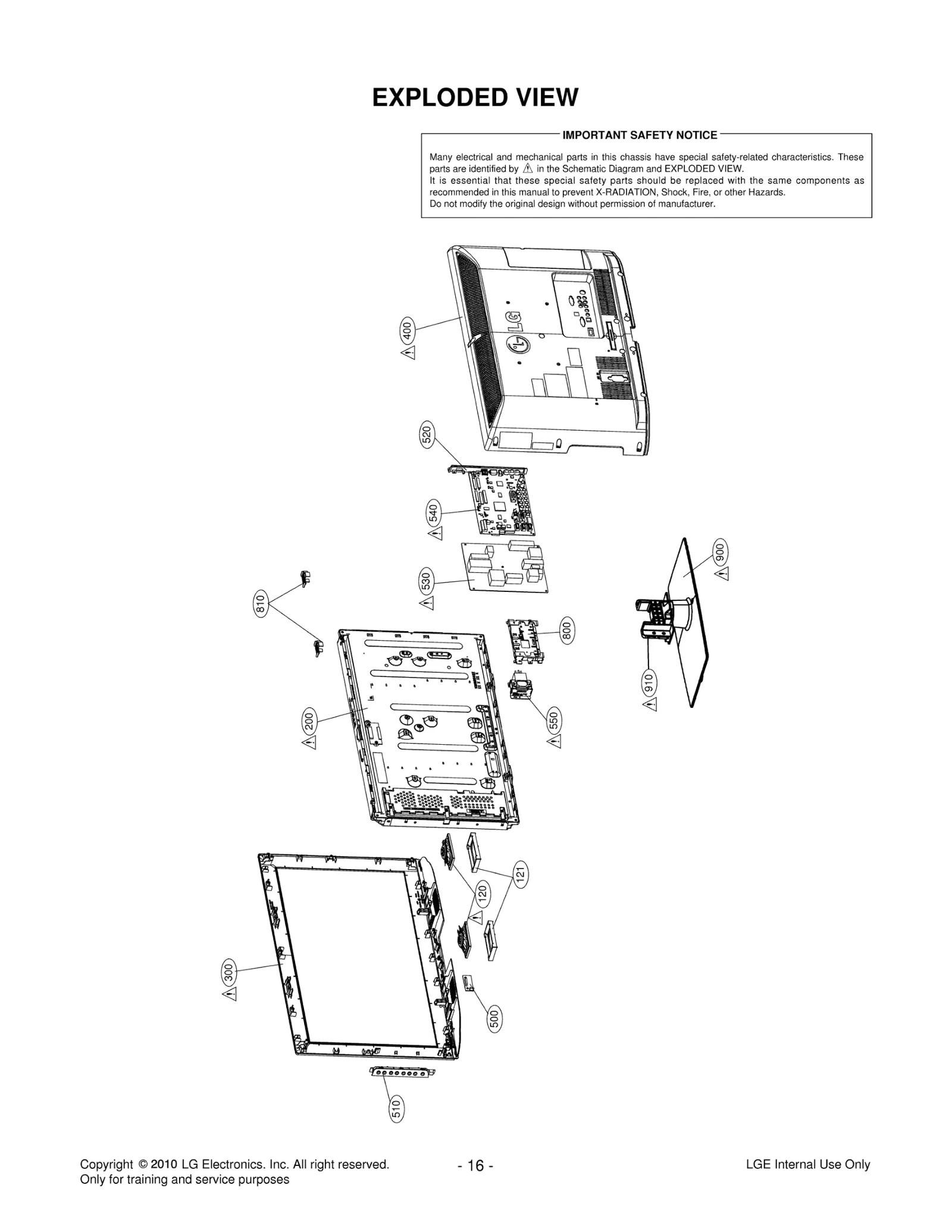

Diagram 0
Diagram 1
Common parts from model LG 26LD360L
120
Speaker,Full Range LGE EAB60961601 Contact Us For Availability
121
Bracket LGE MAZ61989202 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60889901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72926416 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75183031 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64965302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR69844101 Contact Us For Availability
520
Bracket Assembly LGE ABA73009521 Contact Us For Availability
530
Power Supply Assembly LGE EAY60868801 Contact Us For Availability
540
PCB Assembly,Main LGE EBR69474601 Contact Us For Availability
550
Filter,AC Line LGE EAM60352209 Contact Us For Availability
800
Supporter LGE MJH61884102 Contact Us For Availability
810
Supporter LGE MJH61887603 Contact Us For Availability
900
Base Assembly LGE AAN72947815 Contact Us For Availability
910
Bracket LGE MAZ61981003 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73075301 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A7
Cover LGE MCK62764104 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C187
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C617
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C657
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C665
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1003
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1004
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1038
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1070
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1076
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1127
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1230
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1239
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C5000
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C5006
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5012
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5020
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
CA1
Harness,Single LGE EAD60673305 Contact Us For Availability
CA2
Harness,Single LGE EAD52821207 Contact Us For Availability
CA3
Harness,Single LGE EAD61049702 Contact Us For Availability
CA4
Harness,Single LGE 6631T20029J Contact Us For Availability
CA4
Harness,Single LGE EAD60676302 Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D7703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D9801
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC602
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC2301
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC5001
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC7701
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1106
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK3302
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK9800
Jack,RCA LGE EAG61008003 Contact Us For Availability
L414
Filter,Bead LGE EAM58042501 Contact Us For Availability
L424
Filter,Bead LGE EAM58113401 Contact Us For Availability
L605
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61070402 Contact Us For Availability
P403
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P2401
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P3000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q7701
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7703
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R32
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R182
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R409
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R483
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R612
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R619
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R810
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1063
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1107
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R1137
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1299
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2110
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2301
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R2405
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2414
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R5008
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R7745
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R7748
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R7755
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7756
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW3006
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
VR7700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD503
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD505
Diode,Zener LGE EAH37908001 Contact Us For Availability
× ![]()
