Model LG 26LC7D – Common Parts & Diagrams

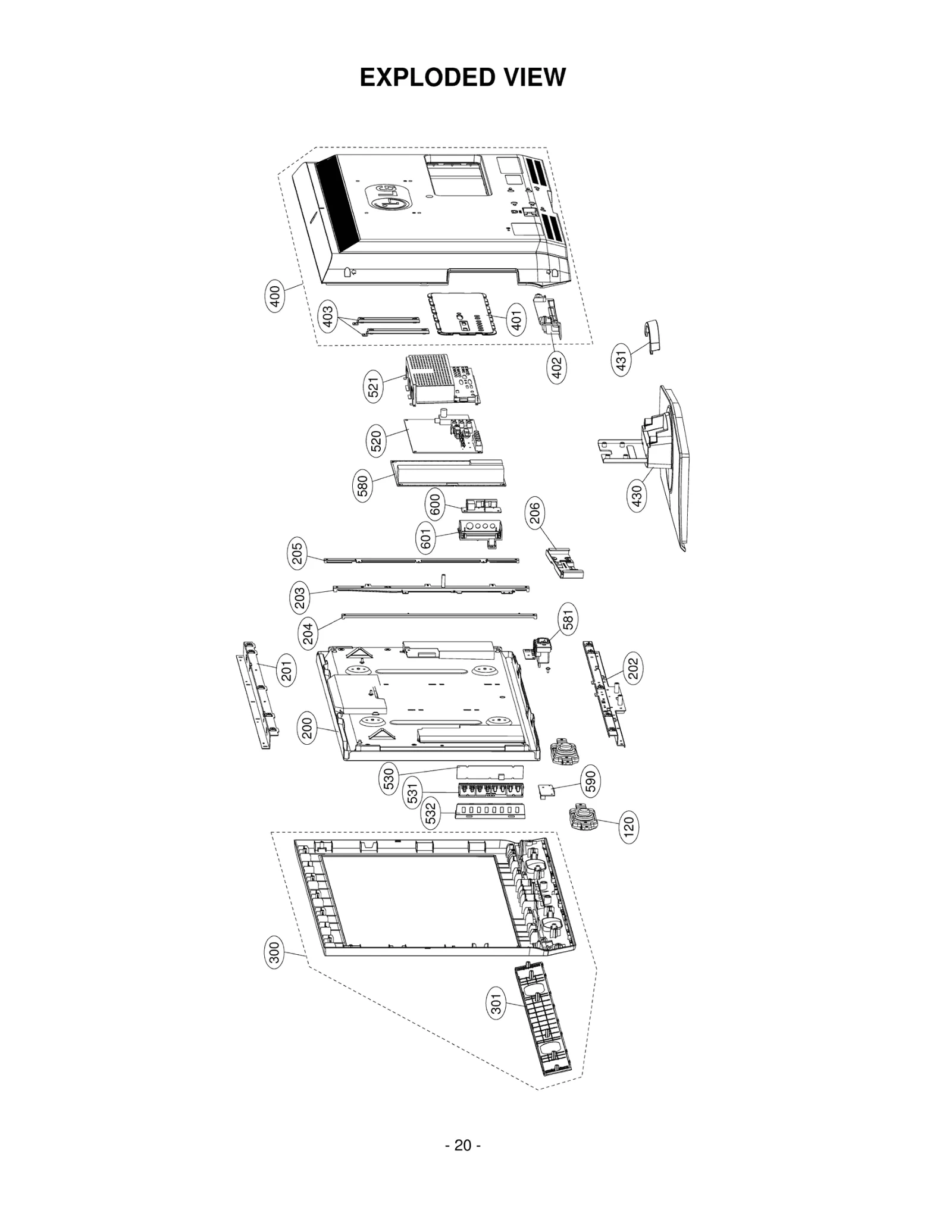

Diagram 0
Diagram 1
Common parts from model LG 26LC7D
120
Speaker,Full Range LGE EAB30826701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ41476801 Contact Us For Availability
201
Plate LGE MGJ32424603 Contact Us For Availability
202
Plate LGE MGJ32424707 Contact Us For Availability
203
Plate LGE MGJ32424901 Contact Us For Availability
204
Plate LGE MGJ32425001 Contact Us For Availability
206
Plate,Metal LGE MGJ33990401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32488705 Contact Us For Availability
301
Bracket Assembly LGE ABA32699202 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32380012 Contact Us For Availability
401
Cover LGE MCK36577102 Contact Us For Availability
402
Cover,Rear LGE MCK34645301 Contact Us For Availability
403
Plate LGE MGJ32425801 Contact Us For Availability
430
Base Assembly LGE AAN32698603 Contact Us For Availability
431
Cover LGE MCK32425401 Contact Us For Availability
520
Main Total Assembly LGE EBU36575504 Contact Us For Availability
521
Plate,Shield LGE MGJ32918105 Contact Us For Availability
530
PCB Assembly LGE EBR36582802 Contact Us For Availability
531
Button LGE MBG32421501 Contact Us For Availability
532
Cover LGE MCK32424401 Contact Us For Availability
580
SMPS,AC/DC LGE EAY33030301 Contact Us For Availability
581
Chassis Assembly LGE EBT36230503 Contact Us For Availability
590
PCB Assembly LGE EBR36582502 Contact Us For Availability
600
PCB Assembly LGE EBR36583502 Contact Us For Availability
601
Cover LGE MCK32547704 Contact Us For Availability
A1
Manual,Owners LGE MFL37734801 Contact Us For Availability
A2
Remote Controller LGE MKJ32022831 Contact Us For Availability
A3
Power Cord LGE EAD36444601 Contact Us For Availability
A4
Title LGE SAC30653103 Contact Us For Availability
A5
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
AR176
RESISTOR,METAL GLAZE LGE 0RJ4701C687 Contact Us For Availability
AR406
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR700
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR943
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR961
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C2
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C4
Capacitor,AL,Chip LGE 0CE476VF6DC Contact Us For Availability
C119
CAPACITOR,FIXED CERA LGE 0CC271CK41A Contact Us For Availability
C128
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C322
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C404
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C602
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C649
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C659
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C682
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C685
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C689
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
C741
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C761
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C821
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C836
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C901
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C904
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C914
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C970
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C984
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1016
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C1110
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C1128
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C1134
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C1210
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1214
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1221
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1226
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C1237
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C1245
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1246
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1303
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1317
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1403
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1411
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1502
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C1512
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C1515
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C1528
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
D600
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D800
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC100
IC,Microprocessors LGE 0IMCRSS016A Contact Us For Availability
IC102
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC200
S/W,Firmware LGE SAA31013807 Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMR00141A Contact Us For Availability
IC300
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC301
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC304
IC LGE 0IPH741400E Contact Us For Availability
IC401
IC,Microprocessors LGE 0ICTMLG009F Contact Us For Availability
IC501
IC,SDRAM LGE 0IMMR00230A Contact Us For Availability
IC505
IC,CUSTOMIZED LGE 0ICTMLG013B Contact Us For Availability
IC603
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC700
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC703
IC,A/D Converter LGE 0IPRP00696E Contact Us For Availability
IC704
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC706
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC707
IC,Analog Switch LGE EAN32724701 Contact Us For Availability
IC900
IC,Video Processors LGE 0ISA721700C Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPNE011B Contact Us For Availability
IC903
IC,SDRAM LGE EAN32236001 Contact Us For Availability
IC904
IC,POWER MANAGEMENT LGE 0IPMG00028A Contact Us For Availability
IC1001
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC1100
IC,MICRO CONTROLLER LGE 0IMCRMN028C Contact Us For Availability
IC1200
IC,Audio Amplifier LGE EAN32404601 Contact Us For Availability
IC1200
IC,Audio Amplifier LGE EAN32404602 Contact Us For Availability
IC1300
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC1303
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC1401
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC1402
S/W,Firmware LGE SAA30679403 Contact Us For Availability
IC1500
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC1501
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
J600
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
J603
Jack,Complex LGE 6612J00062H Contact Us For Availability
J604
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J606
Jack,RCA LGE 6612J10043A Contact Us For Availability
J607
Jack,RCA LGE EAG35542201 Contact Us For Availability
J800
Jack,Complex LGE 6612J10025A Contact Us For Availability
L710
FILTER(CIRC),EMC LGE 6200J00005T Contact Us For Availability
L900
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L1002
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1205
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L1301
INDUCTOR,CHIP LGE 0LC2000005J Contact Us For Availability
L1303
INDUCTOR,CHIP LGE 0LCML00020C Contact Us For Availability
LED1
LED LGE 0DLBE0138AA Contact Us For Availability
LED1500
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD35683002 Contact Us For Availability
P1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P2
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P1200
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P1300
PWB(PCB) ASSEMBLY,SU LGE 6871VSMFA8A Contact Us For Availability
P1400
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P1500
WAFER LGE 6602T25008J Contact Us For Availability
P1501
WAFER LGE 6602T25008M Contact Us For Availability
Q705
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q804
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1107
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
R1
Resistor,Carbon Film LGE 0RD9101F609 Contact Us For Availability
R3
Resistor,Carbon Film LGE 0RD1101F509 Contact Us For Availability
R8
Resistor,Carbon Film LGE 0RD0101F609 Contact Us For Availability
R9
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R436
RESISTOR,METAL GLAZE LGE 0RJ1820D477 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R673
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R734
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R760
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R777
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R787
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R846
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R852
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R910
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R920
Resistor,Chip LGE 0RZZ000067A Contact Us For Availability
R928
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R936
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R967
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R971
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1101
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R1112
Resistor,Chip LGE 0RJ0432C678 Contact Us For Availability
R1146
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R1161
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1207
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1213
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R1217
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1304
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R1312
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1320
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R1322
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1326
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1400
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R1451
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R1470
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R2613
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2631
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R2725
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R3074
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R3100
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
S2
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
S3
Harness,Single LGE 6631900018H Contact Us For Availability
S4
CONNECTOR ASSEMBLY LGE 6631T25026C Contact Us For Availability
S5
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
S7
CONNECTOR ASSEMBLY LGE 6631900050B Contact Us For Availability
S8
Cable,Assembly LGE 68509A0004T Contact Us For Availability
S9
Harness,Single LGE 6631900013J Contact Us For Availability
S10
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
S11
Harness,Single LGE 6631T20032A Contact Us For Availability
S12
Harness,Single LGE EAD30302101 Contact Us For Availability
S13
Harness,Single LGE 6631900048B Contact Us For Availability
TU800
Tuner,Digital LGE EBL32961505 Contact Us For Availability
VR701
VARISTOR LGE 6102W5V016A Contact Us For Availability
X700
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X900
Resonator,Ceramic LGE 166-E02F Contact Us For Availability
X901
RESONATOR,CRYSTAL LGE 6212AB2873A Contact Us For Availability
X1100
Crystal LGE 6202VDT002H Contact Us For Availability
ZD300
DIODE,ZENERS LGE 0DZRM00448A Contact Us For Availability
ZD601
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
ZD628
Diode,TVS LGE EAH33946001 Contact Us For Availability
ZD1100
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
Login and Registration Form
