Model LG 25UM64-S – Common Parts & Diagrams

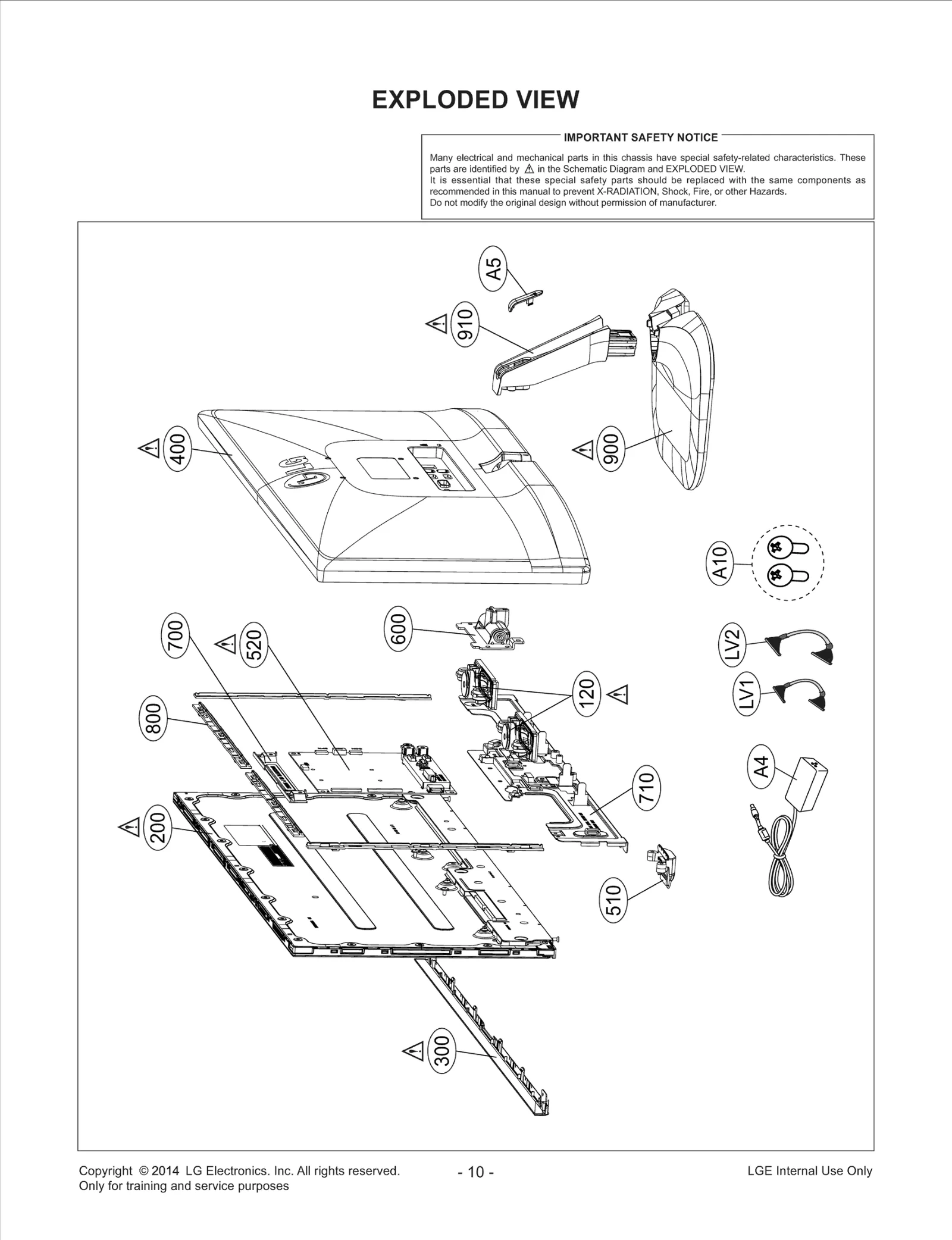

Diagram 0
Diagram 1
Common parts from model LG 25UM64-S
200
LCD,Module-TFT LGE EAJ62608801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74227205 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR78510101 Contact Us For Availability
520
BPR Total Assembly LGE EBU62523401 Contact Us For Availability
600
Bracket Assembly LGE ABA74768301 Contact Us For Availability
700
Plate,Metal LGE MGJ63723001 Contact Us For Availability
710
Frame Assembly LGE ADV74726301 Contact Us For Availability
800
Cover LGE MCK67880701 Contact Us For Availability
910
Base Assembly LGE AAN74589301 Contact Us For Availability
A1
Title LGE SAC35933712 Contact Us For Availability
A4
Adapters LGE EAY63248601 Contact Us For Availability
A5
Cover LGE MCK67881101 Contact Us For Availability
A10
Screw,Machine LGE FAB30006505 Contact Us For Availability
A11
Title LGE SAC35953812 Contact Us For Availability
C1
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C127
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C524
Capacitor,AL,Chip LGE EAE62721801 Contact Us For Availability
C532
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C541
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C622
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C624
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C637
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C643
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C648
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C666
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
D500
Diode,Schottky LGE EAH61533501 Contact Us For Availability
IC100
Display SOC,Monitor LGE EAN62953801 Contact Us For Availability
IC101
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC102
IC,Multiplexer LGE EAN62672601 Contact Us For Availability
IC201
S/W,Firmware LGE SAA37321901 Contact Us For Availability
IC501
IC,LED Driver LGE EAN62793801 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN62794401 Contact Us For Availability
IC600
IC,CMOS LGE EAN61668501 Contact Us For Availability
IC601
IC,Audio Amplifier LGE EAN62698401 Contact Us For Availability
IC906
IC,Voltage Detector LGE EAN38061701 Contact Us For Availability
JK100
Connector,DisplayPort LGE EAG63411302 Contact Us For Availability
JK101
Connector,DSUB LGE EAG61491201 Contact Us For Availability
JK103
Connector,DSUB LGE EAG62890503 Contact Us For Availability
JK600
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK601
Jack,Phone LGE EAG60841806 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L506
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
L513
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L514
Inductor,Wire Wound,Chip LGE EAP38274506 Contact Us For Availability
L603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LD2
LED,Chip LGE EAV59915401 Contact Us For Availability
LV1
Cable,FFC LGE EAD62571701 Contact Us For Availability
M1
Plate,Shield LGE MGJ63722701 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P202
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q200
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q506
FET LGE EBK60752601 Contact Us For Availability
R5
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R546
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R577
Resistor,Chip LGE EBC61055901 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R638
Resistor,Chip LGE EBC32476501 Contact Us For Availability
S1
Harness,Single LGE EAD56480806 Contact Us For Availability
S2
Harness,Single LGE EAD61646211 Contact Us For Availability
S3
Harness,Single LGE EAD61729404 Contact Us For Availability
S4
Cable,Assembly LGE EAD00926103 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
ZD501
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
