Model LG 25GR75FG-B – Common Parts & Diagrams

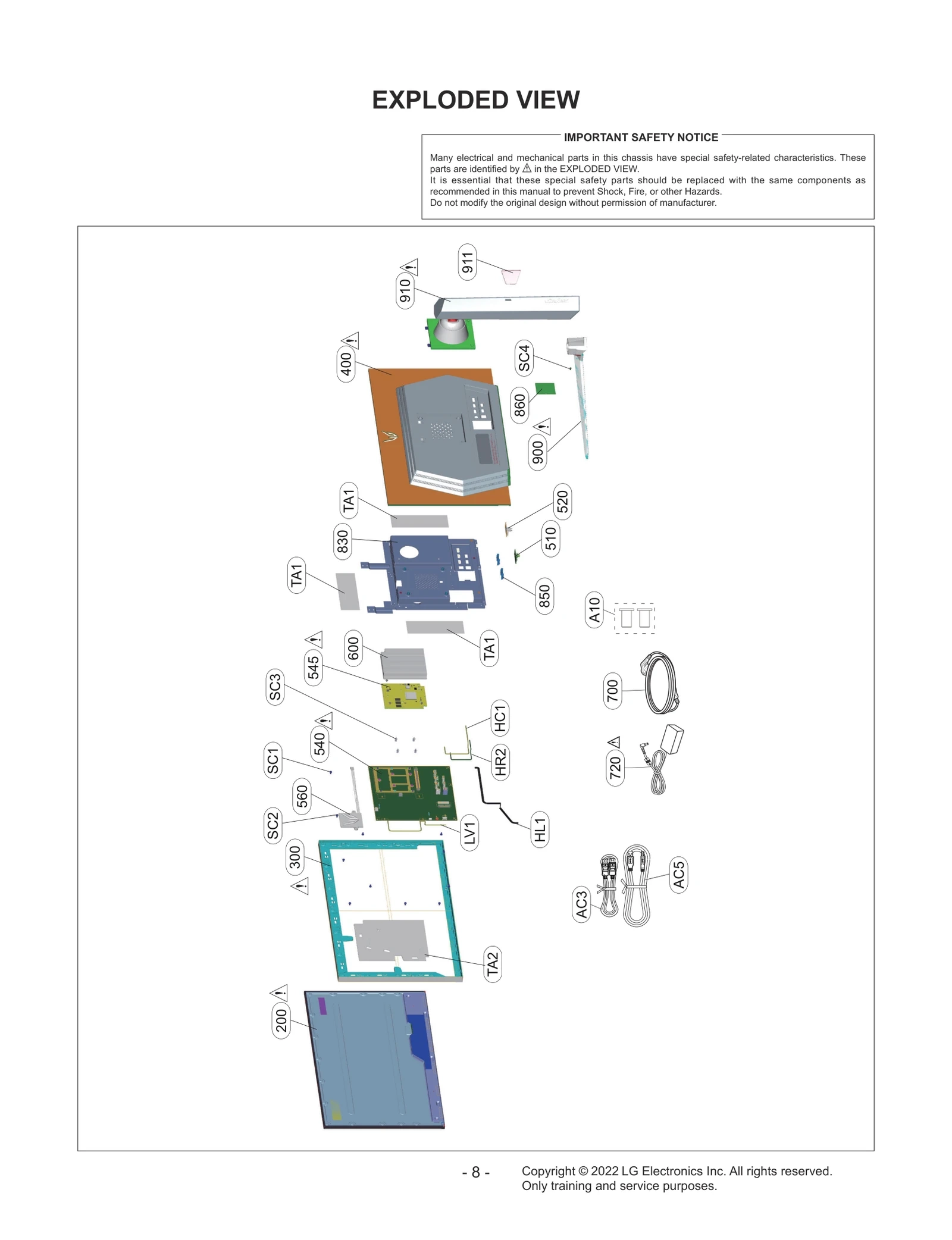

Diagram 0
Common parts from model LG 25GR75FG-B
300
Cabinet Assembly,Outsourcing LGE COV37348101 Contact Us For Availability
400
Cover Assembly,Outsourcing LGE COV37348201 Contact Us For Availability
510
PCB,Sub,Outsourcing LGE COV37363501 Contact Us For Availability
520
PCB,Sub,Outsourcing LGE COV37366101 Contact Us For Availability
540
PCB Assembly,Main,Outsourcing LGE COV37278801 Contact Us For Availability
545
PCB Assembly,Module,Outsourcing LGE COV37537301 Contact Us For Availability
560
Lighting Module,Outsourcing LGE COV37362701 Contact Us For Availability
600
Heat Sink Assembly,Outsourcing LGE COV37366201 Contact Us For Availability
720
Adapters,Desktop LGE EAY63032212 Contact Us For Availability
830
Plate,Metal,Outsourcing LGE COV37363301 Contact Us For Availability
850
Cover,Outsourcing LGE COV37348701 Contact Us For Availability
860
Cover,PCB,Outsourcing LGE COV37348401 Contact Us For Availability
900
Base Assembly,Outsourcing LGE COV37348601 Contact Us For Availability
910
Base Assembly,Outsourcing LGE COV37348501 Contact Us For Availability
911
Cover,Outsourcing LGE COV37366901 Contact Us For Availability
A10
Screw,Outsourcing LGE COV37424701 Contact Us For Availability
HC1
Harness Assembly,Outsourcing LGE COV37363201 Contact Us For Availability
HL1
Harness Assembly,Outsourcing LGE COV37363001 Contact Us For Availability
HR2
Harness Assembly,Outsourcing LGE COV37363101 Contact Us For Availability
LV1
FFC Cable,Outsourcing LGE COV37362801 Contact Us For Availability
SC2
Screw,Outsourcing LGE COV37424501 Contact Us For Availability
SC3
Screw,Outsourcing LGE COV37424301 Contact Us For Availability
TA1
Tape,Outsourcing LGE COV37363401 Contact Us For Availability
TA2
Tape,Outsourcing LGE COV37424401 Contact Us For Availability
× ![]()
