Model Electrolux 2539750555B Room Air Conditioner (Kenmore 2539750555B) – Common Parts & Diagrams

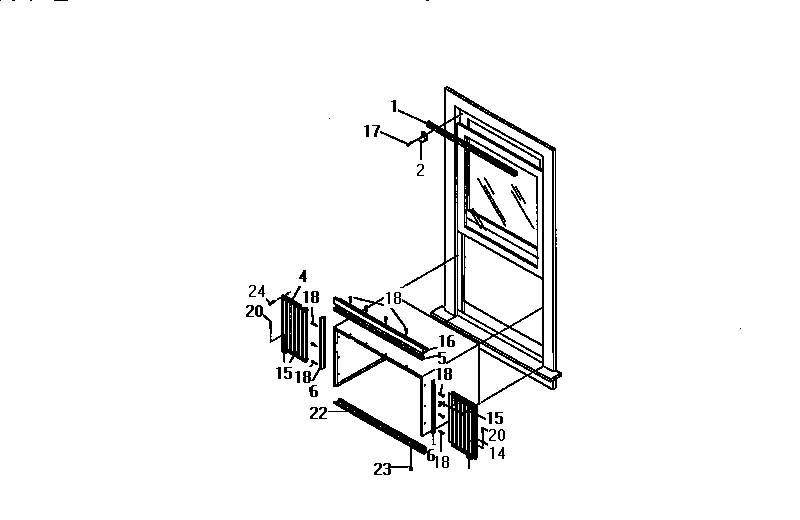

WINDOW MOUNTING

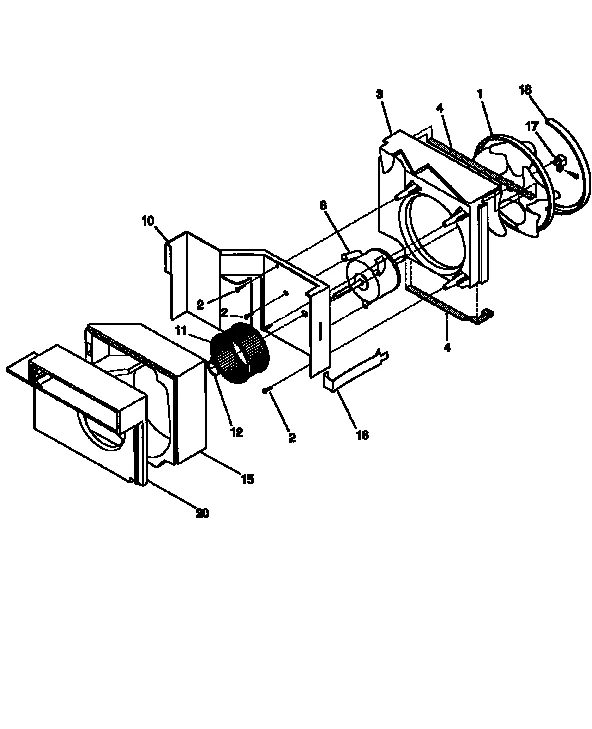

AIR HANDLING
CONTROL PANEL
WRAPPER
All Parts
COMPRESSOR
Common parts from model Electrolux 2539750555B Room Air Conditioner (Kenmore 2539750555B)
1
Room Air Conditioner Condenser Fan WCI 5303270893 Contact Us For Availability
1
Wrapper WCI 5303302856 Contact Us For Availability
1
Compressor WCI 5303291331 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Sgroud WCI 5303270041 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Seal WCI 5303270043 Contact Us For Availability
5
Seal WCI 08016226 Contact Us For Availability
6
Room Air Conditioner Accordion Rail WCI 5303303795 Contact Us For Availability
6
Gasket WCI 5303291330 Contact Us For Availability
7
Control Box WCI 309602502 Contact Us For Availability
7
Louver Link WCI 5303303089 Contact Us For Availability
7
Control Cover WCI 5303291329 Contact Us For Availability
8
Fan Motor WCI 309615701 Contact Us For Availability
8
Room Air Conditioner Selector Switch WCI 5303316702 Contact Us For Availability
8
Louver WCI 309603908 Contact Us For Availability
8
Overload WCI 5303209085 Contact Us For Availability
9
Temperature Control WCI 5303302852 Contact Us For Availability
9
Louver Vertical Vane WCI 5303303087 Contact Us For Availability
9
Nut WCI 5303294292 Contact Us For Availability
10
Bulkhead WCI 309602401 Contact Us For Availability
10
Louver Vertical Vane WCI 5303303088 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309603301 Contact Us For Availability
11
Evaporator WCI 5303310374 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Clip-control Bulb WCI 309101202 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 5303307228 Contact Us For Availability
12
Condenser WCI 5303307226 Contact Us For Availability
13
Capacitor WCI 5303303124 Contact Us For Availability
13
Evaporator Tray WCI 5303302849 Contact Us For Availability
14
Frame WCI 5303302861 Contact Us For Availability
14
Base WCI 5303302847 Contact Us For Availability
15
Panel WCI 5303270075 Contact Us For Availability
15
Scroll WCI 5303302851 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
16
Rail WCI 5303302859 Contact Us For Availability
16
Clip Scroll WCI 309100201 Contact Us For Availability
16
Tube WCI 5308017120 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Cord Electrical WCI 5303317236 Contact Us For Availability
17
FRONT, CABINET, COMPLETE WCI 5309603627 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
18
Deflector WCI 5303270042 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
Door WCI 309304605 Contact Us For Availability
19
Cover Capacitor WCI 5303302855 Contact Us For Availability
19
Dial Plate WCI 309613513 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
20
Scroll Plate WCI 5303303573 Contact Us For Availability
20
Sleeve WCI 5303002600 Contact Us For Availability
20
Room Air Conditioner Control Knob WCI 5303307224 Contact Us For Availability
20
Spring Overlay WCI 5303291328 Contact Us For Availability
21
Washer WCI 5303293809 Contact Us For Availability
22
Rail WCI 5303302857 Contact Us For Availability
23
Screw WCI 3001806 Contact Us For Availability
24
Room Air Conditioner Screw WCI 5308002974 Contact Us For Availability
25
Door Vent WCI 5303302867 Contact Us For Availability
26
Handle Vent WCI 309100509 Contact Us For Availability
28
Front Clip WCI 309100401 Contact Us For Availability
NI
Service Data Sheet WCI 309000012 Contact Us For Availability
NI
Owner's Manual WCI 309000807 Contact Us For Availability
NI
Installation Instructions WCI 5303303809 Contact Us For Availability
NI
Seal Control WCI 5303304090 Contact Us For Availability
NI
Parts List WCI 5995298519 Contact Us For Availability
× ![]()
