Model Electrolux 2538791292-AC Room Air Conditioner (Kenmore 2538791292-AC) – Common Parts & Diagrams
WINDOW MOUNTING PARTS
COMPRESSOR PARTS
All Parts

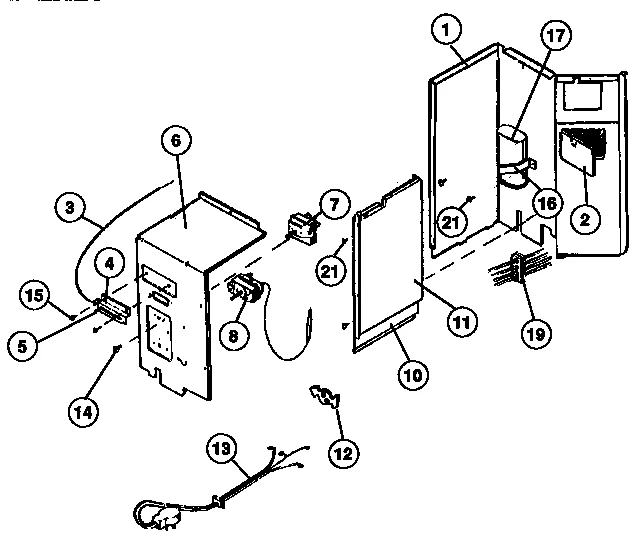

ELECTRICAL SYSTEM AND UNIT PARTS

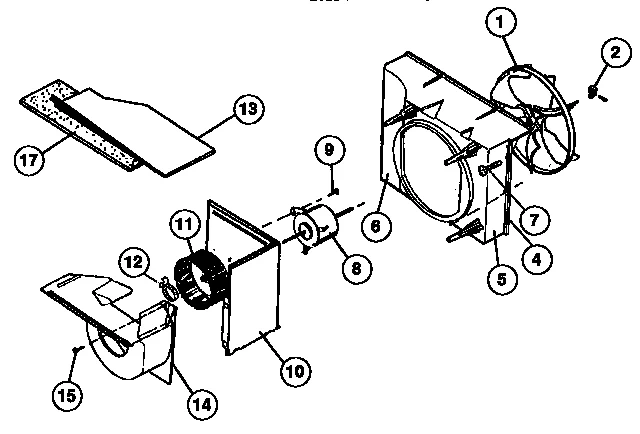

AIR SYSTEM HANDLING PARTS

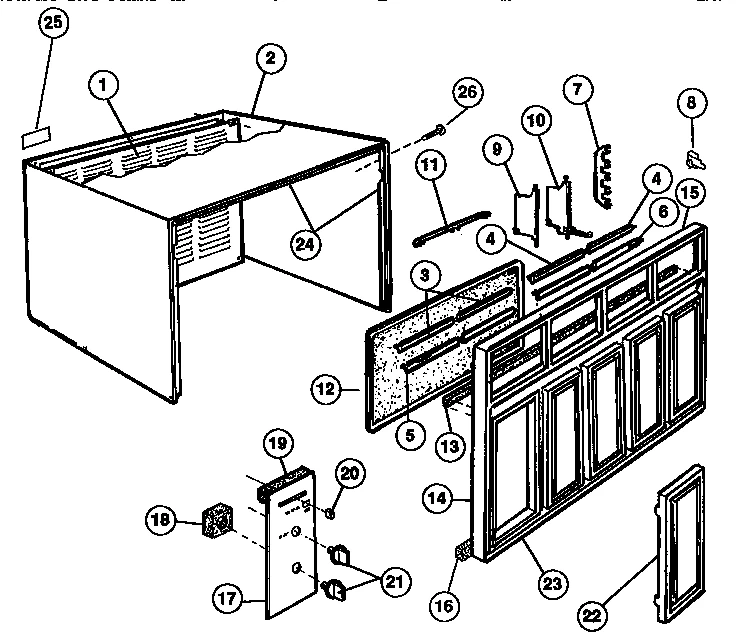

CABINET AND FRONT PANEL PARTS
Common parts from model Electrolux 2538791292-AC Room Air Conditioner (Kenmore 2538791292-AC)
1
Compressor WCI 5303207198 Contact Us For Availability
1
Pactition WCI 5303210984 Contact Us For Availability
1
Blade WCI 5303202954 Contact Us For Availability
1
Grille WCI 5303301033 Contact Us For Availability
2
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
2
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
2
Wrapper WCI 5303301242 Contact Us For Availability
3
Screw WCI 3007756 Contact Us For Availability
3
Grommet WCI 530328377 Contact Us For Availability
3
Cable WCI 5303015298 Contact Us For Availability
3
Shroud WCI 5303270106 Contact Us For Availability
3
Louver WCI 3202318 Contact Us For Availability
4
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
4
Washer WCI 5303002664 Contact Us For Availability
4
Retainer WCI 5303202999 Contact Us For Availability
4
Seal WCI 5303207363 Contact Us For Availability
4
Louver WCI 3202319 Contact Us For Availability
5
Nut WCI 3007759 Contact Us For Availability
5
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
5
Arm WCI 3202941 Contact Us For Availability
5
Seal WCI 5303207364 Contact Us For Availability
5
Louver WCI 3202320 Contact Us For Availability
6
Terminal Cover WCI 3206230 Contact Us For Availability
6
Panel WCI 5303293521 Contact Us For Availability
6
Seal WCI 5303207365 Contact Us For Availability
6
Louver WCI 3202321 Contact Us For Availability
7
Room Air Conditioner Rotary Switch WCI 3017344 Contact Us For Availability
7
Screw WCI 3002735 Contact Us For Availability
7
Gasket WCI 5303272298 Contact Us For Availability
7
Link WCI 3202322 Contact Us For Availability
8
Screw WCI 3002801 Contact Us For Availability
8
Protector WCI 3016697 Contact Us For Availability
8
Room Air Conditioner Thermostat WCI 5303015319 Contact Us For Availability
8
Clip WCI 3200446 Contact Us For Availability
9
Frame-lh WCI 5303301245 Contact Us For Availability
9
Base WCI 5303301243 Contact Us For Availability
9
Louver WCI 3202324 Contact Us For Availability
10
Room Air Conditioner Accordion Filler WCI 5303301247 Contact Us For Availability
10
Tray WCI 5303210203 Contact Us For Availability
10
Divider WCI 3202962 Contact Us For Availability
10
Partition WCI 5303295238 Contact Us For Availability
10
Louver WCI 3202325 Contact Us For Availability
11
Support- Rh WCI 5303301254 Contact Us For Availability
11
Evaporator WCI 3202947 Contact Us For Availability
11
Insulation WCI 3202963 Contact Us For Availability
11
Wheel WCI 5303201132 Contact Us For Availability
11
Louver WCI 3202326 Contact Us For Availability
12
Support- Lh WCI 5303301255 Contact Us For Availability
12
Condenser WCI 5303207195 Contact Us For Availability
12
Clip-control Bulb WCI 5303017914 Contact Us For Availability
12
Air Filter WCI 5303293524 Contact Us For Availability
13
Rail WCI 5303301251 Contact Us For Availability
13
Tube WCI 5308017120 Contact Us For Availability
13
Cord WCI 5303301023 Contact Us For Availability
13
Cover WCI 3202957 Contact Us For Availability
13
Mullion Seal WCI 3018550 Contact Us For Availability
14
Seal WCI 5303207200 Contact Us For Availability
14
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
14
Screw WCI 5303007754 Contact Us For Availability
14
Scroll WCI 3202956 Contact Us For Availability
14
Room Air Conditioner Louver Frame Seal WCI 5303207203 Contact Us For Availability
15
Retainer WCI 5303301250 Contact Us For Availability
15
Startr Kit WCI 5303201723 Contact Us For Availability
15
Seal WCI 3018407 Contact Us For Availability
16
Frame- Rh WCI 5303301246 Contact Us For Availability
16
Strap WCI 5303015323 Contact Us For Availability
16
Bottom Seal WCI 5303207204 Contact Us For Availability
17
Capacitor WCI 5308017135 Contact Us For Availability
17
Cover WCI 3202958 Contact Us For Availability
17
Plate WCI 3202519 Contact Us For Availability
18
Spacer WCI 5303001775 Contact Us For Availability
19
Harness WCI 5303202961 Contact Us For Availability
19
Seal WCI 5303001984 Contact Us For Availability
20
Knob WCI 5303201650 Contact Us For Availability
21
Knob WCI 5303201649 Contact Us For Availability
22
Door WCI 5303207186 Contact Us For Availability
23
Front-comp WCI 5303299903 Contact Us For Availability
24
Seal WCI 5303270116 Contact Us For Availability
25
Nameplate WCI 5303299902 Contact Us For Availability
26
Screw WCI 5303293523 Contact Us For Availability
NI
Data Sheet WCI 5303207183 Contact Us For Availability
NI
Owner's Manual WCI 5303292739 Contact Us For Availability
NI
Wrapper Seal WCI 5303301038 Contact Us For Availability
NI
Parts Catalog WCI 5995244125 Contact Us For Availability
× ![]()
