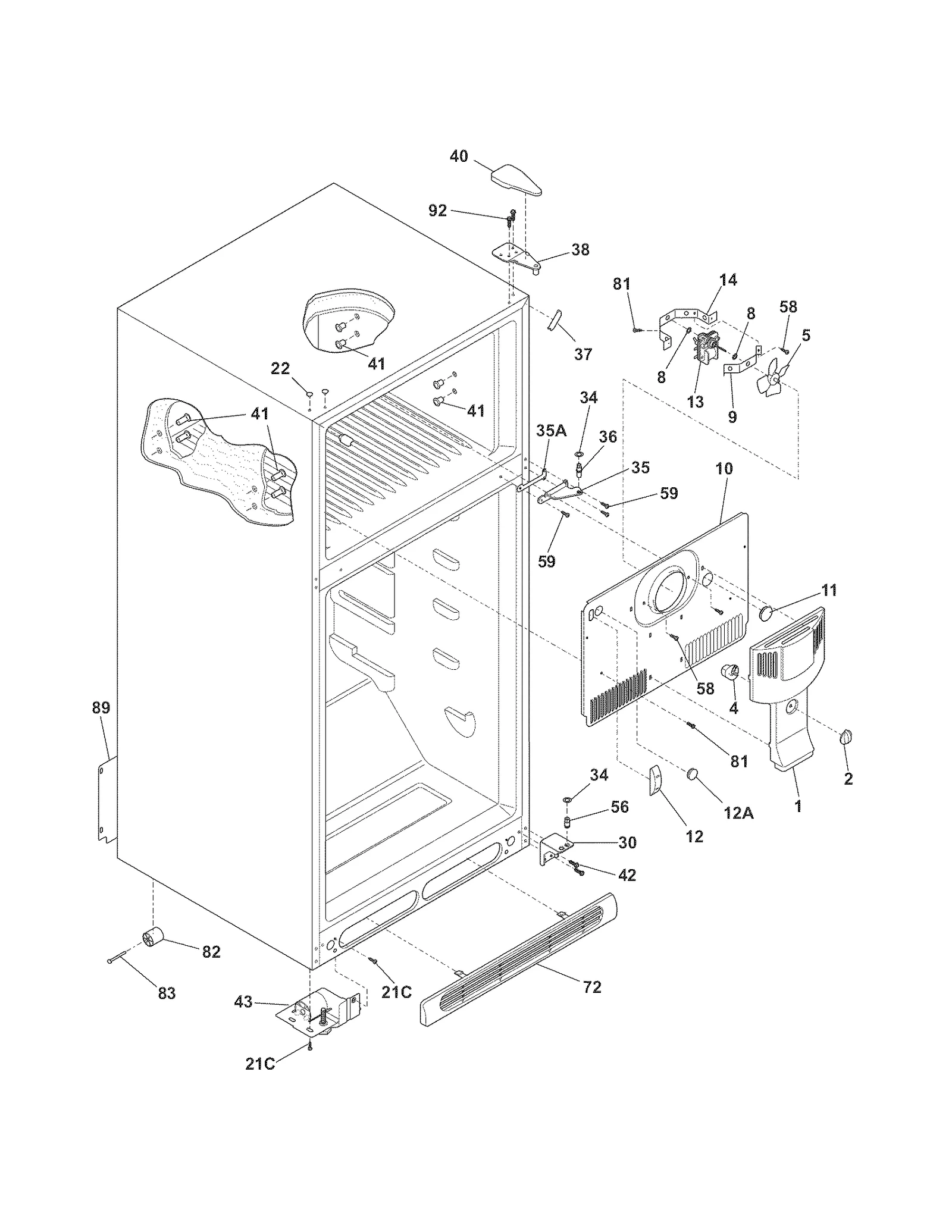

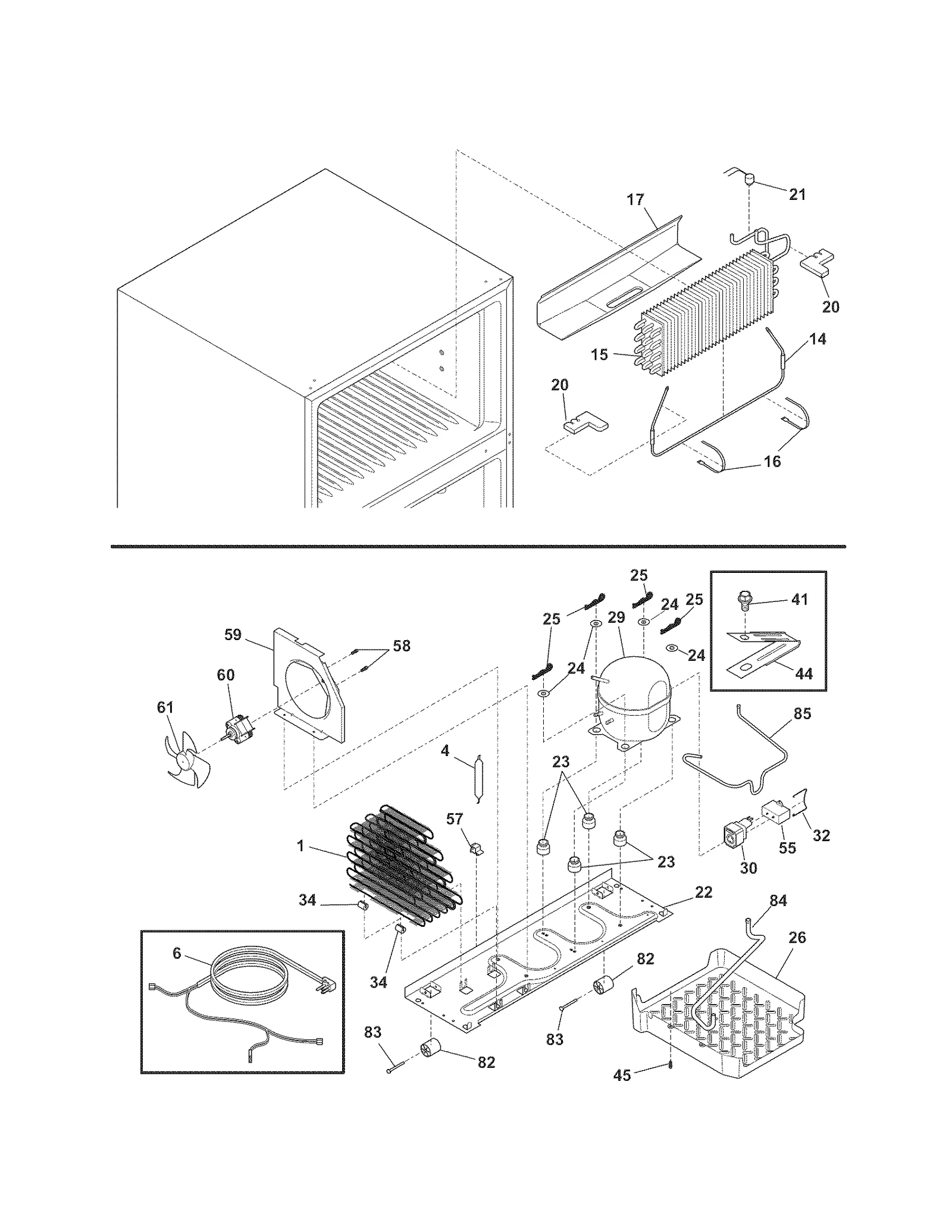

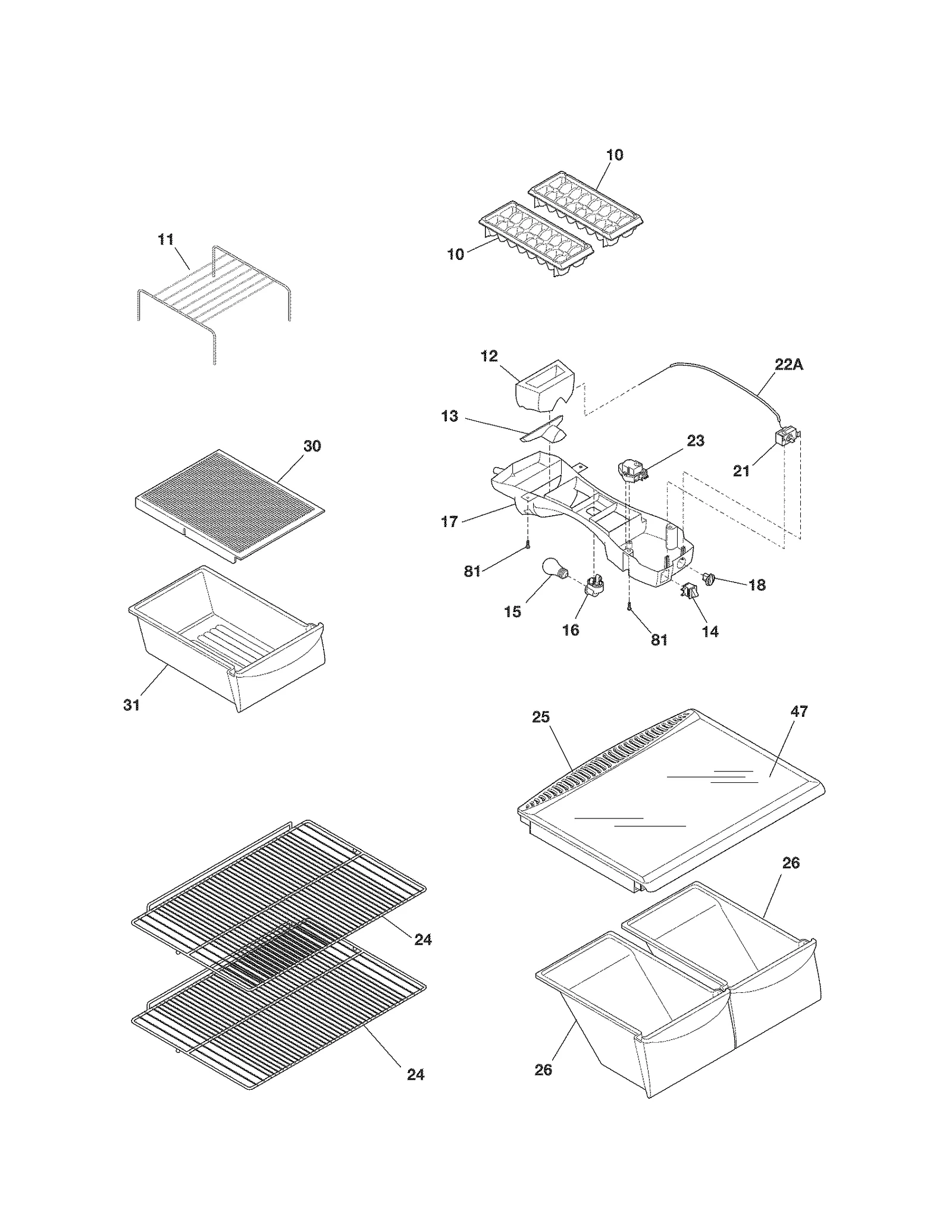

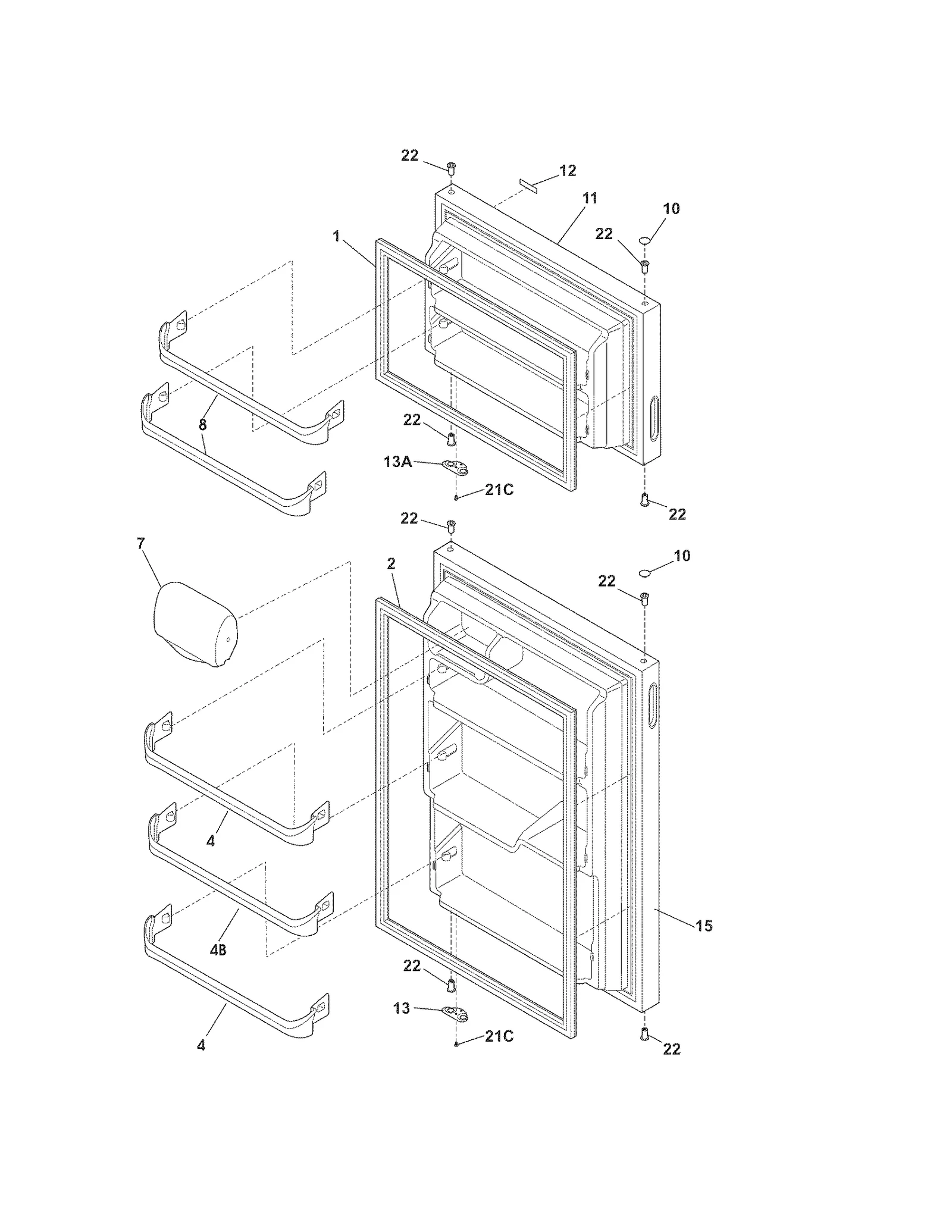

Model Electrolux 2536181401C Refrigerator (Kenmore 2536181401C) – Common Parts &amp; Diagrams

1#

241872503 Frigidaire Refrigerator Door Gasket In Stock WCI 241872503 $60.70

2

240367001 Frigidaire Refrigerator Air Damper Backorder WCI 240367001 $34.61

4

240534901 Frigidaire Refrigerator Door Rack In Stock WCI 240534901 $30.82

4

Refrigerator Freezer Fan Cover Damper WCI 241523701 Contact Us For Availability

4B

240534701 Frigidaire Refrigerator Door Rack In Stock WCI 240534701 $19.42

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $32.12

6#

5304521786 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521786 $75.27

7

240337701 Frigidaire Refrigerator Dairy Door In Stock WCI 240337701 $27.03

8

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.47

8

240534801 Frigidaire Refrigerator Freezer Doo In Stock WCI 240534801 $31.88

9

Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5303292396 Contact Us For Availability

215667501 Frigidaire Refrigerator Ice Tray Pr In Stock WCI 215667501 $3.46

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.38

242239305 Frigidaire Refrigerator Cover Backorder WCI 242239305 $72.81

Refrigerator Door Hinge Bearing Hole Plug WCI 240381302 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $27.34

11

5303282284 Frigidaire Wire Shelf In Stock WCI 5303282284 $61.31

12

241542001 Frigidaire Refrigerator Deflector In Stock WCI 241542001 $47.86

12

242052401 Frigidaire Refrigerator Nameplate L Backorder WCI 242052401 $2.27

12

242193602 Frigidaire Refrigerator Plug Hole Backorder WCI 242193602 $8.67

12A

Refrigerator Ice Maker Fill Tube Hole Plug WCI 240374401 Contact Us For Availability

12A*

241586701 Frigidaire Refrigerator Plug In Stock WCI 241586701 $11.38

13

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $9.11

13

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.29

13

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.88

13#

241854301 Frigidaire Refrigerator Evaporator In Stock WCI 241854301 $119.21

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.28

13A

Refrigerator Door Stop (Bisque) WCI 240312416 Contact Us For Availability

14#

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $45.57

15

Refrigerator Panel WCI 240410502 Contact Us For Availability

15#

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.68

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $40.10

16#

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $46.70

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.73

17

Refrigerator Control Box WCI 240352703 Contact Us For Availability

18

Refrigerator Temperature Control Knob WCI 240360801 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.27

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $39.64

21#

5303918634 Frigidaire Kit Thermostat In Stock WCI 5303918634 $19.81

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.94

22

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.54

22

Gibson Refrigerator Compressor Base WCI 241665606 Contact Us For Availability

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.45

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.32

24

240360908 Frigidaire Refrigerator Freezer Wir In Stock WCI 240360908 $60.39

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.76

25

242037701 Frigidaire Refrigerator Compressor In Stock WCI 242037701 $1.79

25

242201802 Frigidaire Refrigerator Crisper Pan In Stock WCI 242201802 $63.62

26

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.90

26

Refrigerator Crisper Drawer WCI 240337101 Contact Us For Availability

29

Refrigerator Compressor WCI 240550939 Contact Us For Availability

30

240314011 Frigidaire Refrigerator Lower Brack In Stock WCI 240314011 $49.66

30

Refrigerator Deli Drawer Cover WCI 240361802 Contact Us For Availability

30#

241707730 Frigidaire Refrigerator Starter Backorder WCI 241707730 $45.11

31

240530811 Frigidaire Refrigerator Meat Crispe In Stock WCI 240530811 $91.76

32

5304497418 Frigidaire Refrigerator Clip Backorder WCI 5304497418 $5.90

34

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.92

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.74

35

Refrigerator Door Hinge, Center WCI 240313806 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space Backorder WCI 240336802 $11.83

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $1.90

37

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $4.56

38

240313703 Frigidaire Refrigerator Hinge In Stock WCI 240313703 $20.74

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.67

40

Refrigerator Freezer Door Hinge Cover WCI 240354403 Contact Us For Availability

41

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.09

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $9.10

43

241889002 Frigidaire Refrigerator Roller Asse In Stock WCI 241889002 $40.55

47

240350608 Frigidaire Refrigerator Crisper Gla In Stock WCI 240350608 $27.34

55#

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $21.17

56

240516502 Frigidaire Refrigerator Lower Hinge Backorder WCI 240516502 $43.75

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $5.00

60#

242018404 Frigidaire Refrigerator Condenser F Backorder WCI 242018404 $114.97

61#

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.96

72

241839405 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839405 $39.19

72

Refrigerator Toe Grille WCI 241839406 Contact Us For Availability

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.99

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.18

84

240500801 Frigidaire Refrigerator Drain Tube In Stock WCI 240500801 $41.92

89

241733911 Frigidaire Refrigerator Access Cove In Stock WCI 241733911 $32.49

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.65

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.85

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.10

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $11.38

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.12

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.27

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $51.48

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.31

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.92

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.84

241889001 Frigidaire Refrigerator Roller Asse In Stock WCI 241889001 $38.74

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.28

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $289.41

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.11

Refrigerator Hot Tube Repair Kit WCI 5303918222 Contact Us For Availability

Appliance Touch-Up Paint, 0.6-oz (Bisque) WCI 5304414035 Contact Us For Availability
