Model Electrolux 253.97133583 Chest Freezer (Kenmore 25397133583) – Common Parts & Diagrams

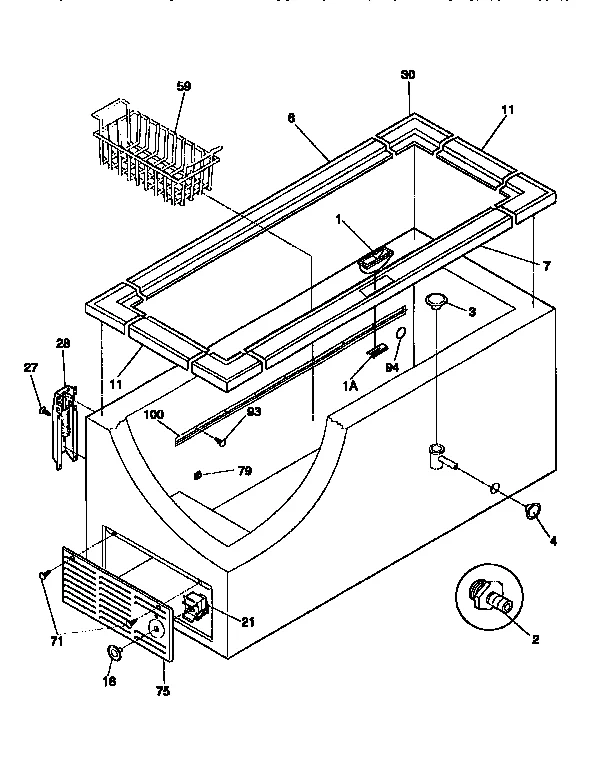

CABINET
All Parts

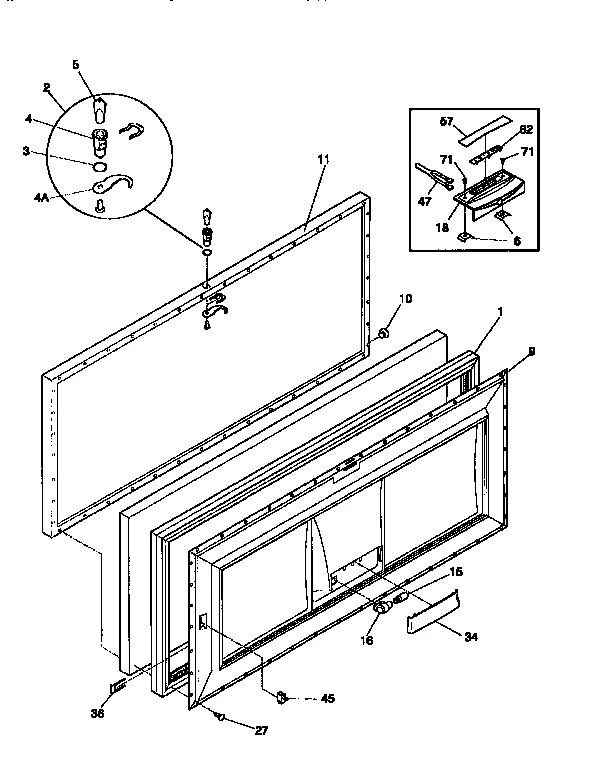

DOOR

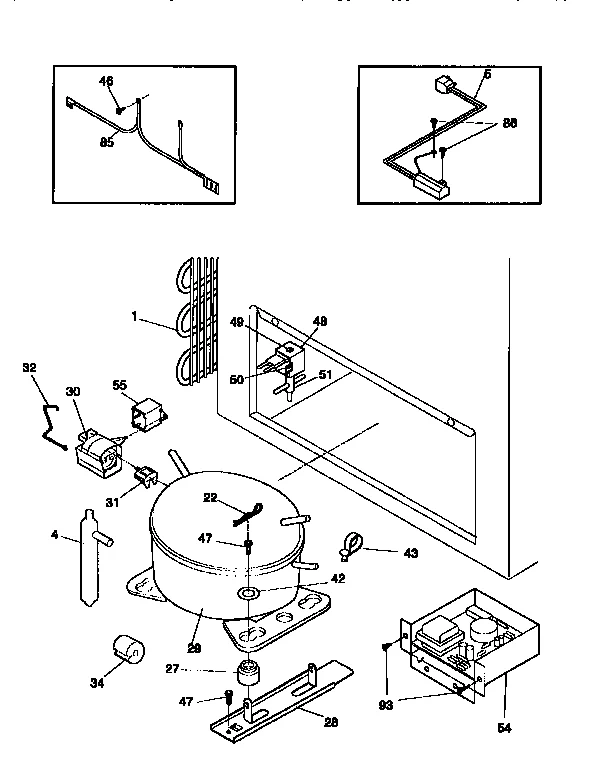

SYSTEM
Common parts from model Electrolux 253.97133583 Chest Freezer (Kenmore 25397133583)
1
Door Gasket WCI 216080202 Contact Us For Availability
2
Freezer Drain Hose Adapter WCI 216269500 Contact Us For Availability
2
Lock WCI 5303925107 Contact Us For Availability
3
Freezer Washer WCI 5300114366 Contact Us For Availability
4
Cylinder Lock WCI 5303283905 Contact Us For Availability
4A
Hook WCI 5300300791 Contact Us For Availability
5
Wire Harness WCI 216383900 Contact Us For Availability
6
Molding WCI 216111301 Contact Us For Availability
6
Washer WCI 5303269745 Contact Us For Availability
7
Molding WCI 216111901 Contact Us For Availability
9
Interior Panel WCI 216060901 Contact Us For Availability
10
Plug (Almond) WCI 216141102 Contact Us For Availability
11
Mould/breakr WCI 216110801 Contact Us For Availability
11
Almd Ext Lid WCI 216130204 Contact Us For Availability
16
Socket WCI 216039700 Contact Us For Availability
18
Knob (Almond) WCI 216034506 Contact Us For Availability
18
Handle WCI 216204001 Contact Us For Availability
21
Temperature Control WCI 216161200 Contact Us For Availability
22
Clip WCI 216056400 Contact Us For Availability
27
Freezer Lid Hinge Screw WCI 5309950602 Contact Us For Availability
28
Support WCI 5303212615 Contact Us For Availability
29
Compressor WCI 216128300 Contact Us For Availability
30
Breaker Corn WCI 216110701 Contact Us For Availability
30
Freezer Compressor Start Relay WCI 216008900 Contact Us For Availability
31
Overload WCI 216128400 Contact Us For Availability
32
Kelvinator Clip WCI 216158300 Contact Us For Availability
34
Light Shield WCI 3016810 Contact Us For Availability
34
Freezer Condenser Coil Spacer WCI 5303298960 Contact Us For Availability
36
Freezer Door Switch Clip WCI 5306599968 Contact Us For Availability
42
Washer WCI 216232700 Contact Us For Availability
45
Freezer Defrost Switch WCI 3201509 Contact Us For Availability
46
Refrigerator Evaporator Cover Screw WCI 08037851 Contact Us For Availability
47
Wire Harness WCI 216220600 Contact Us For Availability
47
Screw WCI 08016776 Contact Us For Availability
48
Solenoid WCI 3201514 Contact Us For Availability
49
Clip WCI 3201513 Contact Us For Availability
50
Ground Wire WCI 5303307575 Contact Us For Availability
51
Valve WCI 3201515 Contact Us For Availability
54
Module WCI 216264400 Contact Us For Availability
57
Insert WCI 216204601 Contact Us For Availability
59
Basket WCI 216080300 Contact Us For Availability
59A
Freezer Basket WCI 216080700 Contact Us For Availability
62
Module WCI 216172100 Contact Us For Availability
75
Access Panel WCI 216034302 Contact Us For Availability
85
Ground Wire WCI 5303294326 Contact Us For Availability
86
SCREW, RWHD (GX-CA), 8-32 X 1/2 WCI 21603660 Contact Us For Availability
94
Frost Indicator WCI 216140400 Contact Us For Availability
100
Track WCI 216082000 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Owner's Manual WCI 216331400 Contact Us For Availability
NI
Service Data Sheet WCI 216343100 Contact Us For Availability
NI
Energy Guide WCI 216366405 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Parts List WCI 5995272050 Contact Us For Availability
× ![]()
