Model Electrolux 253.79299990 Room Air Conditioner (Kenmore 25379299990) – Common Parts & Diagrams
All Parts

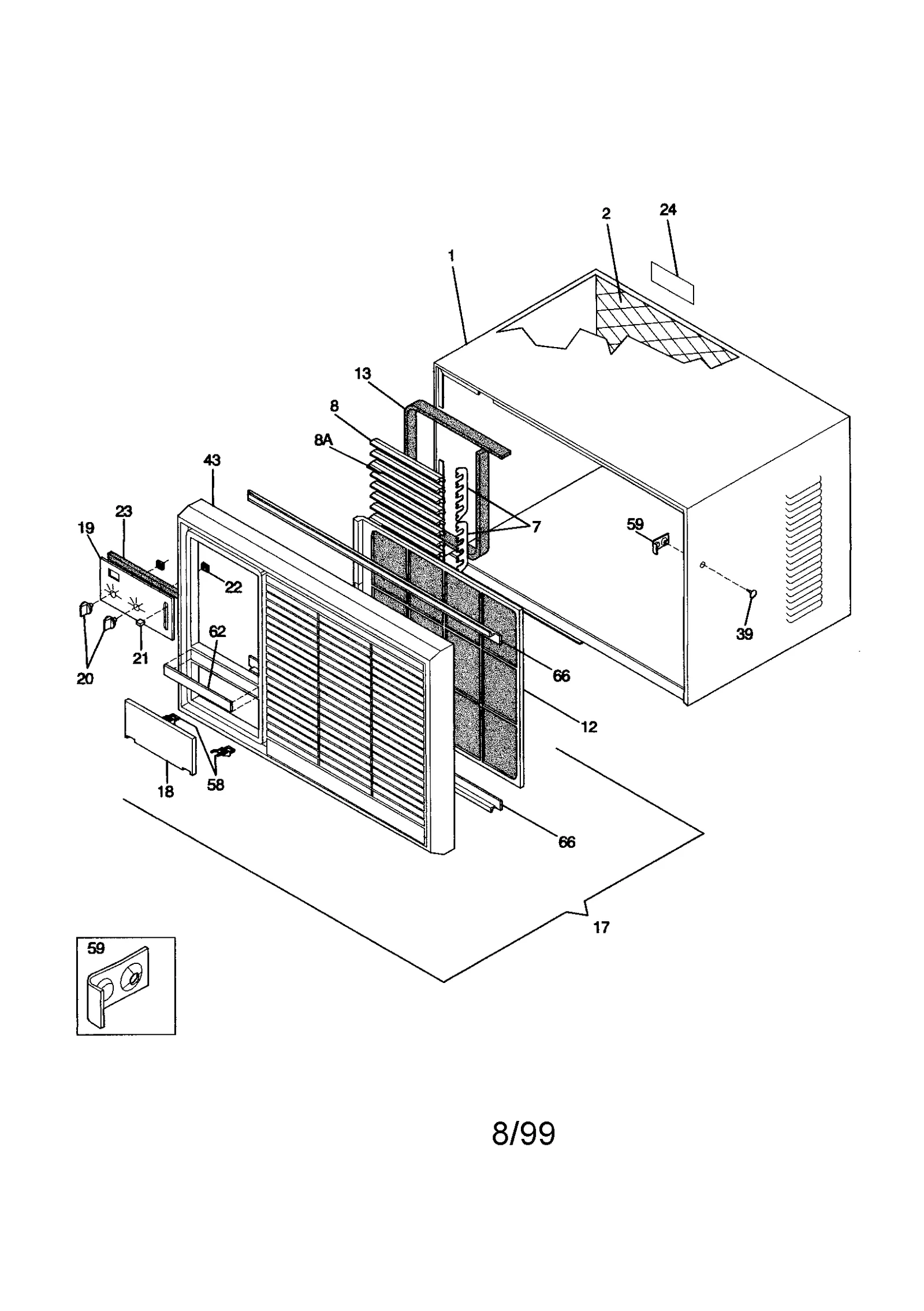

CABINET FRONT AND WRAPPER
CONTROL
AIR HANDLING
WINDOW MOUNTING
COMPRESSOR
Common parts from model Electrolux 253.79299990 Room Air Conditioner (Kenmore 25379299990)
1
Wrapper WCI 5303303545 Contact Us For Availability
1
Fan Blade WCI 5303321440 Contact Us For Availability
1
Compressor WCI 5304404739 Contact Us For Availability
2
Panel WCI 5303210207 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
2
Bracket WCI 53032111056 Contact Us For Availability
2
Grommet WCI 5303286606 Contact Us For Availability
3
Strap WCI 5303201820 Contact Us For Availability
3
Schroud WCI 5303015305 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Actuator WCI 5303201821 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Lh Frame WCI 5303302304 Contact Us For Availability
5
Bracket WCI 5303209200 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
5
Clamp WCI 5303002069 Contact Us For Availability
6
Schroud WCI 5303015304 Contact Us For Availability
6
Retainer WCI 5303301765 Contact Us For Availability
6
Gasket WCI 5303002068 Contact Us For Availability
7
Louver Link WCI 5303202811 Contact Us For Availability
7
Control Panel WCI 5304409417 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
7
Universal/Multiflex (Frigidaire) Cover WCI 5303002067 Contact Us For Availability
8
Room Air Conditioner Louver WCI 5303306911 Contact Us For Availability
8
Room Air Conditioner Rotary Switch WCI 309322605 Contact Us For Availability
8
Motor WCI 5303017557 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8A
Room Air Conditioner Louver WCI 5303306912 Contact Us For Availability
9
Room Air Conditioner Temperature Control WCI 5303201838 Contact Us For Availability
9
Bracket WCI 5303015306 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Partition WCI 5303296868 Contact Us For Availability
10
Partition WCI 5303299319 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 5303015309 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
11
Evaporator WCI 309632601 Contact Us For Availability
12
Filter WCI 5303306916 Contact Us For Availability
12
Clip-control Bulb WCI 5303017914 Contact Us For Availability
12
Condenser WCI 5303306719 Contact Us For Availability
13
Seal WCI 5303201854 Contact Us For Availability
13
Cap WCI 5304404740 Contact Us For Availability
13
Seal WCI 5303015313 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Tray WCI 5303208221 Contact Us For Availability
14
Insulation WCI 3201832 Contact Us For Availability
14
Frame, Rh WCI 5303302305 Contact Us For Availability
14
Compressor Base WCI 5304404944 Contact Us For Availability
15
Strap WCI 3201845 Contact Us For Availability
15
Scroll WCI 5303201831 Contact Us For Availability
15
Accordion Closure WCI 5303302306 Contact Us For Availability
16
Harness WCI 3202717 Contact Us For Availability
16
Rail WCI 5303301777 Contact Us For Availability
16
Tube WCI 3203561 Contact Us For Availability
17
Air Conditioner Grille Front WCI 309633602 Contact Us For Availability
17
Cord Electrical WCI 5303302523 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
Screw WCI 8012680 Contact Us For Availability
19
Dial Plate WCI 5304403292 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Knob WCI 5304403257 Contact Us For Availability
21
Knob WCI 5304403256 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
22
Thermostat WCI 3201806 Contact Us For Availability
23
Seal WCI 3201953 Contact Us For Availability
23
Heater WCI 5300521476 Contact Us For Availability
24
Spacer WCI 5303202308 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Screen WCI 5303302933 Contact Us For Availability
35
Spacer WCI 3200761 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
39
Screw WCI 5303271346 Contact Us For Availability
40
Spacer, Louver WCI 3202810 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
41
Link WCI 5300517130 Contact Us For Availability
43
Front Cover WCI 5303306915 Contact Us For Availability
44
Retainer WCI 5303201843 Contact Us For Availability
45
Retainer WCI 5303201847 Contact Us For Availability
46
Control Cover WCI 5303300232 Contact Us For Availability
47
Louver-vertical WCI 5303299318 Contact Us For Availability
58
Louver WCI 5303300230 Contact Us For Availability
59
NUT (2) WCI 8010928 Contact Us For Availability
66
Rail WCI 5303272800 Contact Us For Availability
71
Fan Relay WCI 309102203 Contact Us For Availability
NI
Mounting Kit WCI 309635401 Contact Us For Availability
NI
Hardware WCI 5304409248 Contact Us For Availability
NI
Top Rail Seal WCI 5304409249 Contact Us For Availability
× ![]()
