Model Electrolux 253.79156990 Air Conditioner (Kenmore 25379156990) – Common Parts & Diagrams

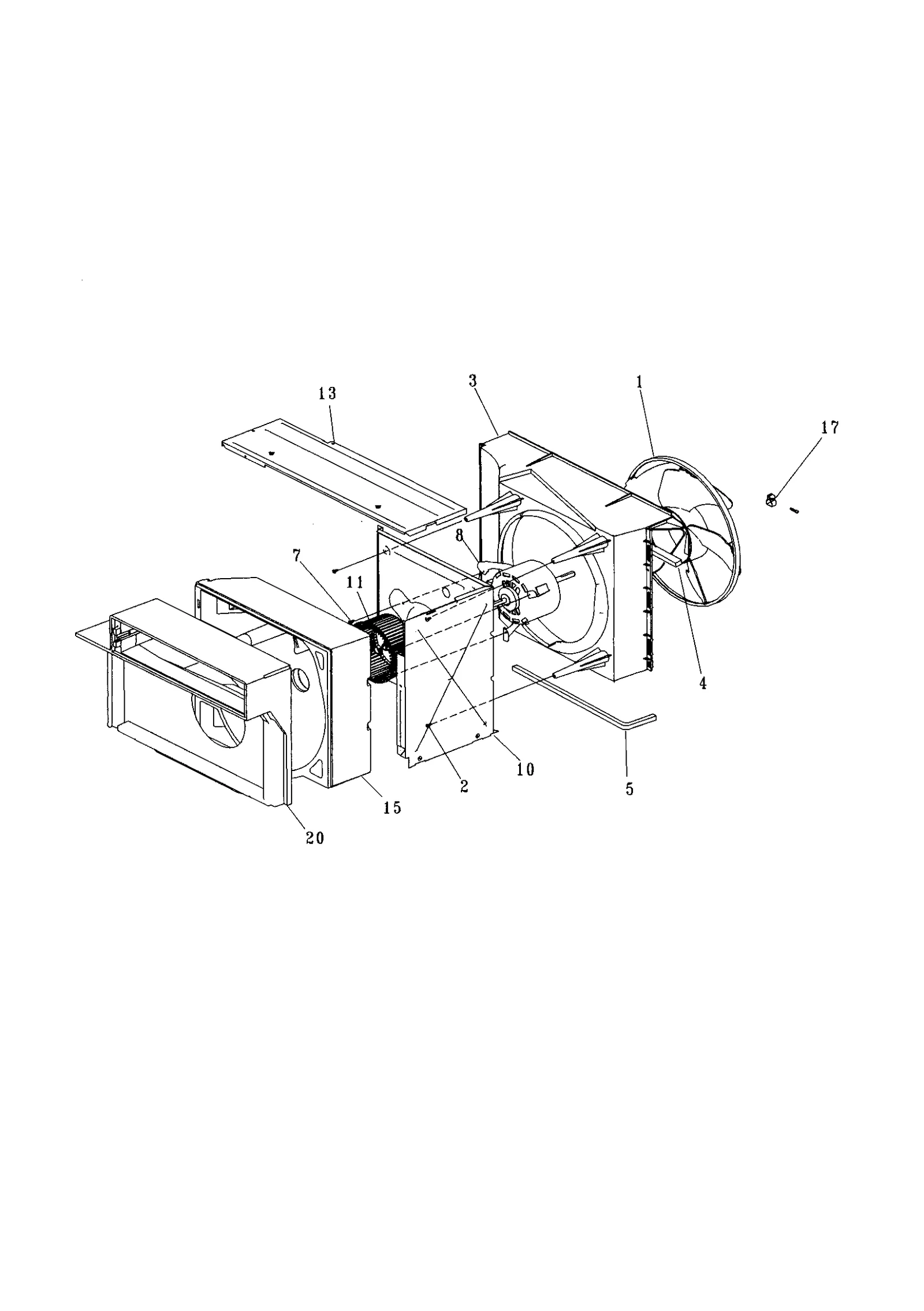

AIR HANDLING

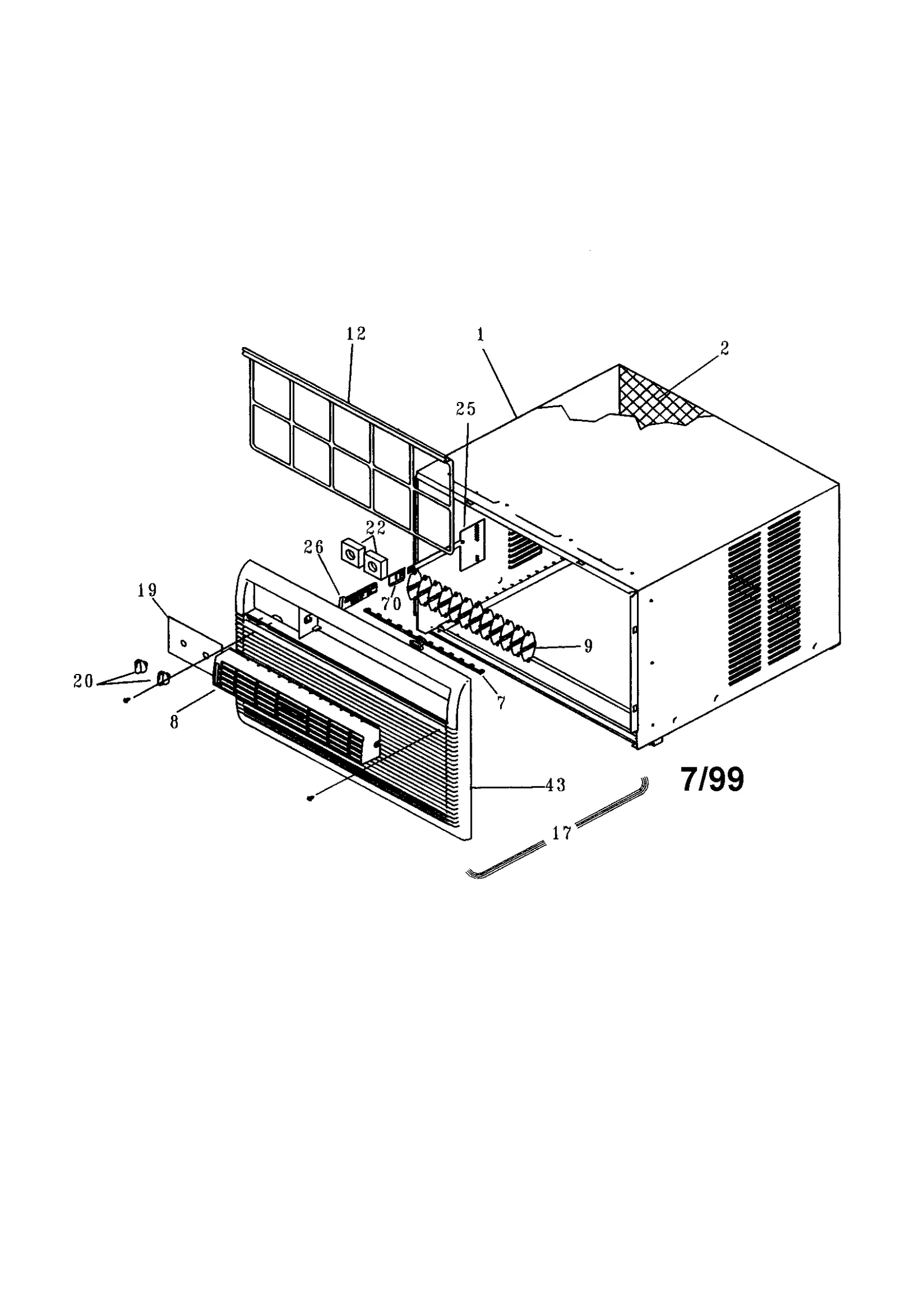

CABINET FRONT AND WRAPPER
COMPRESSOR
All Parts
CONTROL
WINDOW MOUNTING
Common parts from model Electrolux 253.79156990 Air Conditioner (Kenmore 25379156990)
1
Wrapper WCI 309632701 Contact Us For Availability
1
Compressor WCI 5303925103 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Grille Cover WCI 309632801 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Shroud Condenser WCI 309623201 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Lh Frame WCI 5303302304 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Rail Seal WCI 5304409250 Contact Us For Availability
6
Gasket WCI 5303272298 Contact Us For Availability
6
Retainer WCI 5303301765 Contact Us For Availability
7
Louver Link WCI 309631103 Contact Us For Availability
7
Terminal Cover WCI 3206230 Contact Us For Availability
7
Control Box WCI 309630401 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
8
Motor WCI 5304407974 Contact Us For Availability
8
Horizontal Louver WCI 309630803 Contact Us For Availability
8
Room Air Conditioner Compressor Overload Prot WCI 5303016697 Contact Us For Availability
8
Room Air Conditioner Rotary Switch WCI 309322601 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
9
Vert Louver WCI 309631003 Contact Us For Availability
9
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
9
Air Temperature Control WCI 5304408295 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Air Bulkhead WCI 309623401 Contact Us For Availability
10
Bulkhead WCI 309623601 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Room Air Conditioner Blower Wheel WCI 309633001 Contact Us For Availability
11
Evaporator WCI 309634103 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
12
Filter WCI 309631403 Contact Us For Availability
12
Condenser WCI 5303303600 Contact Us For Availability
12
#retaining C WCI 309331801 Contact Us For Availability
13
Sleeve WCI 309630301 Contact Us For Availability
13
Evaporator Tray WCI 309623501 Contact Us For Availability
13
Capacitor WCI 5303318963 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
14
Base Plate WCI 309632902 Contact Us For Availability
14
Frame, Rh WCI 5303302305 Contact Us For Availability
15
Scroll WCI 309630101 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Accordion Closure WCI 5303302306 Contact Us For Availability
16
Capillary Tube WCI 5303289577 Contact Us For Availability
16
Harness-3s WCI 5304408752 Contact Us For Availability
16
Rail WCI 5303301777 Contact Us For Availability
17
Front Cover WCI 309633202 Contact Us For Availability
17
h WCI 5304408774 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
18
Replace Cord WCI 5303007754 Contact Us For Availability
18
Screw WCI 5308012680 Contact Us For Availability
19
Dial Plate WCI 309633502 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Scroll Plate WCI 309630201 Contact Us For Availability
20
Air Conditioner Control Knob WCI 309306905 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Access Control WCI 309321401 Contact Us For Availability
26
Handle Vent WCI 309330402 Contact Us For Availability
35
Screw WCI 3200761 Contact Us For Availability
43
Front Frame WCI 309630903 Contact Us For Availability
70
Mounting Handle WCI 309330202 Contact Us For Availability
NI
Data Sheet WCI 309000099 Contact Us For Availability
NI
Mounting Kit WCI 309635401 Contact Us For Availability
NI
Hardware WCI 5304409248 Contact Us For Availability
NI
Top Rail Seal WCI 5304409249 Contact Us For Availability
× ![]()
