Model Electrolux 253.79093990 Air Conditioner (Kenmore 25379093990) – Common Parts & Diagrams

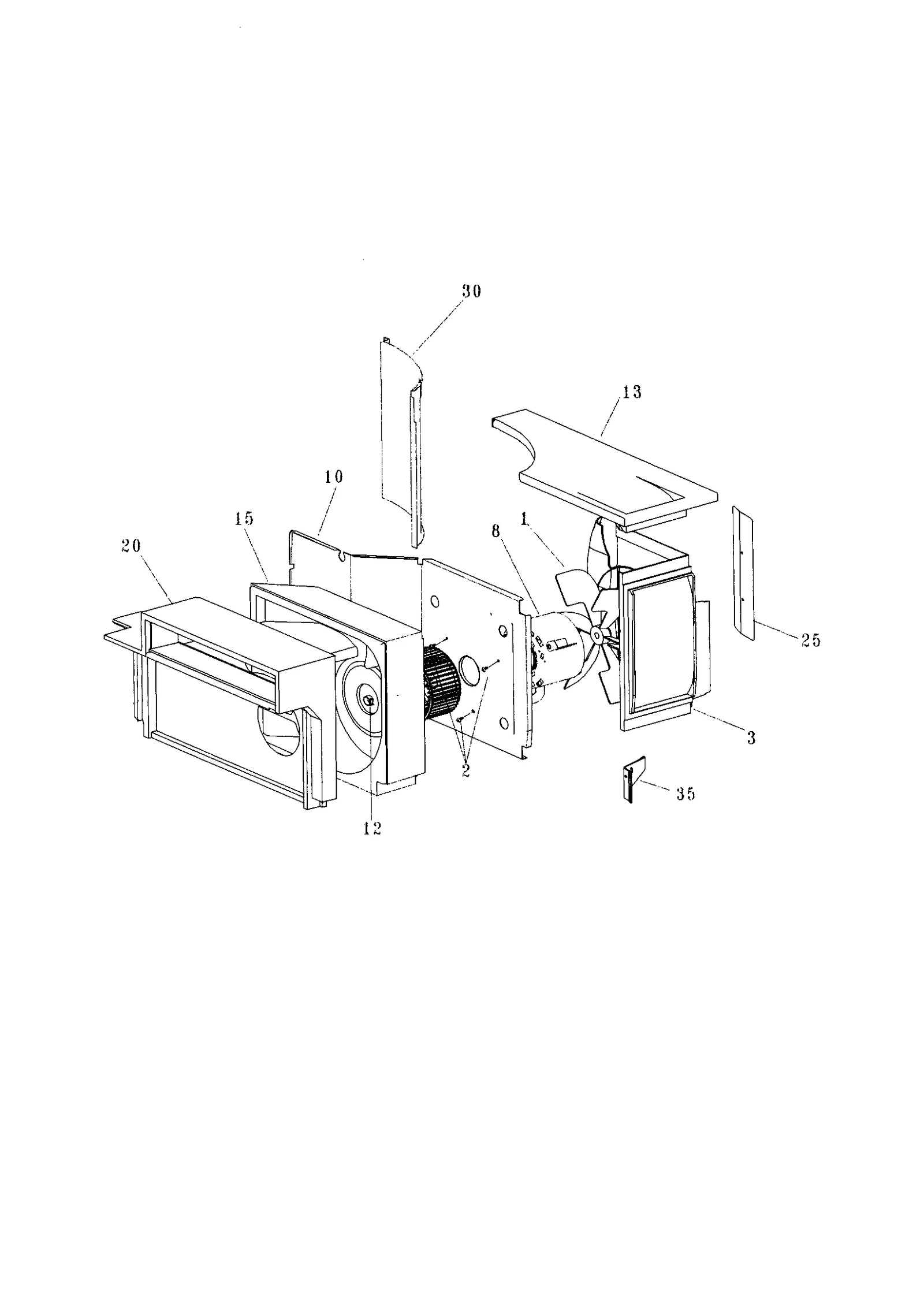

AIR HANDLING

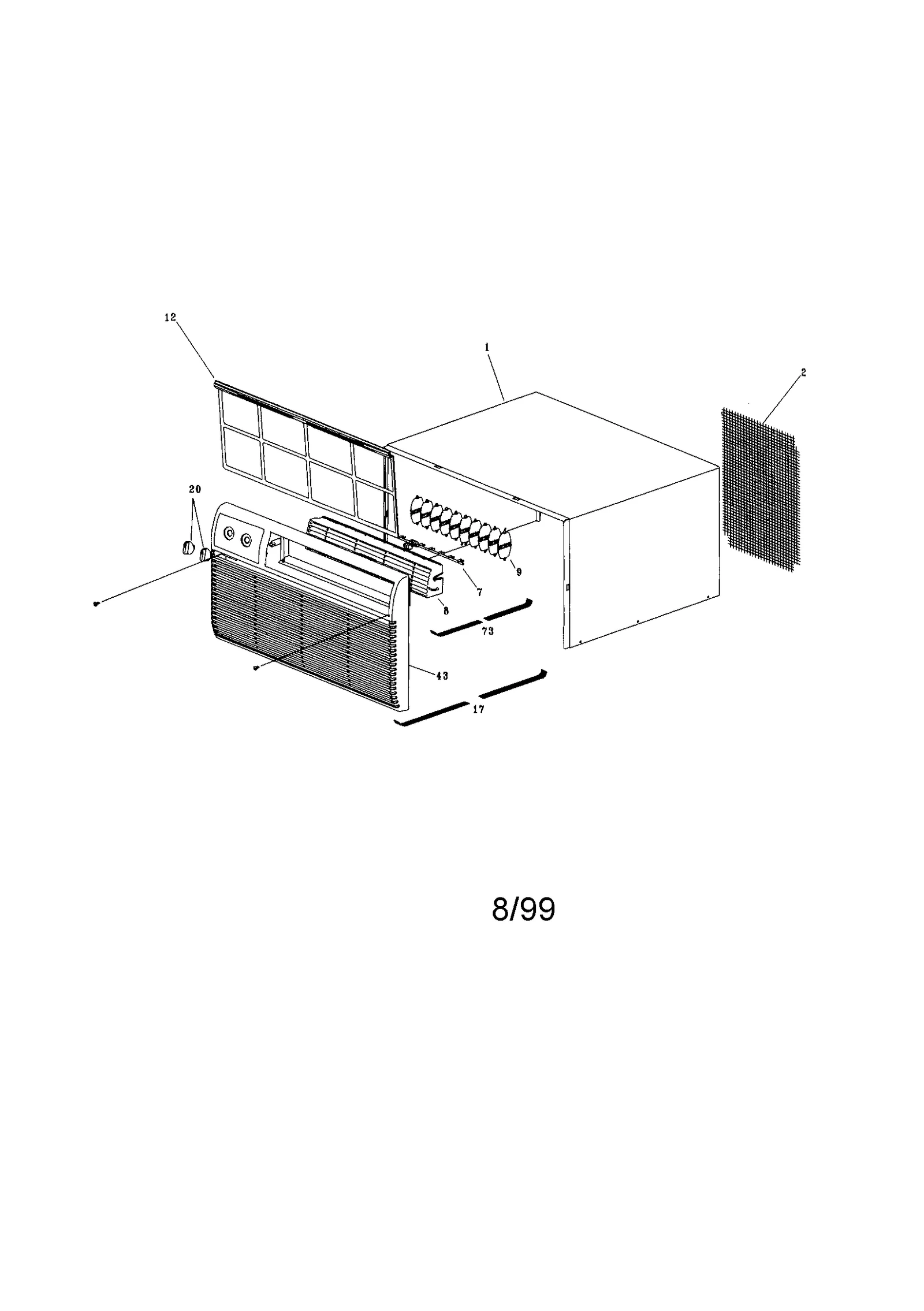

CABINET FRONT AND WRAPPER
All Parts
CONTROL
WINDOW MOUNTING
COMPRESSOR
Common parts from model Electrolux 253.79093990 Air Conditioner (Kenmore 25379093990)
1
Sleeve WCI 309627502 Contact Us For Availability
1
Trim WCI 309628601 Contact Us For Availability
1
Compressor WCI 5303285483 Contact Us For Availability
2
Safety Scren WCI 309636101 Contact Us For Availability
2
Frame-top/bm WCI 309628602 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Fan Housing WCI 309628901 Contact Us For Availability
3
Kit-groundin WCI 5304409303 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Block-tapere WCI 5304409304 Contact Us For Availability
5
Wrapper Seal WCI 5303301038 Contact Us For Availability
6
Seal-cond En WCI 5304409305 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Louver Link WCI 309324003 Contact Us For Availability
7
Control Box WCI 309628501 Contact Us For Availability
7
Seal-cond/re WCI 5304409306 Contact Us For Availability
7
Cover WCI 3002034 Contact Us For Availability
8
Fan Motor WCI 5304408763 Contact Us For Availability
8
#louvers-hor WCI 309628003 Contact Us For Availability
8
Select Switch WCI 5304408739 Contact Us For Availability
8
Seal-cond/re WCI 5304409307 Contact Us For Availability
8
Overload WCI 5304408745 Contact Us For Availability
9
Temperature Control WCI 5304408746 Contact Us For Availability
9
Louver WCI 309628102 Contact Us For Availability
9
Instructions WCI 5304409308 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
10
#bulkhead-18 WCI 309627401 Contact Us For Availability
10
Seal-cond/re WCI 5304409309 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309631701 Contact Us For Availability
11
Cabinet WCI 5304409310 Contact Us For Availability
11
+evap Assy-1 WCI 309632303 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Filter WCI 309628203 Contact Us For Availability
12
Retainer Clip WCI 309329801 Contact Us For Availability
12
Divider WCI 309335101 Contact Us For Availability
12
Condenser WCI 309632503 Contact Us For Availability
13
Condenser WCI 309628801 Contact Us For Availability
13
Capacitor WCI 5304408737 Contact Us For Availability
13
Kit-grille M WCI 5304409311 Contact Us For Availability
13
Tray Base WCI 309628701 Contact Us For Availability
14
Screw WCI 5303285199 Contact Us For Availability
14
#base/stud A WCI 309632002 Contact Us For Availability
15
Scroll-18.5 WCI 309622801 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Accessory Ki WCI 309636001 Contact Us For Availability
16
Capillary Tube WCI 5304409280 Contact Us For Availability
17
Air Conditioner Grille Front WCI 309629403 Contact Us For Availability
17
Cord WCI 5304408778 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Scroll Plate WCI 309622901 Contact Us For Availability
20
Control Knob WCI 309307007 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
25
Air Baffle WCI 309335201 Contact Us For Availability
30
Partition WCI 309629001 Contact Us For Availability
35
Baffle Condenser WCI 309335001 Contact Us For Availability
35
Spacer WCI 3200761 Contact Us For Availability
43
Control Cover WCI 309631803 Contact Us For Availability
73
Louver Assembly WCI 309629303 Contact Us For Availability
NI
+sheet-tec WCI 309001210 Contact Us For Availability
NI
Panel-rear P WCI 5304408740 Contact Us For Availability
× ![]()
