Model Electrolux 253.79088990 Room Air Conditioner (Kenmore 25379088990) – Common Parts & Diagrams

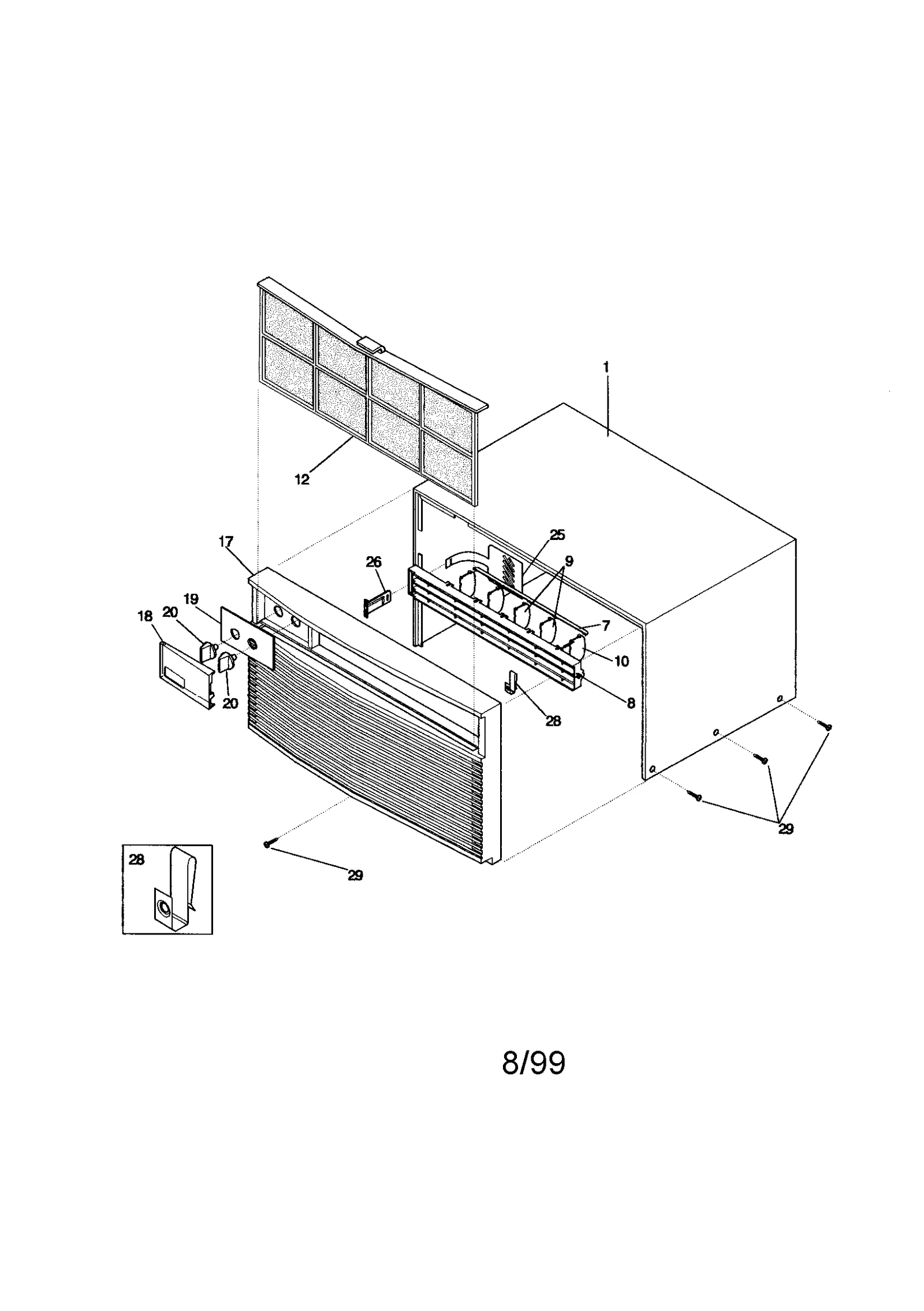

CABINET FRONT AND WRAPPER

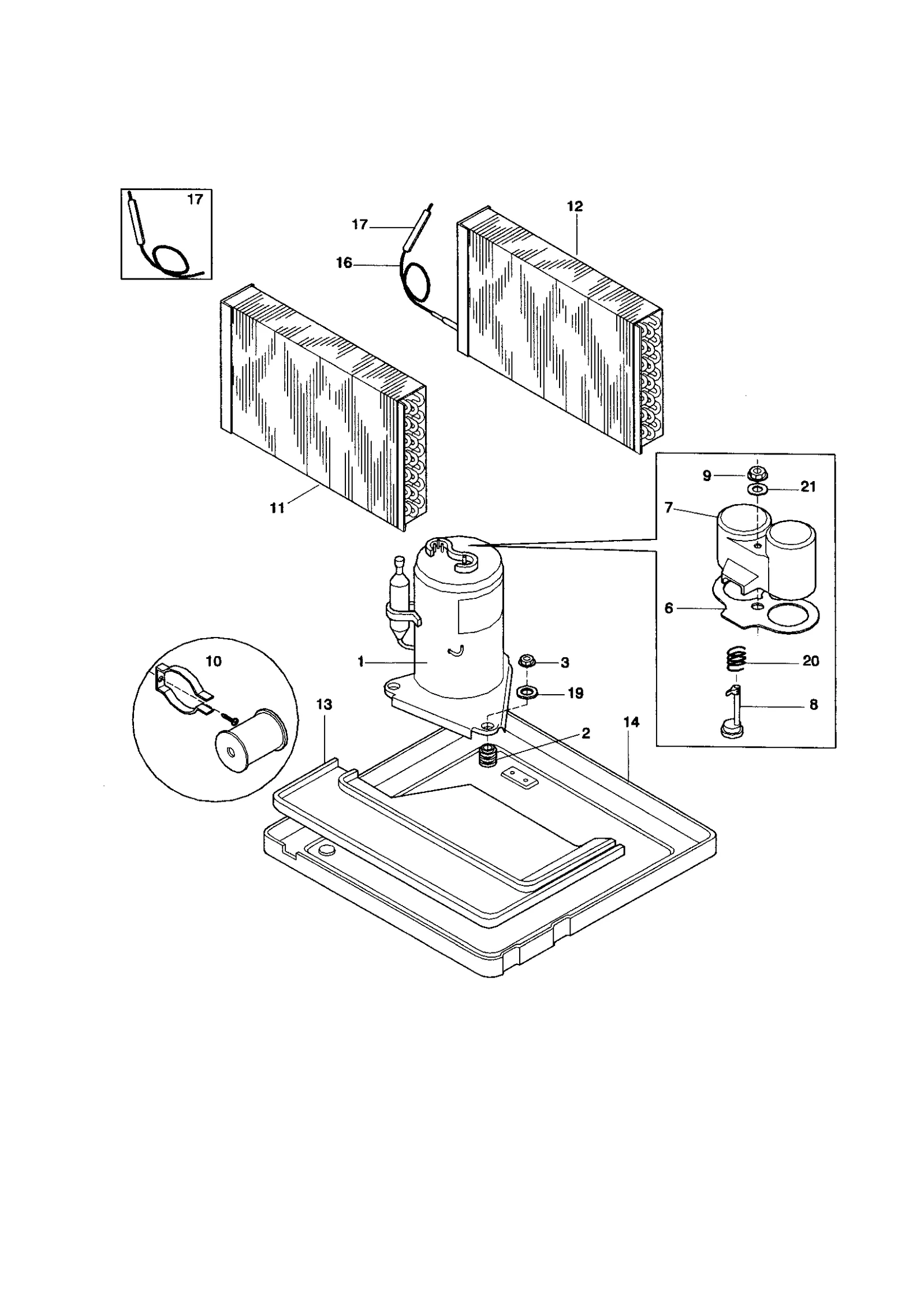

COMPRESSOR
WINDOW MOUNTING
All Parts
CONTROL
AIR HANDLING
Common parts from model Electrolux 253.79088990 Room Air Conditioner (Kenmore 25379088990)
1
Compressor WCI 5304406829 Contact Us For Availability
1
Room Air Conditioner Condenser Fan Blade WCI 309624502 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
2A
Kelvinator Room Air Conditioner Lock Nut WCI 08007481 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Fan Housing WCI 309624201 Contact Us For Availability
4
L H Frame WCI 5303311127 Contact Us For Availability
4
Seal WCI 5303270043 Contact Us For Availability
5
Seal WCI 08016226 Contact Us For Availability
6
Cover Gasket WCI 3200282 Contact Us For Availability
6
(NOT REQUIRED) SPRING, OVERLOAD WCI N/P Contact Us For Availability
7
Terminal Cover WCI 3200281 Contact Us For Availability
7
Control Box WCI 309602502 Contact Us For Availability
8
Louver WCI 309603908 Contact Us For Availability
8
Overload WCI 3202920 Contact Us For Availability
8
Room Air Conditioner Rotary Switch WCI 309322601 Contact Us For Availability
8
Fan Motor WCI 309631505 Contact Us For Availability
9
Louver Vertical Vane WCI 5303303087 Contact Us For Availability
9
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5304402838 Contact Us For Availability
10
Louver Vertical Vane WCI 5303303088 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Bulkhead WCI 309602403 Contact Us For Availability
11
Evaporator WCI 309619305 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309603301 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 5303307228 Contact Us For Availability
12
Condenser WCI 5303303195 Contact Us For Availability
12
Clip-control Bulb WCI 309101202 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
13
Capacitor-35 WCI 5303303576 Contact Us For Availability
13
Evaporator Tray WCI 5303302849 Contact Us For Availability
14
Base WCI 5303303219 Contact Us For Availability
14
Rh Frame WCI 5303311128 Contact Us For Availability
15
Accordion WCI 309626501 Contact Us For Availability
15
Strap Capacitor WCI 5303303086 Contact Us For Availability
15
Blowr Housng WCI 5304407653 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 3203179 Contact Us For Availability
16
Rail WCI 5303302859 Contact Us For Availability
16
Clip Scroll WCI 309100201 Contact Us For Availability
17
Front Comple WCI 309603627 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Cord Electrical WCI 5303317236 Contact Us For Availability
18
Door WCI 309304605 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309613536 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Cover Capacitor WCI 5303302855 Contact Us For Availability
20
Room Air Conditioner Control Knob WCI 5304403248 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
20
Sleeve WCI 5303002600 Contact Us For Availability
20
Scroll Plate WCI 5304407654 Contact Us For Availability
22
Room Air Conditioner Window Support Bracket WCI 5304403252 Contact Us For Availability
23
Screw WCI 3001806 Contact Us For Availability
24
Screw WCI 530802974 Contact Us For Availability
25
Vent Cover WCI 309328601 Contact Us For Availability
26
Vent Handle WCI 309328705 Contact Us For Availability
26A
Vent Detent WCI 309330201 Contact Us For Availability
28
Front Clip WCI 309100401 Contact Us For Availability
NI
Technical Sheet WCI 309000092 Contact Us For Availability
× ![]()
