Model Kenmore 253.79081010 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - RECOMMENDED SPARE PARTS

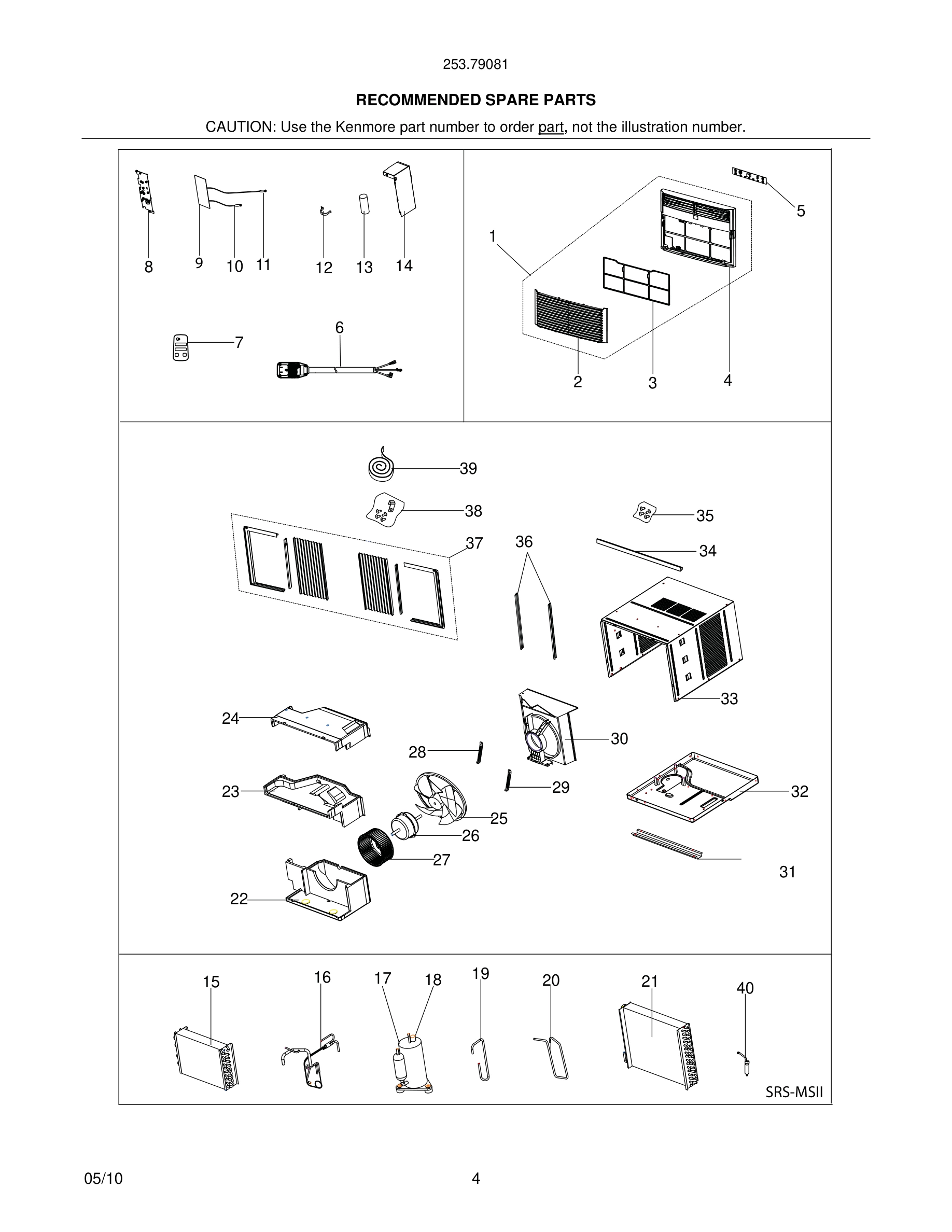

05 - RECOMMENDED SPARE PARTS

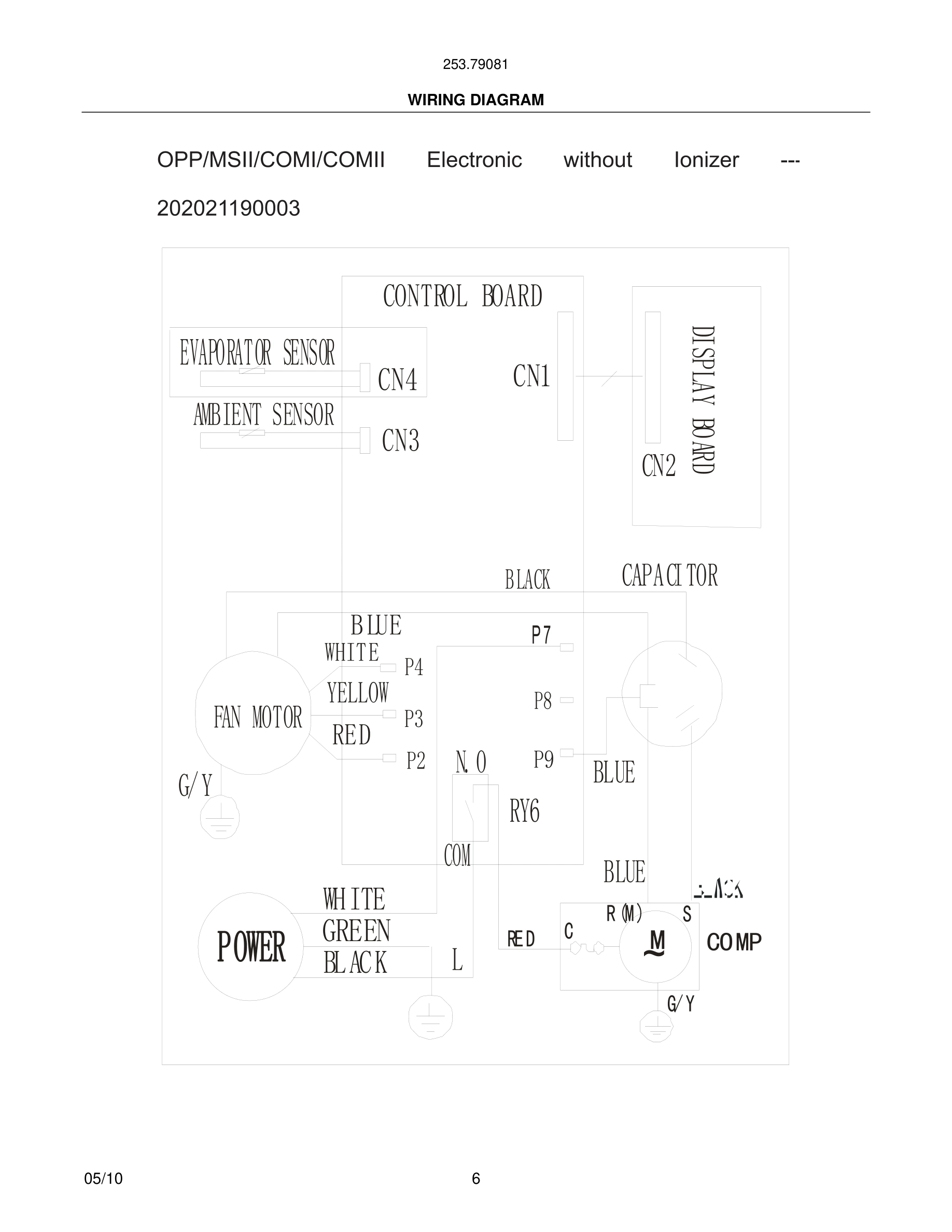

06 - WIRING DIAGRAM
Common parts from model Kenmore 253.79081010 ROOM AIR CONDITIONER
*
Use & Care Guide, English WCI 5304476664 Contact Us For Availability
*
Use & Care Guide, Spanish WCI 5304476665 Contact Us For Availability
*
Tech Data Sheet/Wiring Dia. WCI 5304476008 Contact Us For Availability
*
Repair Parts List WCI 5995566428 Contact Us For Availability
*
Energy Guide WCI 5304476715 Contact Us For Availability
*
Tech Data Sheet/Wiring Dia. WCI 5304476005 Contact Us For Availability
3#
Filter, air WCI 5304476520 Contact Us For Availability
6#
Power Cord, electric, LCDI WCI 5304476525 Contact Us For Availability
13#
Capacitor WCI 5304476003 Contact Us For Availability
15#
Evaporator, with cap tube WCI 5304478416 Contact Us For Availability
16#
Tube, capillary WCI 5304476569 Contact Us For Availability
16#
Tube, capillary WCI 5304476578 Contact Us For Availability
16#
Tube, capillary WCI 5304478417 Contact Us For Availability
17#
Compressor, with overload WCI 5304476006 Contact Us For Availability
17#
Compressor, with overload WCI 5304476002 Contact Us For Availability
17#
Compressor, with overload WCI 5304478088 Contact Us For Availability
18#
Overload Protector, compressor WCI 5304476291 Contact Us For Availability
18#
Overload Protector, compressor WCI 5304476292 Contact Us For Availability
18#
Overload Protector, compressor WCI 5304478089 Contact Us For Availability
19#
Tube, suction WCI 5304476570 Contact Us For Availability
19#
Tube, suction WCI 5304478418 Contact Us For Availability
20#
Tube, discharge WCI 5304476571 Contact Us For Availability
20#
Tube, discharge WCI 5304476579 Contact Us For Availability
20#
Tube, discharge WCI 5304478419 Contact Us For Availability
21#
Condenser WCI 5304476572 Contact Us For Availability
21#
Condenser WCI 5304476580 Contact Us For Availability
22
Scroll, blower housing, bottom WCI 5304476557 Contact Us For Availability
23
Scroll, blower housing, middle WCI 5304476573 Contact Us For Availability
24
Scroll, blower housing, top WCI 5304476559 Contact Us For Availability
25#
Fan Blade, axial WCI 5304476052 Contact Us For Availability
26#
Motor, fan WCI 5304476115 Contact Us For Availability
27#
Blower Wheel, centrifugal WCI 5304476051 Contact Us For Availability
28
Support, motor mount, left WCI 5304476574 Contact Us For Availability
29
Support, motor mount, right WCI 5304476575 Contact Us For Availability
30
Shroud, condenser/fan WCI 5304476560 Contact Us For Availability
31
Rail, shutter track, bottom WCI 5304476521 Contact Us For Availability
32
Base, unit chassis WCI 5304476576 Contact Us For Availability
32
Base, unit chassis WCI 5304476561 Contact Us For Availability
32
Base, unit chassis WCI 5304478420 Contact Us For Availability
33
Cabinet, wrapper/sleeve WCI 5304476562 Contact Us For Availability
34
Rail, shutter track, top WCI 5304476522 Contact Us For Availability
35
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
36
Retainer, shutter, cabinet sides WCI 5304476523 Contact Us For Availability
37
Window Filler Kit, slider panels, accordion WCI 5304476524 Contact Us For Availability
38
Hardware, mounting, screws/locks WCI 5304472192 Contact Us For Availability
39
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
× ![]()
