Model Electrolux 253.79071990 Room Air Conditioner (Kenmore 25379071990) – Common Parts & Diagrams

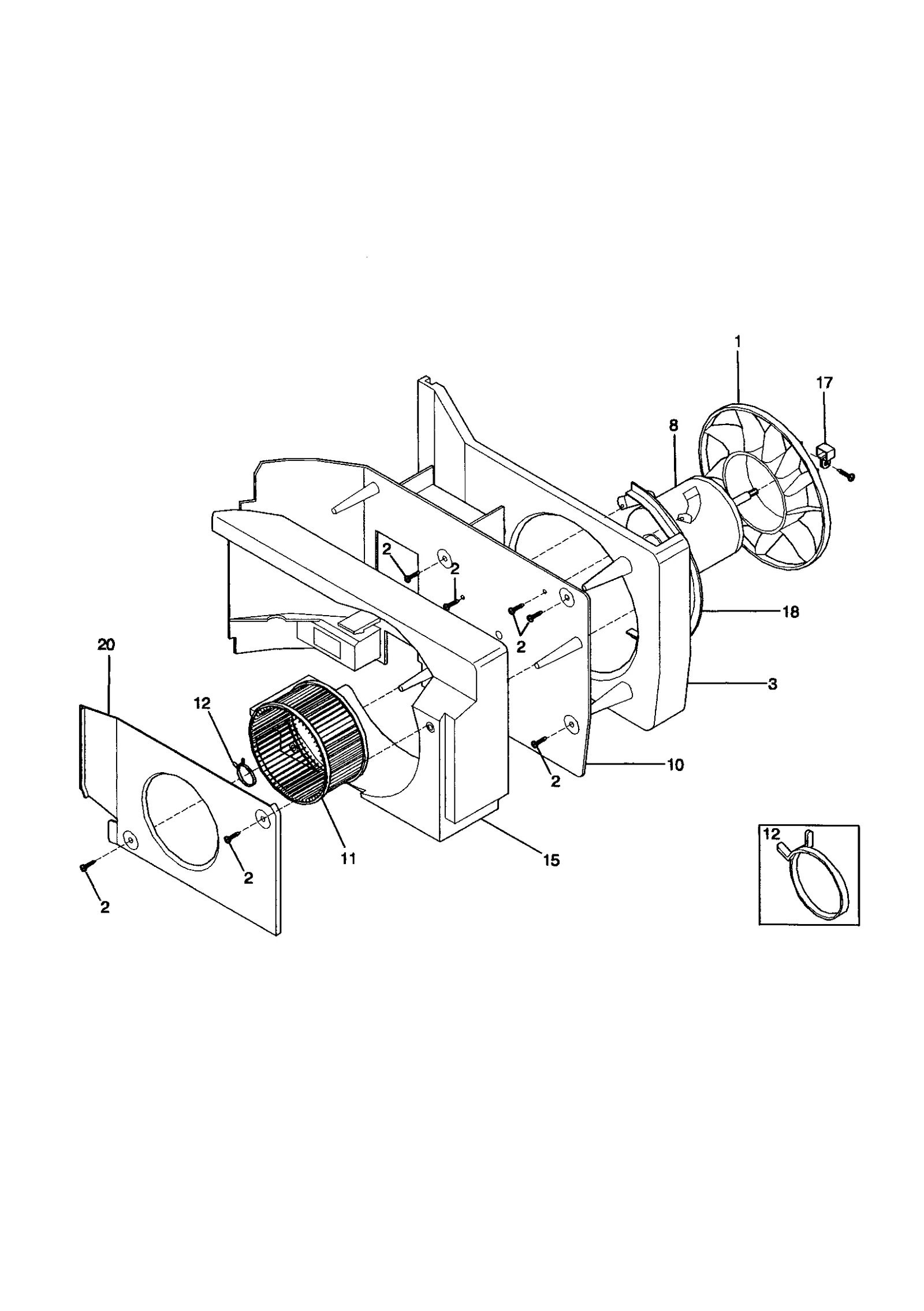

AIR HANDLING
AIR HANDLING
All Parts
All Parts
CABINET FRONT AND WRAPPER
CABINET FRONT AND WRAPPER
CONTROL
CONTROL
COMPRESSOR
WINDOW MOUNTING
Common parts from model Electrolux 253.79071990 Room Air Conditioner (Kenmore 25379071990)
1
Fan Blade WCI 5303285447 Contact Us For Availability
1
Wrapper WCI 5303307802 Contact Us For Availability
1
Compressor WCI 5304406828 Contact Us For Availability
1
SEAl, FRAME, TOP WCI 30026-03 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Door Vent WCI 5303285450 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Shroud WCI 5303285446 Contact Us For Availability
3
Nut WCI 5303286164 Contact Us For Availability
4
Bolt WCI 309101405 Contact Us For Availability
4
Frame WCI 5303285498 Contact Us For Availability
5
Seal WCI 5303285464 Contact Us For Availability
6
Louver WCI 5303285474 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Control Panel WCI 5303285458 Contact Us For Availability
7
Cover WCI 3002034 Contact Us For Availability
8
Motor WCI 5303295746 Contact Us For Availability
8
Westinghouse Louver WCI 5303285475 Contact Us For Availability
8
Select Switch WCI 5303318634 Contact Us For Availability
8
Overload WCI 5303270037 Contact Us For Availability
9
Vertical Louver WCI 5303285473 Contact Us For Availability
9
Thermostat WCI 5304409259 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
10
Fan Blade WCI 5303322434 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 5303285448 Contact Us For Availability
11
Evaporator WCI 5304409261 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Filter WCI 5303285479 Contact Us For Availability
12
Clip Control WCI 5303303127 Contact Us For Availability
12
Condenser WCI 309602701 Contact Us For Availability
13
Capacitor WCI 5303295749 Contact Us For Availability
14
Frame WCI 5303285499 Contact Us For Availability
15
Scroll WCI 5303285449 Contact Us For Availability
15
ACCORDIAN, WINDOW MTG WCI 5303285599 Contact Us For Availability
16
Harness WCI 5303285462 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 3203179 Contact Us For Availability
16A
Electronic Harness WCI 5303295500 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Rack WCI 5303299906 Contact Us For Availability
17
Service Cord WCI 5303285461 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
18
Deflector WCI 5303270042 Contact Us For Availability
18
Strainer WCI 5303290357 Contact Us For Availability
19
Dial Plate WCI 5303285469 Contact Us For Availability
20
Plate WCI 5303286383 Contact Us For Availability
20
Knob WCI 5303285471 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
20
Screw WCI 5303295750 Contact Us For Availability
21
Knob WCI 5303285472 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
24
R Name Plate WCI 5304403249 Contact Us For Availability
25
Insulation WCI 5303286385 Contact Us For Availability
27
Nameplate WCI 5304403247 Contact Us For Availability
30
Nut WCI 5303270092 Contact Us For Availability
31
Clip WCI 5303286163 Contact Us For Availability
31
Rod WCI 5303285451 Contact Us For Availability
32
Actuator WCI 5303285452 Contact Us For Availability
46
Clip WCI 5303285468 Contact Us For Availability
47
Link WCI 5303285477 Contact Us For Availability
48
Link WCI 5303285476 Contact Us For Availability
51
Leveling Knob WCI 5303322433 Contact Us For Availability
52
Knob Screw WCI 5303322432 Contact Us For Availability
53
Westinghouse Button WCI 5303285480 Contact Us For Availability
54
Low Wrapper WCI 5304403277 Contact Us For Availability
NI
Technical Sheet WCI 309000095 Contact Us For Availability
NI
Mounting Kit WCI 309635401 Contact Us For Availability
NI
Hardware WCI 5304409248 Contact Us For Availability
NI
Top Rail Seal WCI 5304409249 Contact Us For Availability
× ![]()
