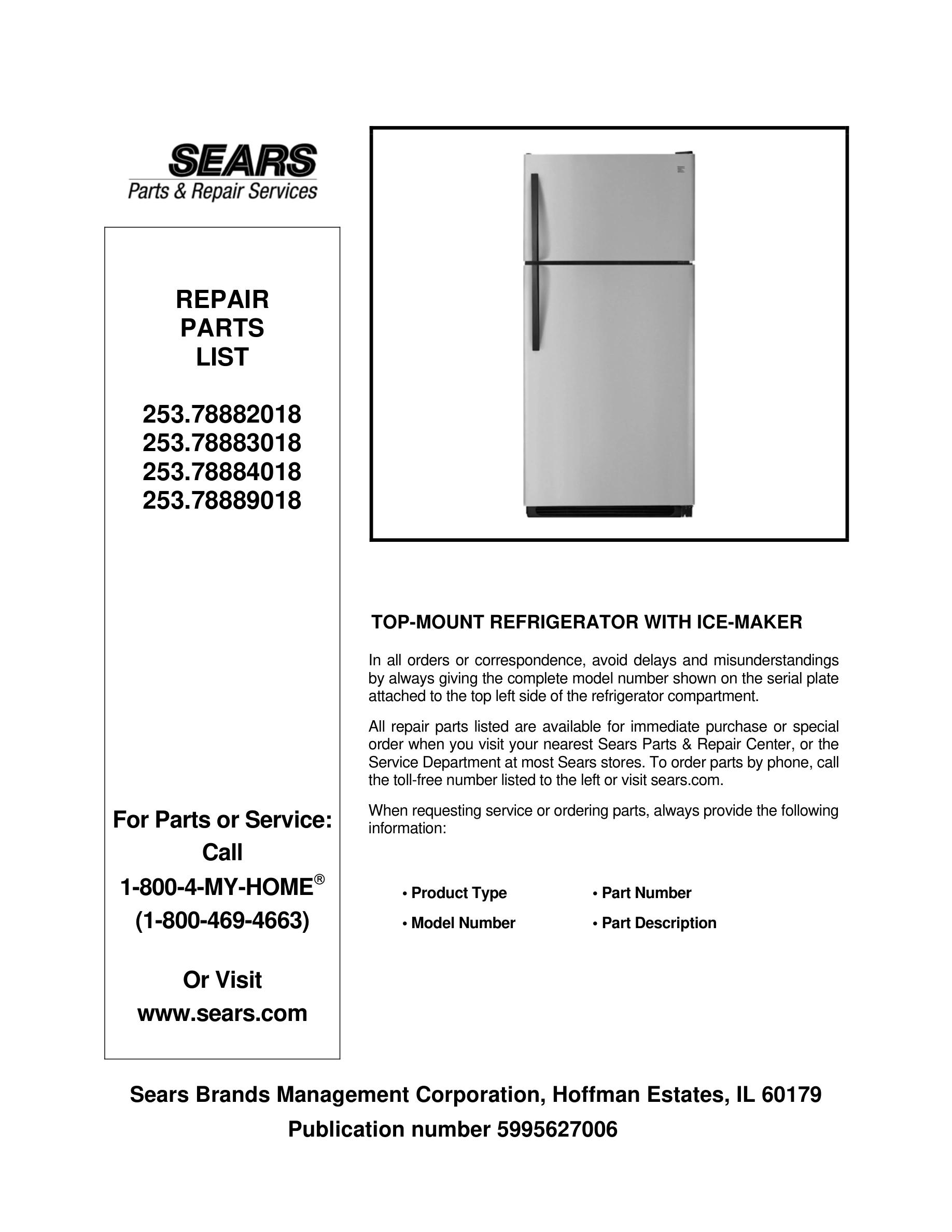

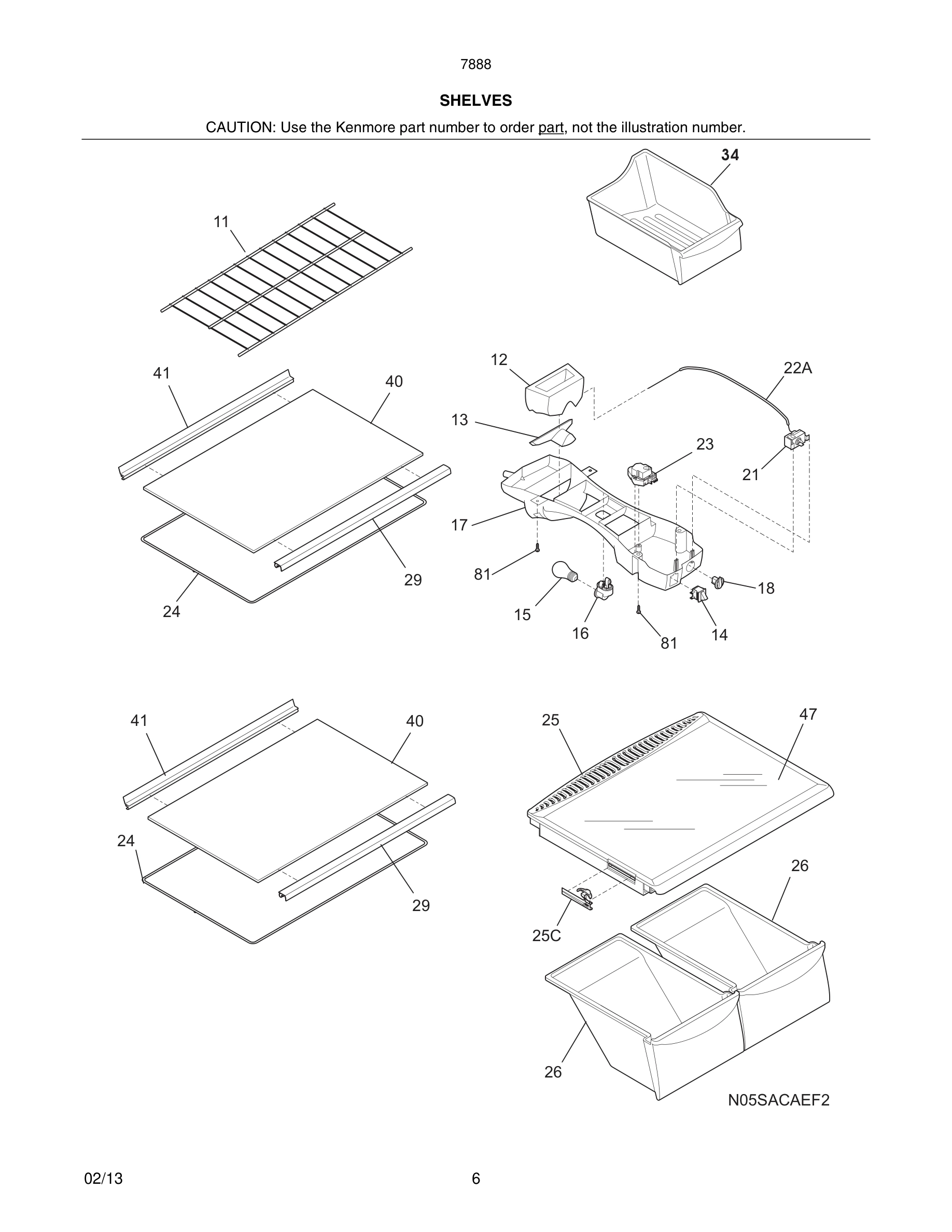

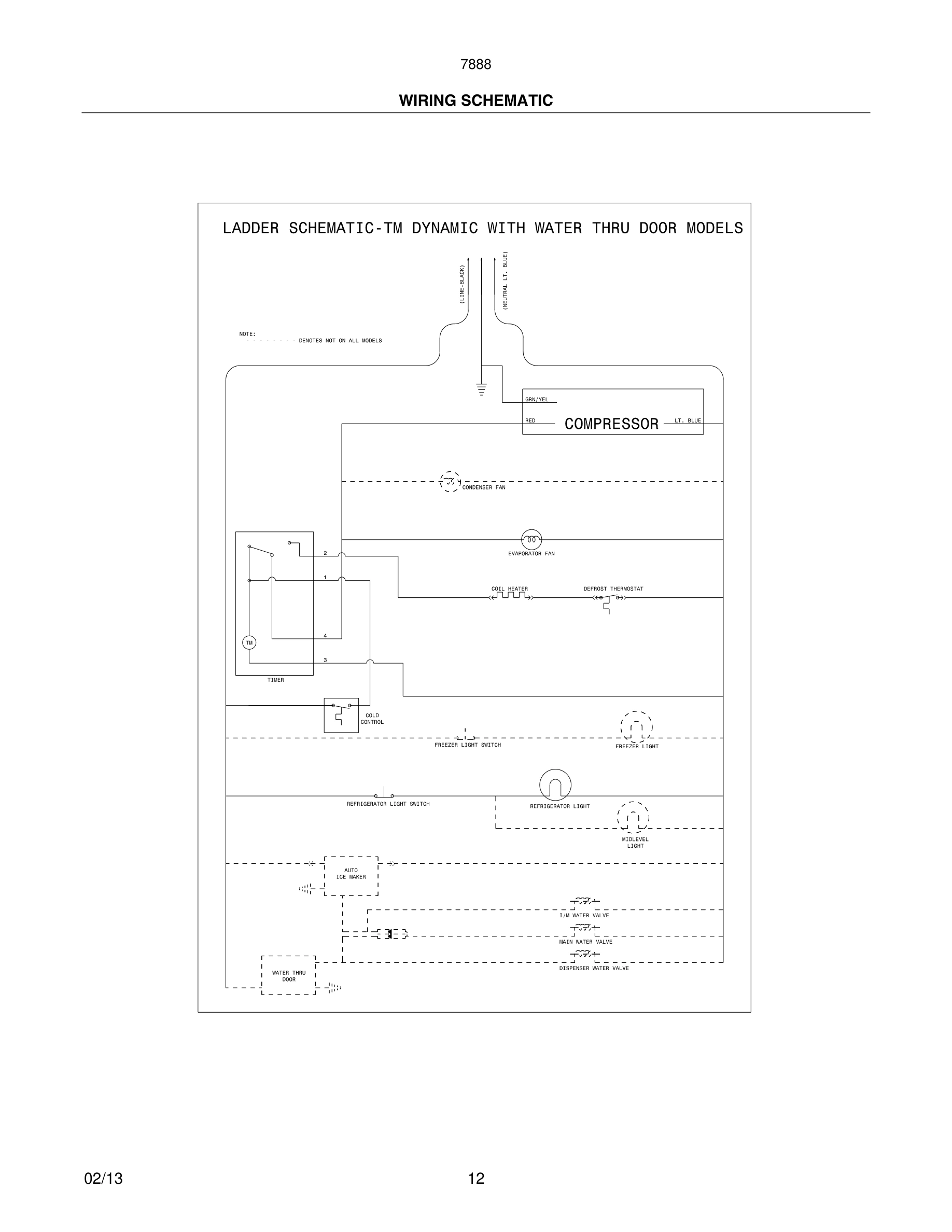

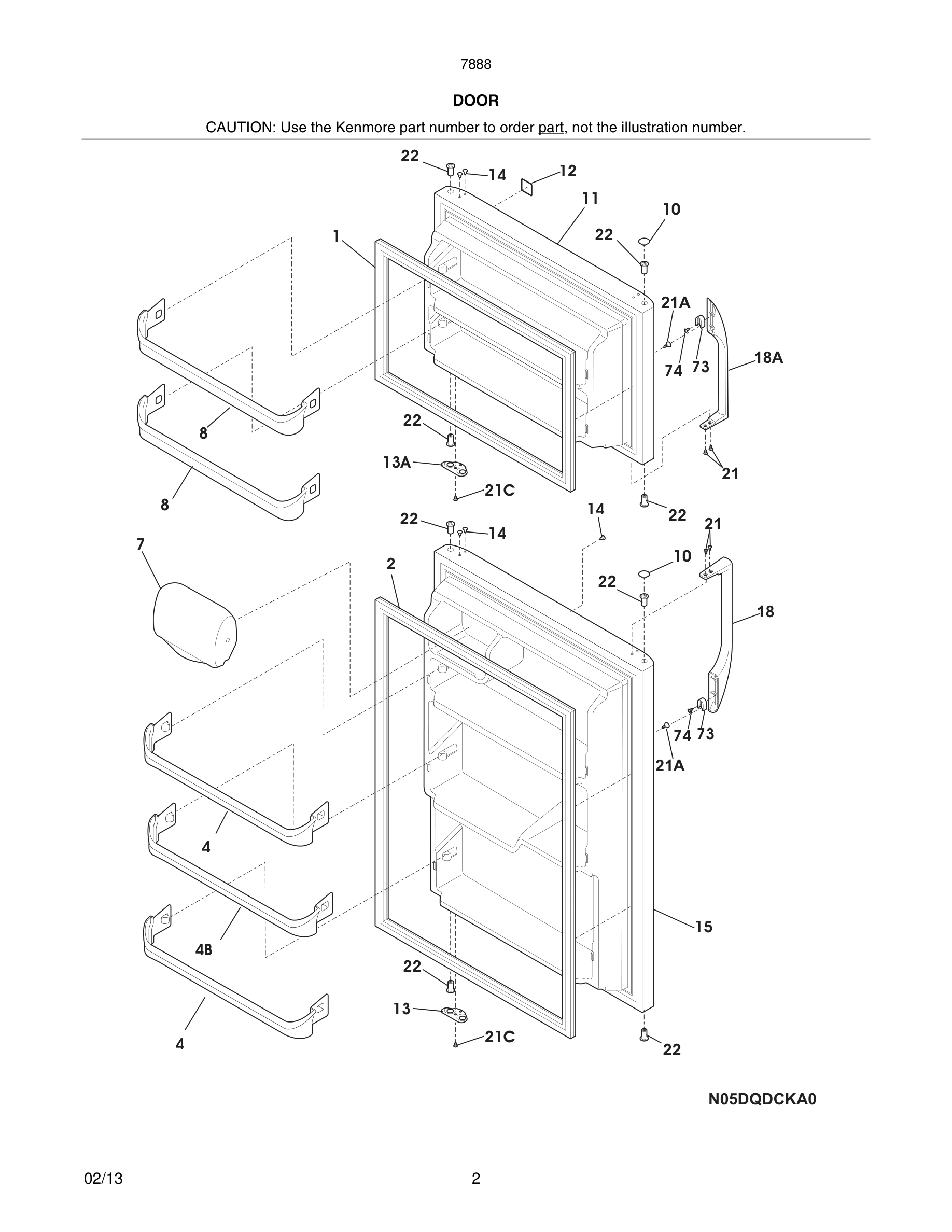

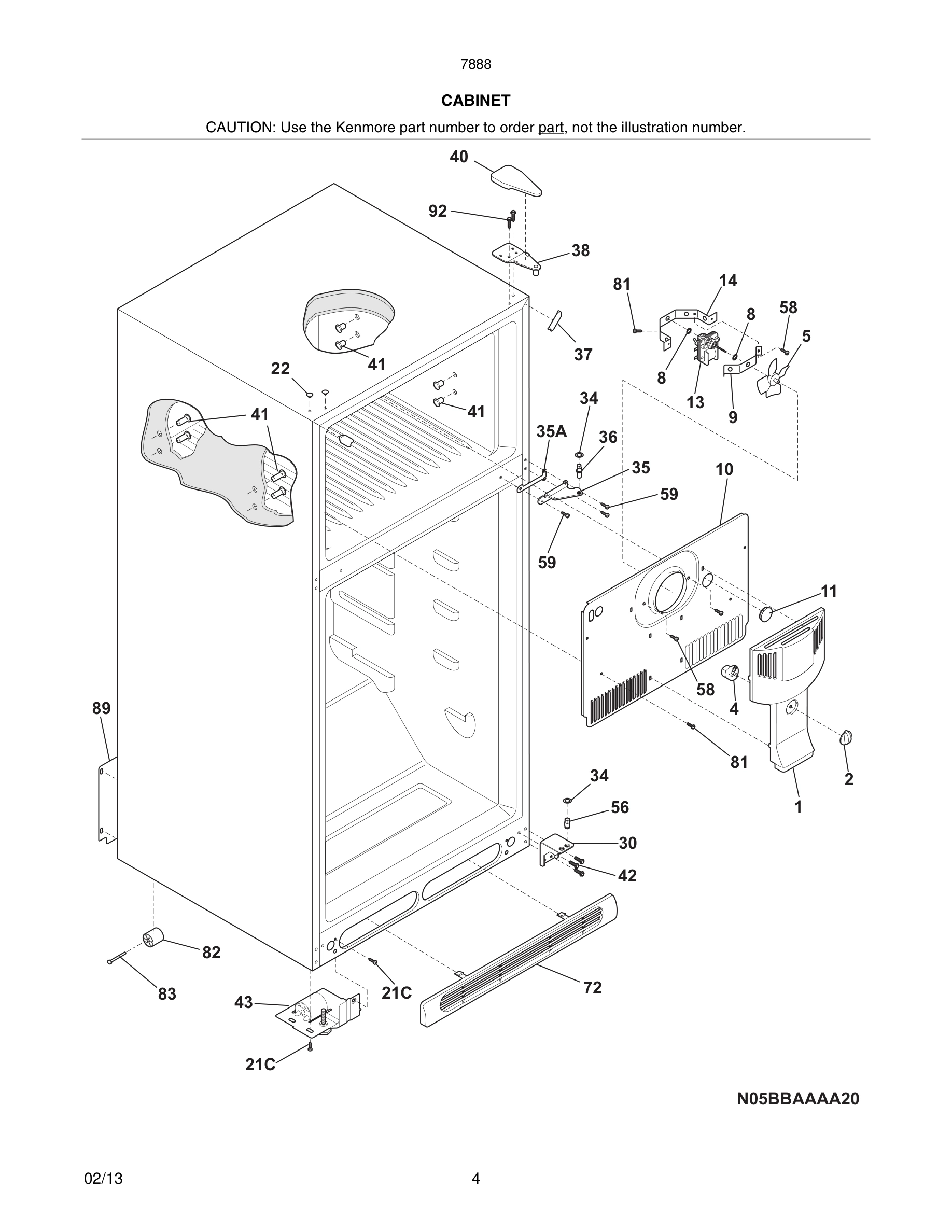

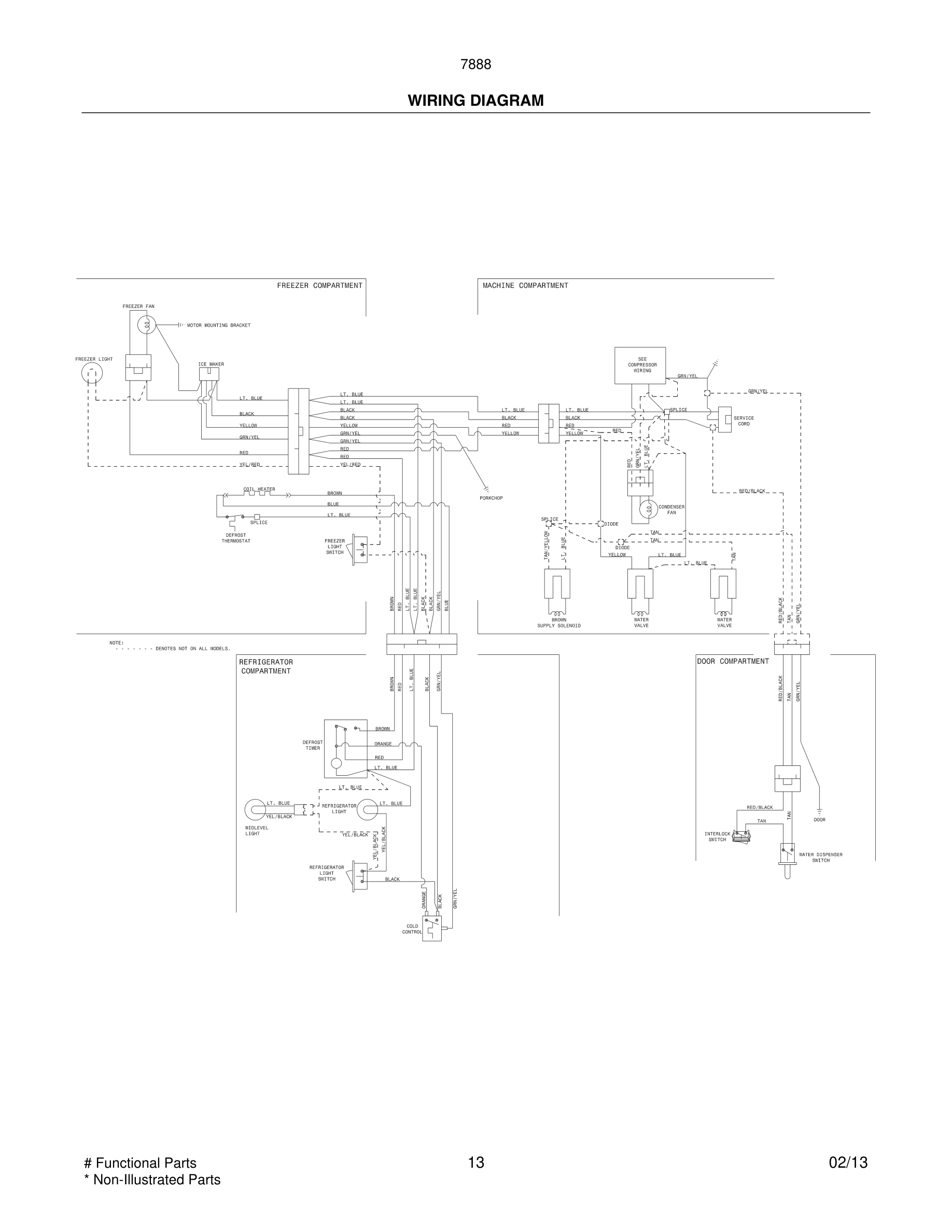

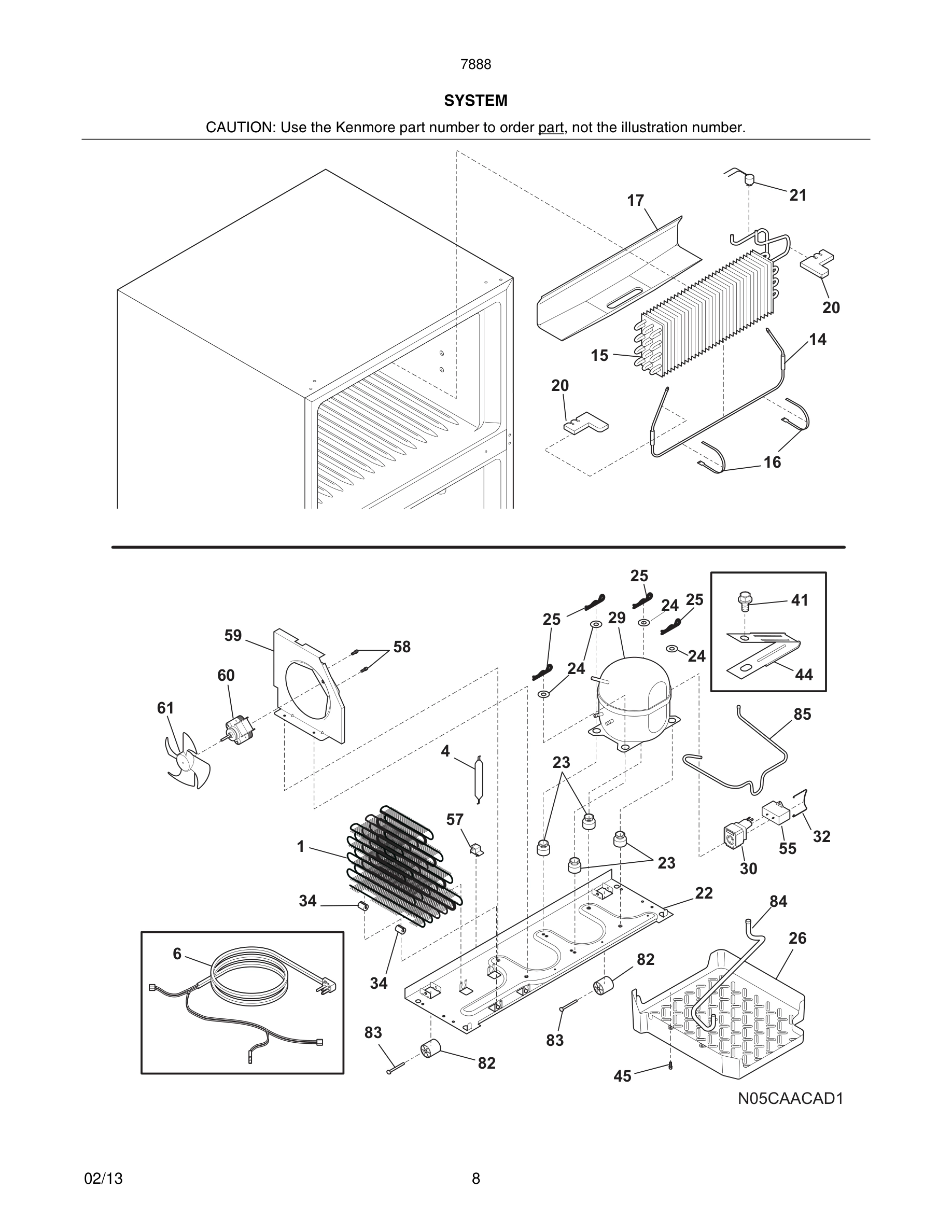

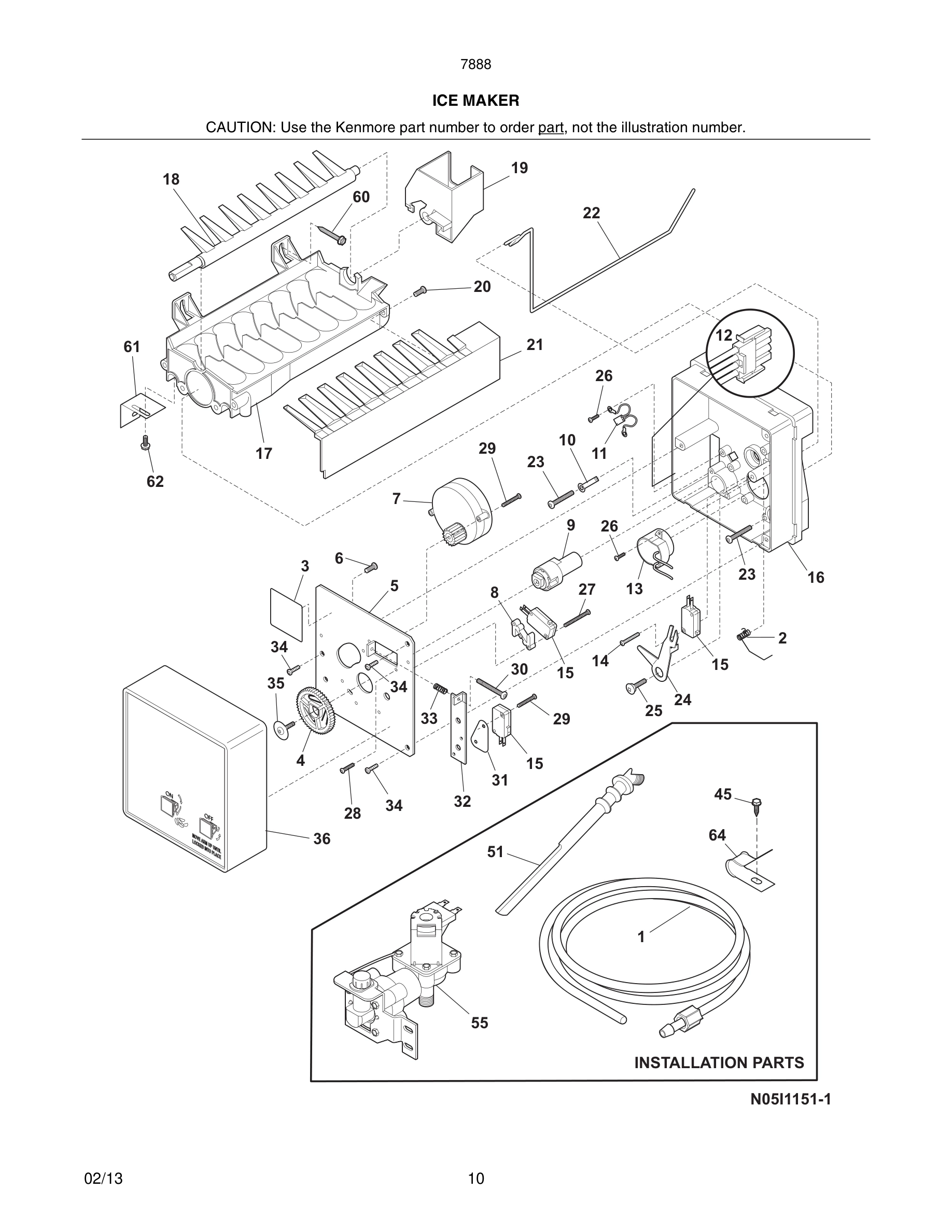

Model Kenmore 253.78882018 REFRIGERATOR – Common Parts &amp; Diagrams

*

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

*

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

*

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $316.98

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

1#

241785404 Frigidaire Refrigerator Condenser Backorder WCI 241785404 $104.20

1#

241872503 Frigidaire Refrigerator Door Gasket In Stock WCI 241872503 $61.26

1#

241872509 Frigidaire Refrigerator Door Gasket In Stock WCI 241872509 $68.76

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2#

241872512 Frigidaire Refrigerator Door Gasket In Stock WCI 241872512 $50.95

4

240534901 Frigidaire Refrigerator Door Rack In Stock WCI 240534901 $26.93

4

Damper-fan cover WCI 241523701 Contact Us For Availability

4B

240534701 Frigidaire Refrigerator Door Rack In Stock WCI 240534701 $17.72

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6#

5304521786 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521786 $74.84

7

240337712 Frigidaire Refrigerator Dairy Door In Stock WCI 240337712 $27.18

8

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

8

240534801 Frigidaire Refrigerator Freezer Doo In Stock WCI 240534801 $31.69

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

240381303 Frigidaire Hinge Plug Backorder WCI 240381303 $41.22

240381307 Frigidaire Refrigerator Gray Hinge In Stock WCI 240381307 $9.95

242239305 Frigidaire Refrigerator Cover Backorder WCI 242239305 $72.39

Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability

240410201 Frigidaire Refrigerator Door Assemb In Stock WCI 240410201 $265.78

240410203 Frigidaire Refrigerator Freezer Doo In Stock WCI 240410203 $316.13

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

Door-frzr, stainless, complete assy WCI 240410206 Contact Us For Availability

12

241542001 Frigidaire Refrigerator Deflector In Stock WCI 241542001 $47.07

12

242052401 Frigidaire Refrigerator Nameplate L Backorder WCI 242052401 $2.26

12

Nameplate, black, Kenmore WCI 242052402 Contact Us For Availability

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $9.06

240312422 Frigidaire Refrigerator Door Stop Backorder WCI 240312422 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

13#

241854301 Frigidaire Refrigerator Evaporator In Stock WCI 241854301 $113.94

13#

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

240312415 Frigidaire Refrigerator Door Stop Backorder WCI 240312415 $13.59

13A

Door Stop, bisque, frzr WCI 240312416 Contact Us For Availability

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $10.85

Plug-button, silver mist WCI 240494006 No Longer Available

Plug-button, bisque WCI 240494002 Contact Us For Availability

14#

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

14#

242044008 Frigidaire Defrost Heater In Stock WCI 242044008 $12.43

240450413 Frigidaire Refrigerator Complete Do Backorder WCI 240450413 $371.21

241798501 Frigidaire Door Assembly Backorder WCI 241798501 $392.75

242178112 Frigidaire Refrigerator Door Backorder WCI 242178112 $432.05

Door-refr, bisque, complete assy WCI 240410302 Contact Us For Availability

15#

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16#

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.09

17

Control Box WCI 240352703 Contact Us For Availability

17*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $2.66

242110509 Frigidaire Refrigerator White Door In Stock WCI 242110509 $47.97

242110510 Frigidaire Refrigerator Door Handle In Stock WCI 242110510 $22.65

242110511 Frigidaire Refrigerator Door Handle Backorder WCI 242110511 $47.04

Knob, temp control WCI 240360801 Contact Us For Availability

18A

242110512 Frigidaire Refrigerator Door Handle In Stock WCI 242110512 $50.64

18A

242110514 Frigidaire Refrigerator Door Handle In Stock WCI 242110514 $40.38

18A

Handle-door, bisque, refr-LH/frzr-RH WCI 242110513 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

21

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $52.96

21#

5303918634 Frigidaire Kit Thermostat In Stock WCI 5303918634 $19.69

21A

240521303 Frigidaire Refrigerator Screw In Stock WCI 240521303 $9.04

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

215774918 Frigidaire Refrigerator Button Plug Backorder WCI 215774918 $5.88

241665606 Frigidaire Refrigerator Compressor Backorder WCI 241665606 $111.64

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

24

240372409 Frigidaire Shelf Frame In Stock WCI 240372409 $63.34

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

240364793 Frigidaire Refrigerator Crisper Pan In Stock WCI 240364793 $78.88

25

242037701 Frigidaire Refrigerator Compressor In Stock WCI 242037701 $1.78

25C

241613502 Frigidaire Refrigerator Humidity Co Backorder WCI 241613502 $28.51

26

240337103 Frigidaire Crisper Drawer In Stock WCI 240337103 $77.85

26

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.71

29

240357704 Frigidaire Refrigerator Front Shelf In Stock WCI 240357704 $43.47

30#

241707715 Frigidaire Refrigerator PTC Starter In Stock WCI 241707715 $42.57

34

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

34

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

35

240313803 Frigidaire Refrigerator Center Hing Backorder WCI 240313803 $99.00

35

Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

35A

240336803 Frigidaire Refrigerator Hinge Space Backorder WCI 240336803 $7.25

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $1.89

37

Trim-cabinet corner, black, (2) WCI 242161202 No Longer Available

37

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $4.53

38

240313703 Frigidaire Refrigerator Hinge In Stock WCI 240313703 $20.62

240350620 Frigidaire Refrigerator Glass Shelf In Stock WCI 240350620 $111.67

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

240354404 Frigidaire Refrigerator Upper Hinge In Stock WCI 240354404 $37.05

Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability

41

240561502 Frigidaire Rear Shelf Trim In Stock WCI 240561502 $45.26

41

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

241889002 Frigidaire Refrigerator Roller Asse In Stock WCI 241889002 $39.88

43*

241889001 Frigidaire Refrigerator Roller Asse In Stock WCI 241889001 $38.11

47

240350608 Frigidaire Refrigerator Crisper Gla In Stock WCI 240350608 $30.39

56

240516502 Frigidaire Refrigerator Lower Hinge In Stock WCI 240516502 $43.03

59

240442707 Frigidaire Refrigerator Screw #10-3 In Stock WCI 240442707 $1.79

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60#

242018404 Frigidaire Refrigerator Condenser F In Stock WCI 242018404 $113.07

61#

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

72

241839405 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839405 $38.55

72

241839407 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839407 $37.19

72

Grille/Kickplate, bisque WCI 241839406 Contact Us For Availability

73

242116001 Frigidaire Refrigerator Handle Moun In Stock WCI 242116001 $9.50

74

Screw, cr pan hd, 10-16 WCI 215503204 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube In Stock WCI 240500801 $41.24

89

241733911 Frigidaire Refrigerator Access Cove In Stock WCI 241733911 $32.30

89*

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60
