Model Electrolux 253.78156890 Air Conditioner (Kenmore 25378156890) – Common Parts & Diagrams
All Parts

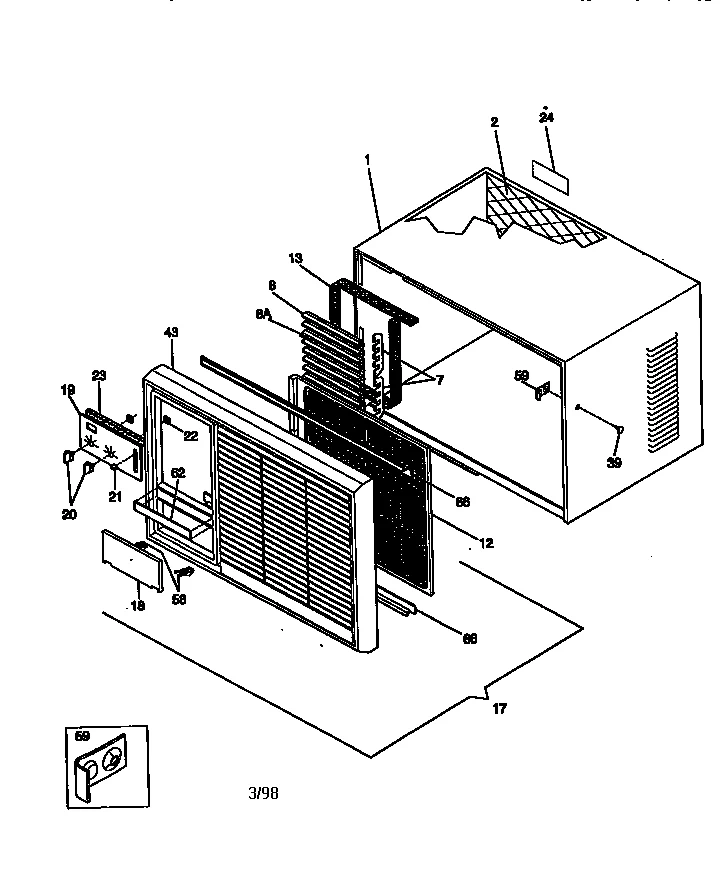

WRAPPER
CONTROL PANEL
AIR HANDLING
COMPRESSOR
WINDOW MOUNTING KIT
Common parts from model Electrolux 253.78156890 Air Conditioner (Kenmore 25378156890)
1
Wrapper WCI 5303303545 Contact Us For Availability
1
Fan Blade WCI 5303321440 Contact Us For Availability
1
Compressor WCI 5303925103 Contact Us For Availability
1
Window Seal WCI 5303002608 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Panel WCI 5303210207 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
3
Strap WCI 5303201820 Contact Us For Availability
3
Schroud WCI 5303015305 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
4
Actuator WCI 5303201821 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Lh Frame WCI 5303302304 Contact Us For Availability
5
Bracket WCI 5303209200 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Seal WCI 3001980 Contact Us For Availability
6
Schroud WCI 5303015304 Contact Us For Availability
6
Gasket WCI 5303272298 Contact Us For Availability
6
Retainer WCI 5303301765 Contact Us For Availability
7
Louver Link WCI 5303202811 Contact Us For Availability
7
Control Panel WCI 5303300231 Contact Us For Availability
7
Terminal Cover WCI 3206230 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
8
Room Air Conditioner Louver WCI 5303306911 Contact Us For Availability
8
Room Air Conditioner Rotary Switch WCI 309322604 Contact Us For Availability
8
Motor WCI 5303300219 Contact Us For Availability
8
Room Air Conditioner Compressor Overload Prot WCI 5303016697 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8A
Room Air Conditioner Louver WCI 5303306912 Contact Us For Availability
9
Room Air Conditioner Temperature Control WCI 5303201838 Contact Us For Availability
9
Bracket WCI 5303015306 Contact Us For Availability
9
Terminal Cover Nut WCI 5303211017 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Partition WCI 5303296868 Contact Us For Availability
10
Partition WCI 5303299319 Contact Us For Availability
10
Startr Kit WCI 5303201723 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 5303016832 Contact Us For Availability
11
Evaporator WCI 5303323285 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
12
Filter WCI 5303306916 Contact Us For Availability
12
Spacer WCI 5303211009 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Condenser WCI 5303323288 Contact Us For Availability
13
Capacitor WCI 5303201951 Contact Us For Availability
13
Seal WCI 5303015313 Contact Us For Availability
13
Tray WCI 5303208221 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
14
Insulation WCI 3201832 Contact Us For Availability
14
Base WCI 5303302873 Contact Us For Availability
14
Frame, Rh WCI 5303302305 Contact Us For Availability
15
Strap WCI 3201845 Contact Us For Availability
15
Scroll WCI 5303201831 Contact Us For Availability
15
Accordion Closure WCI 5303302306 Contact Us For Availability
16
Harness WCI 5303017345 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 3203179 Contact Us For Availability
16
Rail WCI 5303301777 Contact Us For Availability
17
Front Comple WCI 5303306920 Contact Us For Availability
17
Room Air Conditioner Power Cord WCI 5303301021 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
18
Door Front WCI 5303306917 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
Strainer WCI 5303290357 Contact Us For Availability
18
Screw WCI 08012680 Contact Us For Availability
19
Dial Plate WCI 5304403292 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
20
Knob WCI 5304403257 Contact Us For Availability
21
Knob WCI 5304403256 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
23
Seal WCI 3201953 Contact Us For Availability
24
Nameplate WCI 5303299902 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Screen WCI 5303302933 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
38
Screw WCI 5308009156 Contact Us For Availability
40
SPACER-LOUVERS (5) WCI 32022810 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
41
Link WCI 5300517130 Contact Us For Availability
43
Front Cover WCI 5303306915 Contact Us For Availability
44
Retainer WCI 5303201843 Contact Us For Availability
45
Retainer WCI 5303201847 Contact Us For Availability
46
Cover WCI 53033300232 Contact Us For Availability
47
Louver-vertical WCI 5303299318 Contact Us For Availability
58
Door Hinge WCI 5303306190 Contact Us For Availability
58
Louver WCI 5303300230 Contact Us For Availability
59
Nut WCI 08010928 Contact Us For Availability
62
Insert WCI 5303306918 Contact Us For Availability
66
Rail WCI 5303272800 Contact Us For Availability
NI
Mtg Kit WCI 5303301888 Contact Us For Availability
NI
Parts List WCI 5995303129 Contact Us For Availability
× ![]()
