Model Electrolux 253.78127890 Air Conditioner (Kenmore 25378127890) – Common Parts & Diagrams

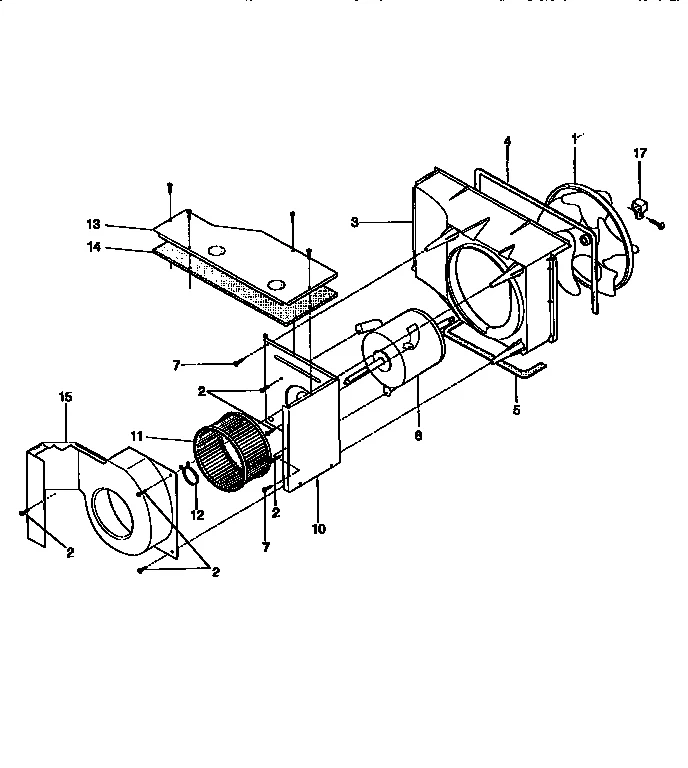

AIR HANDLING PARTS

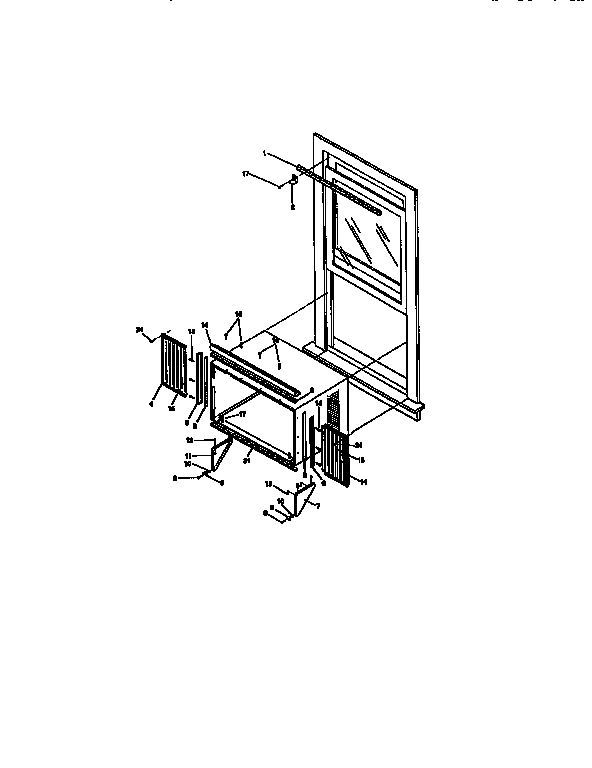

WINDOW MOUNTING KIT
UNIT PARTS
WRAPPER
All Parts
CONTROL PANEL PARTS
Common parts from model Electrolux 253.78127890 Air Conditioner (Kenmore 25378127890)
1
Compressor WCI 5303322099 Contact Us For Availability
1
Wrapper WCI 309609207 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
2
Rear Panel WCI 5303303597 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
3
Condenser WCI 3202950 Contact Us For Availability
3
Seal WCI 5303276728 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Strap-vent D WCI 5303306422 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
4
Frame-lh WCI 5303301245 Contact Us For Availability
4
Actuator WCI 5303201821 Contact Us For Availability
5
Seal WCI 3202951 Contact Us For Availability
5
Seal WCI 5303207200 Contact Us For Availability
5
Retainer-act WCI 5303306431 Contact Us For Availability
6
Retainer WCI 5303301250 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
7
Cover WCI 5303211011 Contact Us For Availability
7
Mounting Panel WCI 5303320012 Contact Us For Availability
8
Motor WCI 5303302660 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Protector WCI 5303322098 Contact Us For Availability
8
Horizontal Louver WCI 5304403949 Contact Us For Availability
8
Select Switch WCI 5303307038 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
9
Cover Nut WCI 5303301734 Contact Us For Availability
9
Screw WCI 5303271346 Contact Us For Availability
9
Temperature Control WCI 5303307043 Contact Us For Availability
10
Bulkhead WCI 5303307057 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Bulkhead WCI 5303306446 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309608901 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
11
Evaporator WCI 309610101 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Condenser WCI 3206086 Contact Us For Availability
12
Filter WCI 5304403947 Contact Us For Availability
12
Spacer WCI 5303211009 Contact Us For Availability
13
Cover WCI 5303321514 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Evaporator Tray WCI 5303306447 Contact Us For Availability
13
Seal Mullion WCI 5303306435 Contact Us For Availability
13
Capacitor WCI 5303316906 Contact Us For Availability
13A
Capacitor WCI 5308009152 Contact Us For Availability
14
Insulation WCI 309608201 Contact Us For Availability
14
Frame- Rh WCI 5303301246 Contact Us For Availability
14
Base WCI 5303322210 Contact Us For Availability
14
Seal-front P WCI 5303306434 Contact Us For Availability
15
Scroll WCI 5303306450 Contact Us For Availability
15
Room Air Conditioner Accordion Filler WCI 5303301247 Contact Us For Availability
15
Shield-heate WCI 309612301 Contact Us For Availability
15
Strap WCI 3201973 Contact Us For Availability
16
Rail WCI 5303301251 Contact Us For Availability
16
Tube WCI 5308017253 Contact Us For Availability
16
Harness WCI 5303322209 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
17
Cabinet Front WCI 309610314 Contact Us For Availability
17
Electronic Cord WCI 5303301041 Contact Us For Availability
18
Strainer WCI 5303290357 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Dial Plate WCI 309608123 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
20
Knob WCI 5304403257 Contact Us For Availability
21
Gasket WCI 5314949603 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
21
Knob WCI 5304403256 Contact Us For Availability
23
Seal-dial Pl WCI 5303307039 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
27
Room Air Conditioner Heater Assembly WCI 309611802 Contact Us For Availability
28
Room Air Conditioner Heater High-Limit Thermo WCI 5303016865 Contact Us For Availability
28
Front Clip WCI 309100401 Contact Us For Availability
29
Heat Harness WCI 5303322208 Contact Us For Availability
30
Valve WCI 3017804 Contact Us For Availability
31
Screw-drain WCI 5303209503 Contact Us For Availability
32
Nut WCI 3018695 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
43
Cabinet Front WCI 5304403948 Contact Us For Availability
45
Louver Retainer WCI 5303320004 Contact Us For Availability
46
Cover WCI 5303320011 Contact Us For Availability
47
Vertical Louver WCI 5303320013 Contact Us For Availability
58
Louver with Handle WCI 5303320014 Contact Us For Availability
62
Insert WCI 309609013 Contact Us For Availability
NI
Service Data Sheet WCI 309000085 Contact Us For Availability
NI
Owner's Manual WCI 309000811 Contact Us For Availability
NI
Parts List WCI 5995304473 Contact Us For Availability
× ![]()
