Model Electrolux 253.78125890 Air Conditioner (Kenmore 25378125890) – Common Parts & Diagrams
WINDOW MOUNTING KIT
WINDOW MOUNTING KIT
All Parts
All Parts

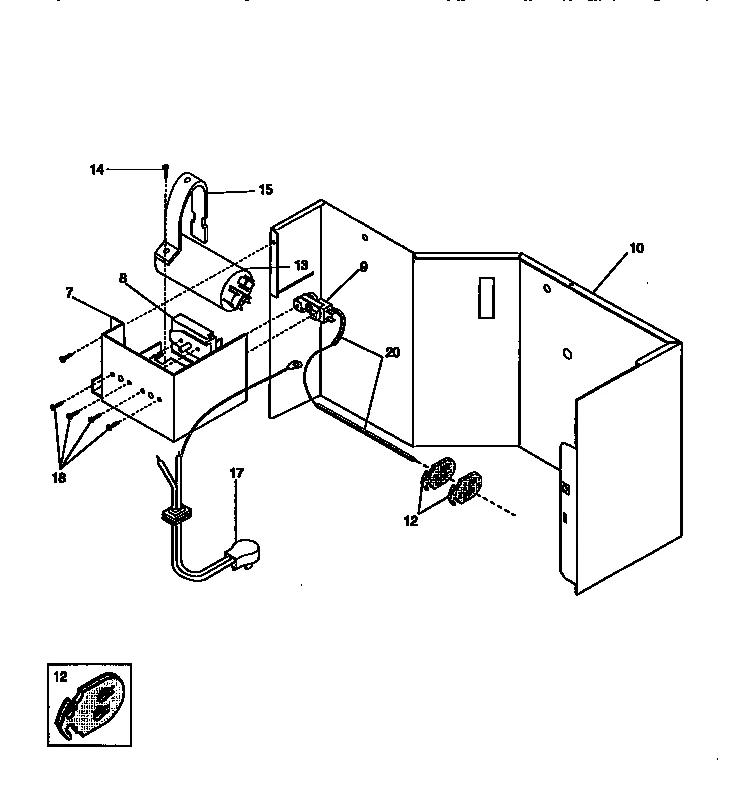

CONTROL PANEL
CONTROL PANEL

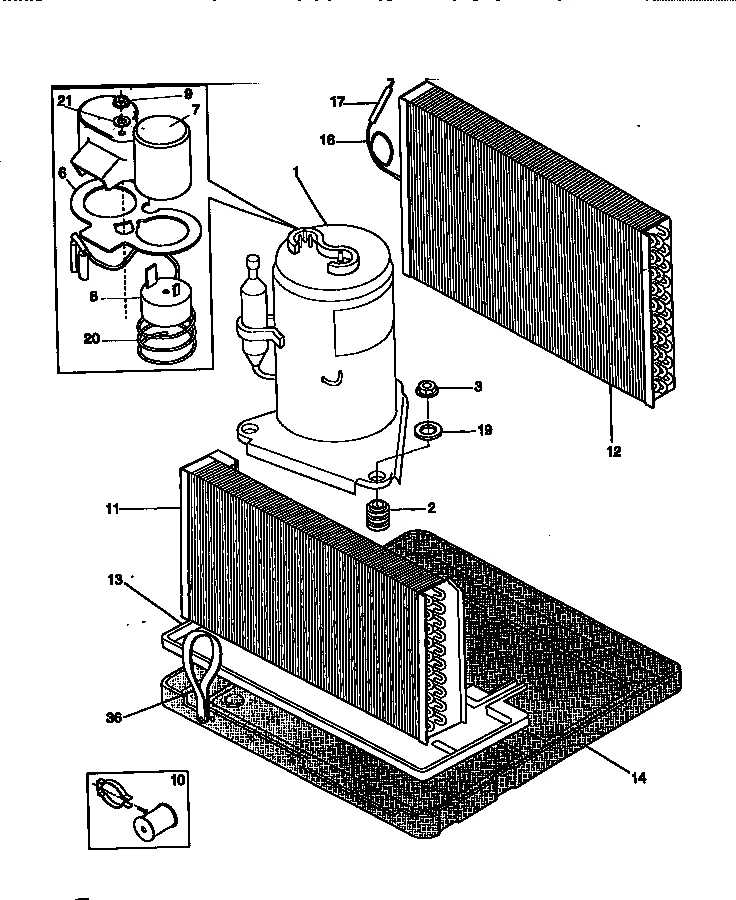

COMPRESSOR
COMPRESSOR

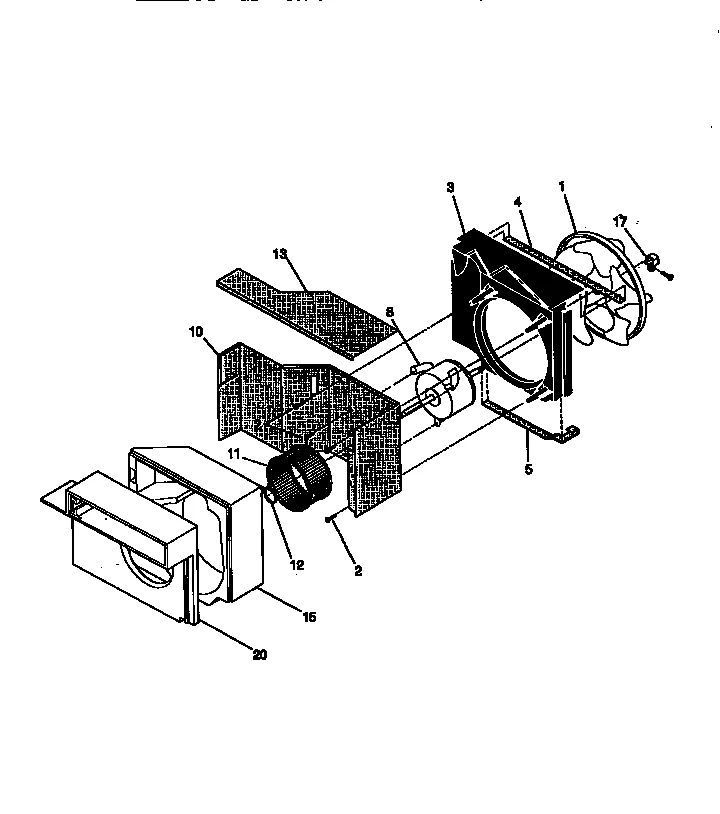

AIR HANDLING
WRAPPER
Common parts from model Electrolux 253.78125890 Air Conditioner (Kenmore 25378125890)
1
Compressor WCI 5303307244 Contact Us For Availability
1
Fan Blade WCI 5303320769 Contact Us For Availability
1
Wrapper WCI 309609207 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Room Air Conditioner Compressor Grommet WCI 5303283877 Contact Us For Availability
2
Rear Panel WCI 5303303597 Contact Us For Availability
3
Seal WCI 5303276728 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Condenser WCI 3202950 Contact Us For Availability
4
Frame-lh WCI 5303301245 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
5
Seal WCI 5303207200 Contact Us For Availability
5
Seal WCI 3202951 Contact Us For Availability
6
Retainer WCI 5303301250 Contact Us For Availability
6
Overload WCI 5303002035 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
7
Control Box WCI 309605603 Contact Us For Availability
7
Cover WCI 5303211011 Contact Us For Availability
7
LINK-LOUVER, (2) WCI 30934101 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Select Switch WCI 309322603 Contact Us For Availability
8
Overload WCI 5303307245 Contact Us For Availability
8
Room Air Conditioner Fan Motor WCI 5303316610 Contact Us For Availability
8
Louver WCI 309609603 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5303316597 Contact Us For Availability
9
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
9
Louver Vertical Vane WCI 309607801 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
10
Bulkhead WCI 5303316617 Contact Us For Availability
10
Louver Vertical Vane WCI 309607802 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
11
Evaporator WCI 309606101 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309608901 Contact Us For Availability
12
Clip-control Bulb WCI 5303002169 Contact Us For Availability
12
Condenser WCI 5303307470 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309607503 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Room Air Conditioner Fan Motor Capacitor WCI 5303316595 Contact Us For Availability
13
Evaporator Tray WCI 309606001 Contact Us For Availability
13
Cover WCI 309605902 Contact Us For Availability
14
Frame- Rh WCI 5303301246 Contact Us For Availability
14
Base WCI 5303316611 Contact Us For Availability
15
Room Air Conditioner Accordion Filler WCI 5303301247 Contact Us For Availability
15
Strap Capacitor WCI 5303316589 Contact Us For Availability
15
Scroll WCI 309605701 Contact Us For Availability
16
Rail WCI 5303301251 Contact Us For Availability
16
Tube WCI 5308017120 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Electrical Cord WCI 5303316618 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
17
Clamp-blade WCI 5308011040 Contact Us For Availability
17
Front WCI 309607603 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
Door WCI 309607906 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Dial Plate WCI 309614617 Contact Us For Availability
20
Sleeve WCI 5303002600 Contact Us For Availability
20
Spring WCI 5303002036 Contact Us For Availability
20
Scroll Plate WCI 309605801 Contact Us For Availability
20
Air Conditioner Control Knob WCI 309306905 Contact Us For Availability
21
Gasket WCI 5314949603 Contact Us For Availability
21
Gasket WCI 5303295516 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
23
Seal WCI 3201953 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
25
Door Vent WCI 5303316592 Contact Us For Availability
26
Handle Vent WCI 309100509 Contact Us For Availability
28
Front Clip WCI 309100401 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
NI
Service Data Sheet WCI 309000070 Contact Us For Availability
NI
Owner's Manual WCI 309000811 Contact Us For Availability
NI
Harness WCI 5303316603 Contact Us For Availability
NI
Parts List WCI 5995303103 Contact Us For Availability
× ![]()
