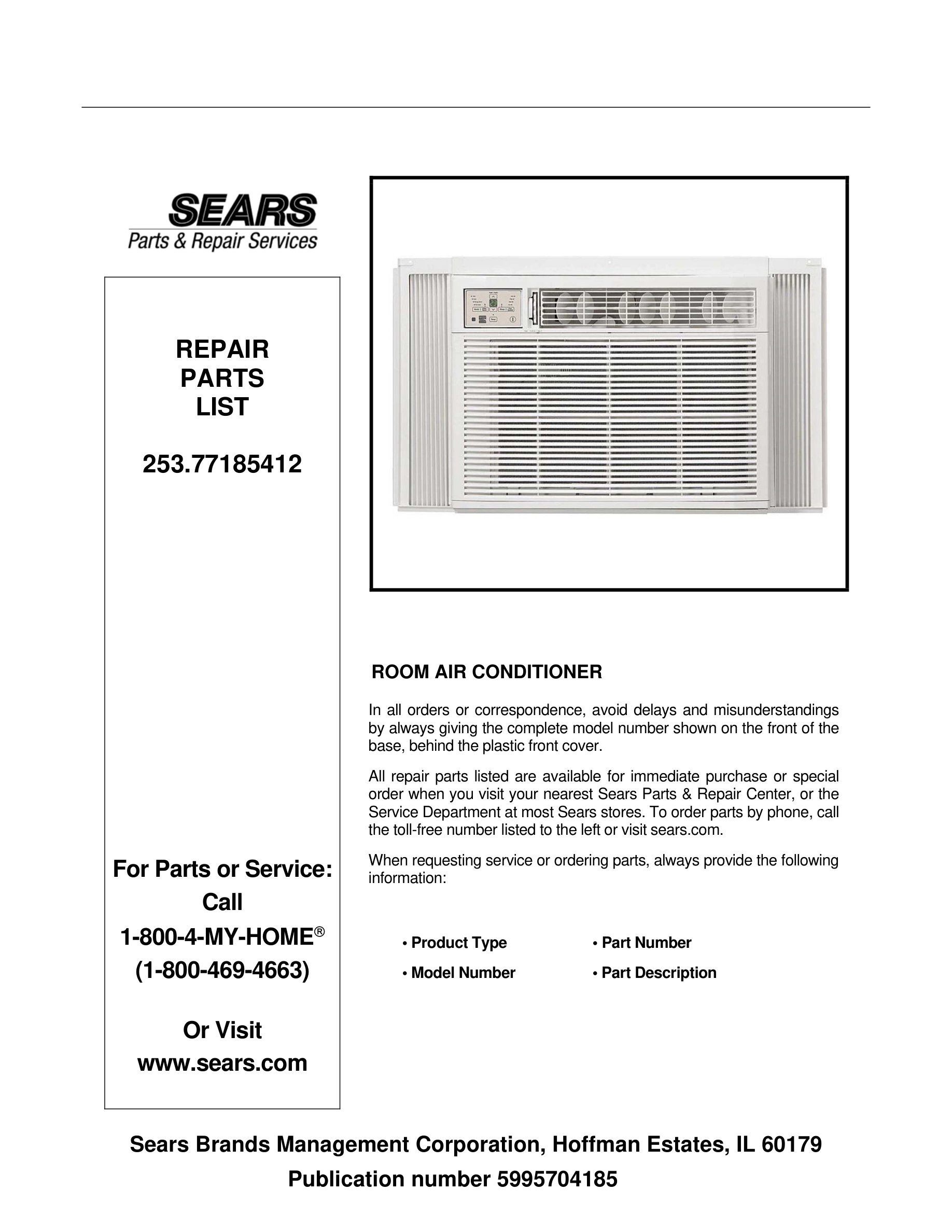

Model Kenmore 253.77185412 ROOM AIR CONDITIONER – Common Parts & Diagrams

*
Tech Data Sheet/Wiring Diagram
Tech Data Sheet/Wiring Diagram WCI 5304493842 Contact Us For Availability
View on Model
*
Use & Care Guide
Use & Care Guide WCI 5304495596 Contact Us For Availability
View on Model
*
Energy Guide
Energy Guide WCI 5304495743 Contact Us For Availability
View on Model
*
DIAGRAM-WIRING
DIAGRAM-WIRING WCI 5304517088 Contact Us For Availability
View on Model
*
Installation Instructions
Installation Instructions WCI 5304495042 Contact Us For Availability
View on Model
*
CATALOG
CATALOG WCI 5995704185 Contact Us For Availability
View on Model
7#
Handle, vent control
Handle, vent control WCI 5304495010 Contact Us For Availability
View on Model
8#
Link, lever/vent door, detente
Link, lever/vent door, detente WCI 5304476359 Contact Us For Availability
View on Model
9#
Lever, vent control
Lever, vent control WCI 5304495731 Contact Us For Availability
View on Model
11#
Control Panel, with overlay
Control Panel, with overlay WCI 5304495733 Contact Us For Availability
View on Model
12#
PC Board, display/input
PC Board, display/input WCI 5304500900 Contact Us For Availability
View on Model
15#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304500901 Contact Us For Availability
View on Model
22#
Transformer
Transformer WCI 5304512376 Contact Us For Availability
View on Model
23#
Capacitor, fan motor
Capacitor, fan motor WCI 5304482883 Contact Us For Availability
View on Model
24#
Capacitor, compressor
Capacitor, compressor WCI 5304499940 Contact Us For Availability
View on Model
27#
Tube, capillary
Tube, capillary WCI 5304500891 Contact Us For Availability
View on Model
28#
Tube, suction
Tube, suction WCI 5304495654 Contact Us For Availability
View on Model
29#
Compressor
Compressor WCI 5304512413 Contact Us For Availability
View on Model
30#
Tube, discharge
Tube, discharge WCI 5304500892 Contact Us For Availability
View on Model
31#
Tube, condensate evap, drain pan
Tube, condensate evap, drain pan WCI 5304495628 Contact Us For Availability
View on Model
32#
Condenser
Condenser WCI 5304512411 Contact Us For Availability
View on Model
33#
Drier-filter
Drier-filter WCI 5304476322 Contact Us For Availability
View on Model
45#
Scroll, blower housing, rear
Scroll, blower housing, rear WCI 5304495742 Contact Us For Availability
View on Model
46#
Motor, fan
Motor, fan WCI 5304499941 Contact Us For Availability
View on Model
48
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304495634 Contact Us For Availability
View on Model
49
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304487567 Contact Us For Availability
View on Model
50
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304486026 Contact Us For Availability
View on Model
51
Rail, shutter track, top angle
Rail, shutter track, top angle WCI 5304476333 Contact Us For Availability
View on Model
52
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472546 Contact Us For Availability
View on Model
53
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304476266 Contact Us For Availability
View on Model
54
Seal Kit, foam, top, bottom, sash
Seal Kit, foam, top, bottom, sash WCI 5304472548 Contact Us For Availability
View on Model
55
Window Filler Kit, slider panel
Window Filler Kit, slider panel WCI 5304476334 Contact Us For Availability
View on Model
56
Bracket, sill angle
Bracket, sill angle WCI 5304472360 Contact Us For Availability
View on Model
57
Bracket, window mounting, right
Bracket, window mounting, right WCI 5304482508 Contact Us For Availability
View on Model
58
Bracket, window mounting, left
Bracket, window mounting, left WCI 5304482509 Contact Us For Availability
View on Model
59*
Panel, Sub Panel Assy
Panel, Sub Panel Assy WCI 5304512404 Contact Us For Availability
