Model Kenmore 253.77135512 ROOM AIR CONDITIONER – Common Parts & Diagrams

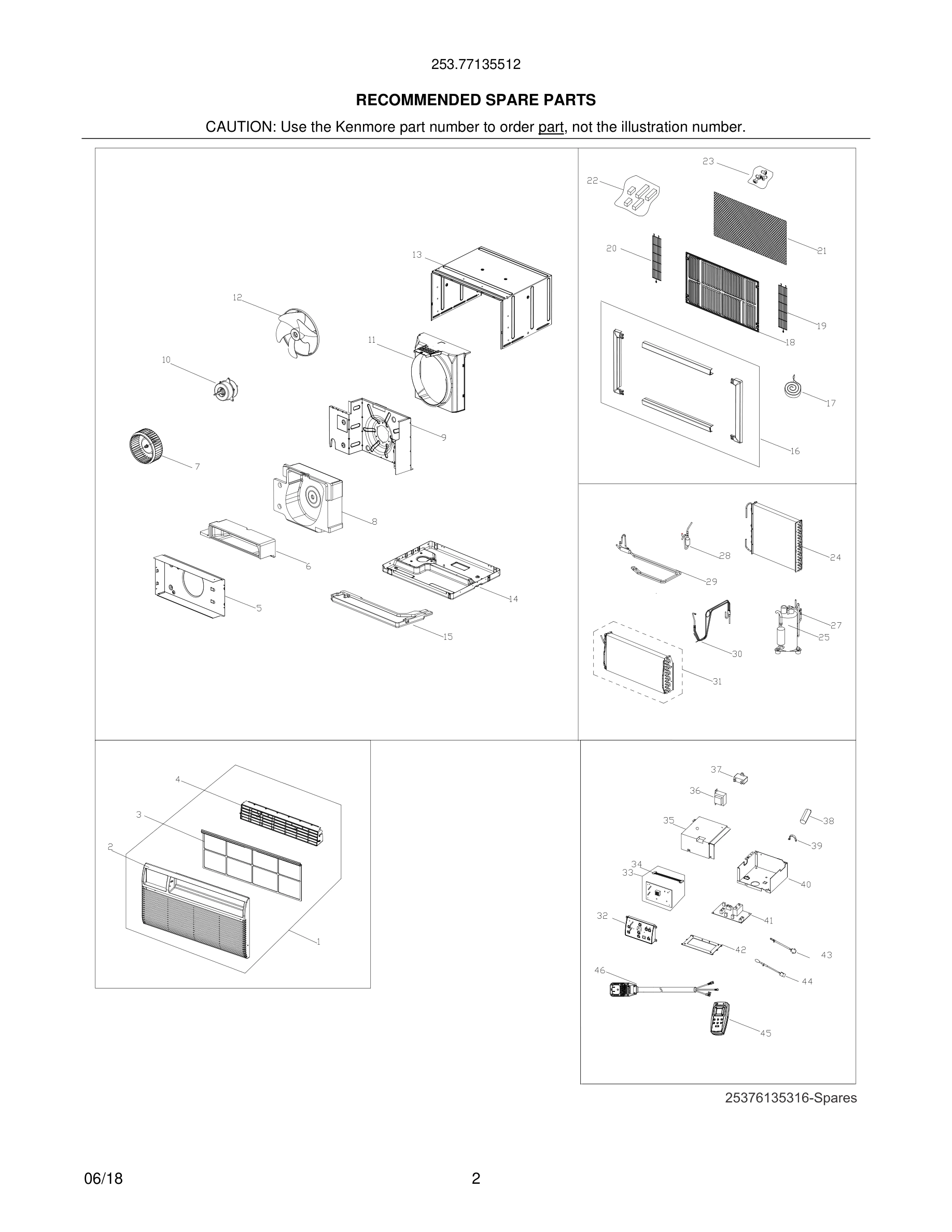

Common parts from model Kenmore 253.77135512 ROOM AIR CONDITIONER

01 - COVER

Print

• This Diagram
• All Diagrams

1#

Front Assembly, complete panel WCI 5304476434 Contact Us For Availability

View on Model

3#

5304528926 Frigidaire Air Conditioner Filter Backorder WCI 5304528926 View Details $10.87

View on Model

7#

5304471193 Frigidaire Air Conditioner Blower Backorder WCI 5304471193 View Details $53.81

View on Model

9

Bulkhead, partition, air system WCI 5304501086 Contact Us For Availability

View on Model

10#

5304504186 Frigidaire Motor Backorder WCI 5304504186 View Details $254.18

View on Model

11

Shroud, fan housing, condenser WCI 5304501088 Contact Us For Availability

View on Model

12#

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $51.10

View on Model

13

Cabinet, wrapper/sleeve WCI 5304501087 Contact Us For Availability

View on Model

14

Base, unit chassis WCI 5304501089 Contact Us For Availability

View on Model

15

Tray, drip pan, foam WCI 5304501090 Contact Us For Availability

View on Model

16

5304535826 Frigidaire Trim In Stock WCI 5304535826 View Details $21.10

View on Model

17

Seal, stuffer, foam, wall/sleeve WCI 5304470974 Contact Us For Availability

View on Model

18

Grille, sleeve, aluminum, rear WCI 5304482549 Contact Us For Availability

View on Model

19

Grille, air inlet, right rear WCI 5304501091 Contact Us For Availability

View on Model

20

Grille, air inlet, left rear WCI 5304501092 Contact Us For Availability

View on Model

21

5304470975 Frigidaire Grill In Stock WCI 5304470975 View Details $12.65

View on Model

22

Seal & Spacer Kit WCI 5304470979 Contact Us For Availability

View on Model

23

Fastener Kit, rear grille, screws WCI 5304470978 Contact Us For Availability

View on Model

24#

5304517104 Frigidaire Air-Cooled Condenser Backorder WCI 5304517104 View Details $211.11

View on Model

25#

5304504185 Frigidaire Compressor Backorder WCI 5304504185 View Details $421.24

View on Model

27#

5304504871 Frigidaire Tube Assembly Backorder WCI 5304504871 View Details $54.23

View on Model

28#

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.53

View on Model

29#

5304504872 Frigidaire Air Conditioner Tube Backorder WCI 5304504872 View Details $79.31

View on Model

30#

5304501105 Frigidaire Tube Assembly Backorder WCI 5304501105 View Details $48.85

View on Model

31#

5304517107 Frigidaire Evaporator Backorder WCI 5304517107 View Details $341.86

View on Model

32#

Control Panel, with overlay WCI 5304495509 Contact Us For Availability

View on Model

33#

5304501096 Frigidaire Electrical Control Backorder WCI 5304501096 View Details $80.68

View on Model

34#

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.66

View on Model

35

Cover, 35 # WCI 5304517106 Contact Us For Availability

View on Model

36#

5304512376 Frigidaire Air Conditioner Transfo Backorder WCI 5304512376 View Details $79.78

View on Model

37#

5304471103 Frigidaire Air Conditioner Capacit Backorder WCI 5304471103 View Details $37.63

View on Model

38#

5304493239 Frigidaire Air Conditioner Capacit Backorder WCI 5304493239 View Details $91.58

View on Model

39

Clamp, capacitor WCI 5304501069 Contact Us For Availability

View on Model

40

Box WCI 5304517040 Contact Us For Availability

View on Model

41#

5304512416 Frigidaire Air Conditioner PCB Boa Backorder WCI 5304512416 View Details $141.15

View on Model

42

5304512372 Frigidaire Holder Backorder WCI 5304512372 View Details $13.15

View on Model

43#

5304495518 Frigidaire Sensor Backorder WCI 5304495518 View Details $15.40

View on Model

44#

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.91

View on Model

45#

Remote Control, transmitter WCI 5304495027 Contact Us For Availability

View on Model

46#

5304500885 Frigidaire Air Conditioner Power C Backorder WCI 5304500885 View Details $140.70

View on Model

×
