Model Kenmore 253.77125412 ROOM AIR CONDITIONER – Common Parts & Diagrams

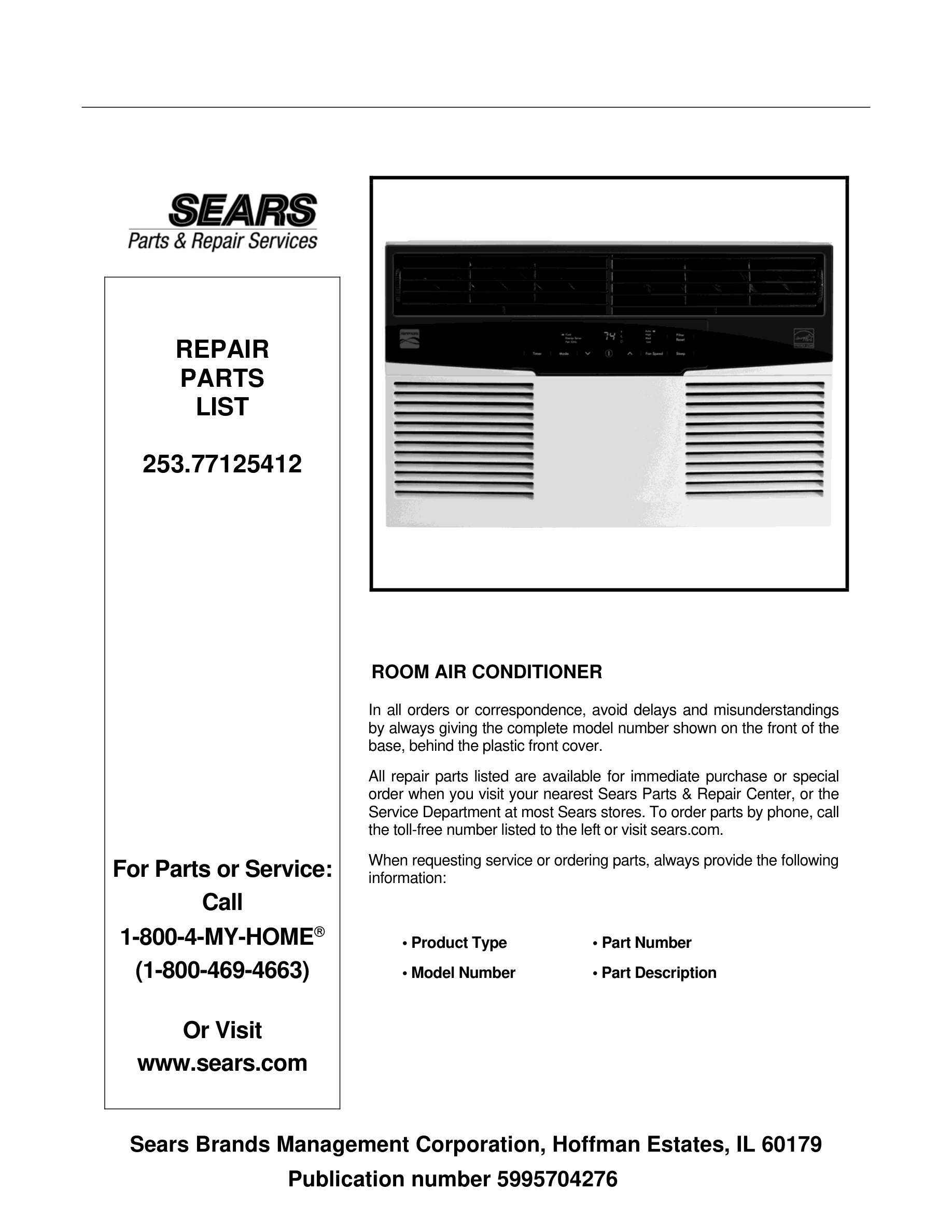

01 - COVER

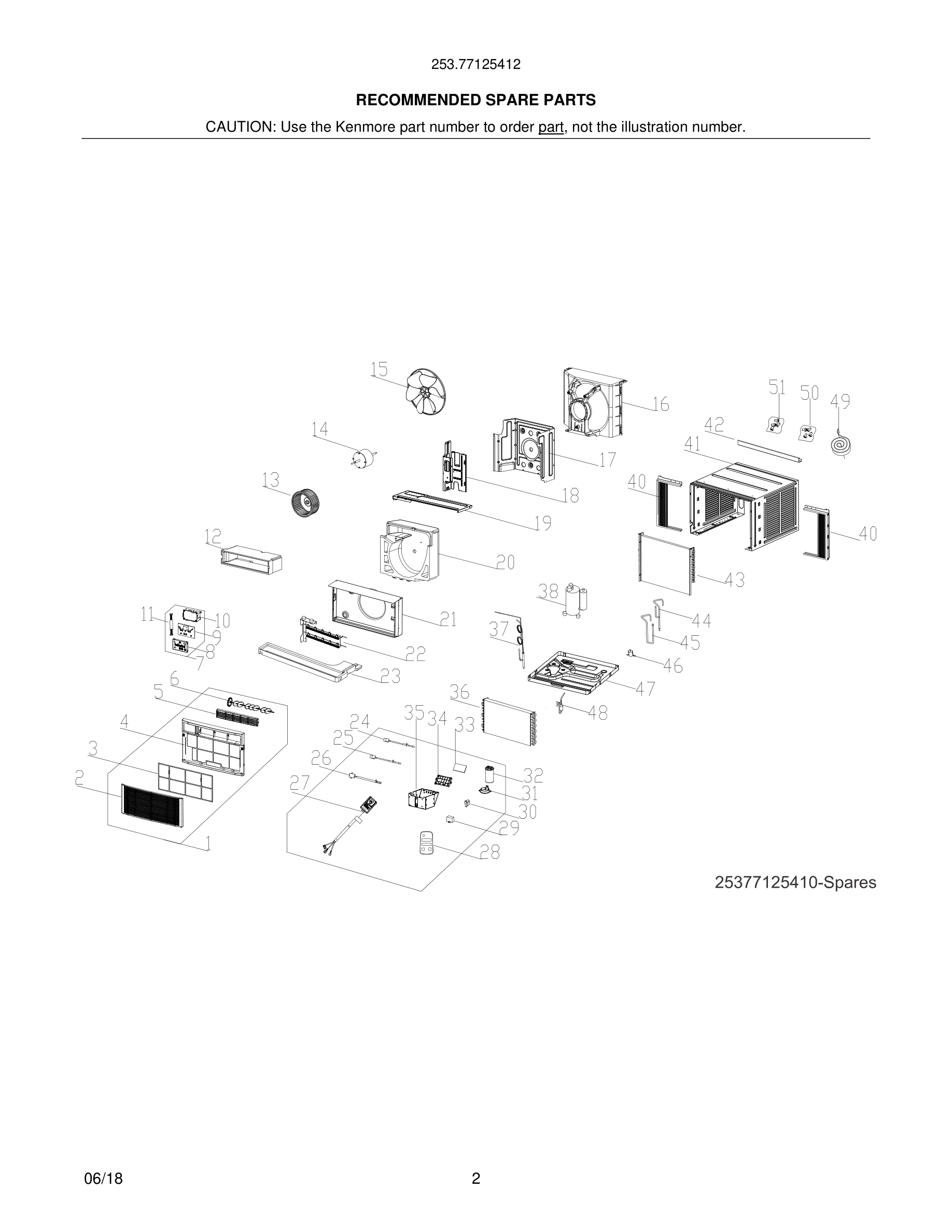

03 - RECOMMENDED SPARE PARTS
03 - WIRING DIAGRAM
04 - WIRING DIAGRAM
Common parts from model Kenmore 253.77125412 ROOM AIR CONDITIONER
10
Cover, display board WCI 5304501059 Contact Us For Availability
12
Cover, blower scroll, top WCI 5304501061 Contact Us For Availability
16
Bulkhead, partition, rear WCI 5304501062 Contact Us For Availability
17
Bulkhead, partition, front WCI 5304501063 Contact Us For Availability
18
Bulkhead, partition, front/left WCI 5304501064 Contact Us For Availability
19
Cover, blower scroll, front WCI 5304501065 Contact Us For Availability
20
Scroll, blower housing, rear WCI 5304501066 Contact Us For Availability
21
Scroll, blower housing, front WCI 5304501067 Contact Us For Availability
23
Tray, drip pan WCI 5304501068 Contact Us For Availability
31
Clamp, capacitor WCI 5304501069 Contact Us For Availability
35
Control Box WCI 5304517038 Contact Us For Availability
36#
Evaporator WCI 5304517102 Contact Us For Availability
40
Window Filler Kit, slider panels, accordion WCI 5304476393 Contact Us For Availability
41
Cabinet, wrapper/sleeve WCI 5304487606 Contact Us For Availability
42
Rail, shutter, top channel WCI 5304476391 Contact Us For Availability
44#
Tube, discharge WCI 5304501073 Contact Us For Availability
45#
Tube, suction WCI 5304501074 Contact Us For Availability
46#
Valve, drain WCI 5304476323 Contact Us For Availability
47
Base, unit chassis WCI 5304501075 Contact Us For Availability
49
Seal Kit, window, foam strips WCI 5304471258 Contact Us For Availability
50
Hardware Kit, installation WCI 5304491884 Contact Us For Availability
51
Screw Kit, top rail mount WCI 5304471256 Contact Us For Availability
59*
Panel, Sub Panel Assy WCI 5304512404 Contact Us For Availability
× ![]()
