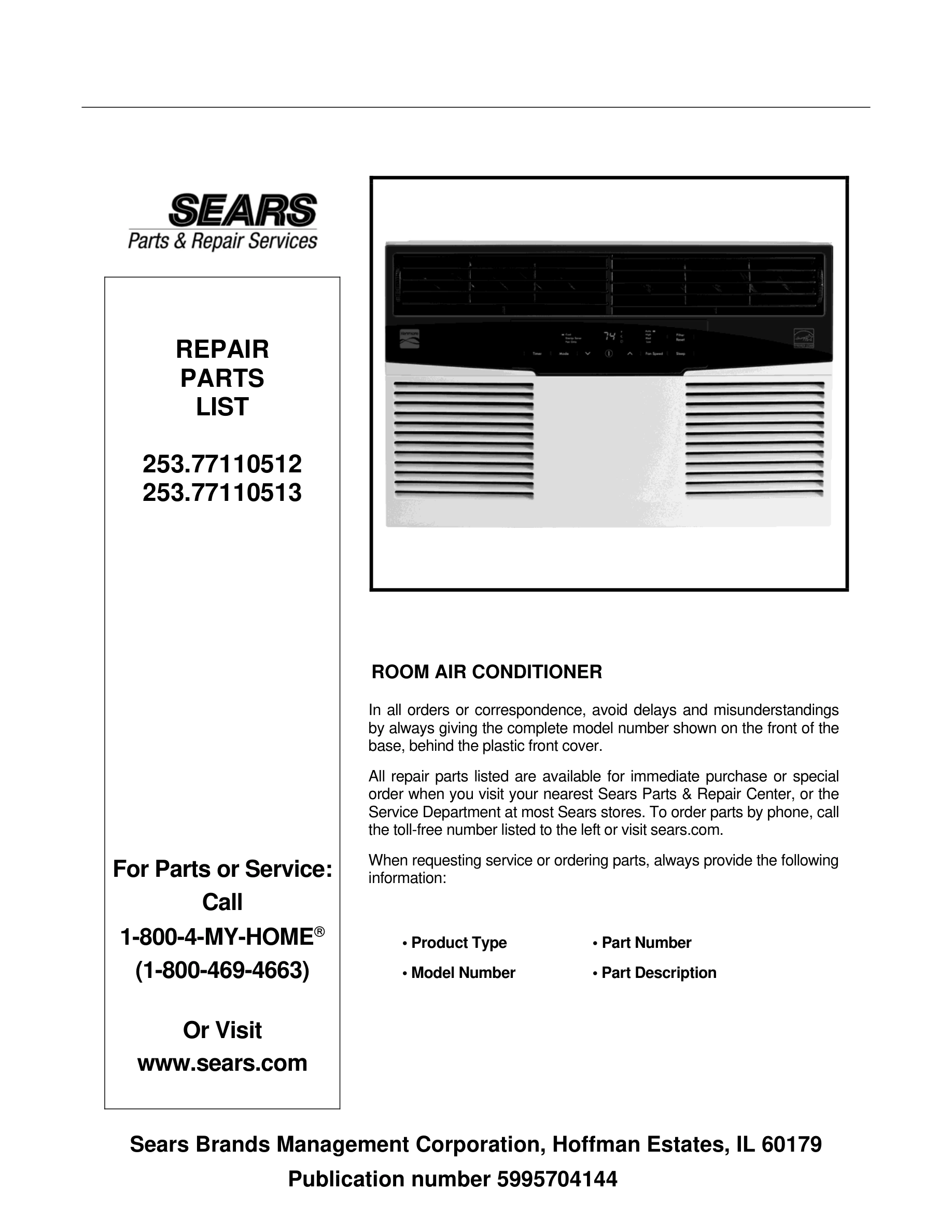

Model Kenmore 253.77110513 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.77110513 ROOM AIR CONDITIONER

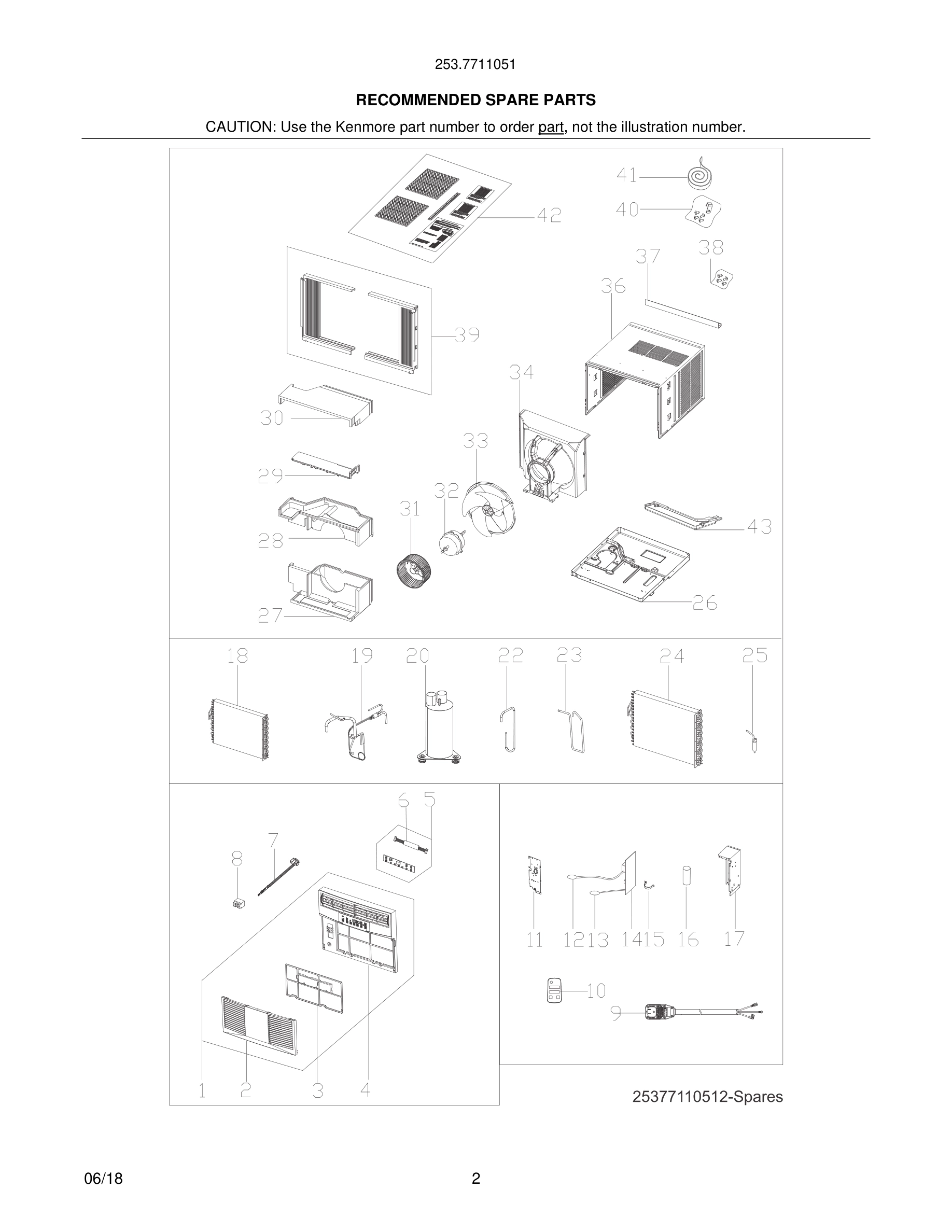

01 - COVER

Print

• This Diagram
• All Diagrams

2

Panel, front grille, tilt-out WCI 5304504769 Contact Us For Availability

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $20.71

View on Model

7#

Door, vent control, with lever WCI 5304504772 Contact Us For Availability

View on Model

8#

5304476179 Frigidaire Air Conditioner Sleeve Backorder WCI 5304476179 View Details $8.60

View on Model

9#

5304536807 Frigidaire Power Cord Backorder WCI 5304536807 View Details $82.57

View on Model

10#

5304504692 Frigidaire Air Conditioner Remote Backorder WCI 5304504692 View Details $70.78

View on Model

11

Cover, control box WCI 5304476182 Contact Us For Availability

View on Model

12#

5304471275 Frigidaire Air Conditioner Sensor Backorder WCI 5304471275 View Details $25.35

View on Model

13#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

14#

PC Board, control/power, main WCI 5304495095 Contact Us For Availability

View on Model

15

Strap, capacitor clamp WCI 5304471203 Contact Us For Availability

View on Model

16#

5304471300 Frigidaire Capacitor Backorder WCI 5304471300 View Details $111.64

View on Model

17

Control Box WCI 5304492004 Contact Us For Availability

View on Model

18#

Evaporator WCI 5304517085 Contact Us For Availability

View on Model

19#

5304504774 Frigidaire Tube Backorder WCI 5304504774 View Details $60.50

View on Model

20#

5304504172 Frigidaire Compressor Backorder WCI 5304504172 View Details $358.80

View on Model

22#

Tube, suction WCI 5304504776 Contact Us For Availability

View on Model

23#

5304495117 Frigidaire Tube Backorder WCI 5304495117 View Details $34.87

View on Model

24#

5304504777 Frigidaire Air Conditioner Condens Backorder WCI 5304504777 View Details $220.84

View on Model

25#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $24.91

View on Model

26

Base, unit chassis WCI 5304504778 Contact Us For Availability

View on Model

27

Scroll, blower housing, bottom WCI 5304485967 Contact Us For Availability

View on Model

28

Scroll, blower housing, middle WCI 5304495102 Contact Us For Availability

View on Model

29

Enclosure, air duct WCI 5304495103 Contact Us For Availability

View on Model

30

Scroll, blower housing, top WCI 5304485969 Contact Us For Availability

View on Model

31#

5304485443 Frigidaire Air Conditioner Blower Backorder WCI 5304485443 View Details $46.18

View on Model

32#

5304504169 Frigidaire Air Conditioner Motor Backorder WCI 5304504169 View Details $234.24

View on Model

33#

5304476059 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304476059 View Details $68.57

View on Model

34

Shroud, condenser/fan WCI 5304504775 Contact Us For Availability

View on Model

36

Cabinet, wrapper/sleeve WCI 5304504779 Contact Us For Availability

View on Model

37

5304504780 Frigidaire Rail Backorder WCI 5304504780 View Details $33.97

View on Model

38

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

39

Window Filler Kit, slider panels, accordion WCI 5304504781 Contact Us For Availability

View on Model

40

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $12.22

View on Model

41

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

42

Panel, insulation, R1 WCI 5304504274 Contact Us For Availability

View on Model

43#

5304504783 Frigidaire Air Conditioner Tube Backorder WCI 5304504783 View Details $55.12

View on Model

×
