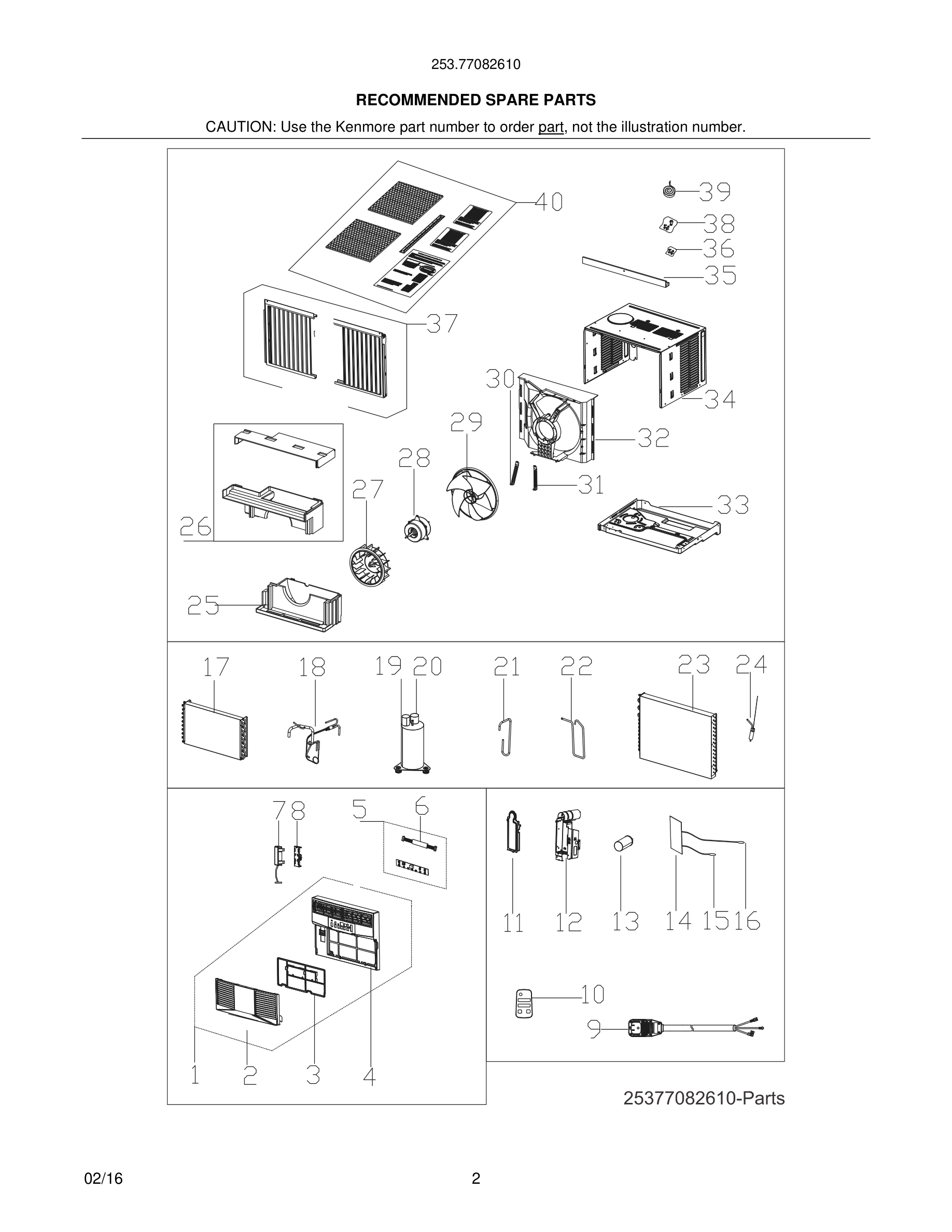

Model Kenmore 253.77082610 ROOM AIR CONDITIONER – Common Parts & Diagrams

*

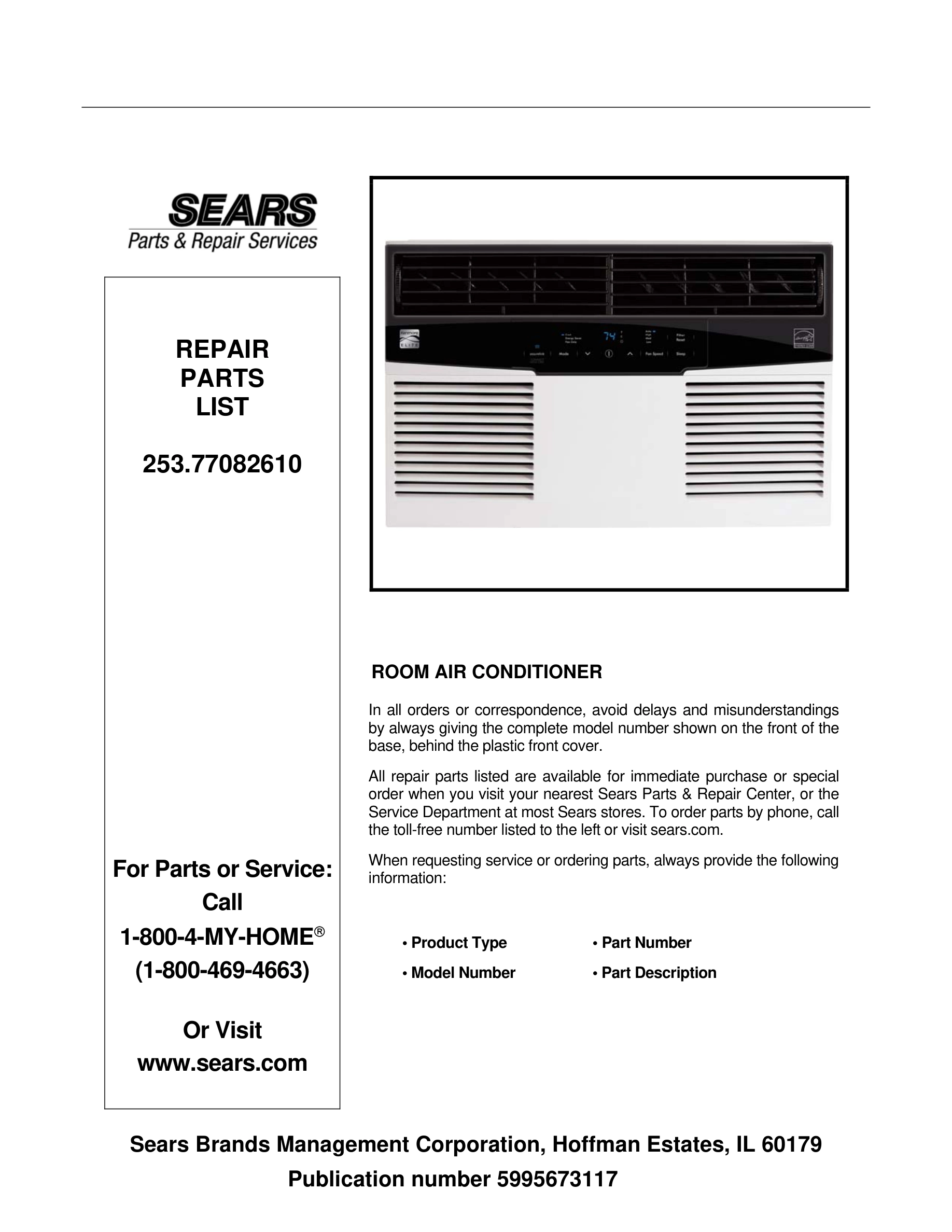

Repair Parts List
Repair Parts List WCI 5995673117 Contact Us For Availability
View on Model
*
Energy Guide
Energy Guide WCI 5304504743 Contact Us For Availability
View on Model
1#
Front Assembly, complete panel
Front Assembly, complete panel WCI 5304504749 Contact Us For Availability
View on Model
2
Panel, front grille, tilt-out
Panel, front grille, tilt-out WCI 5304504814 Contact Us For Availability
View on Model
4#
Panel, frame, front, with louvers
Panel, frame, front, with louvers WCI 5304504750 Contact Us For Availability
View on Model
5#
PC Board, display/input
PC Board, display/input WCI 5304504751 Contact Us For Availability
View on Model
6#
Wire, connecting
Wire, connecting WCI 5304504752 Contact Us For Availability
View on Model
7#
Module, WiFi
Module, WiFi WCI 5304504753 Contact Us For Availability
View on Model
8
Support, WiFi module
Support, WiFi module WCI 5304504754 Contact Us For Availability
View on Model
13#
Capacitor
Capacitor WCI 5304504722 Contact Us For Availability
View on Model
14#
PC Board, main, control/power
PC Board, main, control/power WCI 5304504756 Contact Us For Availability
View on Model
17#
Evaporator, +capillary tube
Evaporator, +capillary tube WCI 5304504725 Contact Us For Availability
View on Model
18#
Tube, capillary
Tube, capillary WCI 5304504726 Contact Us For Availability
View on Model
19#
Compressor, with overload
Compressor, with overload WCI 5304504163 Contact Us For Availability
View on Model
20#
Overload Protector, compressor
Overload Protector, compressor WCI 5304504165 Contact Us For Availability
View on Model
21#
Tube, suction
Tube, suction WCI 5304504727 Contact Us For Availability
View on Model
23#
Condenser
Condenser WCI 5304504729 Contact Us For Availability
View on Model
25
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304504730 Contact Us For Availability
View on Model
28#
Motor, fan
Motor, fan WCI 5304504164 Contact Us For Availability
View on Model
30
Support, motor mount, left
Support, motor mount, left WCI 5304504734 Contact Us For Availability
View on Model
31
Support, motor mount, right
Support, motor mount, right WCI 5304504735 Contact Us For Availability
View on Model
32
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304504736 Contact Us For Availability
View on Model
33
Base, unit chassis
Base, unit chassis WCI 5304504737 Contact Us For Availability
View on Model
34
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304504738 Contact Us For Availability
View on Model
36
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
39
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
40
Panel, insulation, R1
Panel, insulation, R1 WCI 5304504273 Contact Us For Availability
View on Model
