Model Kenmore 253.77080512 ROOM AIR CONDITIONER – Common Parts & Diagrams

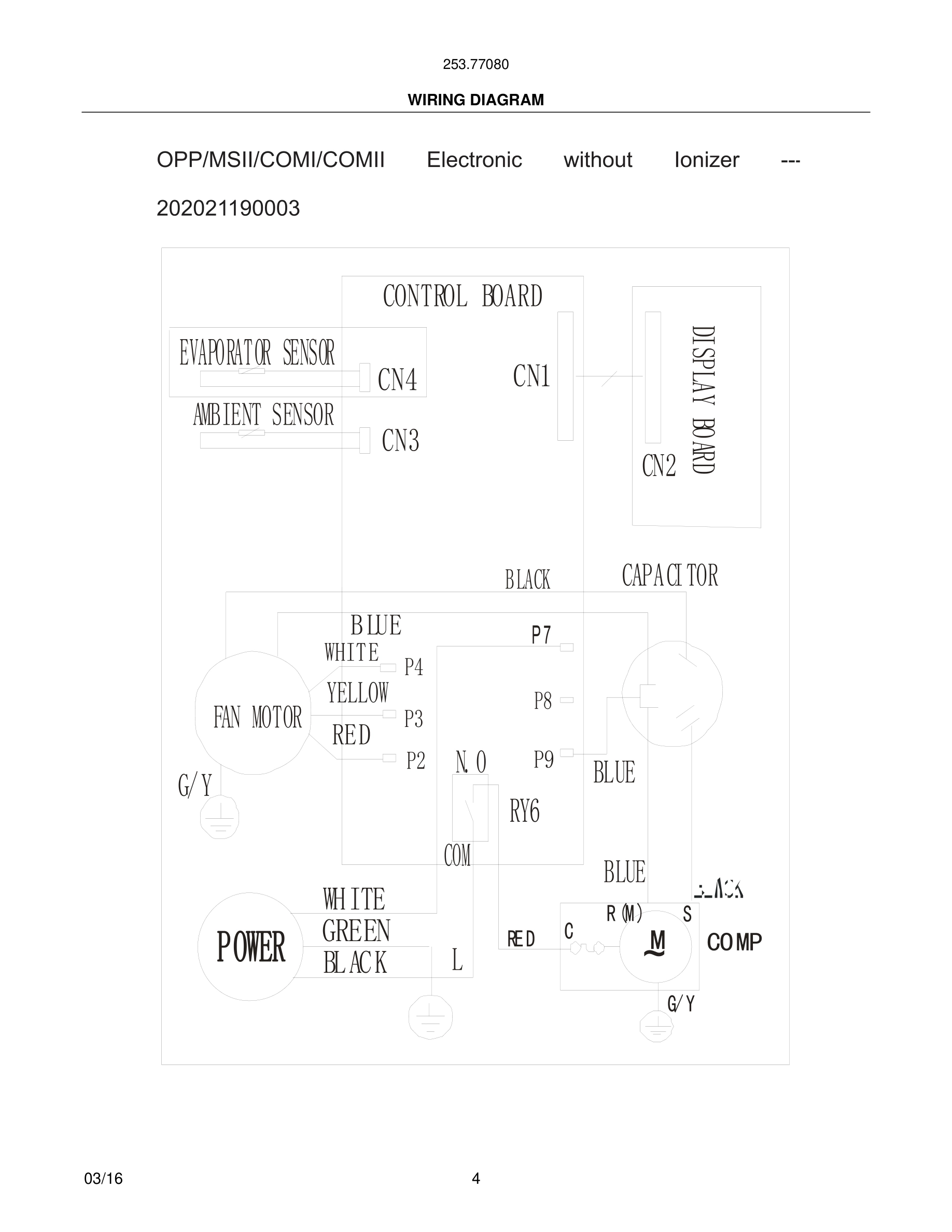

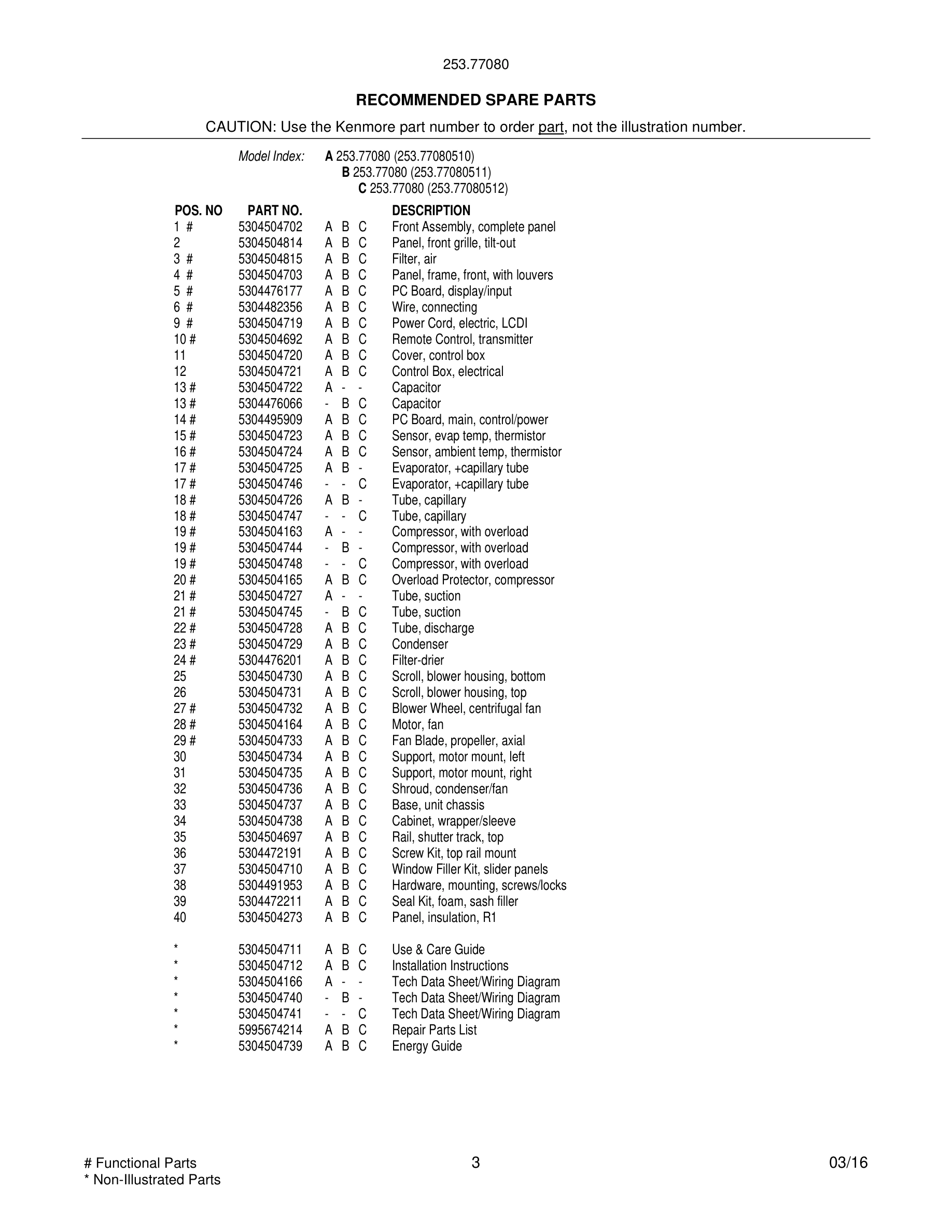

Common parts from model Kenmore 253.77080512 ROOM AIR CONDITIONER

01 - COVER

Print

• This Diagram
• All Diagrams

2

Panel, front grille, tilt-out WCI 5304504814 Contact Us For Availability

View on Model

3#

Filter, air WCI 5304504815 Contact Us For Availability

View on Model

4#

5304504703 Frigidaire Panel Backorder WCI 5304504703 View Details $121.20

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $20.71

View on Model

6#

5304482356 Frigidaire Wire Assembly Backorder WCI 5304482356 View Details $20.84

View on Model

9#

5304536806 Frigidaire Power Cord Backorder WCI 5304536806 View Details $81.76

View on Model

10#

5304504692 Frigidaire Air Conditioner Remote Backorder WCI 5304504692 View Details $70.78

View on Model

11

5304504720 Frigidaire Cover Backorder WCI 5304504720 View Details $14.05

View on Model

12

5304504721 Frigidaire Control Box Backorder WCI 5304504721 View Details $36.68

View on Model

13#

5304476066 Frigidaire Air Conditioner Capacit Backorder WCI 5304476066 View Details $96.81

View on Model

14#

5304495909 Frigidaire PCB Board Backorder WCI 5304495909 View Details $114.85

View on Model

15#

5304504723 Frigidaire Sensor Backorder WCI 5304504723 View Details $19.01

View on Model

16#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

17#

Evaporator, +capillary tube WCI 5304504746 Contact Us For Availability

View on Model

18#

Tube, capillary WCI 5304504747 Contact Us For Availability

View on Model

19#

Compressor, with overload WCI 5304504748 Contact Us For Availability

View on Model

20#

Overload Protector, compressor WCI 5304504165 Contact Us For Availability

View on Model

21#

Tube, suction WCI 5304504745 Contact Us For Availability

View on Model

22#

5304504728 Frigidaire Tube Backorder WCI 5304504728 View Details $34.41

View on Model

23#

Condenser WCI 5304504729 Contact Us For Availability

View on Model

24#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $24.91

View on Model

25

Scroll, blower housing, bottom WCI 5304504730 Contact Us For Availability

View on Model

26

5304504731 Frigidaire Scroll Assembly Backorder WCI 5304504731 View Details $48.41

View on Model

27#

5304504732 Frigidaire Blower Wheel Backorder WCI 5304504732 View Details $43.93

View on Model

28#

Motor, fan WCI 5304504164 Contact Us For Availability

View on Model

29#

5304504733 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304504733 View Details $41.68

View on Model

30

Support, motor mount, left WCI 5304504734 Contact Us For Availability

View on Model

31

Support, motor mount, right WCI 5304504735 Contact Us For Availability

View on Model

32

Shroud, condenser/fan WCI 5304504736 Contact Us For Availability

View on Model

33

Base, unit chassis WCI 5304504737 Contact Us For Availability

View on Model

34

Cabinet, wrapper/sleeve WCI 5304504738 Contact Us For Availability

View on Model

35

5304504697 Frigidaire Air Conditioner Rail Backorder WCI 5304504697 View Details $37.19

View on Model

36

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

37

5304504710 Frigidaire Air Conditioner Window Backorder WCI 5304504710 View Details $114.02

View on Model

38

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $12.22

View on Model

39

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

40

Panel, insulation, R1 WCI 5304504273 Contact Us For Availability

View on Model

×
