Model Kenmore 253.77060517 ROOM AIR CONDITIONER – Common Parts & Diagrams

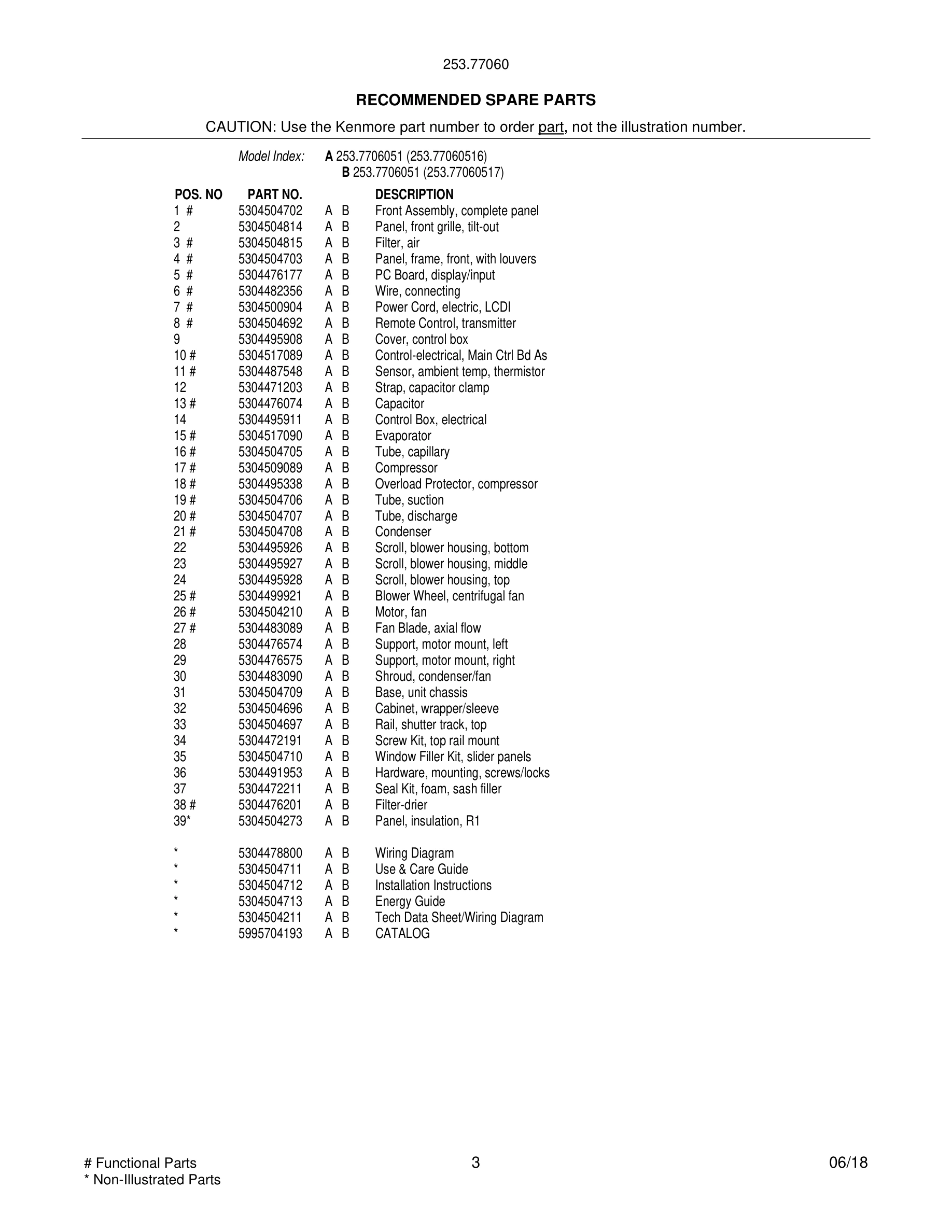

Common parts from model Kenmore 253.77060517 ROOM AIR CONDITIONER

01 - COVER

Print

• This Diagram
• All Diagrams

2

Panel, front grille, tilt-out WCI 5304504814 Contact Us For Availability

View on Model

3#

Filter, air WCI 5304504815 Contact Us For Availability

View on Model

4#

5304504703 Frigidaire Panel Backorder WCI 5304504703 View Details $121.20

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $20.71

View on Model

6#

5304482356 Frigidaire Wire Assembly Backorder WCI 5304482356 View Details $20.84

View on Model

7#

5304500904 Frigidaire Air Conditioner Power C Backorder WCI 5304500904 View Details $136.91

View on Model

8#

5304504692 Frigidaire Air Conditioner Remote Backorder WCI 5304504692 View Details $70.78

View on Model

9

Cover, control box WCI 5304495908 Contact Us For Availability

View on Model

10#

5304517089 Frigidaire Electrical Control Backorder WCI 5304517089 View Details $155.96

View on Model

11#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

12

Strap, capacitor clamp WCI 5304471203 Contact Us For Availability

View on Model

13#

Capacitor WCI 5304476074 Contact Us For Availability

View on Model

14

Control Box, electrical WCI 5304495911 Contact Us For Availability

View on Model

15#

Evaporator WCI 5304517090 Contact Us For Availability

View on Model

16#

Tube, capillary WCI 5304504705 Contact Us For Availability

View on Model

17#

Compressor WCI 5304509089 Contact Us For Availability

View on Model

18#

Overload Protector, compressor WCI 5304495338 Contact Us For Availability

View on Model

19#

Tube, suction WCI 5304504706 Contact Us For Availability

View on Model

20#

5304504707 Frigidaire Air Conditioner Tube Backorder WCI 5304504707 View Details $37.18

View on Model

21#

Condenser WCI 5304504708 Contact Us For Availability

View on Model

22

Scroll, blower housing, bottom WCI 5304495926 Contact Us For Availability

View on Model

23

Scroll, blower housing, middle WCI 5304495927 Contact Us For Availability

View on Model

24

Scroll, blower housing, top WCI 5304495928 Contact Us For Availability

View on Model

25#

5304499921 Frigidaire Wheel Blower Backorder WCI 5304499921 View Details $28.99

View on Model

26#

5304504210 Frigidaire Motor Assembly Backorder WCI 5304504210 View Details $181.27

View on Model

27#

5304483089 Frigidaire Blade Fan Backorder WCI 5304483089 View Details $58.27

View on Model

28

Support, motor mount, left WCI 5304476574 Contact Us For Availability

View on Model

29

Support, motor mount, right WCI 5304476575 Contact Us For Availability

View on Model

30

Shroud, condenser/fan WCI 5304483090 Contact Us For Availability

View on Model

31

5304504709 Frigidaire Base Backorder WCI 5304504709 View Details $80.22

View on Model

32

Cabinet, wrapper/sleeve WCI 5304504696 Contact Us For Availability

View on Model

33

5304504697 Frigidaire Air Conditioner Rail Backorder WCI 5304504697 View Details $37.19

View on Model

34

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

35

5304504710 Frigidaire Air Conditioner Window Backorder WCI 5304504710 View Details $114.02

View on Model

36

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $12.22

View on Model

37

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

38#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $24.91

View on Model

39*

Panel, insulation, R1 WCI 5304504273 Contact Us For Availability

View on Model

×
