Model Kenmore 253.77060511 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.77060511 ROOM AIR CONDITIONER

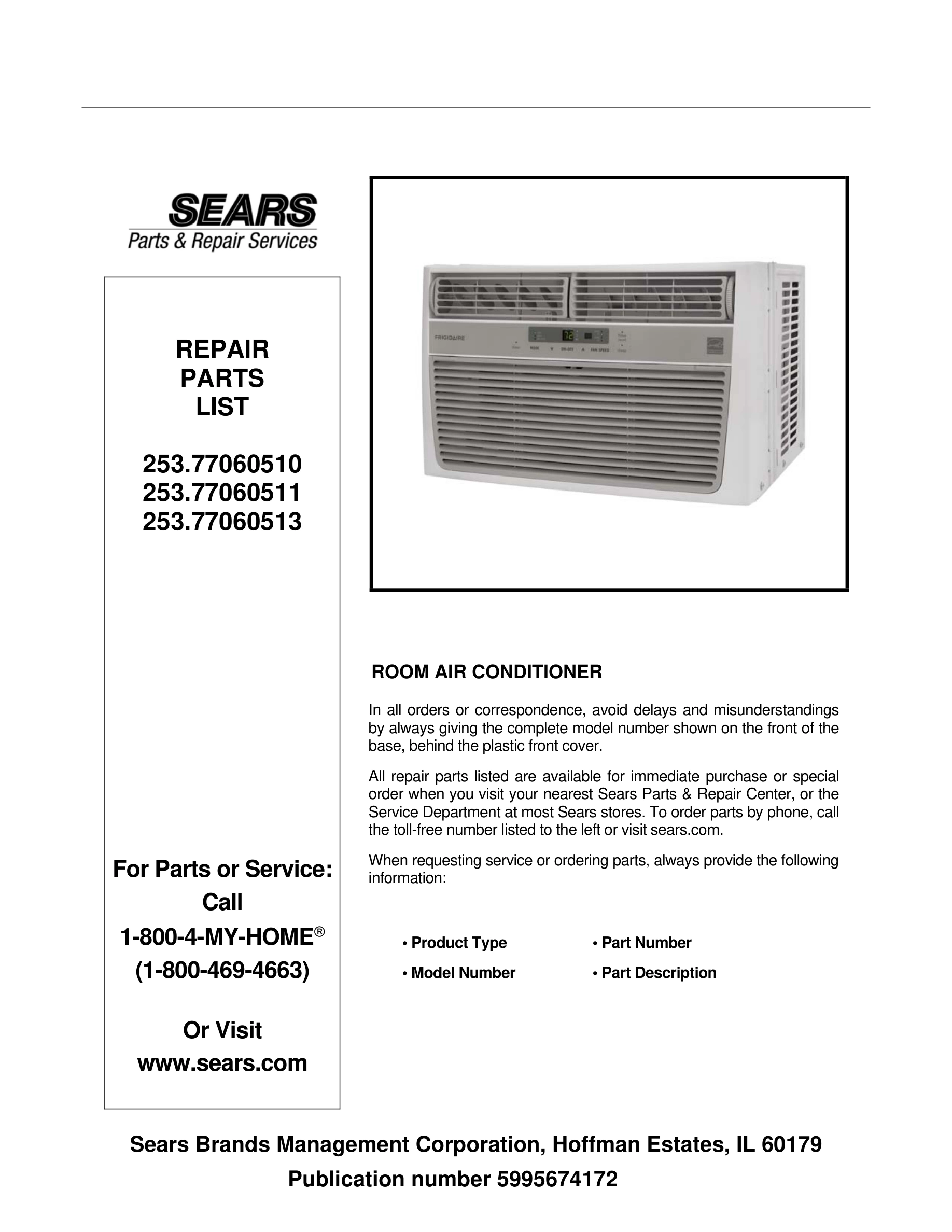

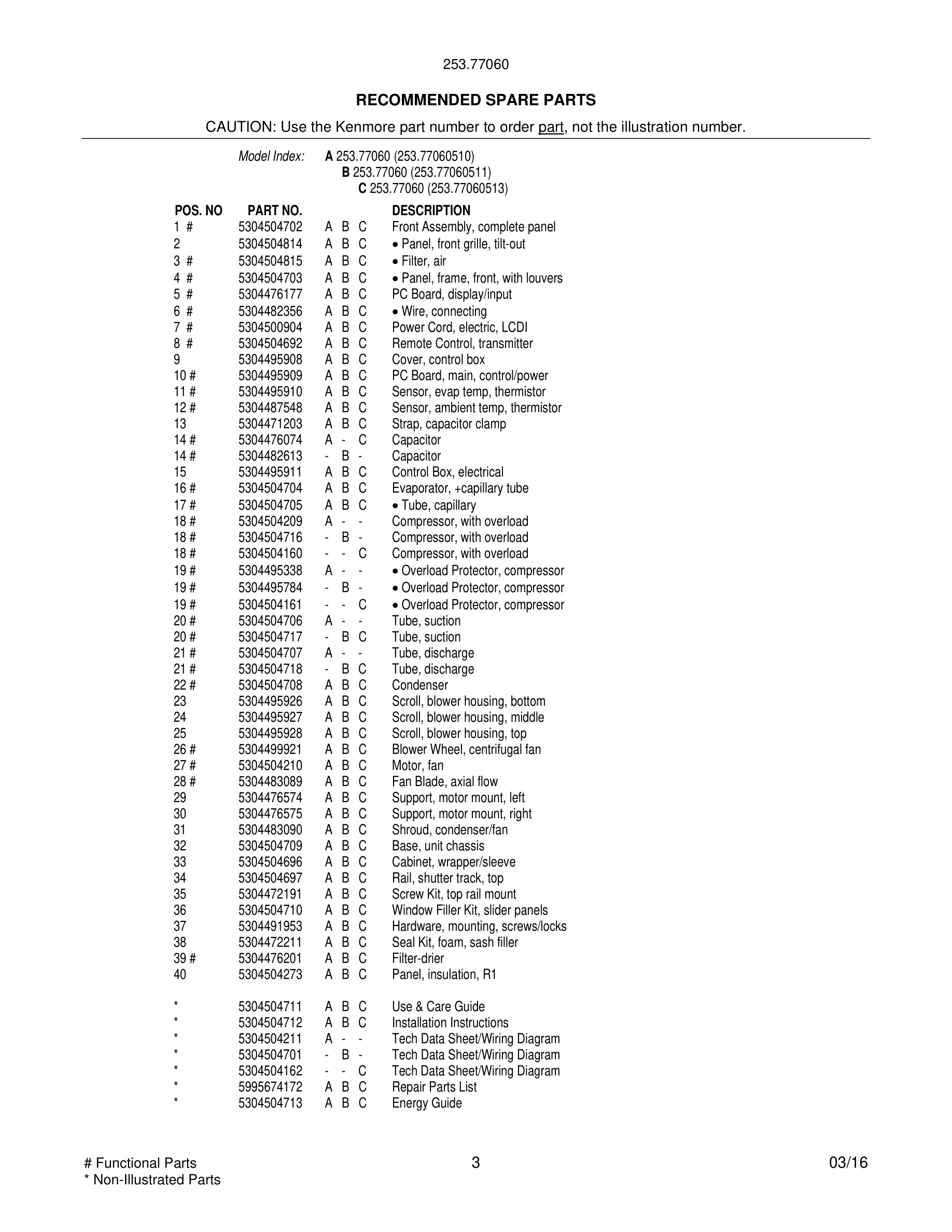

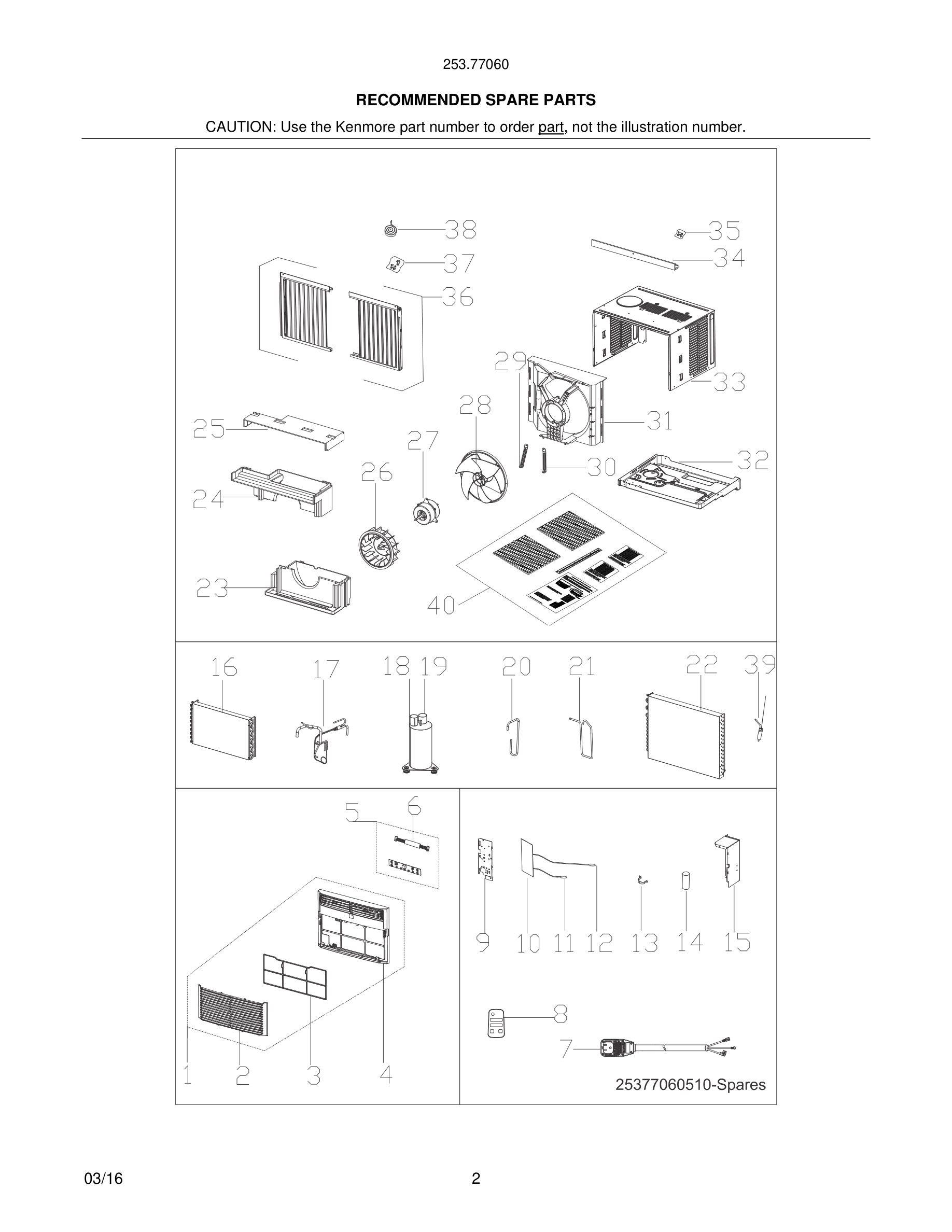

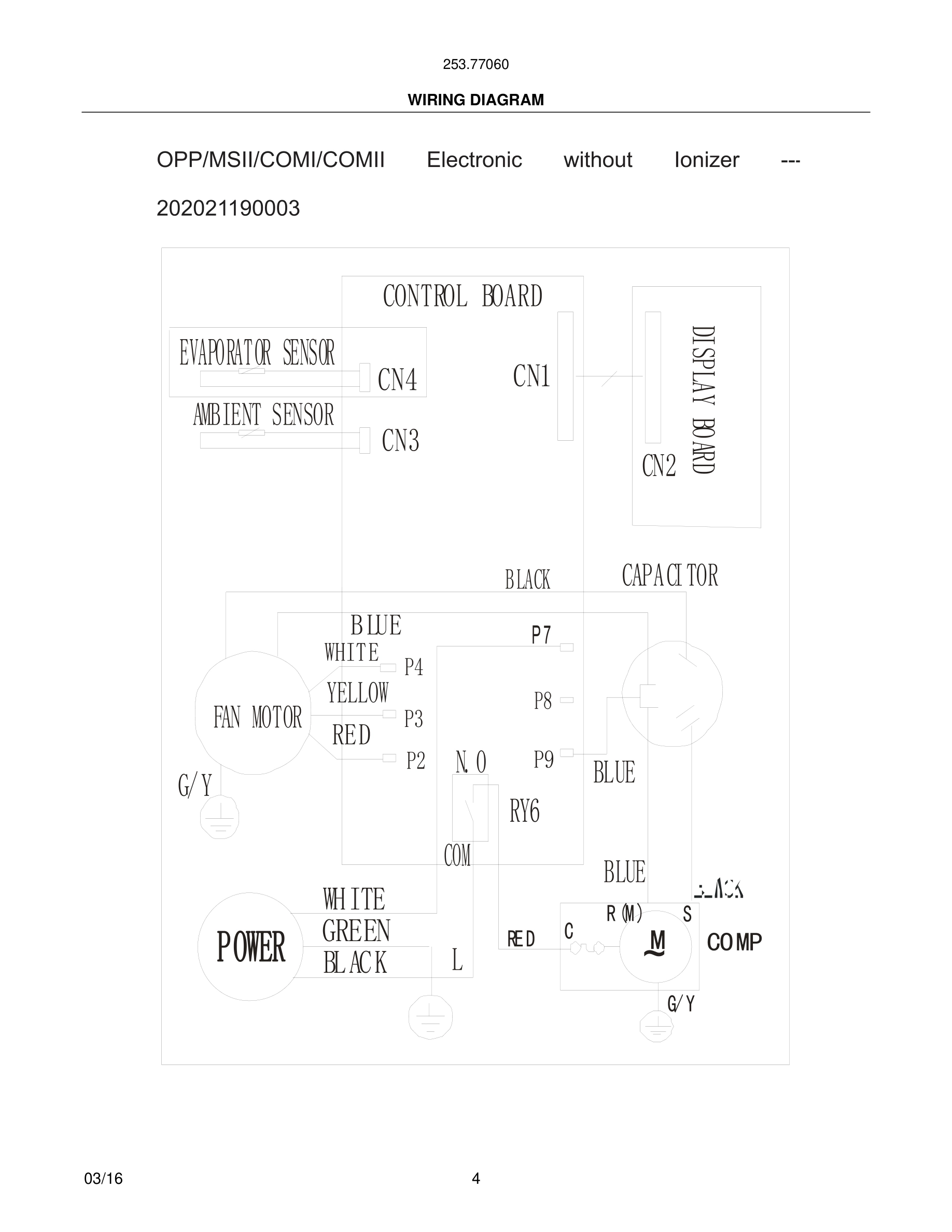

01 - COVER

Print

• This Diagram
• All Diagrams

2

 Panel, front grille, tilt-out WCI 5304504814 Contact Us For Availability

View on Model

3#

 Filter, air WCI 5304504815 Contact Us For Availability

View on Model

4#

5304504703 Frigidaire Panel Backorder WCI 5304504703 View Details $121.20

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $20.71

View on Model

6#

5304482356 Frigidaire Wire Assembly Backorder WCI 5304482356 View Details $20.84

View on Model

7#

5304500904 Frigidaire Air Conditioner Power C Backorder WCI 5304500904 View Details $136.91

View on Model

8#

5304504692 Frigidaire Air Conditioner Remote Backorder WCI 5304504692 View Details $70.78

View on Model

9

Cover, control box WCI 5304495908 Contact Us For Availability

View on Model

10#

5304495909 Frigidaire PCB Board Backorder WCI 5304495909 View Details $114.85

View on Model

11#

Sensor, evap temp, thermistor WCI 5304495910 Contact Us For Availability

View on Model

12#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

13

Strap, capacitor clamp WCI 5304471203 Contact Us For Availability

View on Model

14#

Capacitor WCI 5304482613 Contact Us For Availability

View on Model

15

Control Box, electrical WCI 5304495911 Contact Us For Availability

View on Model

16#

Evaporator, +capillary tube WCI 5304504704 Contact Us For Availability

View on Model

17#

 Tube, capillary WCI 5304504705 Contact Us For Availability

View on Model

18#

Compressor, with overload WCI 5304504716 Contact Us For Availability

View on Model

19#

 Overload Protector, compressor WCI 5304495784 Contact Us For Availability

View on Model

20#

Tube, suction WCI 5304504717 Contact Us For Availability

View on Model

21#

Tube, discharge WCI 5304504718 Contact Us For Availability

View on Model

22#

Condenser WCI 5304504708 Contact Us For Availability

View on Model

23

Scroll, blower housing, bottom WCI 5304495926 Contact Us For Availability

View on Model

24

Scroll, blower housing, middle WCI 5304495927 Contact Us For Availability

View on Model

25

Scroll, blower housing, top WCI 5304495928 Contact Us For Availability

View on Model

26#

5304499921 Frigidaire Wheel Blower Backorder WCI 5304499921 View Details $28.99

View on Model

27#

5304504210 Frigidaire Motor Assembly Backorder WCI 5304504210 View Details $181.27

View on Model

28#

5304483089 Frigidaire Blade Fan Backorder WCI 5304483089 View Details $58.27

View on Model

29

Support, motor mount, left WCI 5304476574 Contact Us For Availability

View on Model

30

Support, motor mount, right WCI 5304476575 Contact Us For Availability

View on Model

31

Shroud, condenser/fan WCI 5304483090 Contact Us For Availability

View on Model

32

5304504709 Frigidaire Base Backorder WCI 5304504709 View Details $80.22

View on Model

33

Cabinet, wrapper/sleeve WCI 5304504696 Contact Us For Availability

View on Model

34

5304504697 Frigidaire Air Conditioner Rail Backorder WCI 5304504697 View Details $37.19

View on Model

35

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

36

5304504710 Frigidaire Air Conditioner Window Backorder WCI 5304504710 View Details $114.02

View on Model

37

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $12.22

View on Model

38

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

39#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $24.91

View on Model

40

Panel, insulation, R1 WCI 5304504273 Contact Us For Availability

View on Model

×
