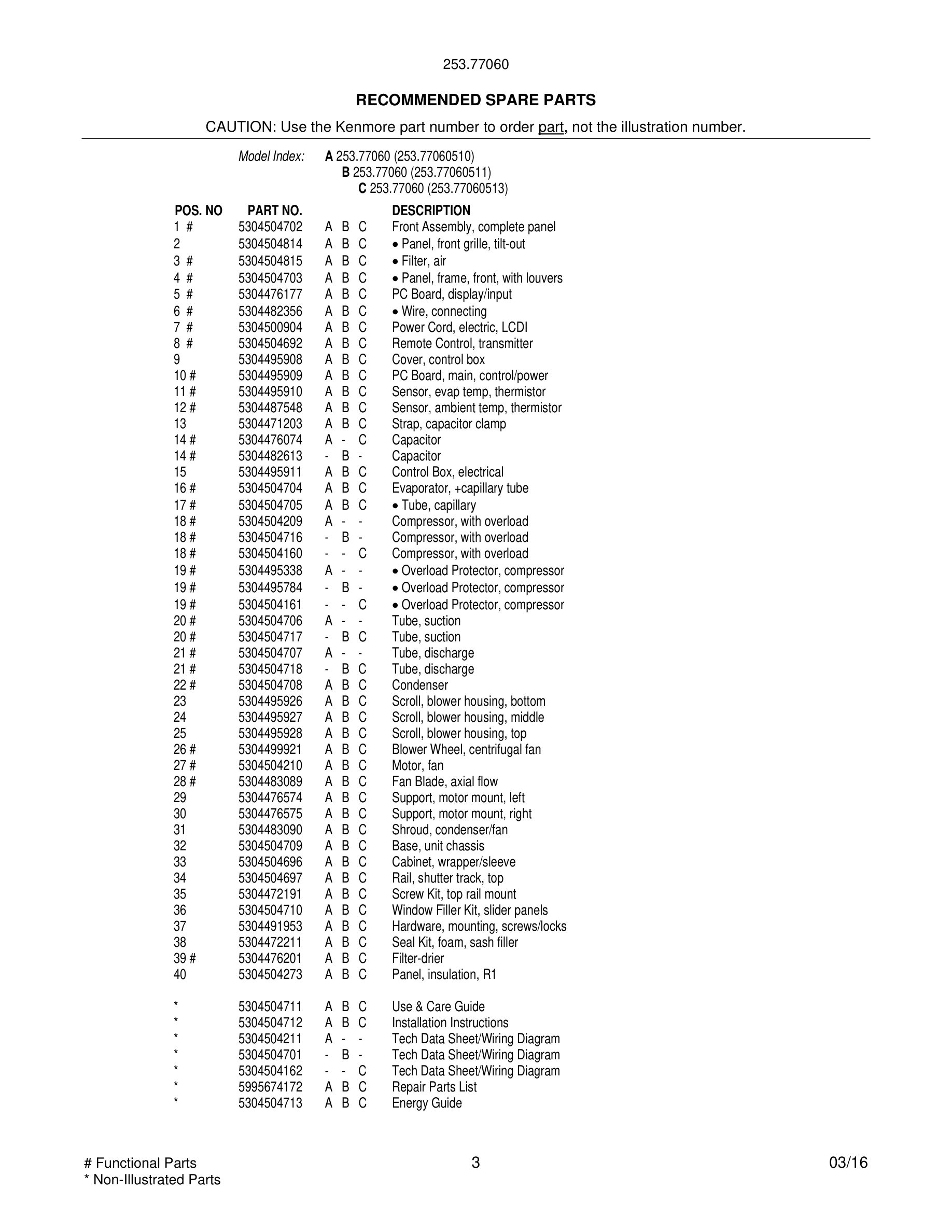

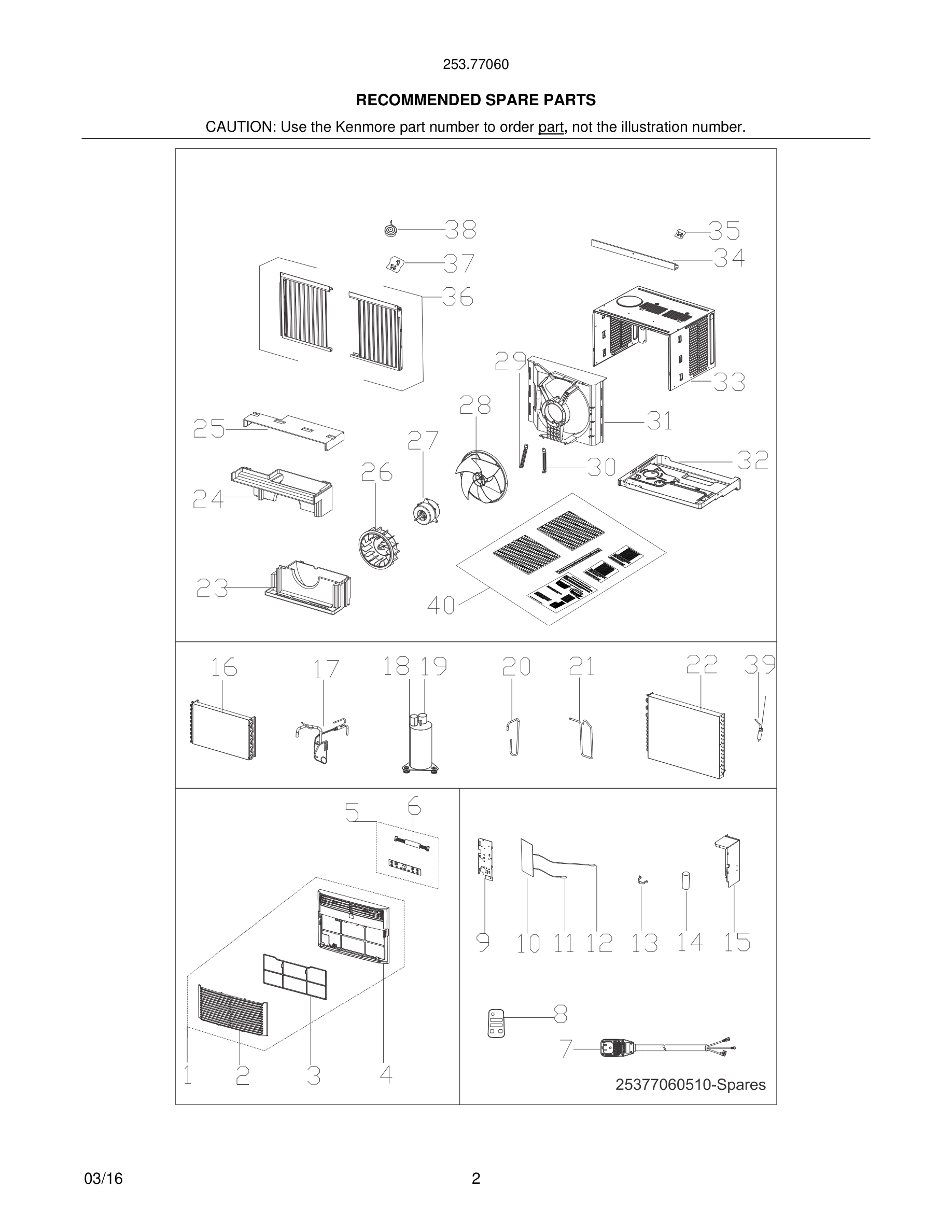

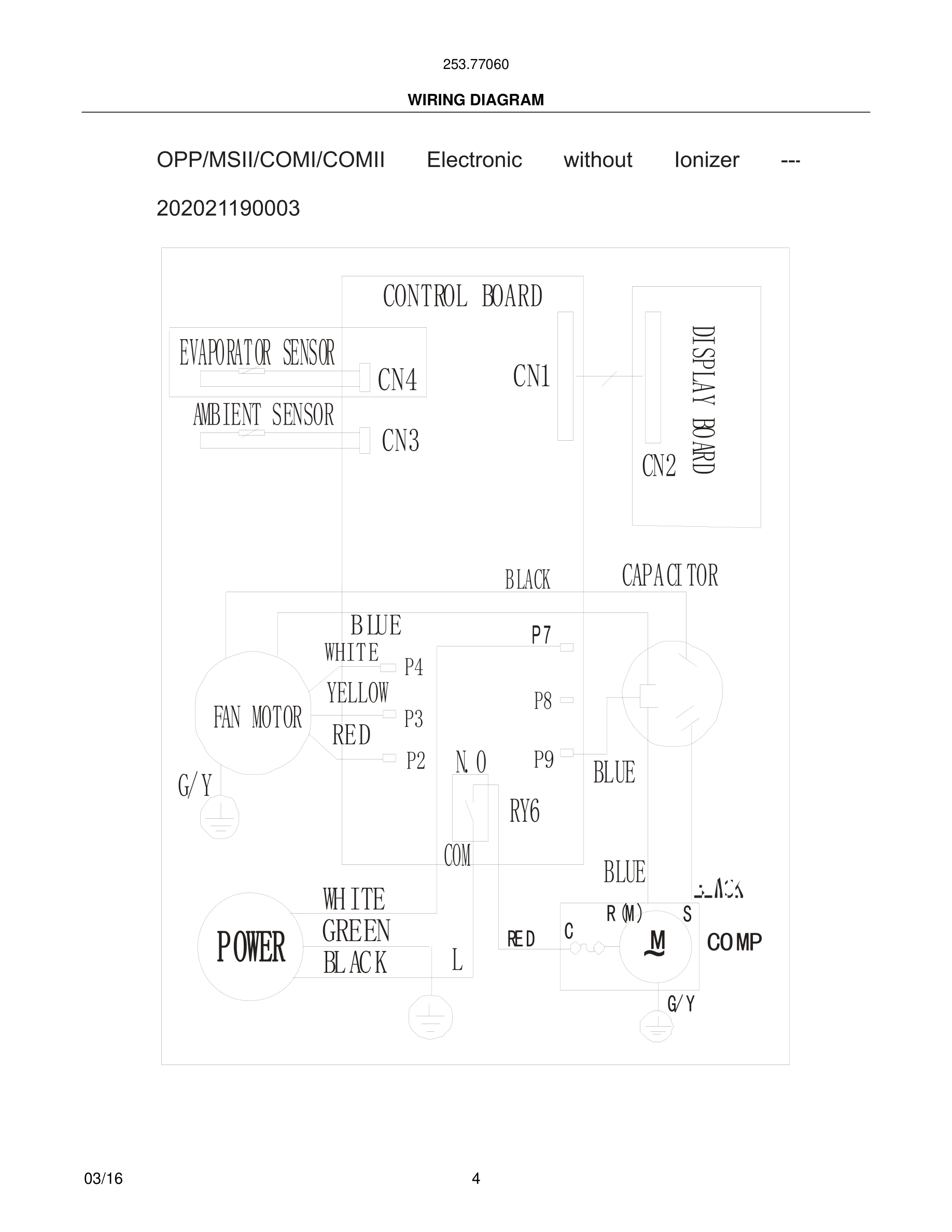

Model Kenmore 253.77060510 ROOM AIR CONDITIONER – Common Parts & Diagrams

2
 Panel, front grille, tilt-out
 Panel, front grille, tilt-out WCI 5304504814 Contact Us For Availability
View on Model
3#
 Filter, air
 Filter, air WCI 5304504815 Contact Us For Availability
View on Model
9
Cover, control box
Cover, control box WCI 5304495908 Contact Us For Availability
View on Model
11#
Sensor, evap temp, thermistor
Sensor, evap temp, thermistor WCI 5304495910 Contact Us For Availability
View on Model
13
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
14#
Capacitor
Capacitor WCI 5304476074 Contact Us For Availability
View on Model
15
Control Box, electrical
Control Box, electrical WCI 5304495911 Contact Us For Availability
View on Model
16#
Evaporator, +capillary tube
Evaporator, +capillary tube WCI 5304504704 Contact Us For Availability
View on Model
17#
 Tube, capillary
 Tube, capillary WCI 5304504705 Contact Us For Availability
View on Model
18#
Compressor, with overload
Compressor, with overload WCI 5304504209 Contact Us For Availability
View on Model
19#
 Overload Protector, compressor
 Overload Protector, compressor WCI 5304495338 Contact Us For Availability
View on Model
20#
Tube, suction
Tube, suction WCI 5304504706 Contact Us For Availability
View on Model
21#
Tube, discharge
Tube, discharge WCI 5304504707 Contact Us For Availability
View on Model
22#
Condenser
Condenser WCI 5304504708 Contact Us For Availability
View on Model
23
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304495926 Contact Us For Availability
View on Model
24
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304495927 Contact Us For Availability
View on Model
25
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304495928 Contact Us For Availability
View on Model
29
Support, motor mount, left
Support, motor mount, left WCI 5304476574 Contact Us For Availability
View on Model
30
Support, motor mount, right
Support, motor mount, right WCI 5304476575 Contact Us For Availability
View on Model
31
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304483090 Contact Us For Availability
View on Model
32
Base, unit chassis
Base, unit chassis WCI 5304504709 Contact Us For Availability
View on Model
33
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304504696 Contact Us For Availability
View on Model
34
Rail, shutter track, top
Rail, shutter track, top WCI 5304504697 Contact Us For Availability
View on Model
35
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
38
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
40
Panel, insulation, R1
Panel, insulation, R1 WCI 5304504273 Contact Us For Availability
