Model Kenmore 253.76223410 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

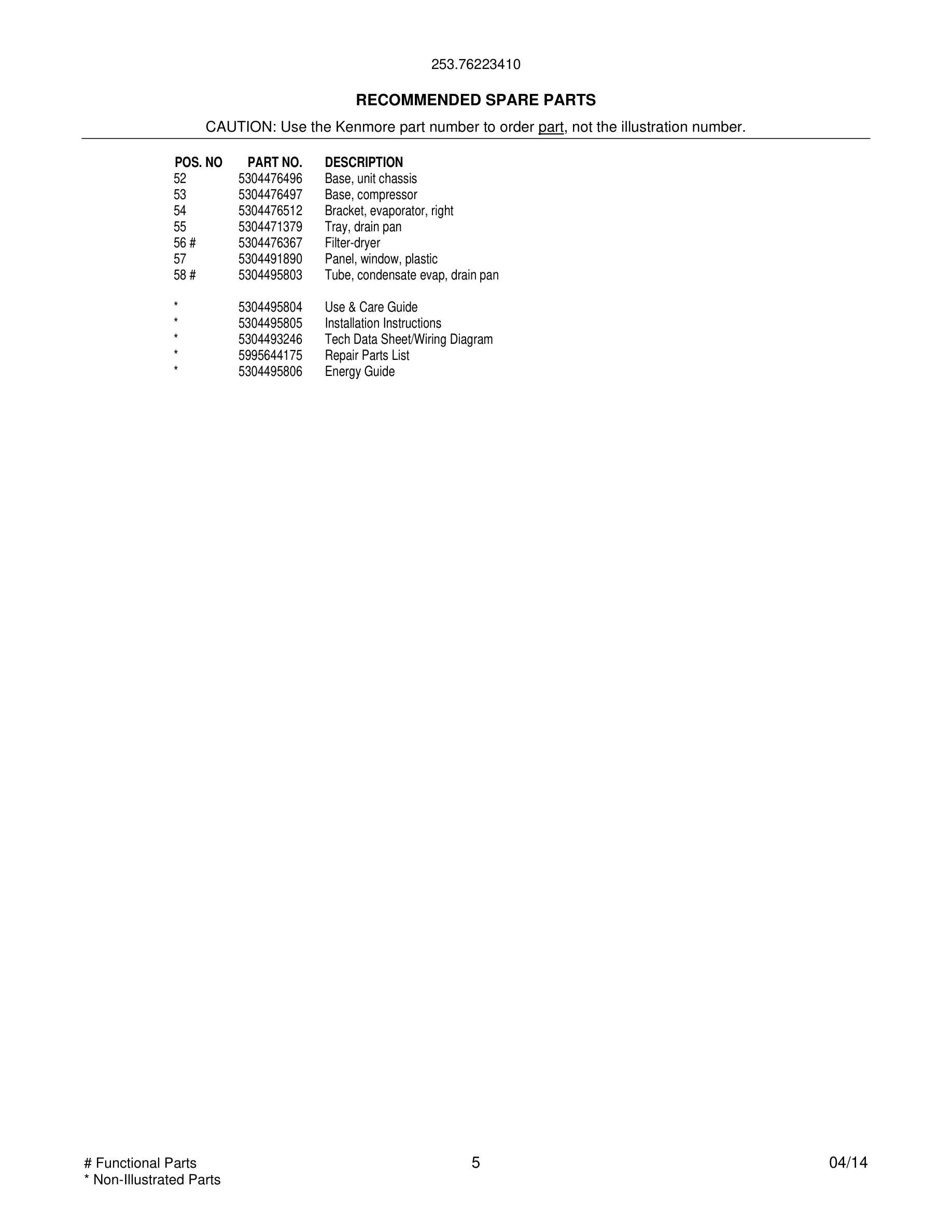

03 - RECOMMENDED SPARE PARTS

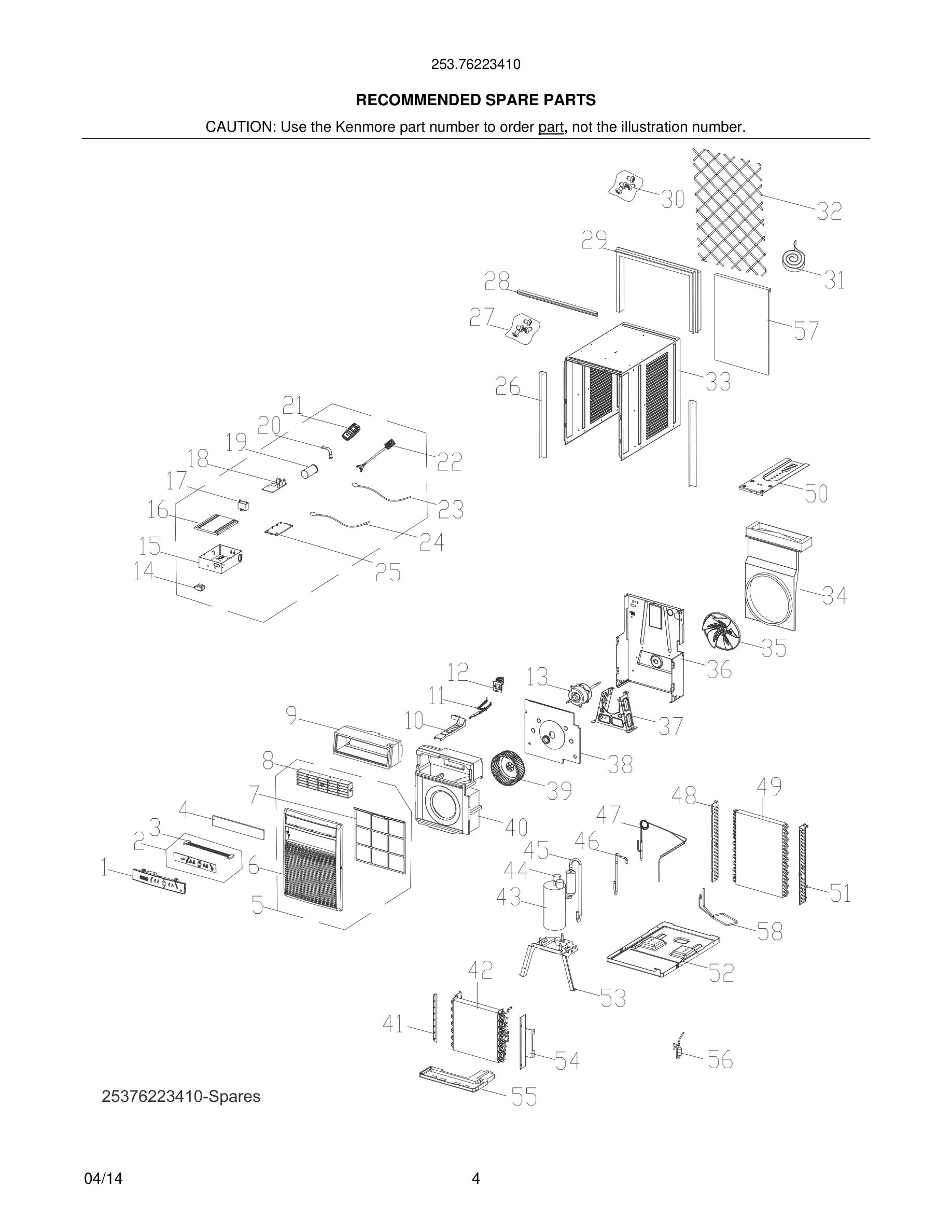

05 - RECOMMENDED SPARE PARTS

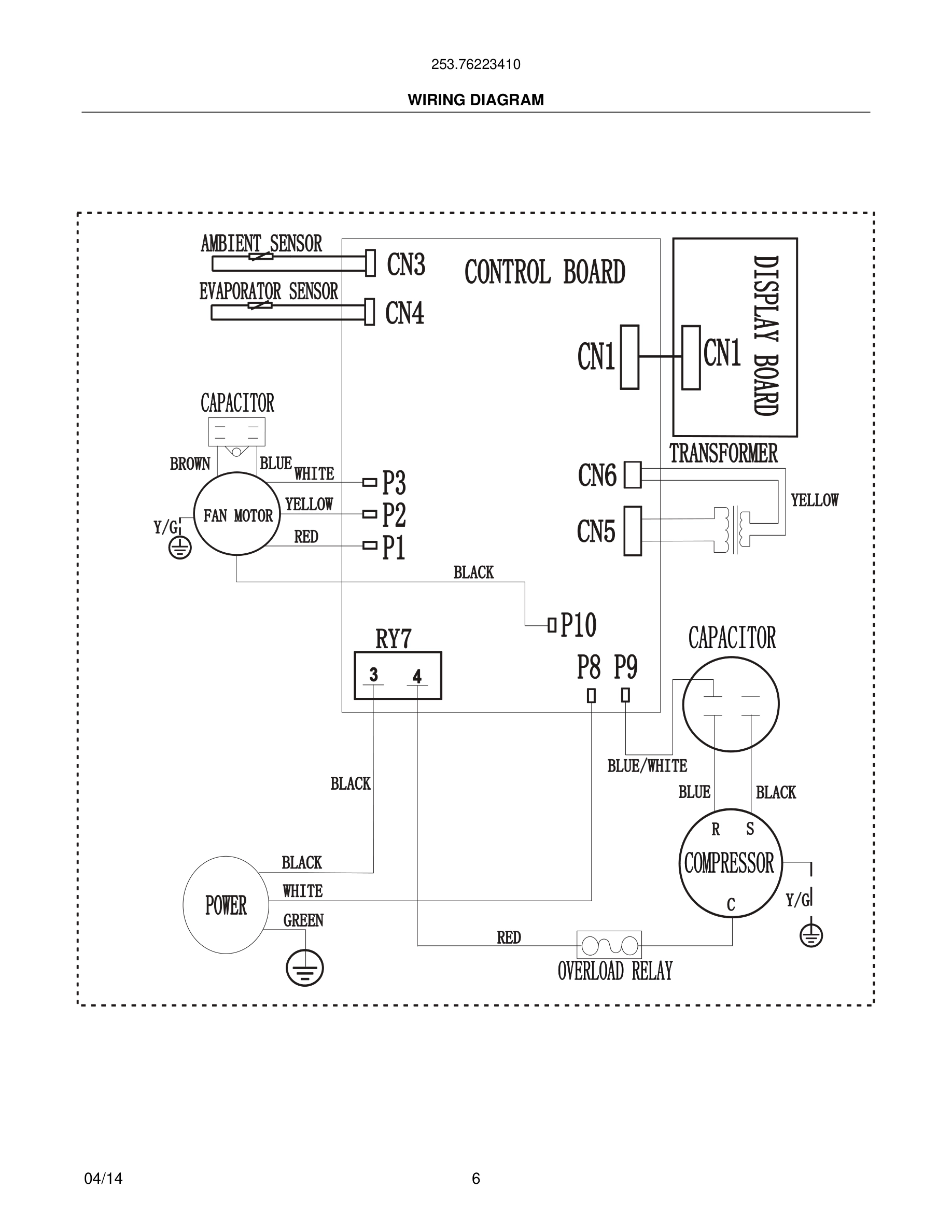

05 - WIRING DIAGRAM
06 - WIRING DIAGRAM
Common parts from model Kenmore 253.76223410 ROOM AIR CONDITIONER
*
Use & Care Guide WCI 5304495804 Contact Us For Availability
*
Tech Data Sheet/Wiring Diagram WCI 5304493246 Contact Us For Availability
*
Repair Parts List WCI 5995644175 Contact Us For Availability
*
Energy Guide WCI 5304495806 Contact Us For Availability
13#
Motor, fan WCI 5304475761 No Longer Available
18#
PC Board, control/power, main WCI 5304495779 Contact Us For Availability
19#
Capacitor, compressor WCI 5304474928 Contact Us For Availability
20
Strap, capacitor clamp WCI 5304487586 Contact Us For Availability
22#
Power Cord, electric, LCDI WCI 5304476502 Contact Us For Availability
23#
Thermistor, temp sensor, indoor WCI 5304487589 Contact Us For Availability
24#
Thermistor, evaporator, sensor WCI 5304476473 Contact Us For Availability
25
Holder, mounting plate, control WCI 5304495029 Contact Us For Availability
26
Channel, side mount, slide WCI 5304476474 Contact Us For Availability
28
Rail, shutter track, top channel WCI 5304476475 Contact Us For Availability
31
Seal Kit, window, foam strips WCI 5304471646 Contact Us For Availability
32
Grille, rear WCI 5304476477 Contact Us For Availability
33
Cabinet, wrapper/sleeve WCI 5304495796 Contact Us For Availability
34
Shroud, fan housing, condenser WCI 5304495797 Contact Us For Availability
36
Bulkhead, partition, front WCI 5304487591 Contact Us For Availability
37
Support, fan motor mount WCI 5304476480 Contact Us For Availability
38
Panel, scroll, rear WCI 5304487590 Contact Us For Availability
39#
Blower Wheel, centrifugal fan WCI 5304471360 Contact Us For Availability
40
Scroll, blower housing WCI 5304487592 Contact Us For Availability
41
Bracket, evaporator, left WCI 5304476504 Contact Us For Availability
42#
Evaporator WCI 5304495798 Contact Us For Availability
43#
Compressor, with overload WCI 5304493244 Contact Us For Availability
44#
Overload Protector, compressor WCI 5304495799 Contact Us For Availability
45#
Tube, suction WCI 5304495800 Contact Us For Availability
46#
Tube, discharge WCI 5304495801 Contact Us For Availability
47#
Tube, capillary WCI 5304495802 Contact Us For Availability
48
Bracket, condenser, left WCI 5304476509 Contact Us For Availability
49#
Condenser WCI 5304487597 Contact Us For Availability
50
Platform, unit support WCI 5304476494 Contact Us For Availability
51
Bracket, condenser, right WCI 5304476511 Contact Us For Availability
52
Base, unit chassis WCI 5304476496 Contact Us For Availability
53
Base, compressor WCI 5304476497 Contact Us For Availability
54
Bracket, evaporator, right WCI 5304476512 Contact Us For Availability
55
Tray, drain pan WCI 5304471379 Contact Us For Availability
57
Panel, window, plastic WCI 5304491890 Contact Us For Availability
58#
Tube, condensate evap, drain pan WCI 5304495803 Contact Us For Availability
× ![]()
