Model Kenmore 253.76185410 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.76185410 ROOM AIR CONDITIONER

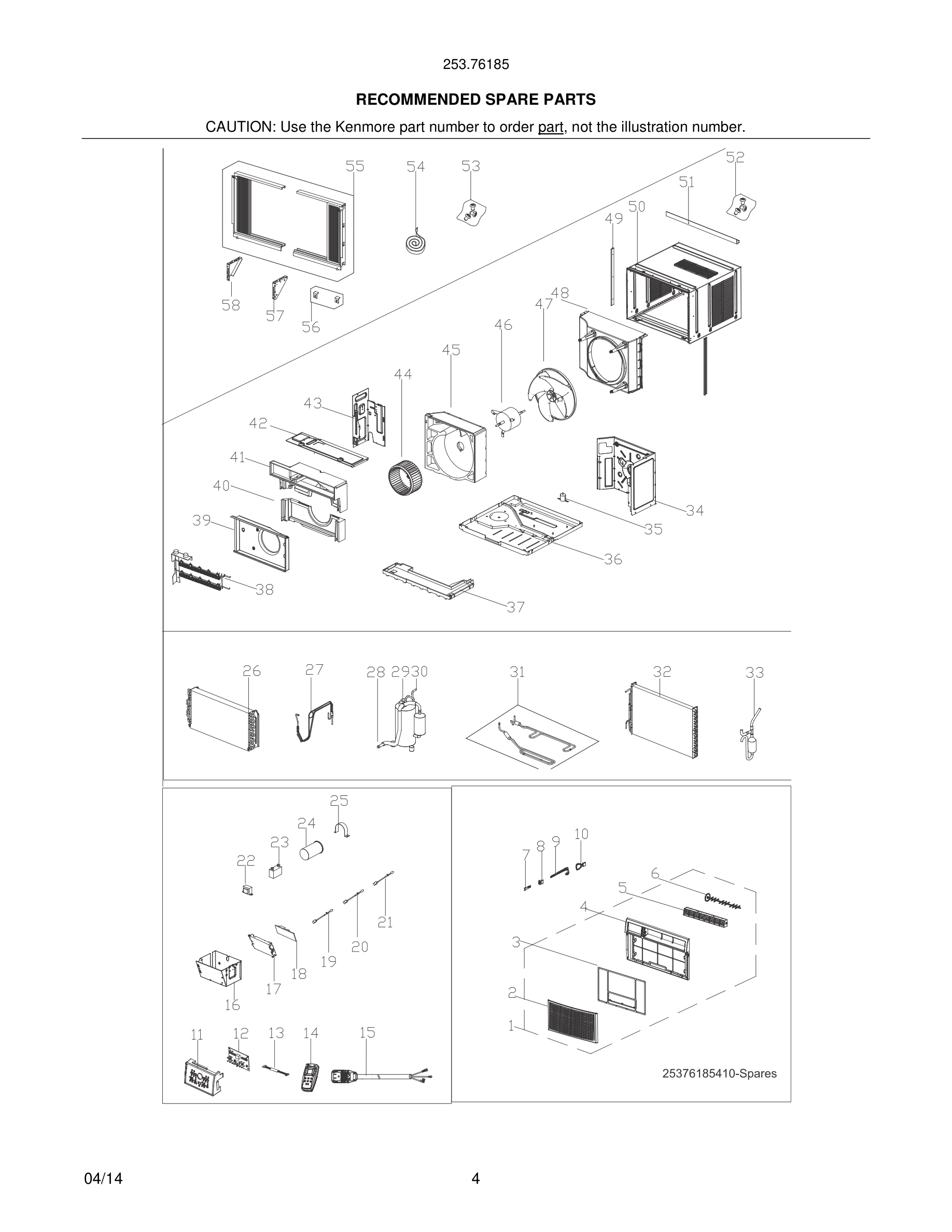

01 - COVER

Print

• This Diagram
• All Diagrams

*

5304495042 Frigidaire Instruction Sheet Backorder WCI 5304495042 View Details $2.26

View on Model

*

5995643938 Frigidaire Repair Parts List Backorder WCI 5995643938 View Details $2.26

View on Model

*

Use & Care Guide WCI 5304495596 Contact Us For Availability

View on Model

*

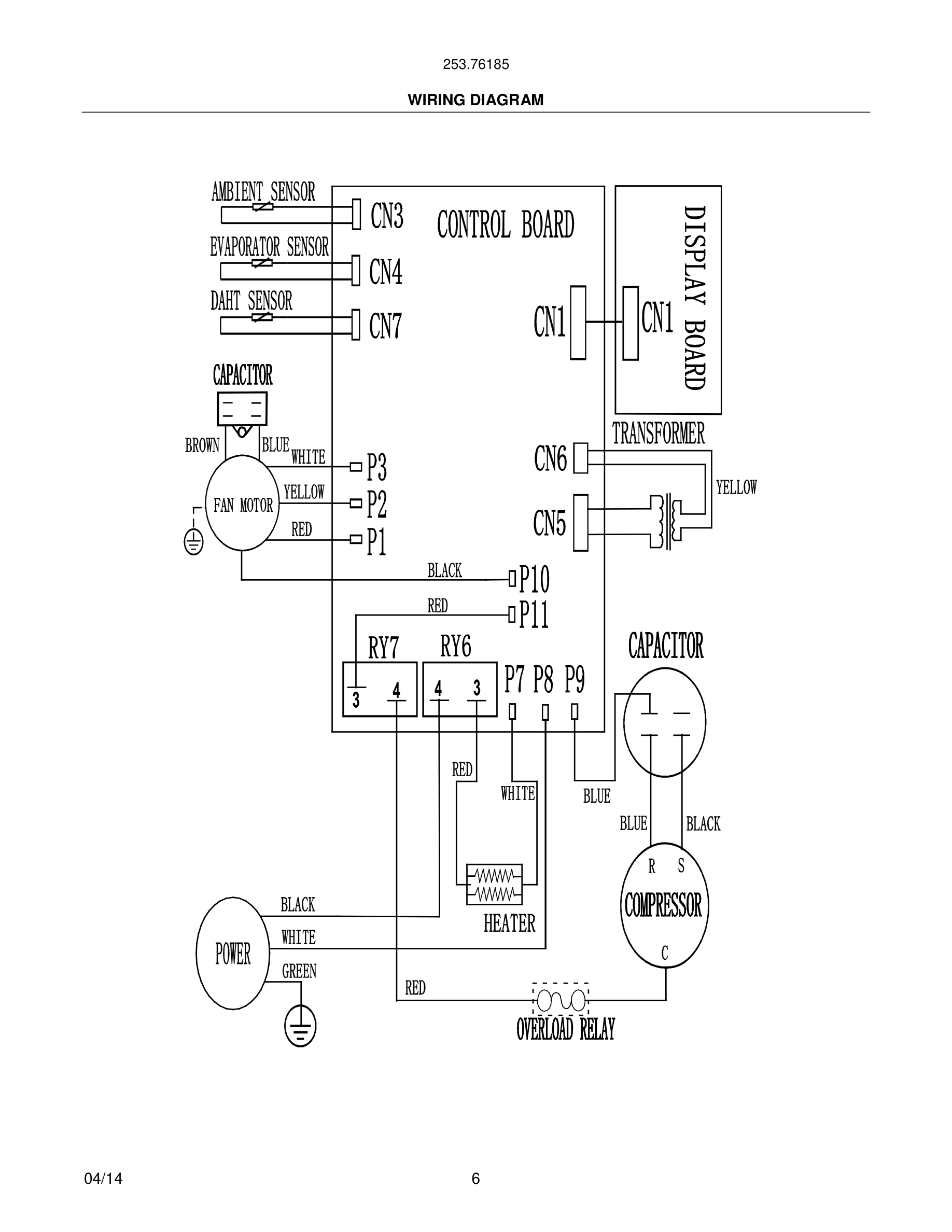

Tech Data Sheet/Wiring Diagram WCI 5304493842 Contact Us For Availability

View on Model

*

Energy Guide WCI 5304495743 Contact Us For Availability

View on Model

7#

5304495010 Frigidaire Air Conditioner Handle Backorder WCI 5304495010 View Details $7.23

View on Model

8#

5304476359 Frigidaire Air Conditioner Link As Backorder WCI 5304476359 View Details $6.32

View on Model

9#

5304495731 Frigidaire Air Conditioner Lever Backorder WCI 5304495731 View Details $7.71

View on Model

11#

Control Panel, with overlay WCI 5304495733 Contact Us For Availability

View on Model

12#

5304495734 Frigidaire Air Conditioner PC Boar Backorder WCI 5304495734 View Details $90.28

View on Model

14#

4056015508 Frigidaire Remote Control Transmit Backorder WCI 4056015508 View Details $17.55

View on Model

15#

5304476312 Frigidaire Air Conditioner Power C In Stock WCI 5304476312 View Details $180.73

View on Model

18#

5304495736 Frigidaire Air Conditioner PCB Boa Backorder WCI 5304495736 View Details $144.96

View on Model

19#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $12.67

View on Model

20#

5304512375 Frigidaire Air Conditioner Sensor Backorder WCI 5304512375 View Details $20.76

View on Model

21#

5304521234 Frigidaire Sensor Backorder WCI 5304521234 View Details $26.35

View on Model

22#

5304471063 Frigidaire Air Conditioner Transfo Backorder WCI 5304471063 View Details $56.46

View on Model

23#

5304482883 Frigidaire Air Conditioner Capacit Backorder WCI 5304482883 View Details $41.24

View on Model

24#

Capacitor, compressor WCI 5304475736 Contact Us For Availability

View on Model

28#

5304495654 Frigidaire Air Conditioner Tube Backorder WCI 5304495654 View Details $65.86

View on Model

29#

5304475735 Frigidaire Air Conditioner Compres Backorder WCI 5304475735 View Details $701.16

View on Model

32#

Condenser WCI 5304495738 Contact Us For Availability

View on Model

33#

5304476322 Frigidaire Air Conditioner Filter Backorder WCI 5304476322 View Details $88.09

View on Model

38#

5304529410 Frigidaire Heater Backorder WCI 5304529410 View Details $137.95

View on Model

44#

5304529414 Frigidaire Fan Blower Backorder WCI 5304529414 View Details $75.74

View on Model

46#

5304483059 Frigidaire Air Conditioner Motor Backorder WCI 5304483059 View Details $365.53

View on Model

47#

5304538708 Frigidaire Fan Blade In Stock WCI 5304538708 View Details $30.51

View on Model

48

5304495634 Frigidaire Air Conditioner Shroud Backorder WCI 5304495634 View Details $113.16

View on Model

50

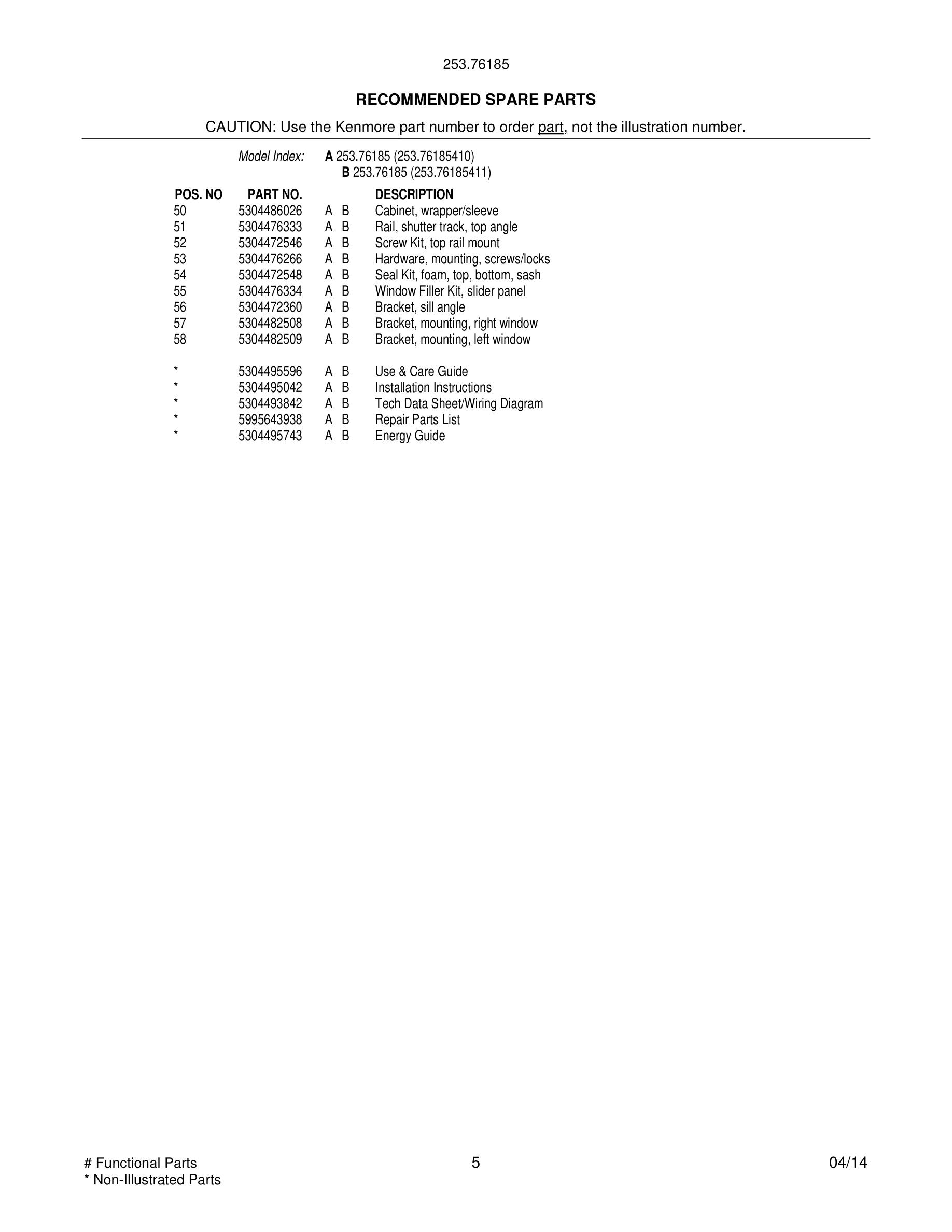

Cabinet, wrapper/sleeve WCI 5304486026 Contact Us For Availability

View on Model

51

Rail, shutter track, top angle WCI 5304476333 Contact Us For Availability

View on Model

52

Screw Kit, top rail mount WCI 5304472546 Contact Us For Availability

View on Model

53

Hardware, mounting, screws/locks WCI 5304476266 Contact Us For Availability

View on Model

54

Seal Kit, foam, top, bottom, sash WCI 5304472548 Contact Us For Availability

View on Model

55

Window Filler Kit, slider panel WCI 5304476334 Contact Us For Availability

View on Model

56

Bracket, sill angle WCI 5304472360 Contact Us For Availability

View on Model

57

Bracket, mounting, right window WCI 5304482508 Contact Us For Availability

View on Model

58

Bracket, mounting, left window WCI 5304482509 Contact Us For Availability

View on Model

×
