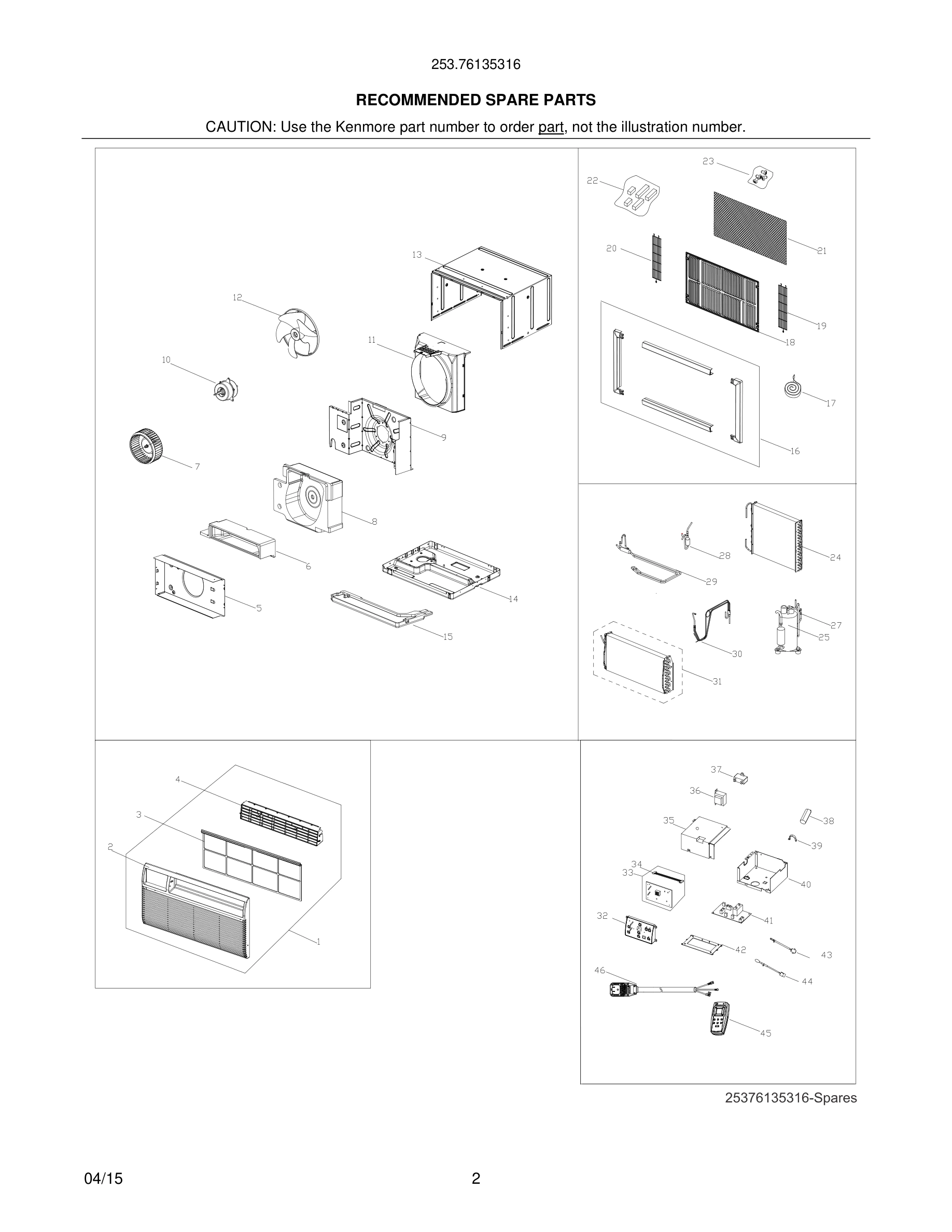

Model Kenmore 253.76135316 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.76135316 ROOM AIR CONDITIONER

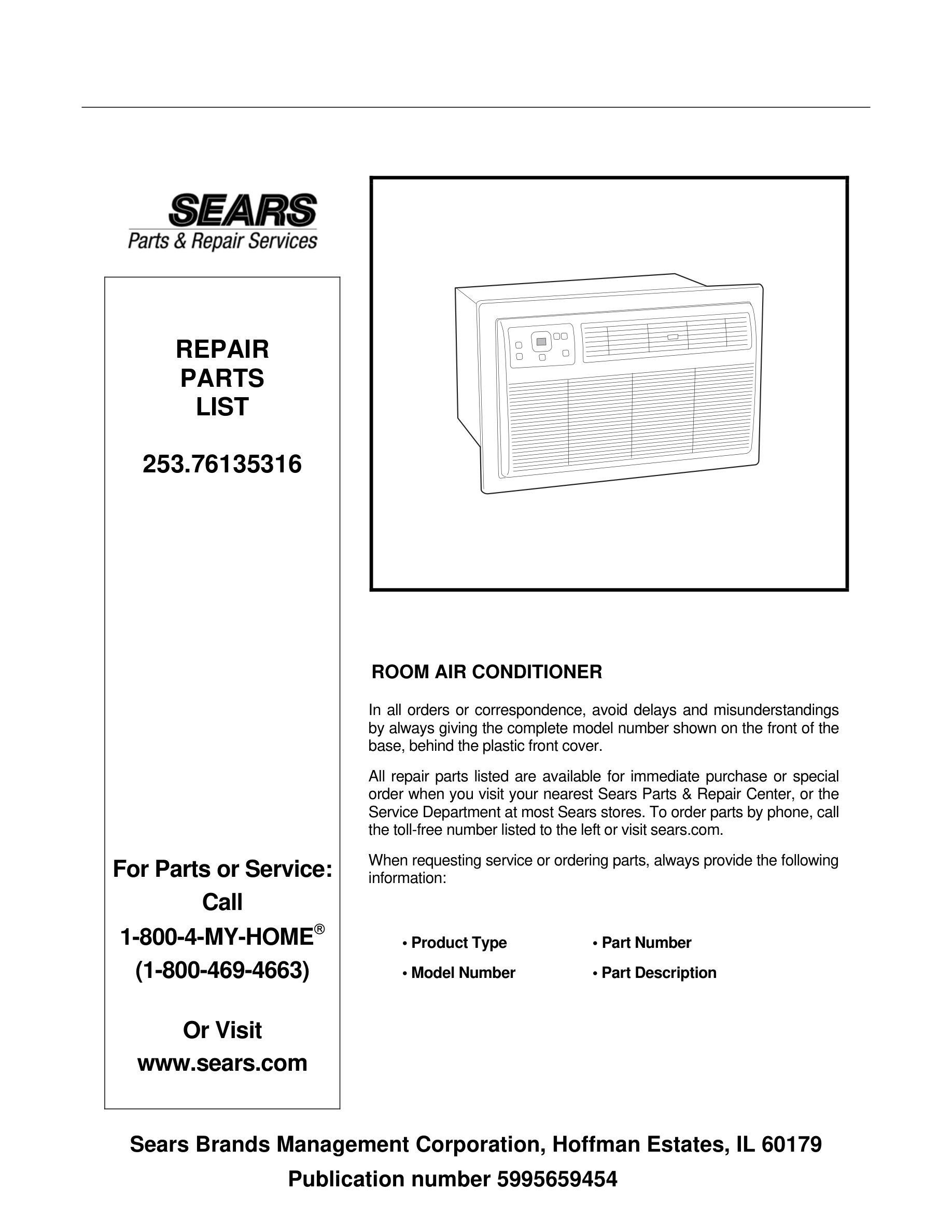

01 - COVER

Print

• This Diagram
• All Diagrams

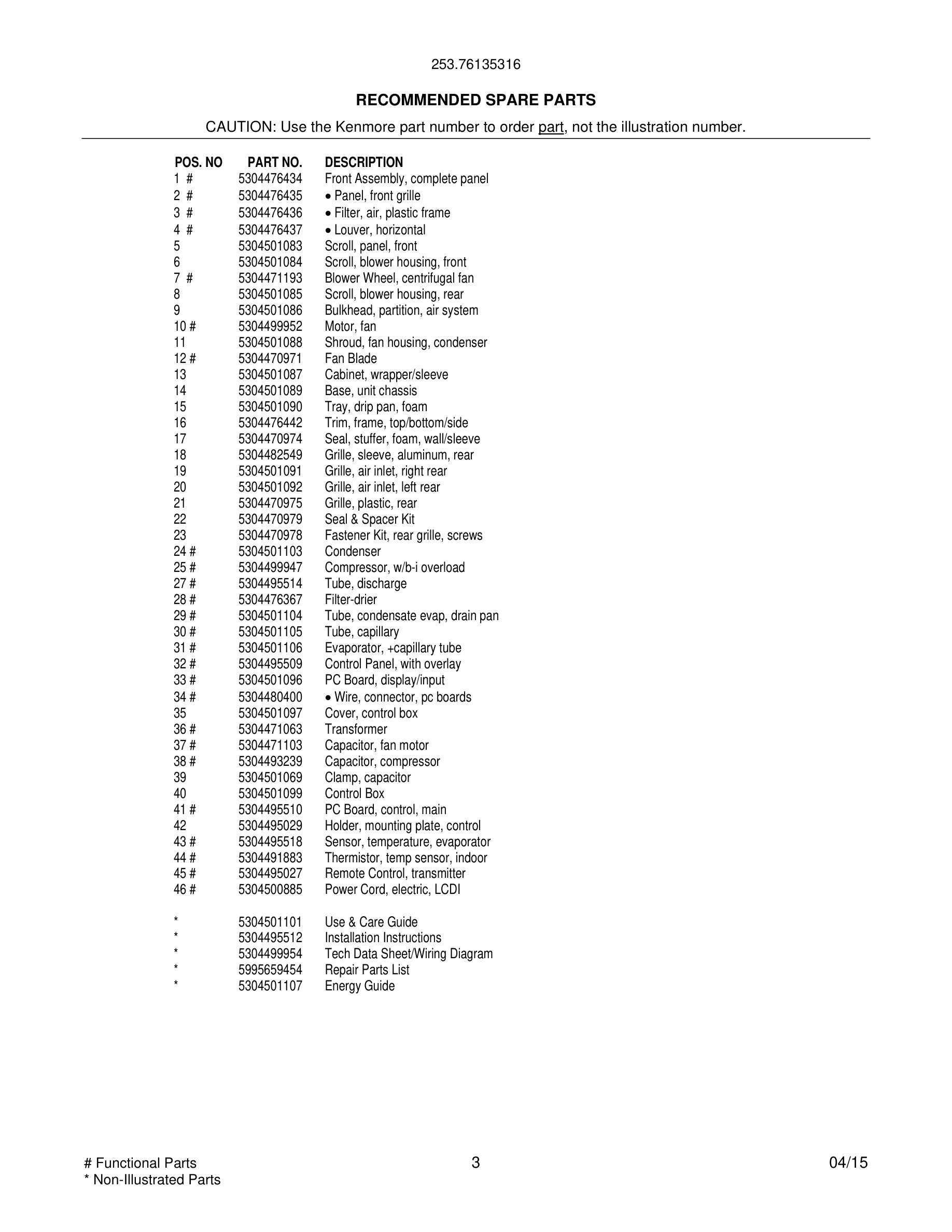

1#

Front Assembly, complete panel WCI 5304476434 Contact Us For Availability

View on Model

3#

5304528926 Frigidaire Air Conditioner Filter In Stock WCI 5304528926 View Details $10.87

View on Model

7#

5304471193 Frigidaire Air Conditioner Blower Backorder WCI 5304471193 View Details $53.81

View on Model

10#

5304499952 Frigidaire Air Conditioner Motor Backorder WCI 5304499952 View Details $54.13

View on Model

12#

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $51.10

View on Model

13

Cabinet, wrapper/sleeve WCI 5304501087 Contact Us For Availability

View on Model

16

Trim, frame, top/bottom/side WCI 5304476442 Contact Us For Availability

View on Model

17

Seal, stuffer, foam, wall/sleeve WCI 5304470974 Contact Us For Availability

View on Model

18

Grille, sleeve, aluminum, rear WCI 5304482549 Contact Us For Availability

View on Model

19

Grille, air inlet, right rear WCI 5304501091 Contact Us For Availability

View on Model

20

Grille, air inlet, left rear WCI 5304501092 Contact Us For Availability

View on Model

21

5304470975 Frigidaire Grill In Stock WCI 5304470975 View Details $12.65

View on Model

22

Seal & Spacer Kit WCI 5304470979 Contact Us For Availability

View on Model

23

Fastener Kit, rear grille, screws WCI 5304470978 Contact Us For Availability

View on Model

24#

5304501103 Frigidaire Air Conditioner Condens In Stock WCI 5304501103 View Details $215.19

View on Model

25#

5304499947 Frigidaire Air Conditioner Compres Backorder WCI 5304499947 View Details $112.59

View on Model

27#

5304495514 Frigidaire Tube Backorder WCI 5304495514 View Details $50.64

View on Model

28#

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.53

View on Model

29#

5304501104 Frigidaire Tube Backorder WCI 5304501104 View Details $65.88

View on Model

30#

5304501105 Frigidaire Tube Assembly Backorder WCI 5304501105 View Details $48.85

View on Model

31#

Evaporator, +capillary tube WCI 5304501106 Contact Us For Availability

View on Model

32#

Control Panel, with overlay WCI 5304495509 Contact Us For Availability

View on Model

33#

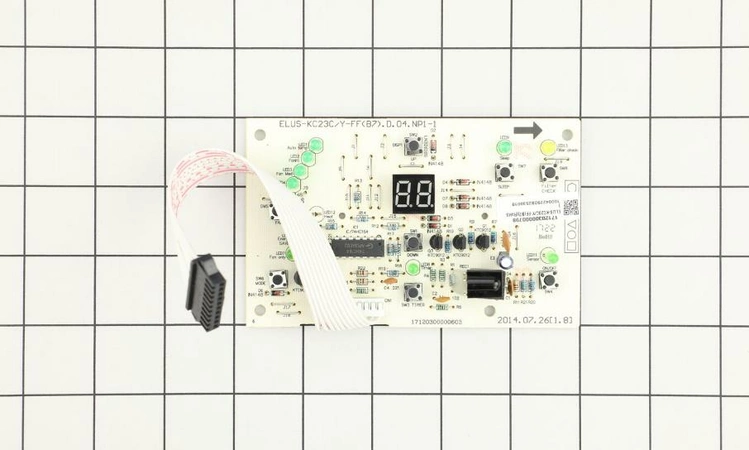

5304501096 Frigidaire Electrical Control Backorder WCI 5304501096 View Details $80.68

View on Model

34#

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.66

View on Model

35

Cover, control box WCI 5304501097 Contact Us For Availability

View on Model

36#

5304471063 Frigidaire Air Conditioner Transfo Backorder WCI 5304471063 View Details $13.11

View on Model

37#

5304471103 Frigidaire Air Conditioner Capacit Backorder WCI 5304471103 View Details $37.63

View on Model

38#

5304493239 Frigidaire Air Conditioner Capacit Backorder WCI 5304493239 View Details $91.58

View on Model

39

Clamp, capacitor WCI 5304501069 Contact Us For Availability

View on Model

40

Control Box WCI 5304501099 Contact Us For Availability

View on Model

41#

5304495510 Frigidaire Air Conditioner PC Boar Backorder WCI 5304495510 View Details $119.08

View on Model

42

Holder, mounting plate, control WCI 5304495029 Contact Us For Availability

View on Model

43#

5304495518 Frigidaire Sensor Backorder WCI 5304495518 View Details $15.40

View on Model

44#

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.91

View on Model

45#

Remote Control, transmitter WCI 5304495027 Contact Us For Availability

View on Model

46#

5304500885 Frigidaire Air Conditioner Power C Backorder WCI 5304500885 View Details $140.70

View on Model

×
