Model Kenmore 253.76085410 ROOM AIR CONDITIONER – Common Parts & Diagrams

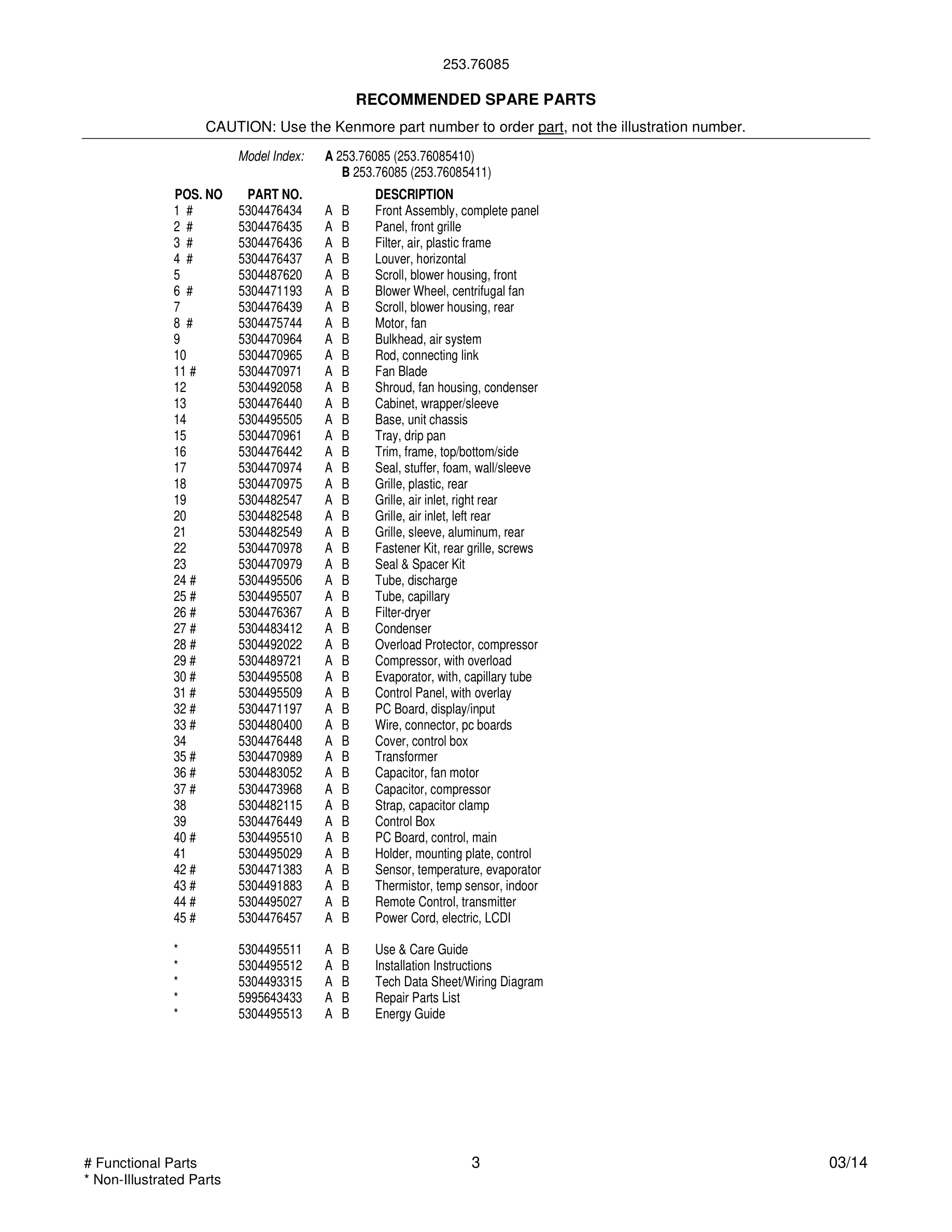

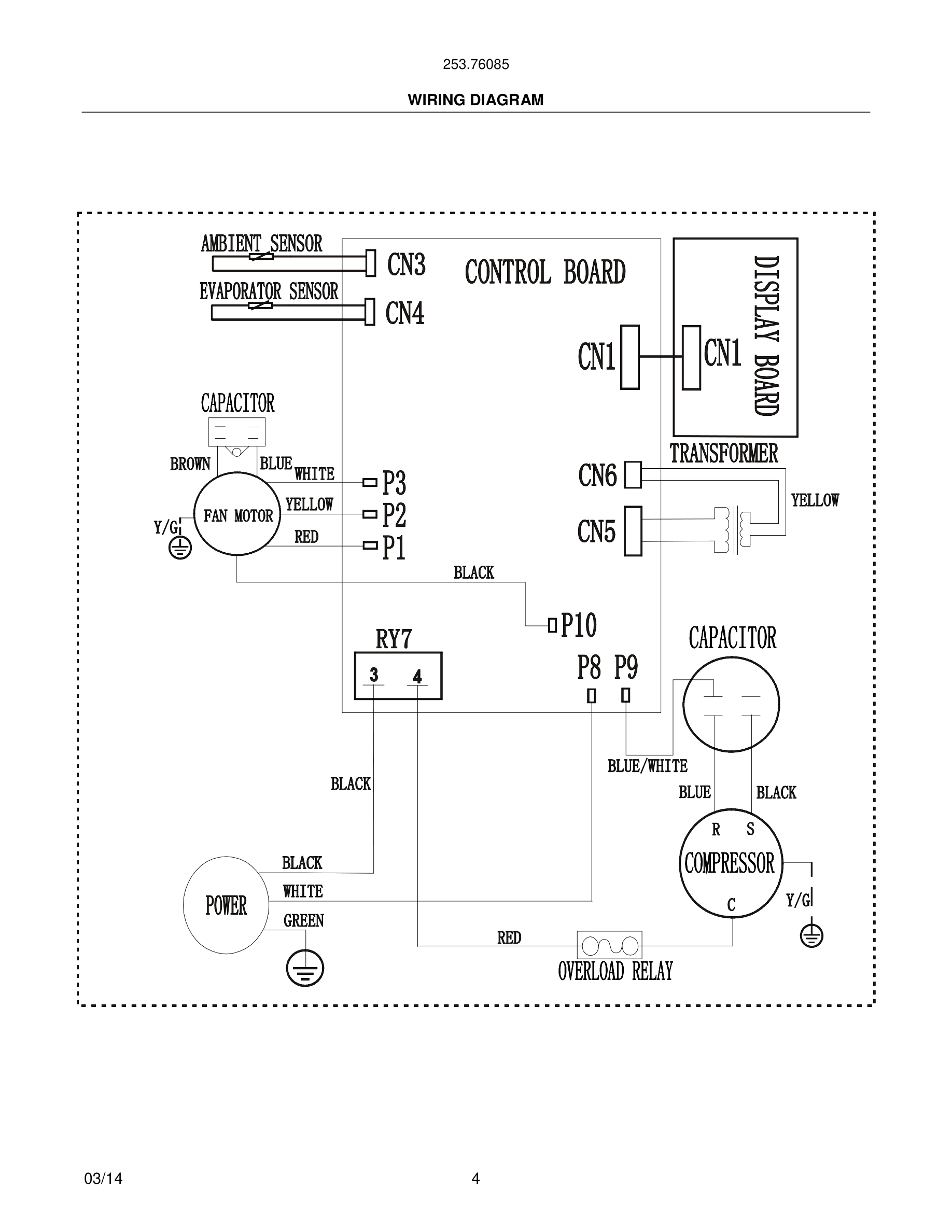

Common parts from model Kenmore 253.76085410 ROOM AIR CONDITIONER

01 - COVER

Print

• This Diagram
• All Diagrams

1#

Front Assembly, complete panel WCI 5304476434 Contact Us For Availability

View on Model

3#

5304528926 Frigidaire Air Conditioner Filter In Stock WCI 5304528926 View Details $10.87

View on Model

6#

5304471193 Frigidaire Air Conditioner Blower Backorder WCI 5304471193 View Details $53.81

View on Model

11#

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $51.10

View on Model

13

Cabinet, wrapper/sleeve WCI 5304476440 Contact Us For Availability

View on Model

14

Base, unit chassis WCI 5304495505 Contact Us For Availability

View on Model

15

Tray, drip pan WCI 5304470961 Contact Us For Availability

View on Model

16

Trim, frame, top/bottom/side WCI 5304476442 Contact Us For Availability

View on Model

17

Seal, stuffer, foam, wall/sleeve WCI 5304470974 Contact Us For Availability

View on Model

18

5304470975 Frigidaire Grill In Stock WCI 5304470975 View Details $12.65

View on Model

19

Grille, air inlet, right rear WCI 5304482547 Contact Us For Availability

View on Model

20

Grille, air inlet, left rear WCI 5304482548 Contact Us For Availability

View on Model

21

Grille, sleeve, aluminum, rear WCI 5304482549 Contact Us For Availability

View on Model

22

Fastener Kit, rear grille, screws WCI 5304470978 Contact Us For Availability

View on Model

23

Seal & Spacer Kit WCI 5304470979 Contact Us For Availability

View on Model

24#

Tube, discharge WCI 5304495506 Contact Us For Availability

View on Model

25#

Tube, capillary WCI 5304495507 Contact Us For Availability

View on Model

26#

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.53

View on Model

27#

Condenser WCI 5304483412 Contact Us For Availability

View on Model

28#

5304492022 Frigidaire Air Conditioner Overloa Backorder WCI 5304492022 View Details $82.41

View on Model

29#

5304489721 Frigidaire Air Conditioner Compres Backorder WCI 5304489721 View Details $107.44

View on Model

30#

Evaporator, with, capillary tube WCI 5304495508 Contact Us For Availability

View on Model

31#

Control Panel, with overlay WCI 5304495509 Contact Us For Availability

View on Model

32#

CONTROL-ELECTRICAL In Stock WCI 5304537405 View Details $28.94

View on Model

33#

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.66

View on Model

34

Cover, control box WCI 5304476448 Contact Us For Availability

View on Model

35#

5304470989 Frigidaire Air Conditioner Transfo Backorder WCI 5304470989 View Details $60.04

View on Model

36#

5304483052 Frigidaire Air Conditioner Capacit Backorder WCI 5304483052 View Details $47.95

View on Model

37#

5304473968 Frigidaire CAPACITOR Backorder WCI 5304473968 View Details $81.12

View on Model

38

Strap, capacitor clamp WCI 5304482115 Contact Us For Availability

View on Model

39

Control Box WCI 5304476449 Contact Us For Availability

View on Model

40#

5304495510 Frigidaire Air Conditioner PC Boar Backorder WCI 5304495510 View Details $119.08

View on Model

41

Holder, mounting plate, control WCI 5304495029 Contact Us For Availability

View on Model

42#

5304512375 Frigidaire Air Conditioner Sensor Backorder WCI 5304512375 View Details $20.76

View on Model

43#

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.91

View on Model

44#

Remote Control, transmitter WCI 5304495027 Contact Us For Availability

View on Model

45#

Power Cord, electric, LCDI WCI 5304476457 Contact Us For Availability

View on Model

×
