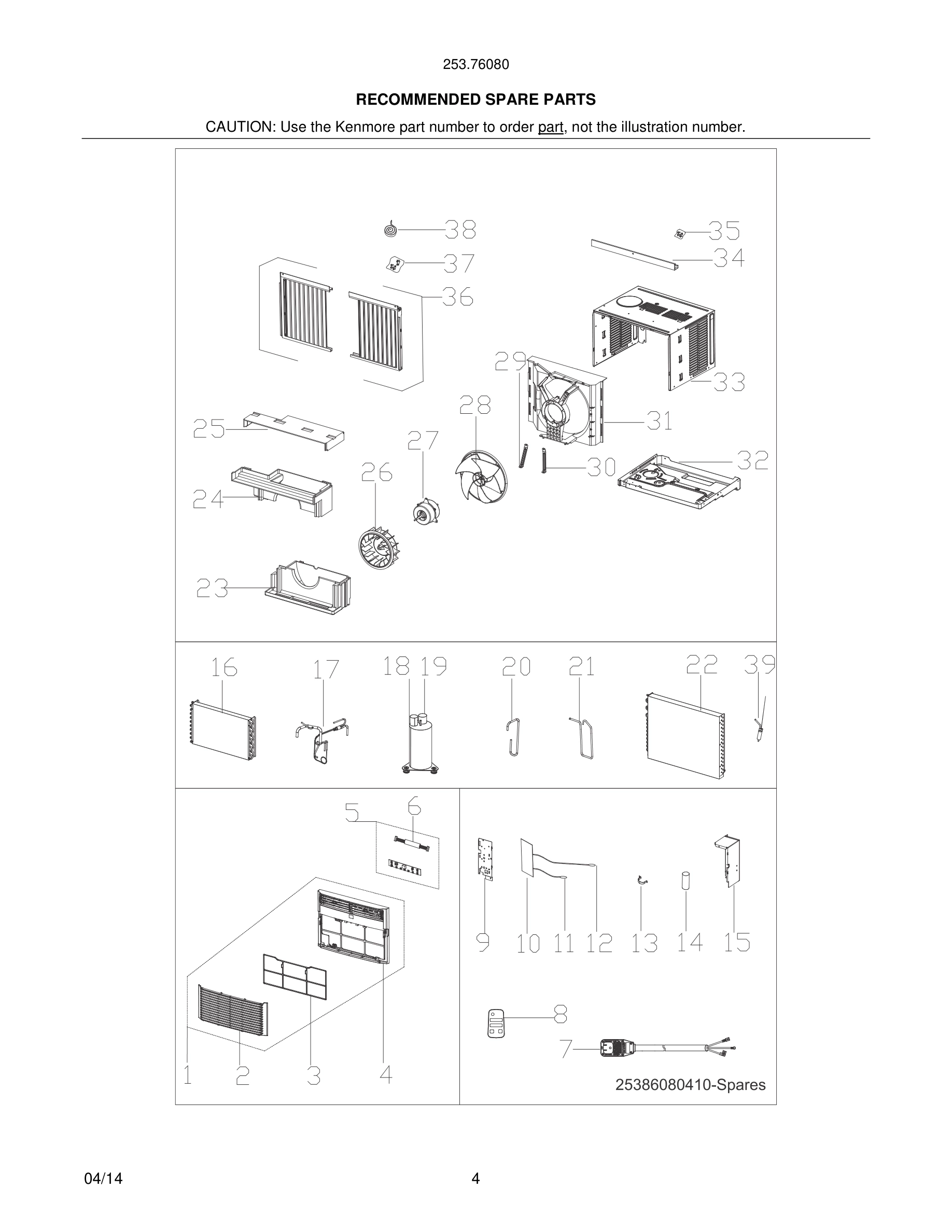

Model Kenmore 253.76080413 ROOM AIR CONDITIONER – Common Parts & Diagrams

*
Use & Care Guide
Use & Care Guide WCI 5304495118 Contact Us For Availability
View on Model
*

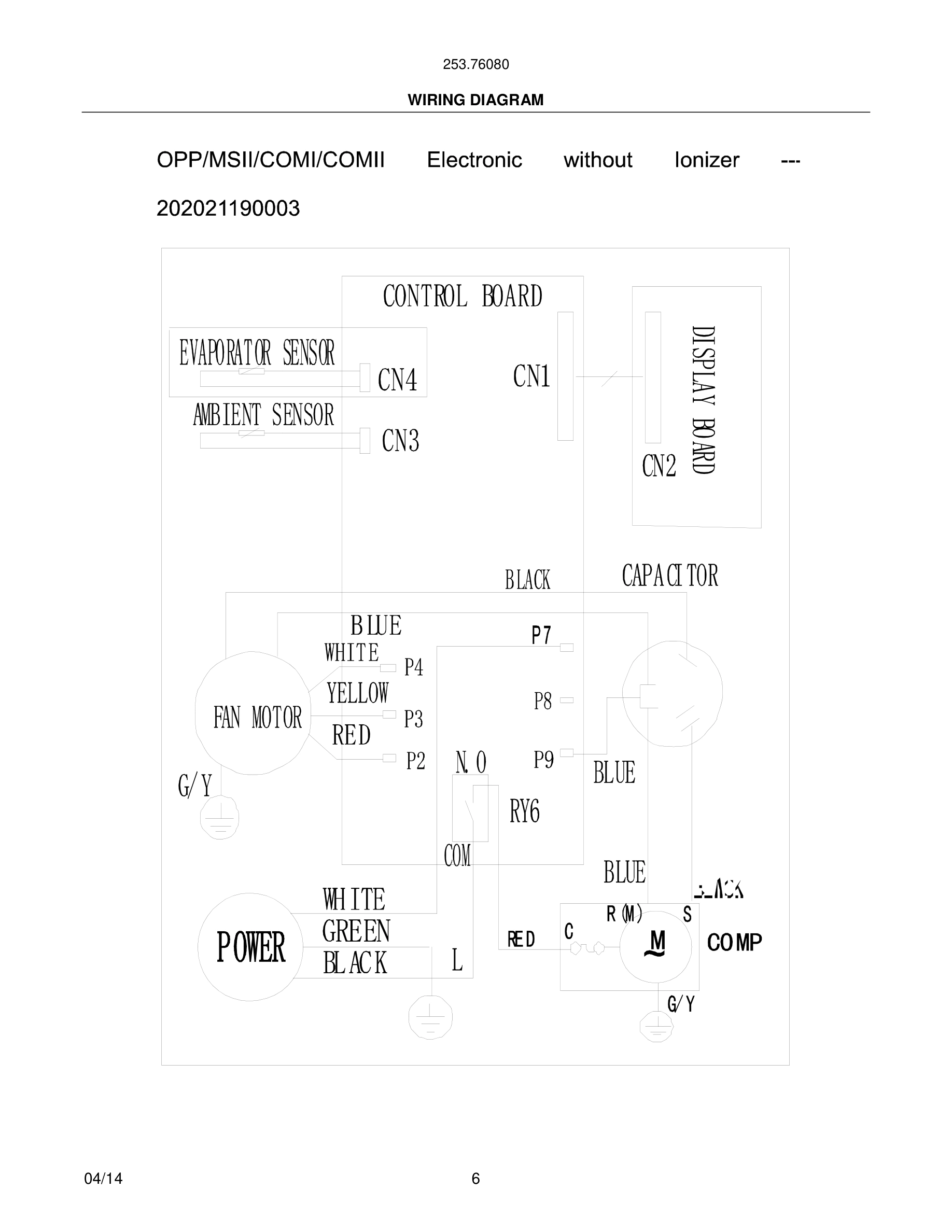

Tech Data Sheet/Wiring Diagram
Tech Data Sheet/Wiring Diagram WCI 5304495950 Contact Us For Availability
View on Model
*

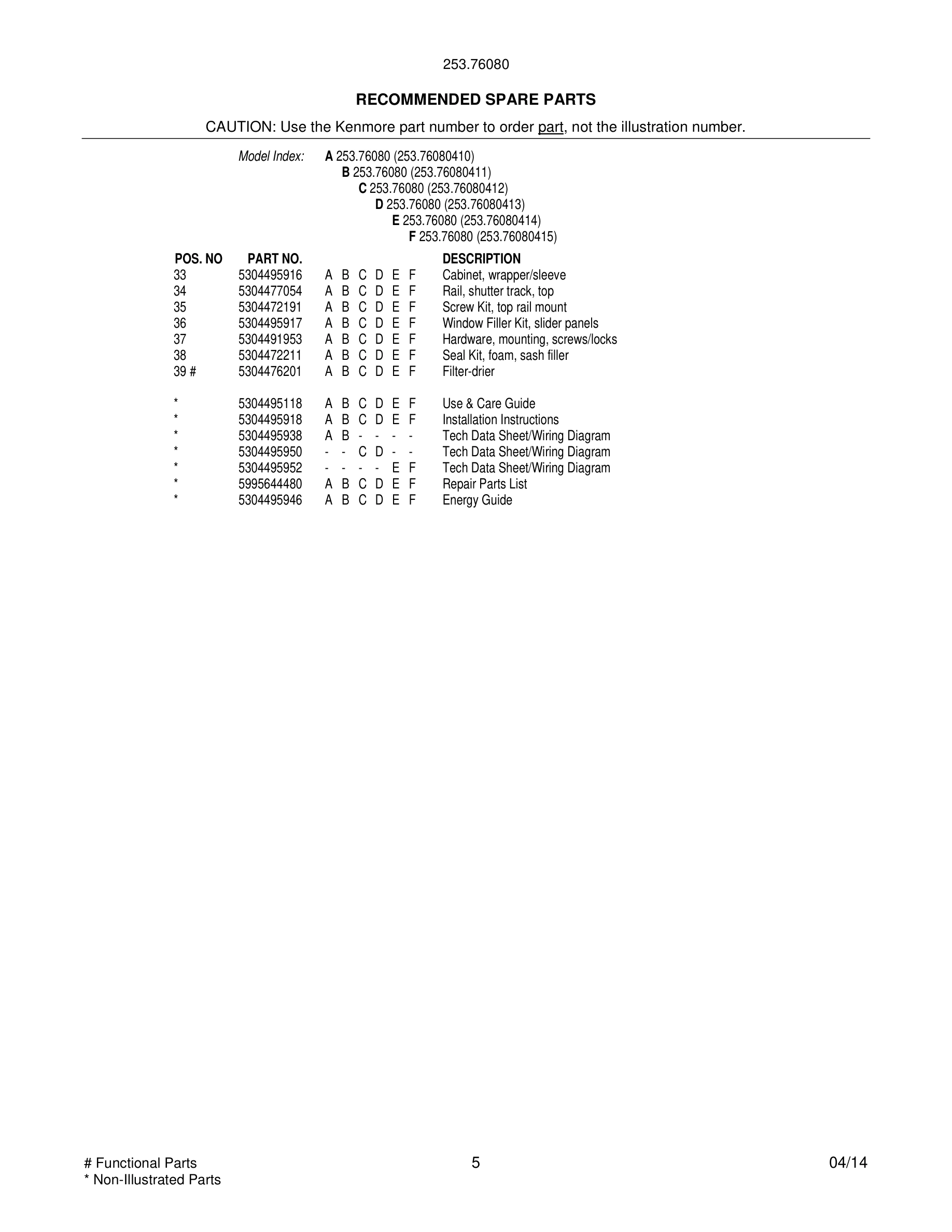

Repair Parts List
Repair Parts List WCI 5995644480 Contact Us For Availability
View on Model
*
Energy Guide
Energy Guide WCI 5304495946 Contact Us For Availability
View on Model
3#
• Filter, air
• Filter, air WCI 5304476520 Contact Us For Availability
View on Model
7#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476525 Contact Us For Availability
View on Model
14#
Capacitor
Capacitor WCI 5304476003 Contact Us For Availability
View on Model
17#
• Tube, capillary
• Tube, capillary WCI 5304495948 Contact Us For Availability
View on Model
20#
Tube, suction
Tube, suction WCI 5304492023 Contact Us For Availability
View on Model
21#
Tube, discharge
Tube, discharge WCI 5304495949 Contact Us For Availability
View on Model
22#
Condenser
Condenser WCI 5304495944 Contact Us For Availability
View on Model
23
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304495926 Contact Us For Availability
View on Model
24
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304495927 Contact Us For Availability
View on Model
25
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304495928 Contact Us For Availability
View on Model
26#
Blower Wheel, centrifugal fan
Blower Wheel, centrifugal fan WCI 5304485436 Contact Us For Availability
View on Model
27#
Motor, fan
Motor, fan WCI 5304495945 Contact Us For Availability
View on Model
29
Support, motor mount, left
Support, motor mount, left WCI 5304476574 Contact Us For Availability
View on Model
30
Support, motor mount, right
Support, motor mount, right WCI 5304476575 Contact Us For Availability
View on Model
31
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304483090 Contact Us For Availability
View on Model
32
Base, unit chassis
Base, unit chassis WCI 5304495915 Contact Us For Availability
View on Model
33
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304495916 Contact Us For Availability
View on Model
34
Rail, shutter track, top
Rail, shutter track, top WCI 5304477054 Contact Us For Availability
View on Model
35
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
38
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
