Model Kenmore 253.76063410 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - RECOMMENDED SPARE PARTS

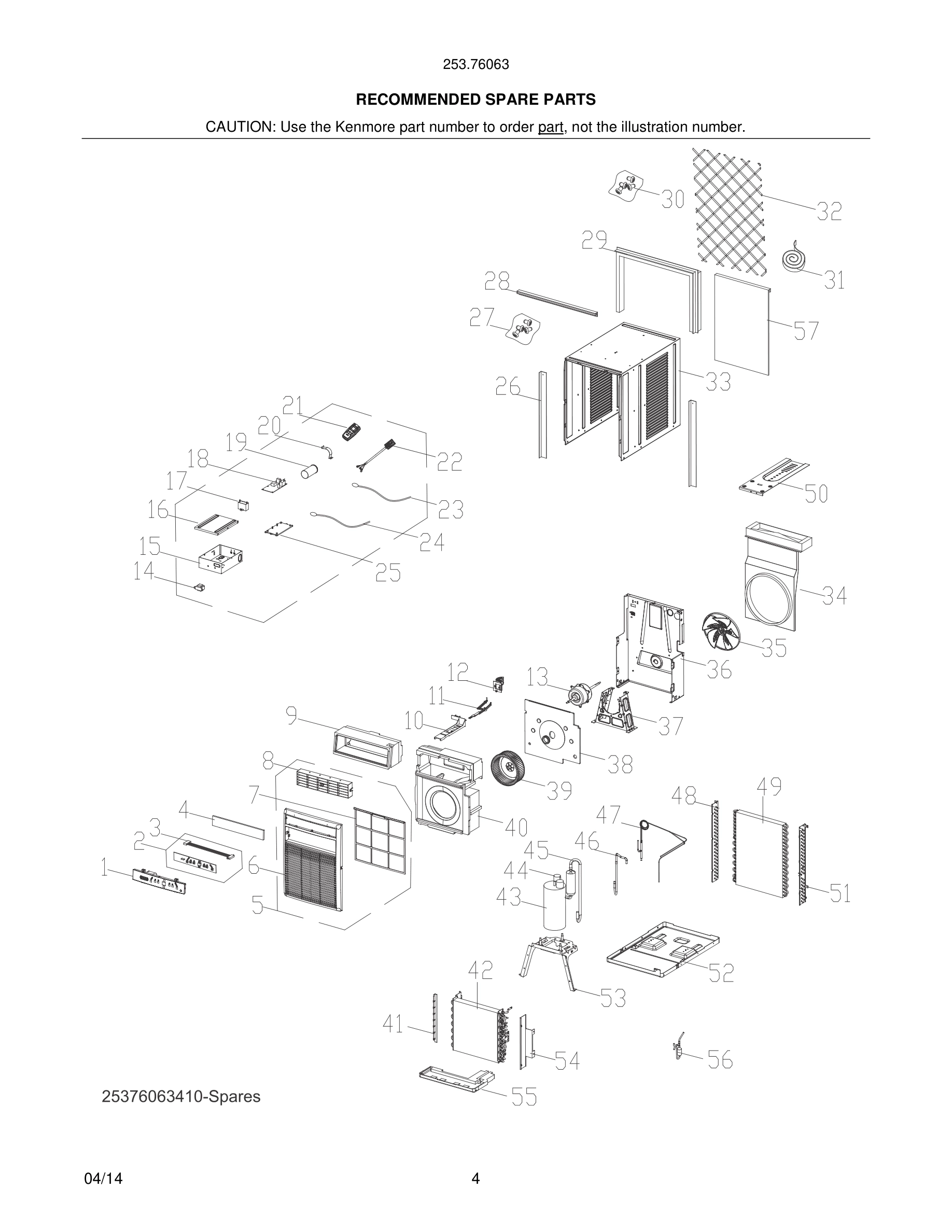

05 - RECOMMENDED SPARE PARTS

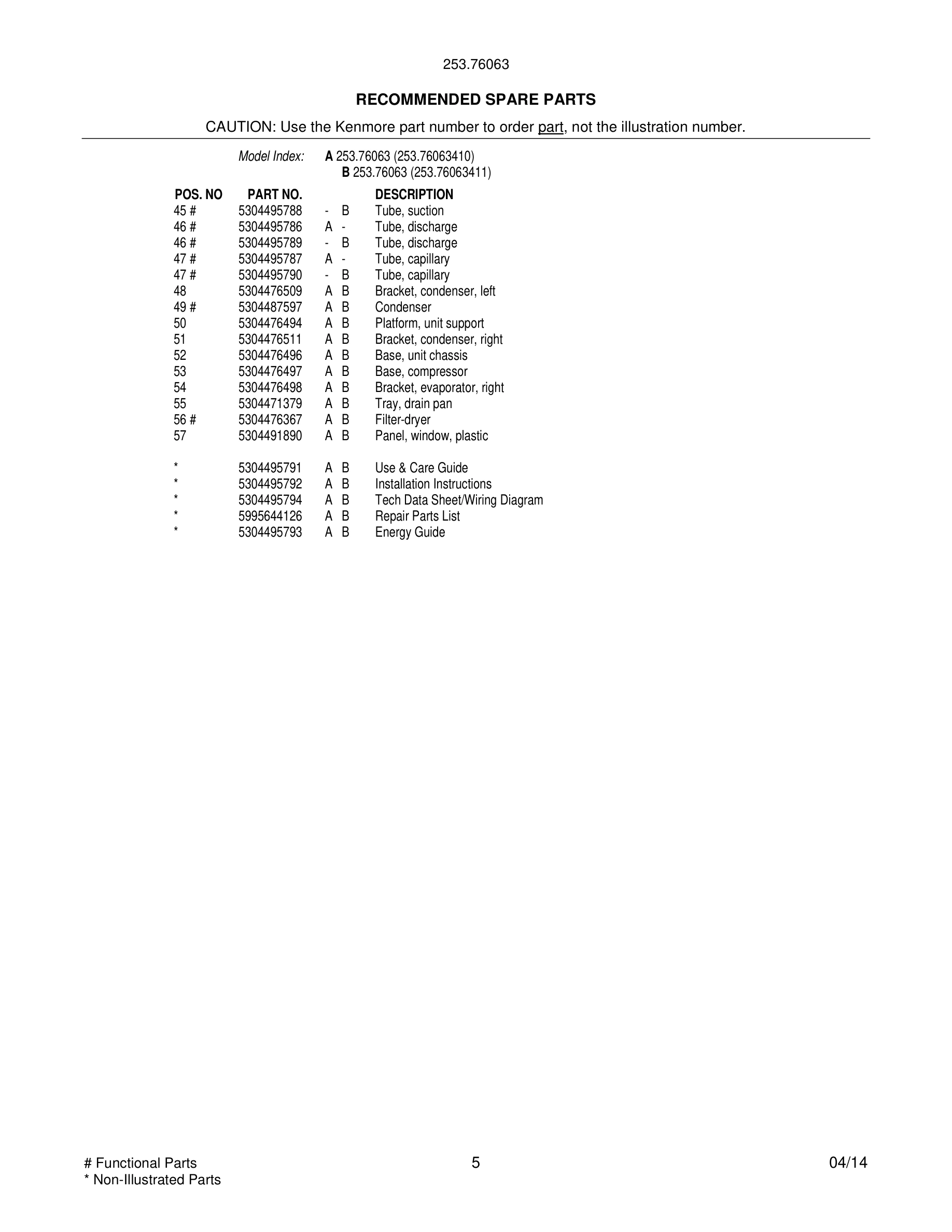

05 - WIRING DIAGRAM

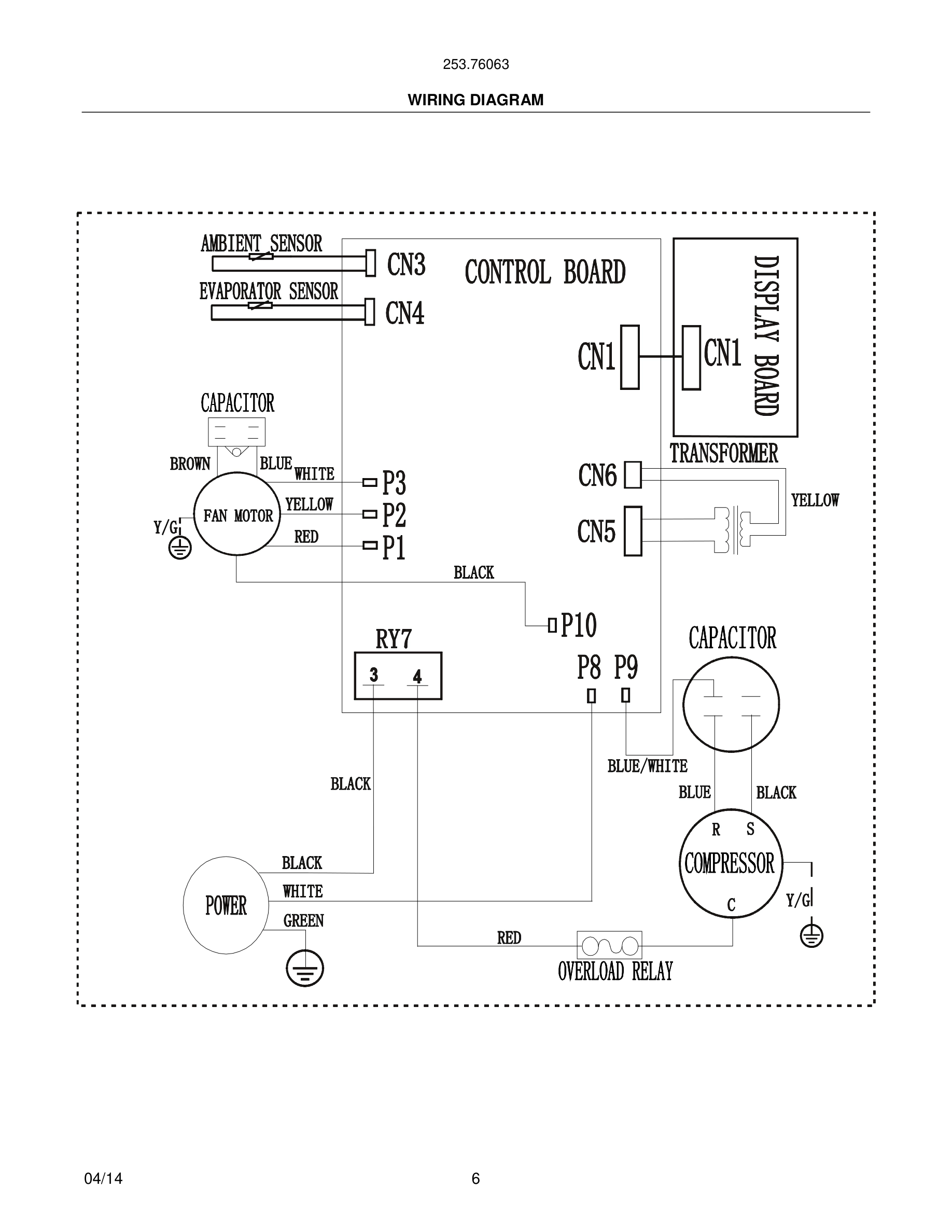

06 - WIRING DIAGRAM
Common parts from model Kenmore 253.76063410 ROOM AIR CONDITIONER
*
Use & Care Guide WCI 5304495791 Contact Us For Availability
*
Tech Data Sheet/Wiring Diagram WCI 5304495794 Contact Us For Availability
*
Repair Parts List WCI 5995644126 Contact Us For Availability
*
Energy Guide WCI 5304495793 Contact Us For Availability
11#
Lever, vent opener WCI 5304476467 Contact Us For Availability
13#
Motor, fan WCI 5304493316 Contact Us For Availability
15
Control Box WCI 5304491887 Contact Us For Availability
16
Cover, control box WCI 5304476469 Contact Us For Availability
17#
Capacitor, motor WCI 5304487581 Contact Us For Availability
18#
PC Board, control/power, main WCI 5304495779 Contact Us For Availability
20
Strap, capacitor clamp WCI 5304487586 Contact Us For Availability
22#
Power Cord, electric, LCDI WCI 5304476472 Contact Us For Availability
23#
Thermistor, temp sensor, indoor WCI 5304487589 Contact Us For Availability
24#
Thermistor, evaporator, sensor WCI 5304476473 Contact Us For Availability
25
Holder, mounting plate, control WCI 5304495029 Contact Us For Availability
26
Channel, side mount, slide WCI 5304476474 Contact Us For Availability
28
Rail, shutter track, top channel WCI 5304476475 Contact Us For Availability
31
Seal Kit, window, foam strips WCI 5304471646 Contact Us For Availability
32
Grille, rear WCI 5304476477 Contact Us For Availability
33
Cabinet, wrapper/sleeve WCI 5304491889 Contact Us For Availability
34
Shroud, fan housing, condenser WCI 5304471367 Contact Us For Availability
35#
Fan Blade WCI 5304475756 Contact Us For Availability
36
Bulkhead, partition, front WCI 5304487591 Contact Us For Availability
37
Support, fan motor mount WCI 5304476480 Contact Us For Availability
38
Panel, scroll, rear WCI 5304487590 Contact Us For Availability
39#
Blower Wheel, centrifugal WCI 5304475755 Contact Us For Availability
40
Scroll, blower housing WCI 5304487592 Contact Us For Availability
41
Bracket, evaporator, left WCI 5304476481 Contact Us For Availability
42#
Evaporator WCI 5304495781 Contact Us For Availability
43#
Compressor, with overload WCI 5304495783 Contact Us For Availability
44#
• Overload Protector, compressor WCI 5304495784 Contact Us For Availability
45#
Tube, suction WCI 5304495785 Contact Us For Availability
46#
Tube, discharge WCI 5304495786 Contact Us For Availability
47#
Tube, capillary WCI 5304495787 Contact Us For Availability
48
Bracket, condenser, left WCI 5304476509 Contact Us For Availability
49#
Condenser WCI 5304487597 Contact Us For Availability
50
Platform, unit support WCI 5304476494 Contact Us For Availability
51
Bracket, condenser, right WCI 5304476511 Contact Us For Availability
52
Base, unit chassis WCI 5304476496 Contact Us For Availability
53
Base, compressor WCI 5304476497 Contact Us For Availability
54
Bracket, evaporator, right WCI 5304476498 Contact Us For Availability
55
Tray, drain pan WCI 5304471379 Contact Us For Availability
× ![]()
