Model Kenmore 253.75088301 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

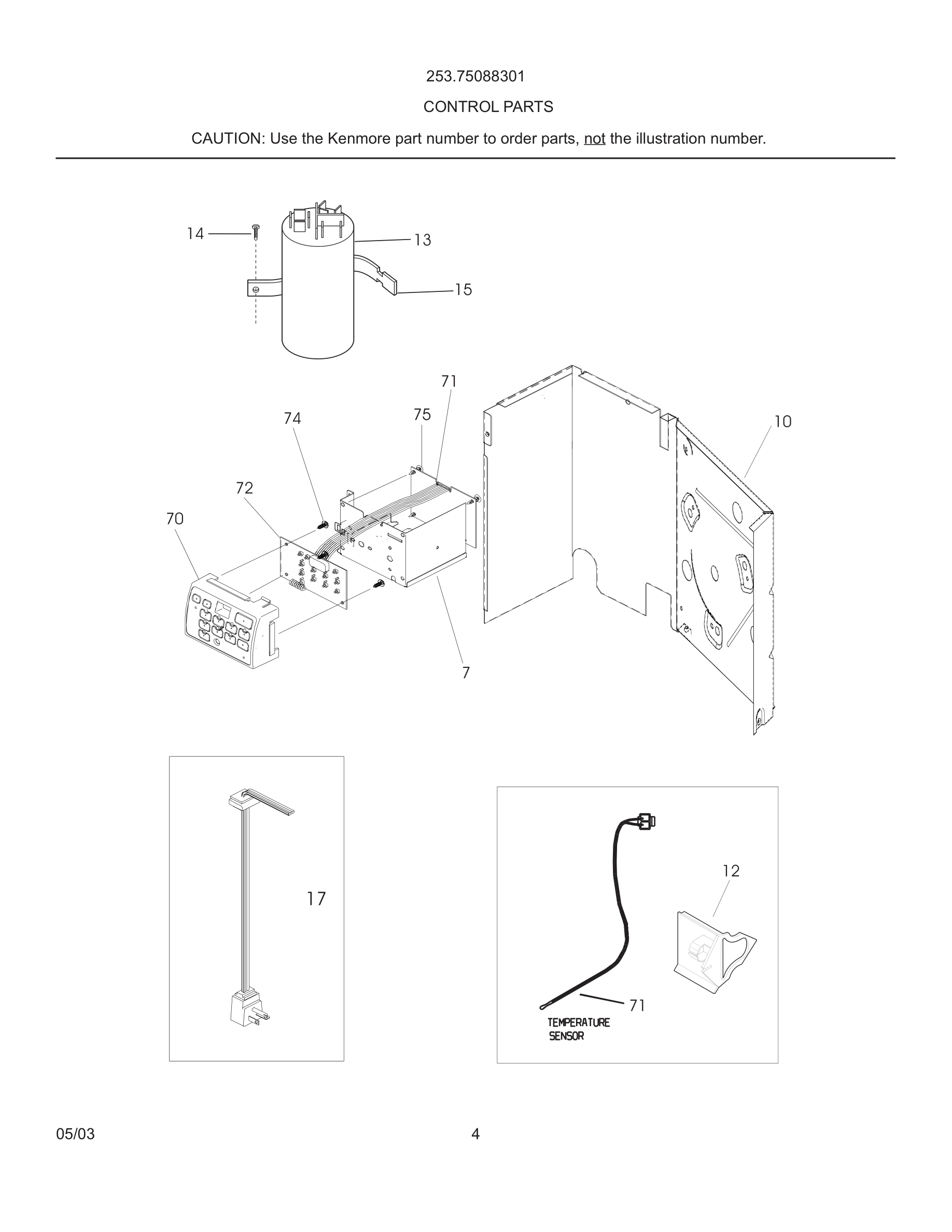

05 - CONTROL PARTS

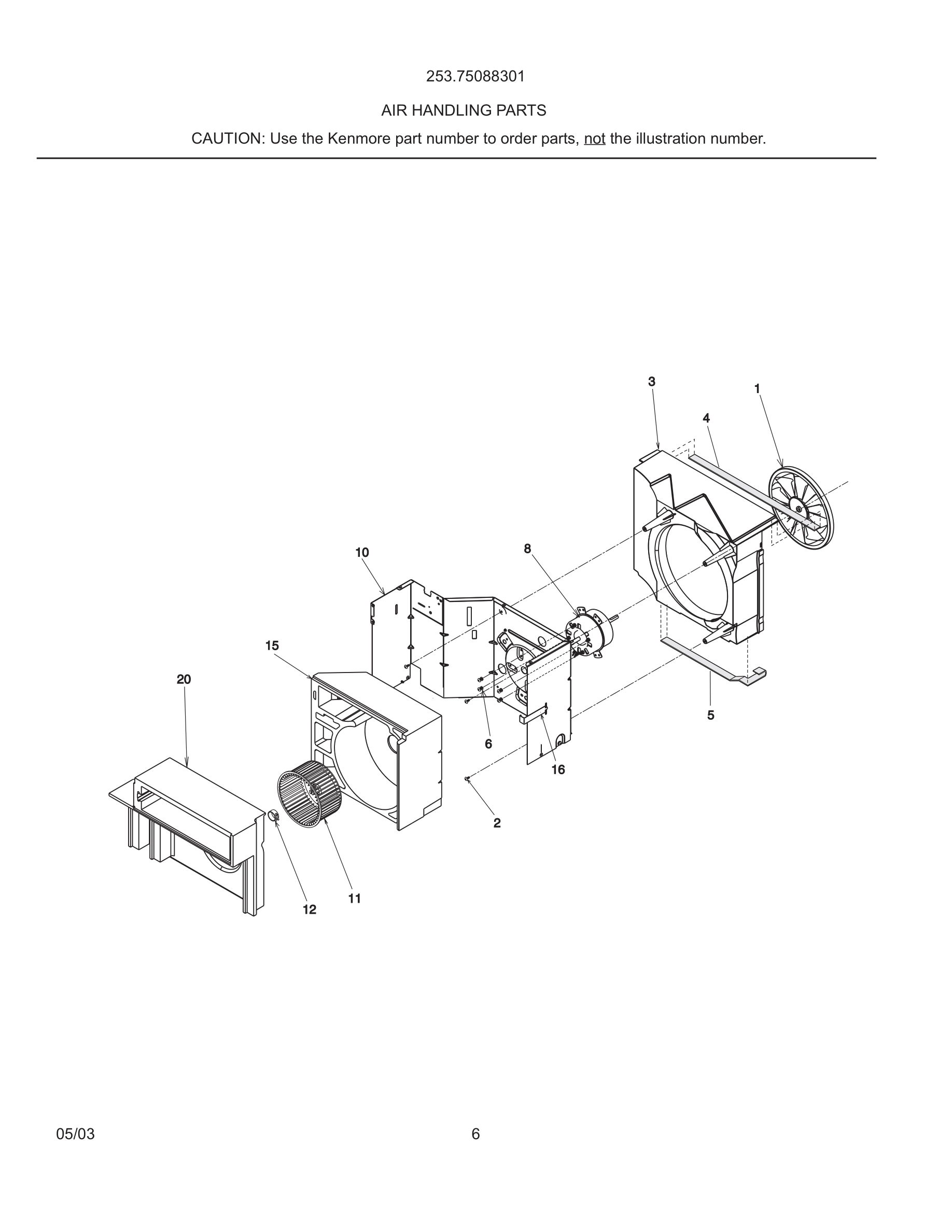

07 - AIR HANDLING PARTS

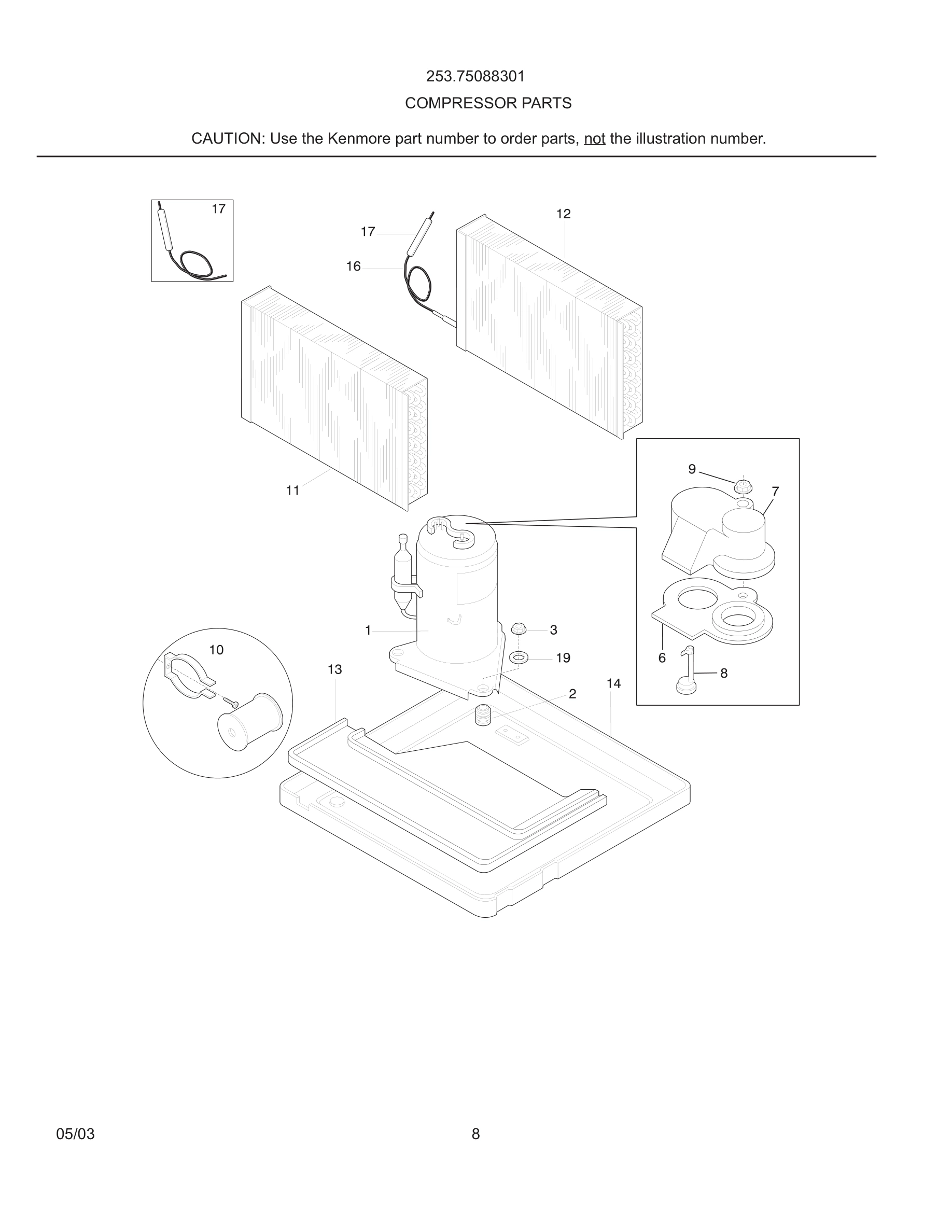

09 - COMPRESSOR PARTS

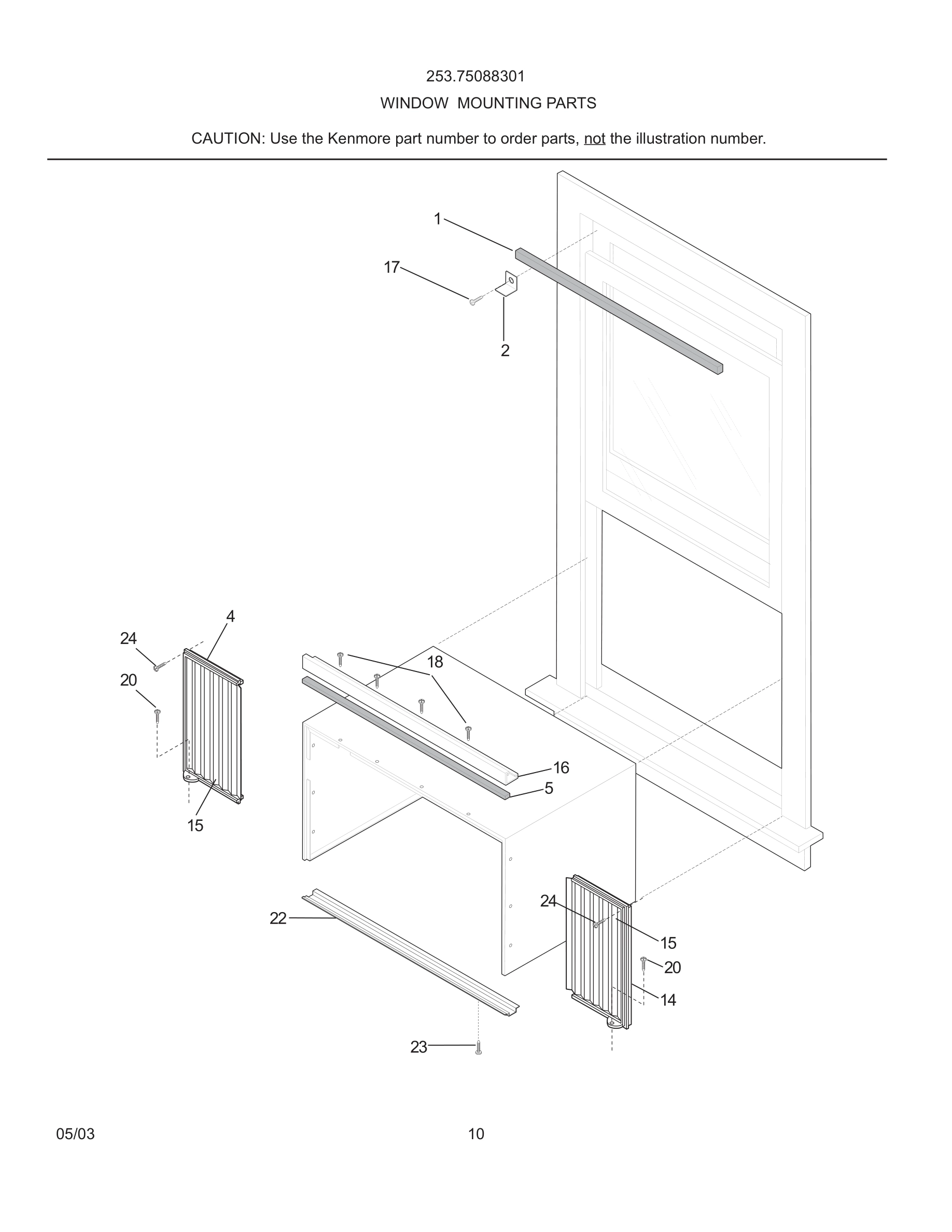

11 - WINDOW MOUNTING PARTS

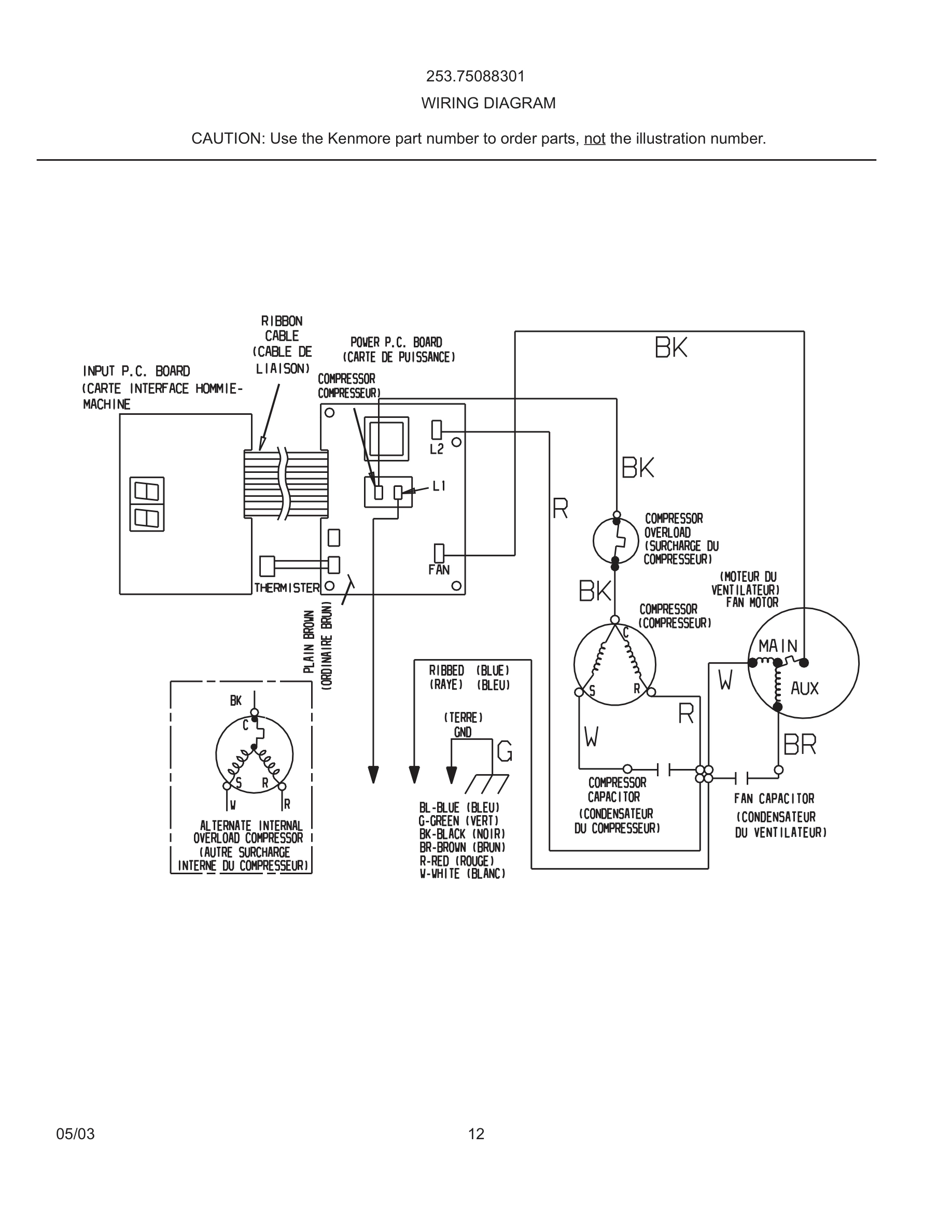

12 - WIRING DIAGRAM
Common parts from model Kenmore 253.75088301 ROOM AIR CONDITIONER
*
Energy Guide,25375088300 WCI 309363123 Contact Us For Availability
*
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
1
Cabinet,wrapper WCI 309643602 Contact Us For Availability
1
Fan Blade,with clamp WCI 309645702 Contact Us For Availability
1#
Compressor WCI 309616919 Contact Us For Availability
2
Bracket,sash lock WCI 5303211056 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 309643901 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Seal,top WCI 5304421913 Contact Us For Availability
4
Frame Extension Kit,accordian ,LH & RH ,incl. WCI 309644902 Contact Us For Availability
4
Extension,sliding frame ,LH cab front ,w/shut WCI 5304423372 Contact Us For Availability
5
Seal,bottom WCI 5303303759 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
Louver Assy,includes 7,8,9 WCI 309640205 Contact Us For Availability
6
Nut,Keps ,motor mtg ,(4) WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 3201668 Contact Us For Availability
7
• Link,vertical louver ,with handle WCI 309638002 Contact Us For Availability
7
Cover,compr terminal WCI 5304405245 Contact Us For Availability
7#
Control Box WCI 309643801 Contact Us For Availability
8
(cid:127) Louver,horizontal WCI 309637902 Contact Us For Availability
8#
Motor,fan WCI 309644303 Contact Us For Availability
8#
Overload Protector WCI 5303317553 Contact Us For Availability
9
(cid:127) Louver,vertical ,(6) WCI 309342001 Contact Us For Availability
9
Nut,terminal cover WCI 3201670 Contact Us For Availability
10
Bulkhead WCI 309643702 Contact Us For Availability
10#
Start Assist Kit,compressor WCI 5303317601 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11#
Blower Wheel WCI 309631701 Contact Us For Availability
11#
Evaporator WCI 309619317 Contact Us For Availability
12
Filter,air ,plastic frame ,antimicrobial WCI 309638102 Contact Us For Availability
12
Holder,thermistor ,w/seal WCI 5304413782 Contact Us For Availability
12
Clamp,blower wheel mt ,compression WCI 309112101 Contact Us For Availability
12#
Condenser WCI 5303303197 Contact Us For Availability
13#
Capacitor,250 V ,35+10 mfd WCI 5304426336 Contact Us For Availability
13#
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644003 Contact Us For Availability
14
Extension,sliding frame ,RH cab front ,w/shut WCI 5304423373 Contact Us For Availability
15
Panel-shutter,window closure ,RH/LH ,accordia WCI 309645501 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
Rail,retainer ,top WCI 5304430650 Contact Us For Availability
16#
Capillary Tube,.106 x .054x 35 WCI 5304417586 Contact Us For Availability
17
Front Assembly,4 way panel ,w/8,9,12,38,43 WCI 309640105 Contact Us For Availability
17
Screw,wood, type 17 ,10-12 x 0.750 WCI 3002803 Contact Us For Availability
17#
Cord-electric power,16 AWG ,115 V ,w/ground c WCI 309343123 Contact Us For Availability
19
Overlay,control WCI 309359905 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309643002 Contact Us For Availability
22
Rail,retainer ,bottom WCI 5304403252 Contact Us For Availability
23
Screw,23(T) ,10-32 x 0.310 WCI 3001806 Contact Us For Availability
24
Screw,wood,type 17 ,8-15 x 0.500 WCI 5308002974 Contact Us For Availability
25
Door,fresh air vent WCI 309328603 Contact Us For Availability
26
Handle,vent door WCI 309638201 Contact Us For Availability
26A
Detent,vent WCI 309330201 Contact Us For Availability
38
Panel,cabinet front WCI 309646501 Contact Us For Availability
43
Frame,cabinet front WCI 309646601 Contact Us For Availability
70
Enclosure,control mount WCI 309361303 Contact Us For Availability
71#
PC Board,power ,vari speed ,115 V ,w/transfor WCI 309375701 Contact Us For Availability
72#
PC Board,input WCI 309375703 Contact Us For Availability
75
Hardware,PCB support WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter,vari speed,w/ batt WCI 309342608 Contact Us For Availability
× ![]()
