Model Electrolux 253.75088300 Air Conditioner (Kenmore 25375088300) – Common Parts & Diagrams
COMPRESSOR PARTS
01 - COVER
WINDOW MOUNTING PARTS
03 - CABINET FRONT AND WRAPPER
CONTROL PARTS
05 - CONTROL PARTS
CABINET FRONT AND WRAPPER
07 - AIR HANDLING PARTS
AIR HANDLING PARTS

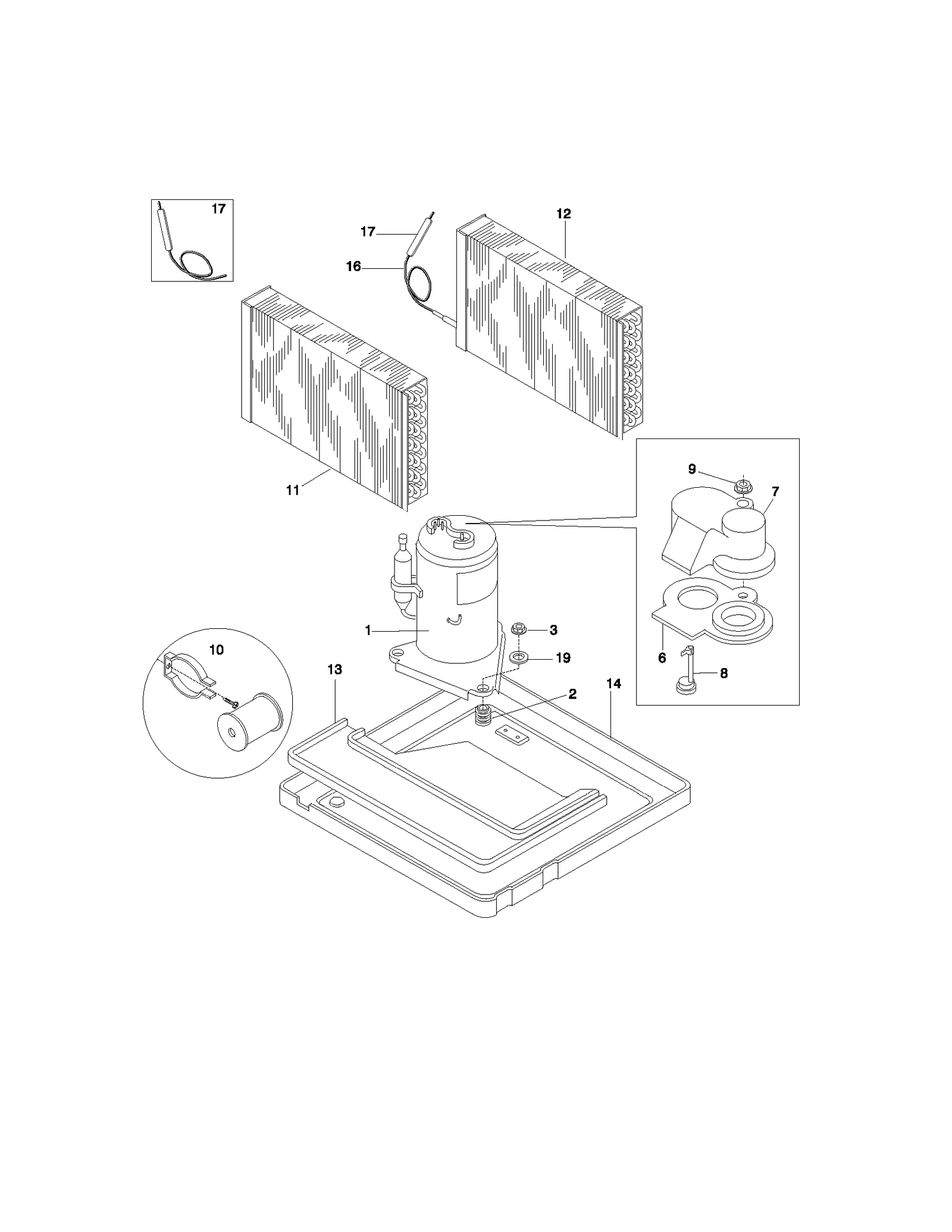

09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux 253.75088300 Air Conditioner (Kenmore 25375088300)
*
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
1
Wrapper WCI 309643602 Contact Us For Availability
1
Fan Blade WCI 309645702 Contact Us For Availability
1#
Compressor WCI 309616919 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 309643901 Contact Us For Availability
3
Shroud Housing WCI 5304421928 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Frame Extension Kit,accordian ,LH & RH ,incl. WCI 309644902 Contact Us For Availability
4
Extension,sliding frame ,LH cab front ,w/clos WCI 5304423372 Contact Us For Availability
4
SEAL,TOP WCI 5304421913 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
5
Shroud Seal WCI 5303303759 Contact Us For Availability
6
Room Air Conditioner Front Louver WCI 309640205 Contact Us For Availability
6
Kelvinator Room Air Conditioner Lock Nut WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 3201668 Contact Us For Availability
7
Link WCI 309638002 Contact Us For Availability
7
Cover,compr terminal WCI 5304405245 Contact Us For Availability
7#
Control Box WCI 309643801 Contact Us For Availability
8
Louver WCI 309637902 Contact Us For Availability
8
Motor WCI 309644303 Contact Us For Availability
8#
Overload Protector WCI 5303317553 Contact Us For Availability
9
Room Air Conditioner Vertical Louver Vane WCI 309342001 Contact Us For Availability
9
Nut,terminal cover WCI 3201670 Contact Us For Availability
10
Bulkhead WCI 309643702 Contact Us For Availability
10#
Start Assist Kit,compressor WCI 5303317601 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 309631701 Contact Us For Availability
11#
Evaporator WCI 309619317 Contact Us For Availability
12
Room Air Conditioner Air Filter WCI 309638102 Contact Us For Availability
12
Holder,thermistor ,w/seal WCI 5304413782 Contact Us For Availability
12
Wheel Clamp WCI 309112101 Contact Us For Availability
12#
Condenser WCI 5303303197 Contact Us For Availability
13
Capacitor WCI 5304426823 Contact Us For Availability
13#
Tray,evap drip WCI 309642801 Contact Us For Availability
13#
Capacitor,250 V ,35+10 mfd WCI 5304426336 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644003 Contact Us For Availability
14
Extension,sliding frame ,RH cab front ,w/clos WCI 5304423373 Contact Us For Availability
15
Room Air Conditioner Accordion Filler WCI 309645501 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Fan Housing WCI 309642901 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
16
Clip Scroll WCI 309100201 Contact Us For Availability
16#
Capillary Tube,.106 x .054x 35 WCI 5304417586 Contact Us For Availability
17
Screw,wood, type 17 ,10-12 x 0.750 WCI 3002803 Contact Us For Availability
17
Room Air Conditioner Front Grille WCI 309640105 Contact Us For Availability
17#
Drier-filter,service kit WCI 5300265301 Contact Us For Availability
17#
Cord-electric power,18 AWG ,115 V WCI 309343122 Contact Us For Availability
19
Overlay WCI 309359905 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
20
Scroll Plate WCI 309643002 Contact Us For Availability
22
Rail,retainer ,bottom WCI 5304403252 Contact Us For Availability
23
Screw,23(T) ,10-32 x 0.310 WCI 3001806 Contact Us For Availability
24
Screw,wood,type 17 ,8-15 x 0.500 WCI 5308002974 Contact Us For Availability
25
Door Vent WCI 309328603 Contact Us For Availability
26
Hndle-vent WCI 309638201 Contact Us For Availability
26A
Vent Detent WCI 309330201 Contact Us For Availability
38
Panel WCI 309646501 Contact Us For Availability
43
Frame WCI 309646601 Contact Us For Availability
70
Enclosure WCI 309361302 Contact Us For Availability
71#
PC Board,power ,w/trans,sensor WCI 309371305 Contact Us For Availability
72#
PC Board,input WCI 309371303 Contact Us For Availability
75
Support,PC board WCI 5304413781 Contact Us For Availability
78
Room Air Conditioner Remote Control WCI 309342608 Contact Us For Availability
NI
Owner's Manual WCI 309000849 Contact Us For Availability
NI
Kenmore Parts List WCI 5995383360 Contact Us For Availability
NI
Tech Data Sheet,25375088300 WCI 309002003 Contact Us For Availability
NI
Energy Guide,25375088300 WCI 309363123 Contact Us For Availability
× ![]()
