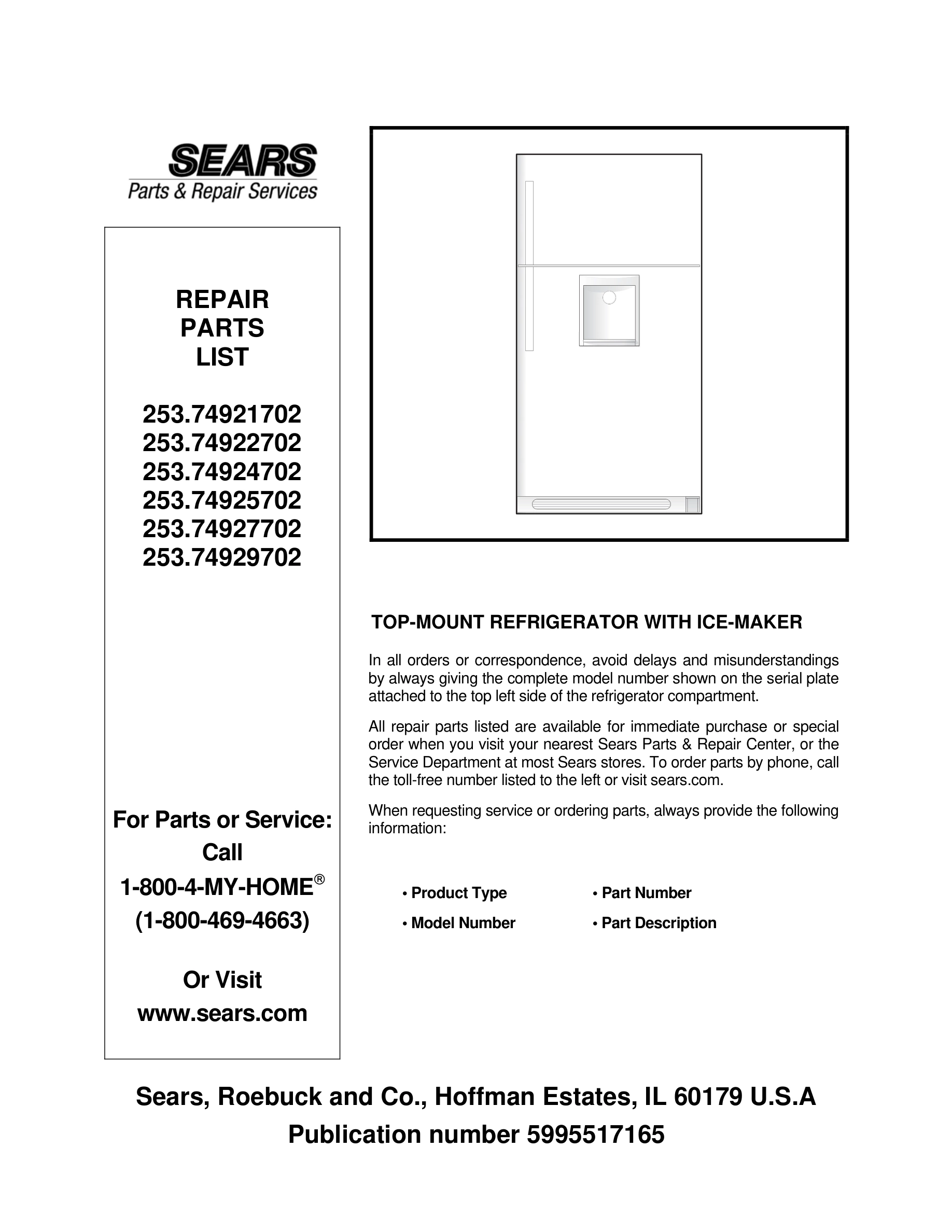

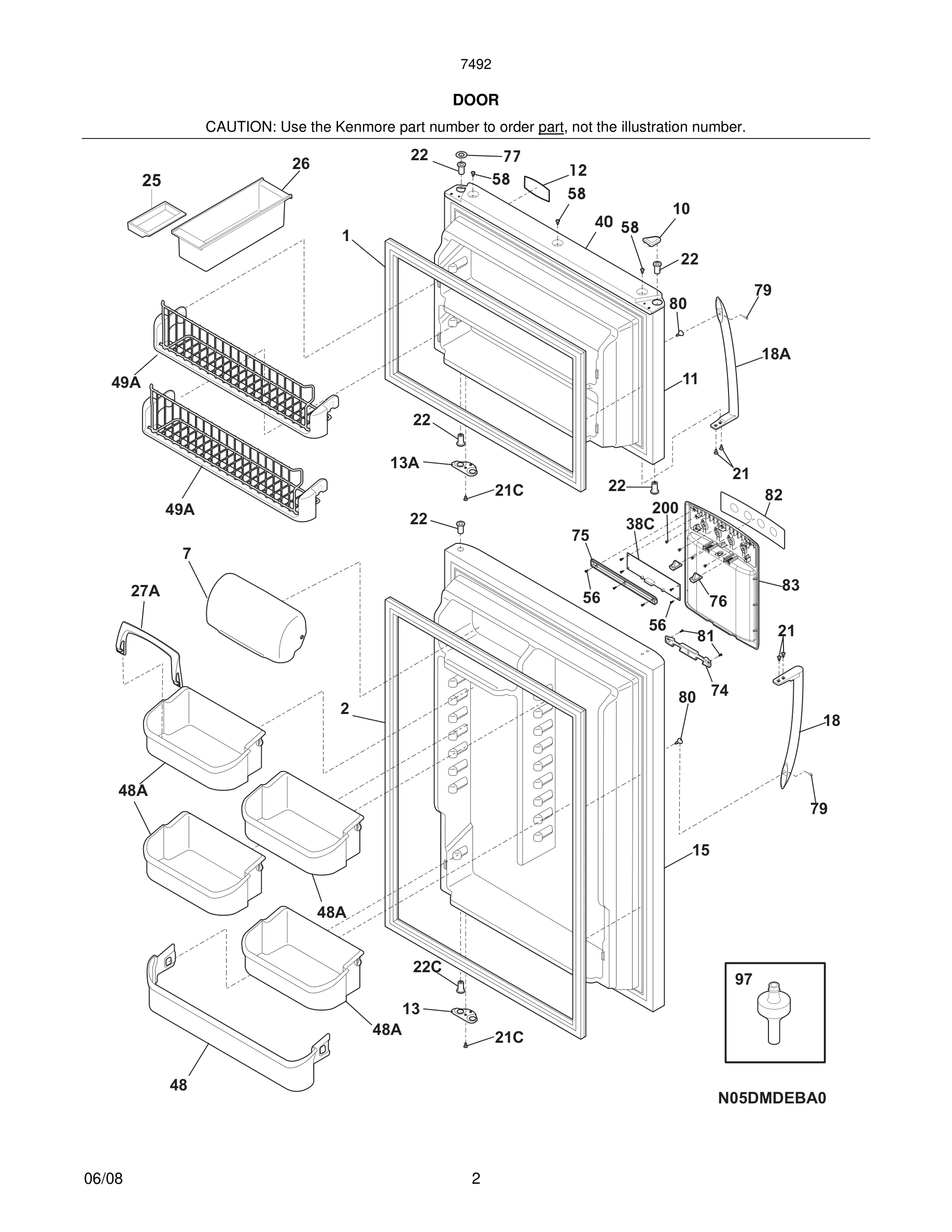

Model Kenmore 253.74922702 REFRIGERATOR – Common Parts &amp; Diagrams

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $63.51

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

*

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $316.98

*

5304456689 Frigidaire Refrigerator Washer Backorder WCI 5304456689 $48.85

*

5304456692 Frigidaire Refrigerator Washer Ass Backorder WCI 5304456692 $8.15

*

5304456693 Frigidaire Refrigerator Nut Backorder WCI 5304456693 $8.60

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*

Harness-wiring Svo WCI 241642601 Contact Us For Availability

1

241652301 Frigidaire Evaporator Fan Cover 241 In Stock WCI 241652301 $67.69

1

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

1#

241785404 Frigidaire Refrigerator Condenser Backorder WCI 241785404 $104.20

1#

241872503 Frigidaire Refrigerator Door Gasket In Stock WCI 241872503 $61.26

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

10

Cover-evap coil WCI 241652213 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

241542001 Frigidaire Refrigerator Deflector In Stock WCI 241542001 $47.07

13

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $9.06

13

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14#

240356221 Frigidaire Refrigerator Defrost Hea Backorder WCI 240356221 $69.03

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918274 Frigidaire Refrigerator Evaporator In Stock WCI 5303918274 $190.06

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15A

241552802 Frigidaire Refrigerator Light Bulb Backorder WCI 241552802 $25.37

16

240364201 Frigidaire Refrigerator Light/Lamp Backorder WCI 240364201 $63.54

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16A

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $37.63

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.09

18

Knob, temp control WCI 240360801 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

21

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $52.96

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

22

241665606 Frigidaire Refrigerator Compressor Backorder WCI 241665606 $111.64

22

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $12.67

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25B

241613501 Frigidaire Refrigerator Humidity Co Backorder WCI 241613501 $7.69

25C

241613502 Frigidaire Refrigerator Humidity Co Backorder WCI 241613502 $28.51

26

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.71

27A

Retainer, tall bottle WCI 241812702 Contact Us For Availability

28

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

30

Bracket-lower hinge, zinc WCI 241625001 Contact Us For Availability

31

Pan-meat WCI 240530813 Contact Us For Availability

32

297030500 Frigidaire Refrigerator Clip Backorder WCI 297030500 $7.67

32

Plate-valve switch WCI 5304456681 Contact Us For Availability

33

Spring, timing adjust WCI 5304456682 Contact Us For Availability

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

241679901 Frigidaire Refrigerator Screw Backorder WCI 241679901 $9.06

34A

Washer-nylon WCI 241555701 Contact Us For Availability

35

5304456684 Frigidaire Screw Backorder WCI 5304456684 $20.38

35

Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

36

Cover-ice maker WCI 5304456685 Contact Us For Availability

36*

5304456690 Frigidaire Label Backorder WCI 5304456690 $2.26

38C#

Board-control WCI 241832802 Contact Us For Availability

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

41

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

48

240338101 Frigidaire Refrigerator Bottom Door In Stock WCI 240338101 $34.13

48A

241808201 Frigidaire Refrigerator Door Bin In Stock WCI 241808201 $48.12

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

53

Board-control, temp control WCI 241826601 Contact Us For Availability

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

56

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

Screw-IM brkt mtg, pan hd phillips, 8-32T x 0 WCI 5304456687 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

Conduit WCI 241606201 Contact Us For Availability

74

Shield-light, frzr WCI 240354302 Contact Us For Availability

79

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube In Stock WCI 240500801 $41.24

85

Tube-connector, suction WCI 241871501 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

89

241733911 Frigidaire Refrigerator Access Cove In Stock WCI 241733911 $32.30

89*

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

Valve-check WCI 241603401 Contact Us For Availability

114

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

136

Dispenser-can, white WCI 241657701 Contact Us For Availability

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

142

Shield-light Mid Level WCI 241562202 Contact Us For Availability
