Model Kenmore 253.74274700 REFRIGERATOR – Common Parts &amp; Diagrams

*

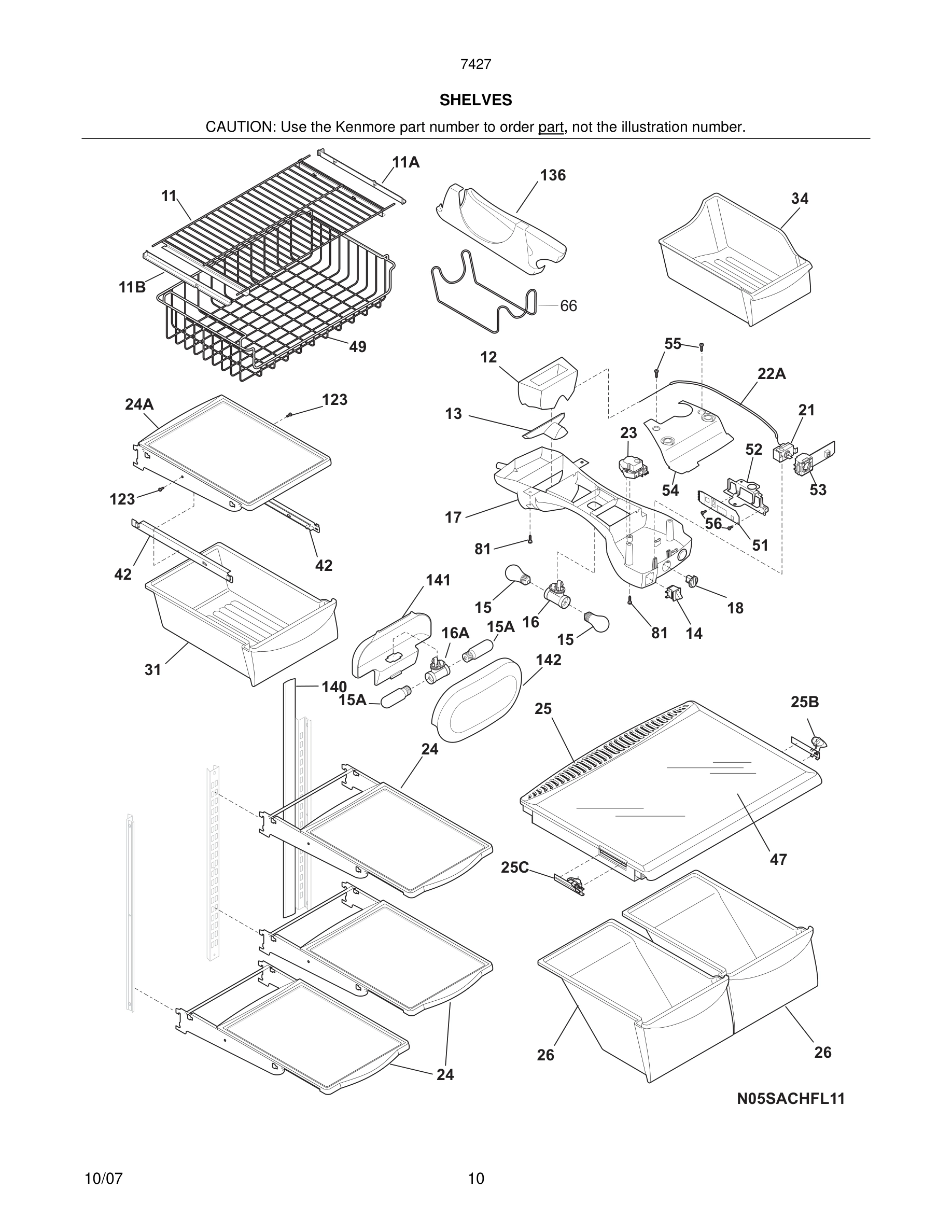

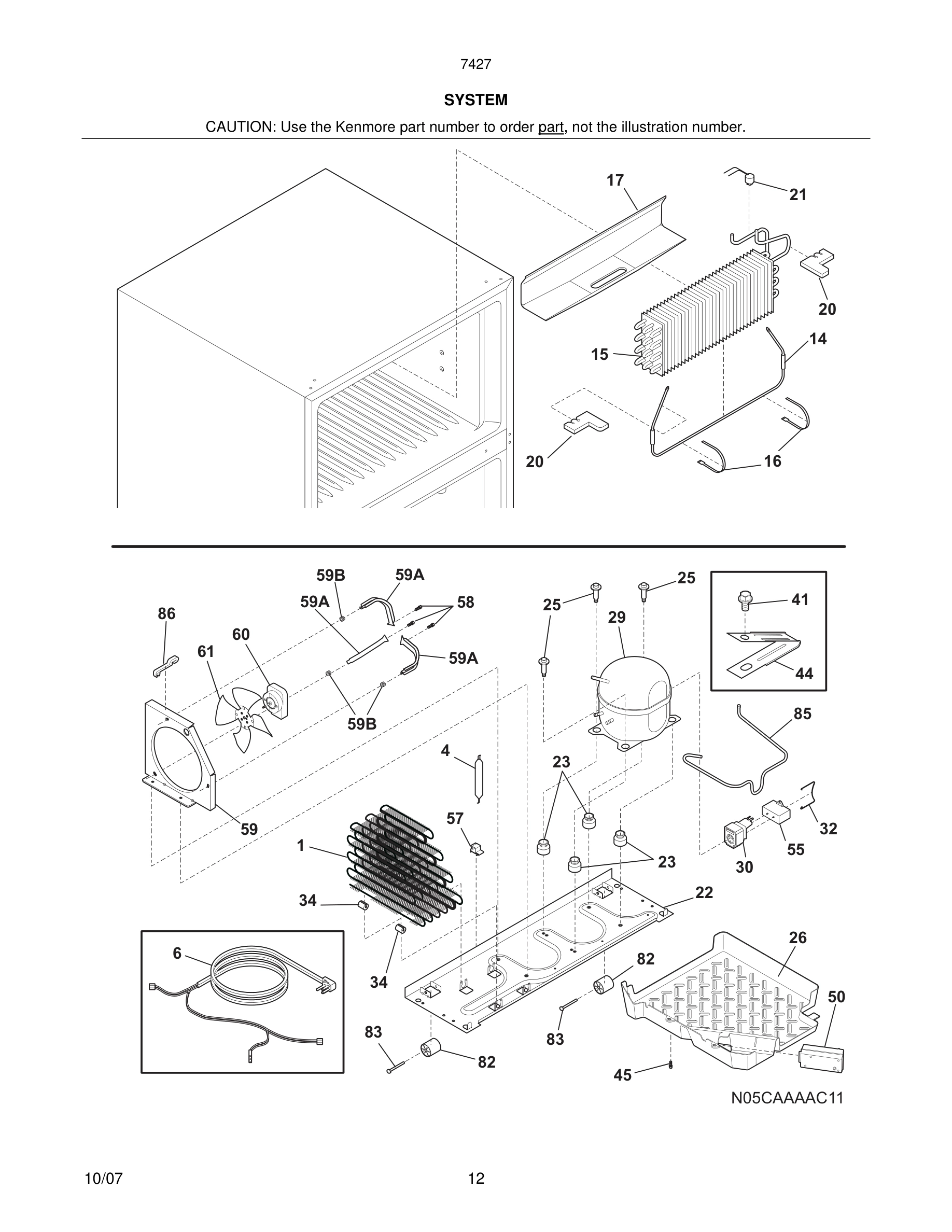

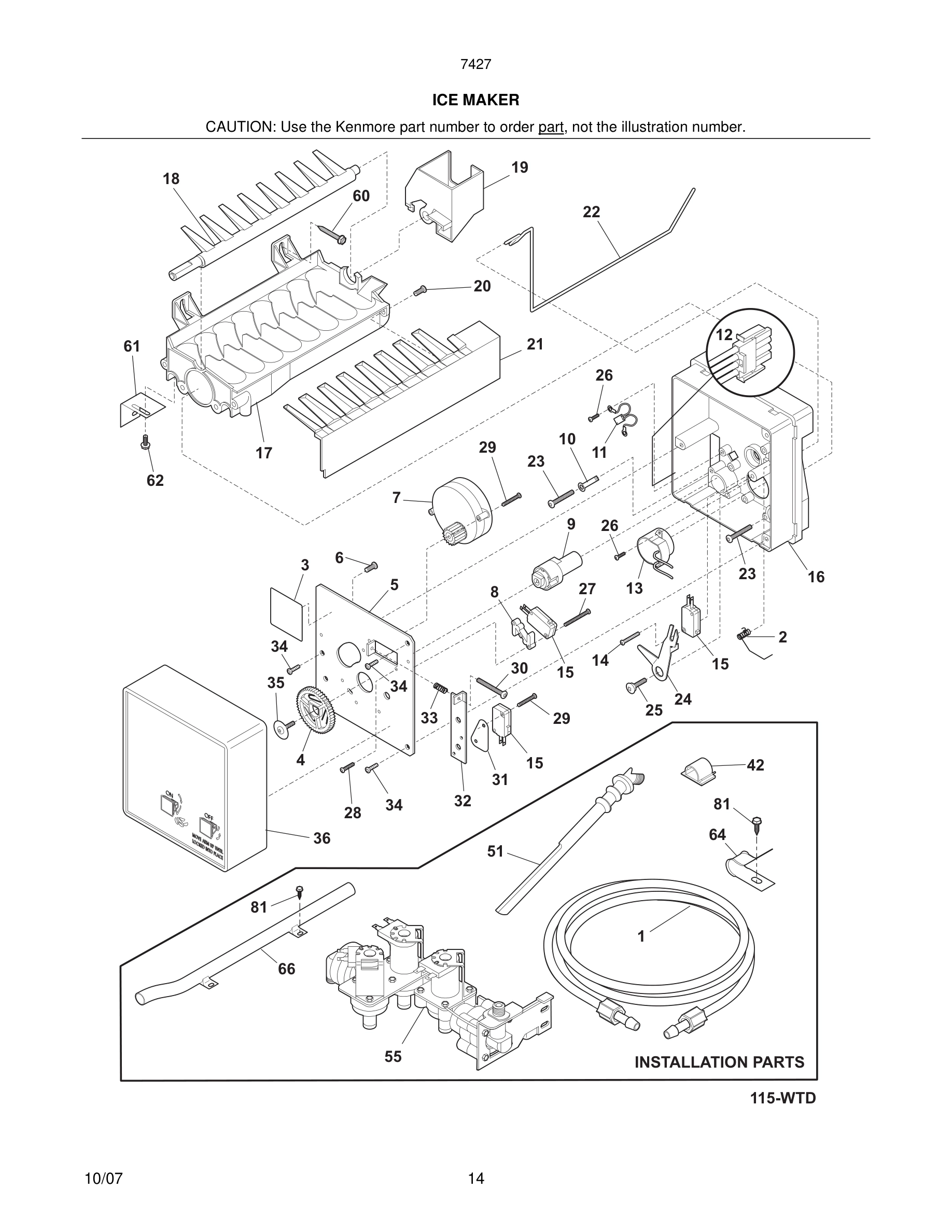

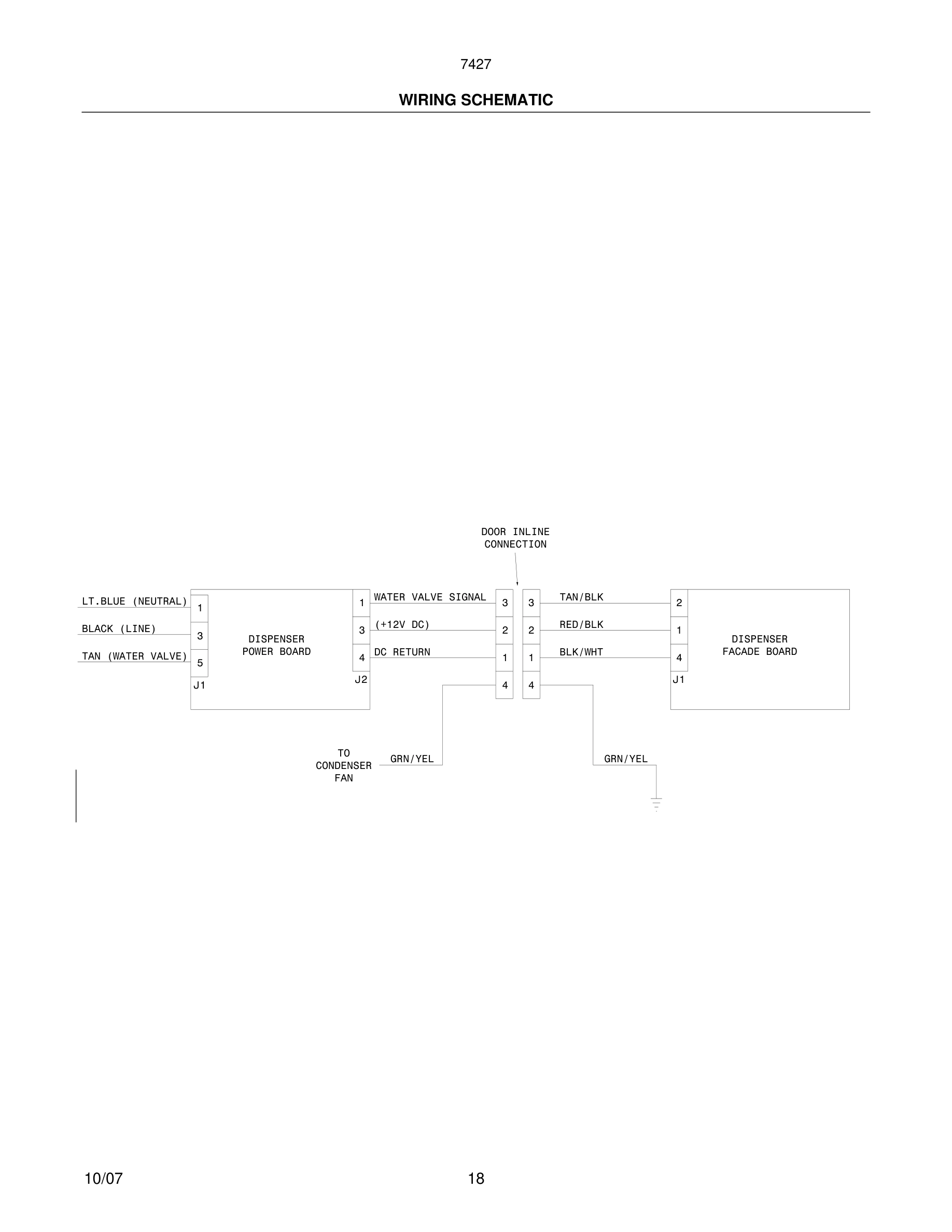

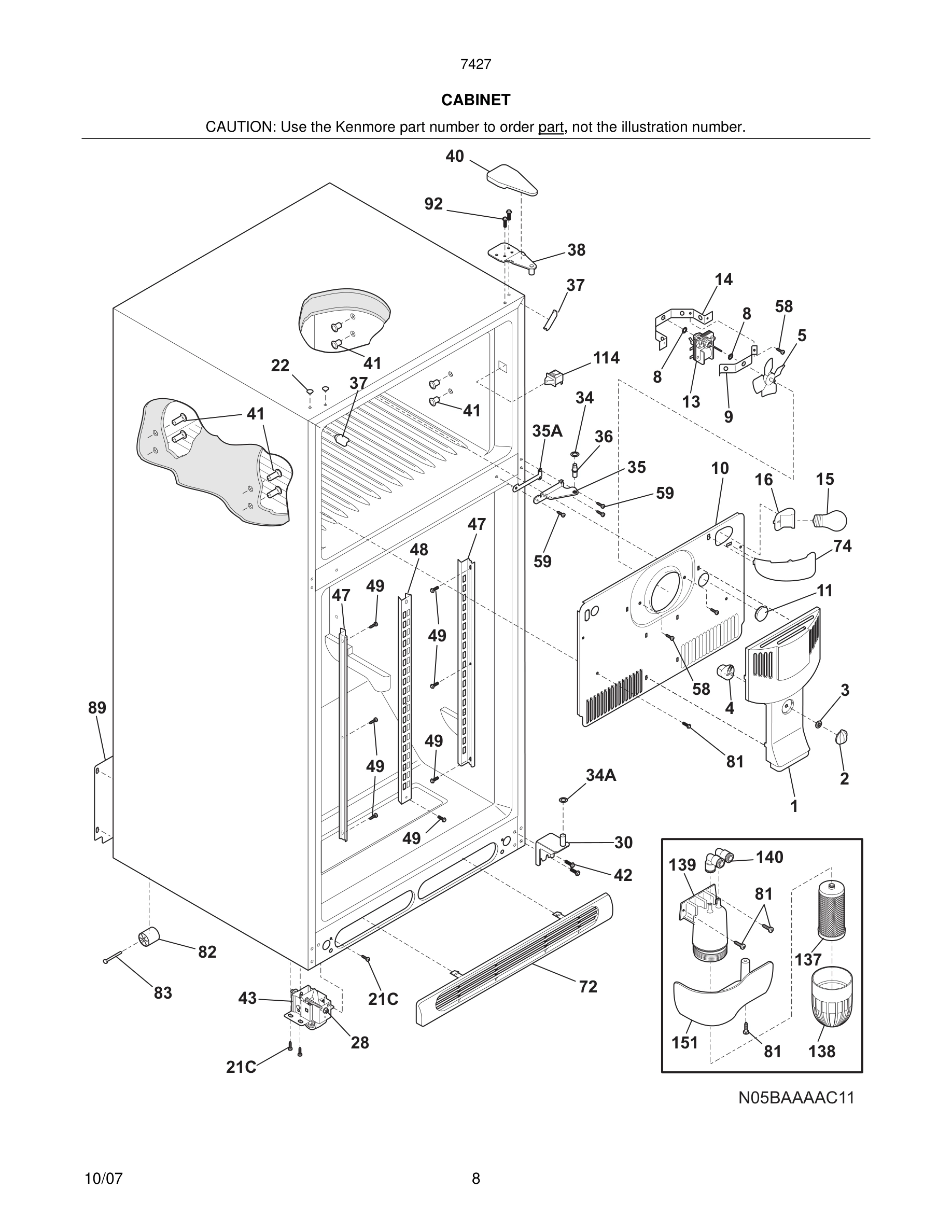

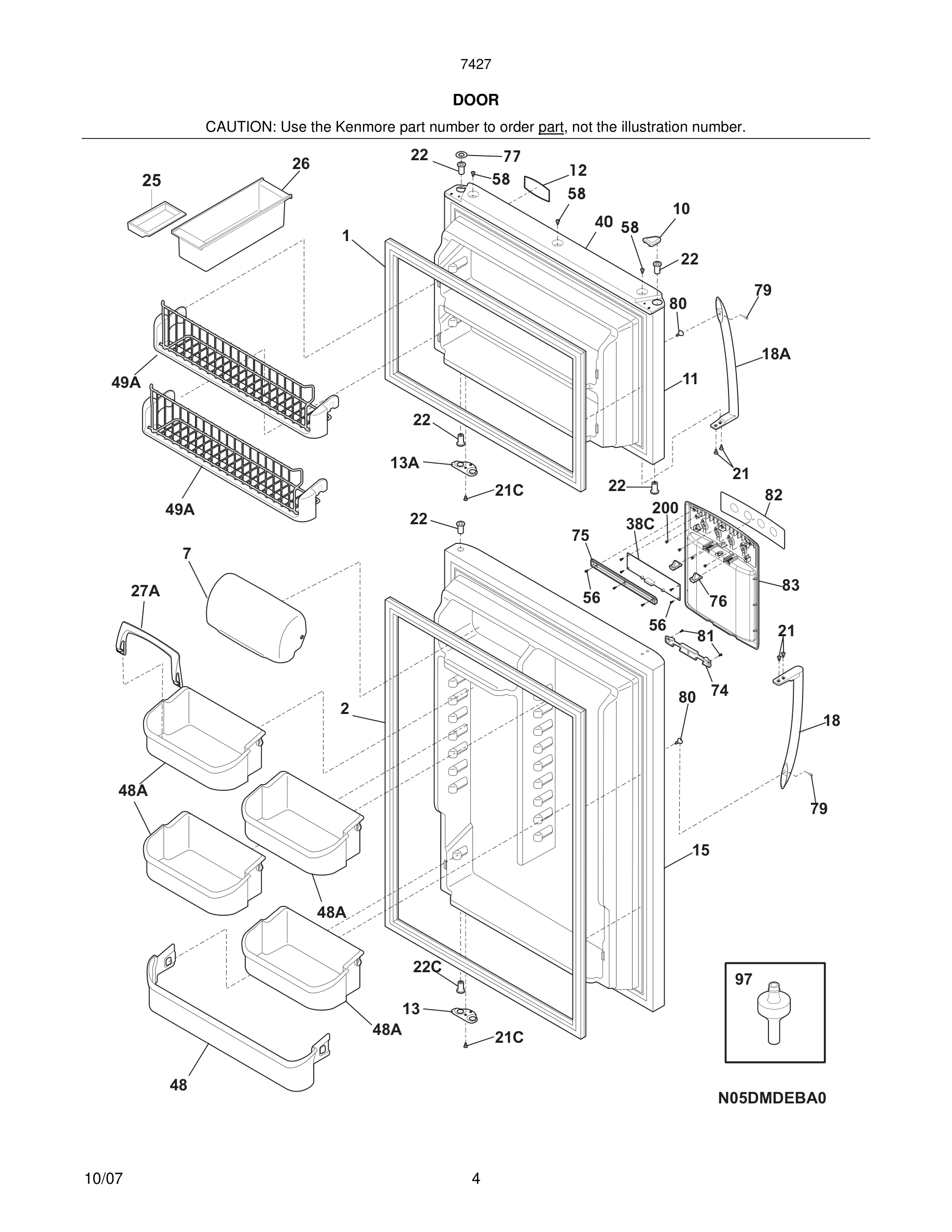

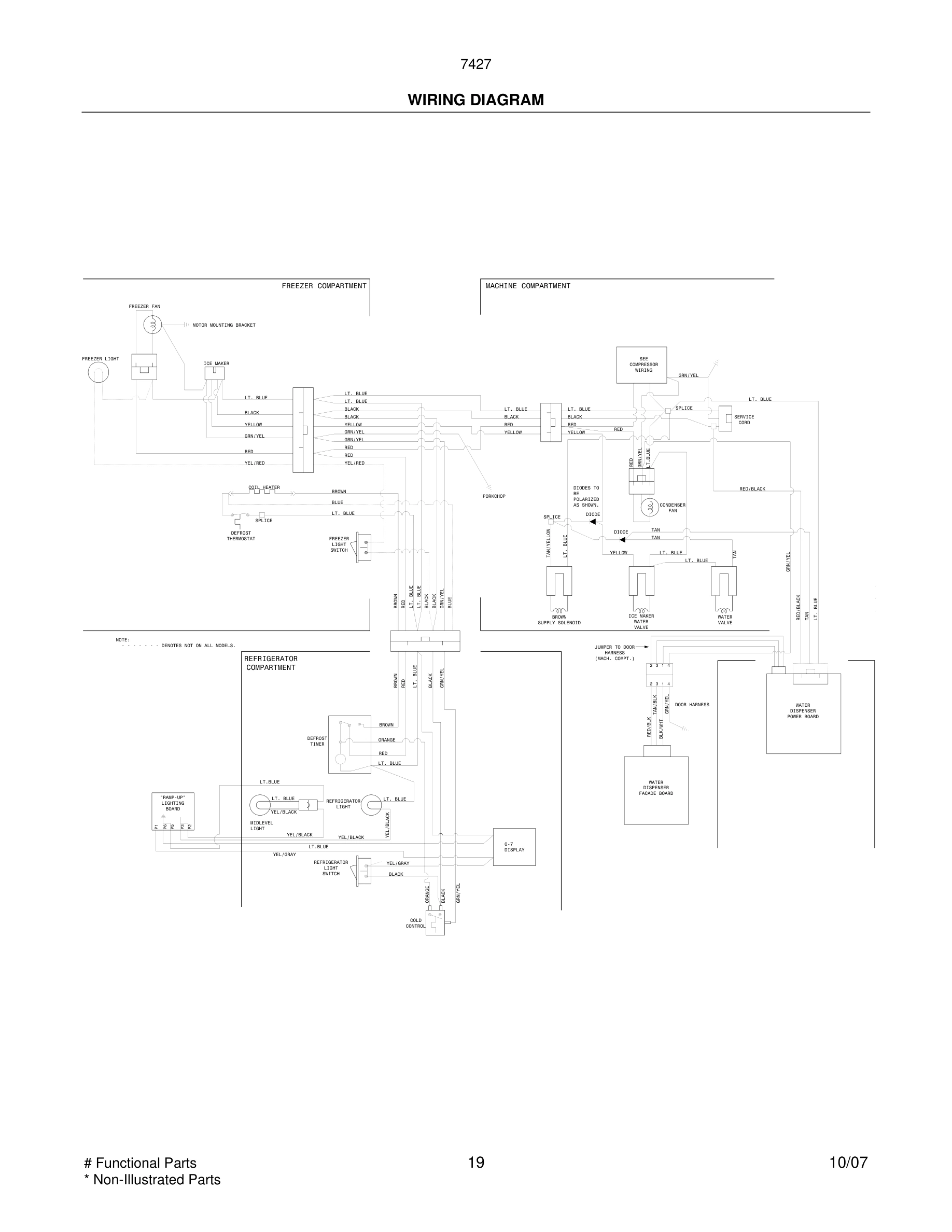

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

*

241806601 Frigidaire Refrigerator Water Conne In Stock WCI 241806601 $43.45

*

Paint, touch-up, bisque WCI 5304414035 Contact Us For Availability

*

Adapter, water line, w/fittings WCI 218888001 Contact Us For Availability

*

Harness-wiring Svo WCI 241642601 Contact Us For Availability

*

Washer WCI 5304456692 Contact Us For Availability

*

Nut, M 3.5 WCI 5304456693 Contact Us For Availability

*#

5303918330 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918330 $194.59

*#

Hot Tube Repair Kit, service WCI 5304421289 Contact Us For Availability

1

241872505 Frigidaire Refrigerator Door Gasket In Stock WCI 241872505 $88.78

1

Tube, water inlet, valve to IM WCI 218976901 Contact Us For Availability

1*

Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability

2

Knob-damper control WCI 240367001 Contact Us For Availability

3

Nut WCI 5303212803 Contact Us For Availability

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5

Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

10*

240568606 Frigidaire Refrigerator Coil Cover Backorder WCI 240568606 $8.15

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

240545901 Frigidaire Refrigerator Air Diffuse Backorder WCI 240545901 $44.37

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13

Diffuser, air, bottom WCI 240362601 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

14#

240356217 Frigidaire Refrigerator Defrost Hea Backorder WCI 240356217 $69.03

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator Kit WCI 5303918274 Contact Us For Availability

15A

241552802 Frigidaire Refrigerator Light Bulb Backorder WCI 241552802 $25.37

16

240364201 Frigidaire Refrigerator Light/Lamp Backorder WCI 240364201 $63.54

16

Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability

16A

241622802 Frigidaire Refrigerator Light Socke In Stock WCI 241622802 $37.63

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.09

18

Knob, temp control WCI 240360801 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

21

Screw, truss hd quad, #10-16 x .500, bisque WCI 240383409 Contact Us For Availability

21#

Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

22C

Bearing-hinge, natural, upper WCI 240328402 Contact Us For Availability

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25B

241613501 Frigidaire Refrigerator Humidity Co Backorder WCI 241613501 $7.69

25C

241613502 Frigidaire Refrigerator Humidity Co In Stock WCI 241613502 $28.51

27A

Retainer, tall bottle WCI 241812702 Contact Us For Availability

30

Bracket-lower hinge, zinc WCI 241625001 Contact Us For Availability

30

Screw-timing adj, M 4x25 #3 WCI 5304456679 Contact Us For Availability

31

Pan-meat WCI 240530813 Contact Us For Availability

31

Insulator WCI 5304456680 Contact Us For Availability

32

Plate-valve switch WCI 5304456681 Contact Us For Availability

33

Spring, timing adjust WCI 5304456682 Contact Us For Availability

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

241679901 Frigidaire Refrigerator Screw Backorder WCI 241679901 $9.06

Container, ice bin WCI 240385201 Contact Us For Availability

34A

Washer-nylon WCI 241555701 Contact Us For Availability

35

Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability

35

Screw WCI 5304456684 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

36

Cover-ice maker WCI 5304456685 Contact Us For Availability

36*

Label, on/off WCI 5304456690 Contact Us For Availability

38C#

Board-control WCI 241832802 Contact Us For Availability

40

Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability

41

5304500407 Frigidaire Refrigerator Shelf Moun In Stock WCI 5304500407 $4.07

41

Screw-#8-32 X 3/8 WCI 240555002 Contact Us For Availability

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability

Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability

48

Bin-door, pseudo, bottom WCI 240338101 Contact Us For Availability

48A

241808201 Frigidaire Refrigerator Door Bin In Stock WCI 241808201 $48.12

49A

Bin-tilt out, tilt-out WCI 241801401 Contact Us For Availability

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

53

Board-control, temp control WCI 241826601 Contact Us For Availability

55#

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $44.28

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

56

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

Screw-fan shroud, (2) WCI 240359403 Contact Us For Availability

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

Screw-IM brkt mtg, special, 8-32D x 0.375 WCI 5304456687 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

Conduit WCI 241606201 Contact Us For Availability

74

Shield-light, frzr WCI 240354302 Contact Us For Availability

79

Screw-set, 10-32 x 0.375 WCI 218755402 Contact Us For Availability

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

86

Spacer-cond tube, black WCI 240409302 Contact Us For Availability

89

241733911 Frigidaire Refrigerator Access Cove Backorder WCI 241733911 $32.30

89*

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

Valve-check WCI 241603401 Contact Us For Availability

114#

Switch, light/lamp WCI 240505801 Contact Us For Availability

123

215005101 Frigidaire Refrigerator Screw In Stock WCI 215005101 $9.50

136

Dispenser-can, white WCI 241657701 Contact Us For Availability

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

O-ring, wtr filter cup WCI 218904301 Contact Us For Availability

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

Elbow-water tube WCI 240545201 Contact Us For Availability

142

Shield-light Mid Level WCI 241562202 Contact Us For Availability

200

241609201 Frigidaire Refrigerator Pipe Backorder WCI 241609201 $7.67
