Model Kenmore 253.74220705 REFRIGERATOR – Common Parts & Diagrams

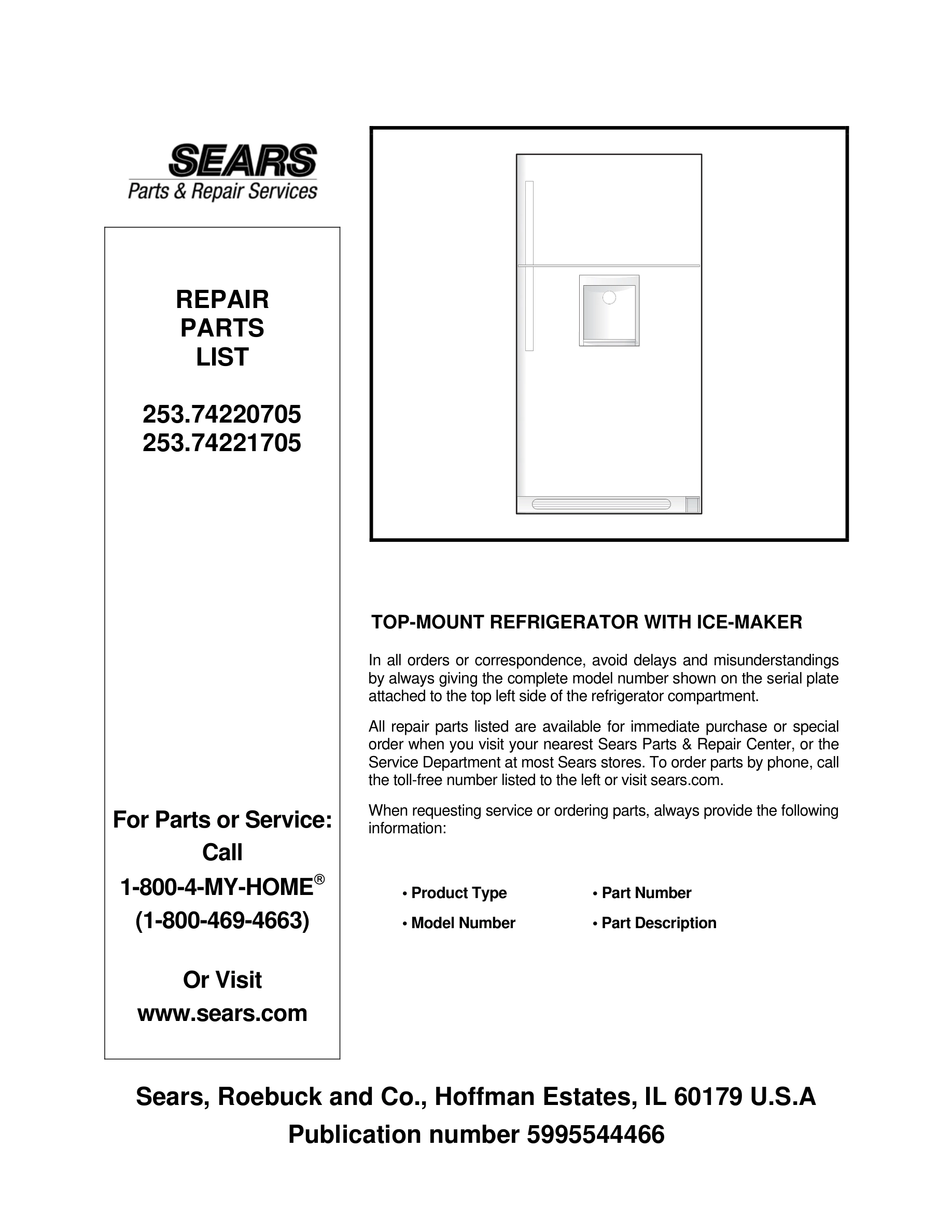

01 - COVER

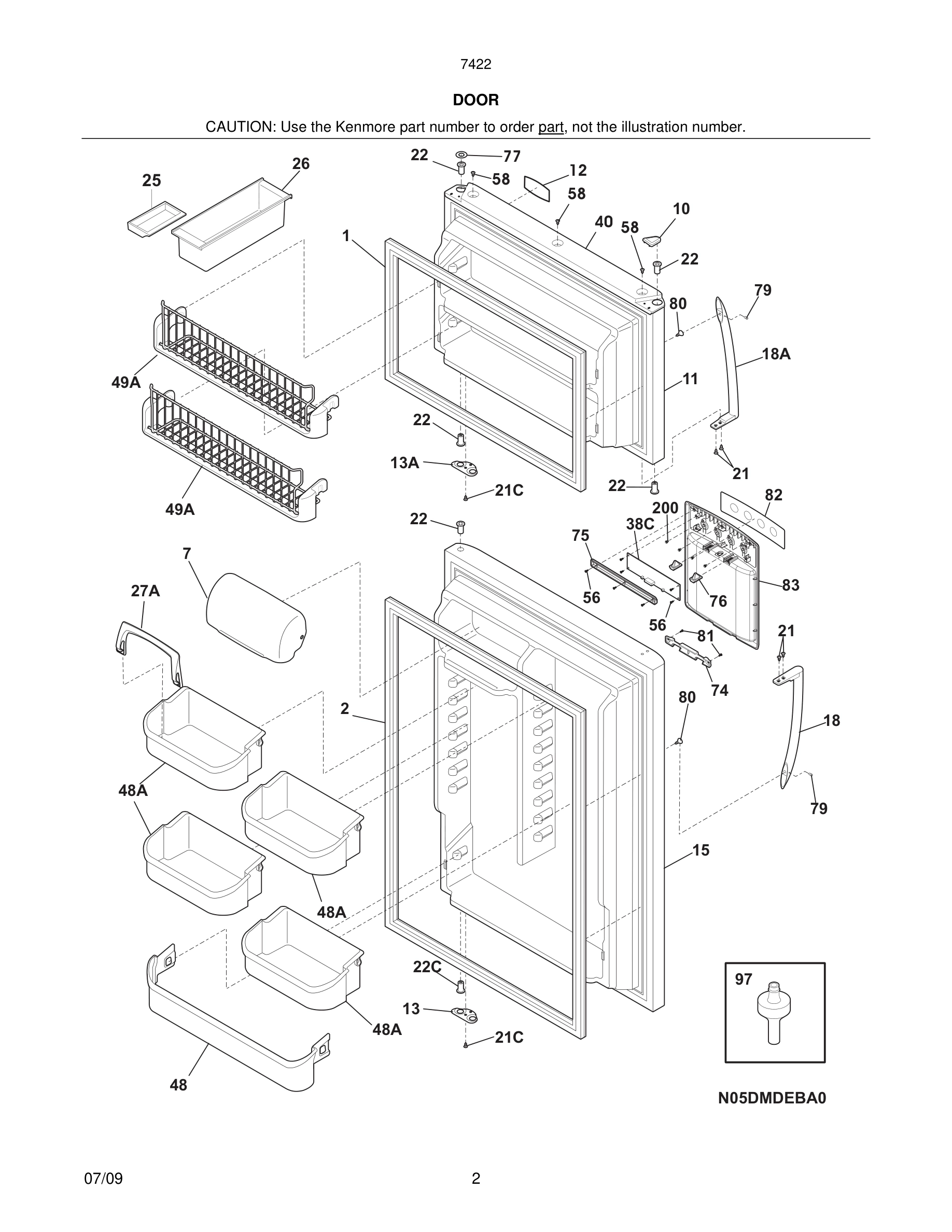

03 - DOOR
05 - CABINET

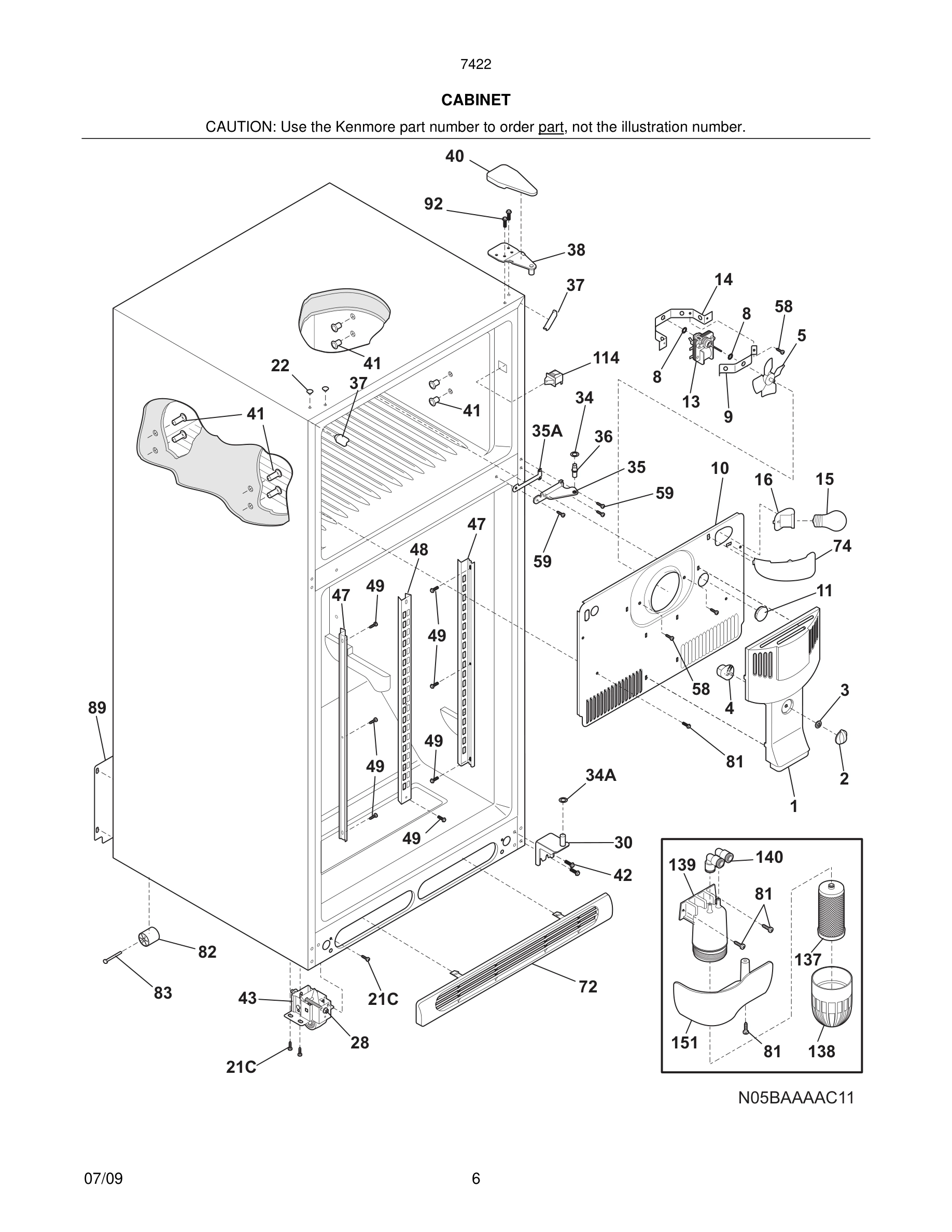

07 - CABINET

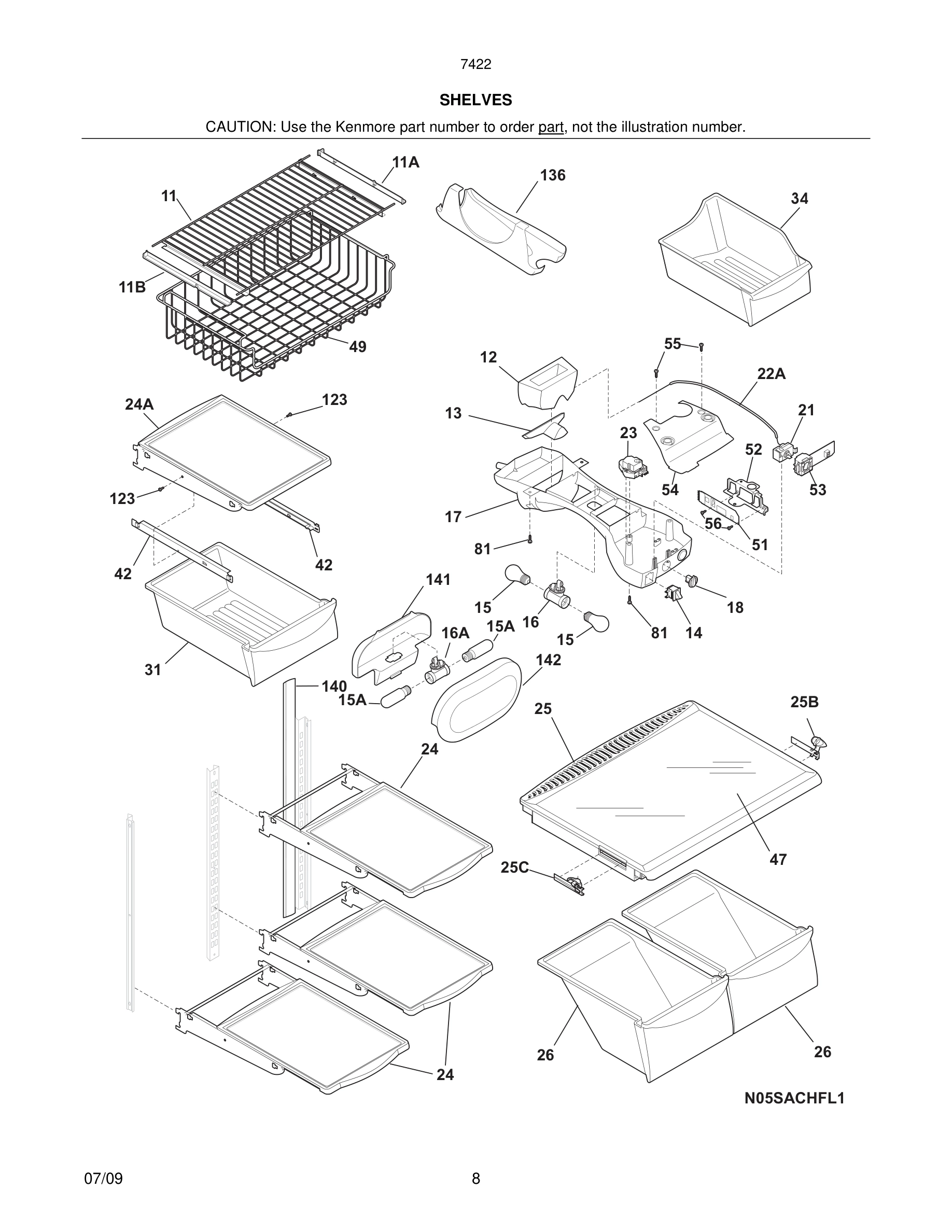

09 - SHELVES

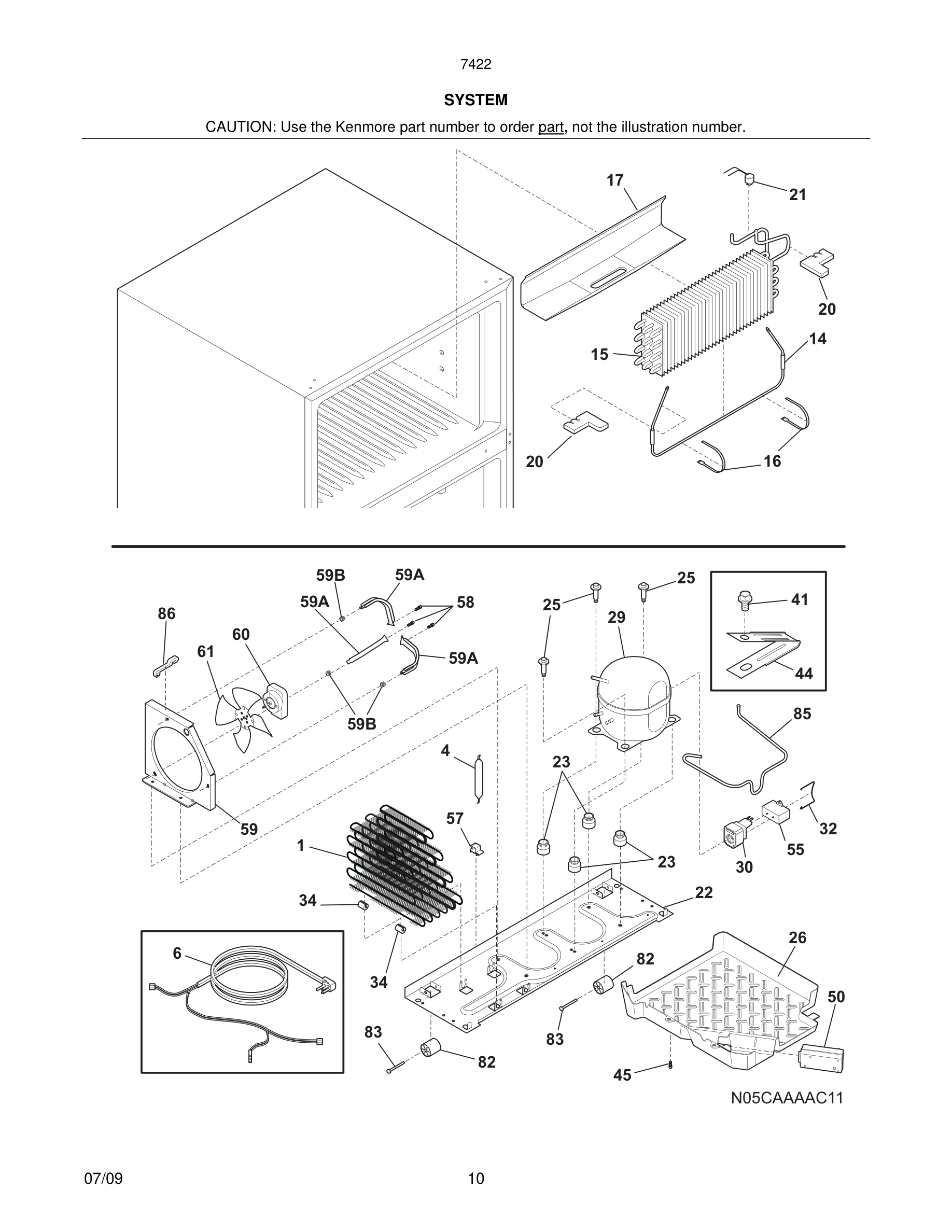

11 - SYSTEM

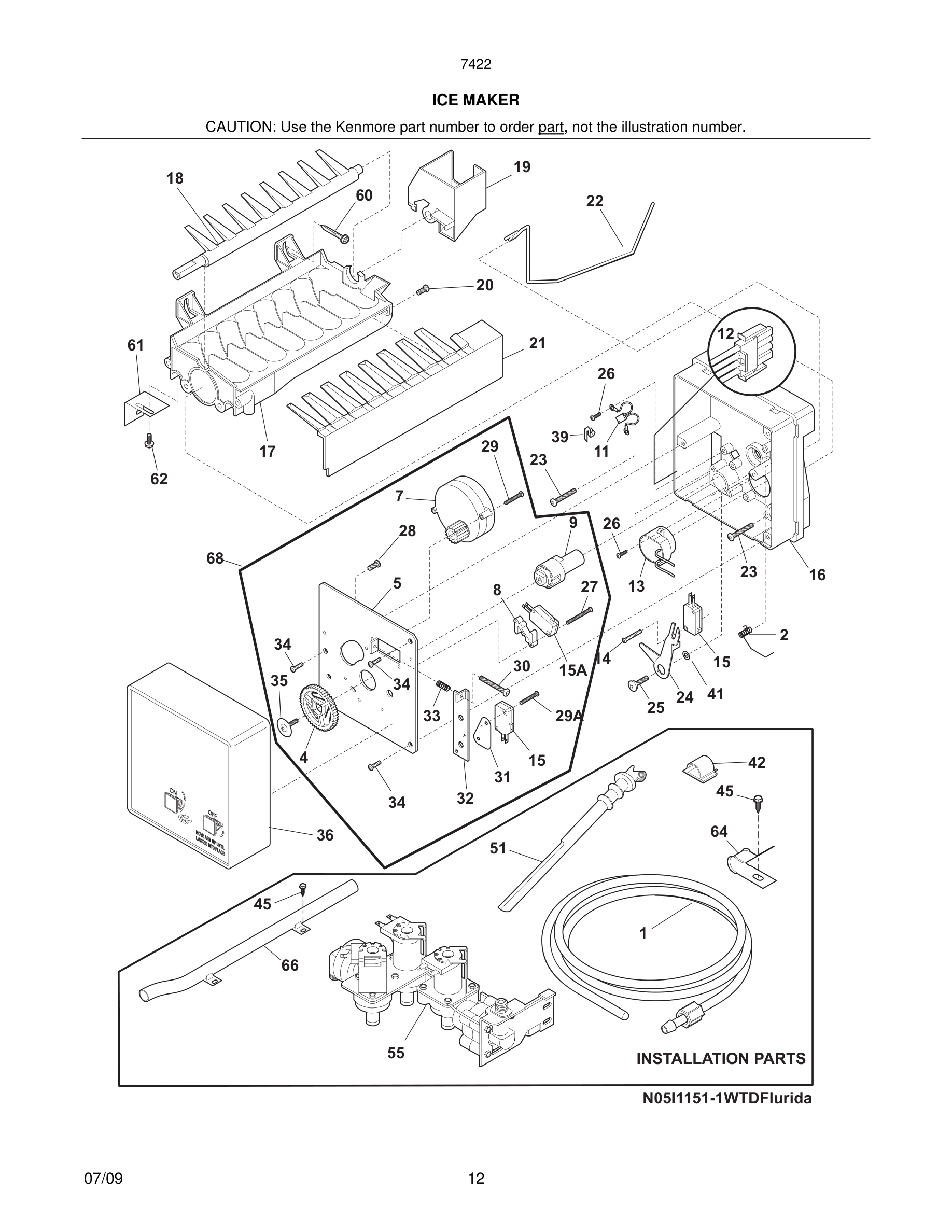

13 - OFF

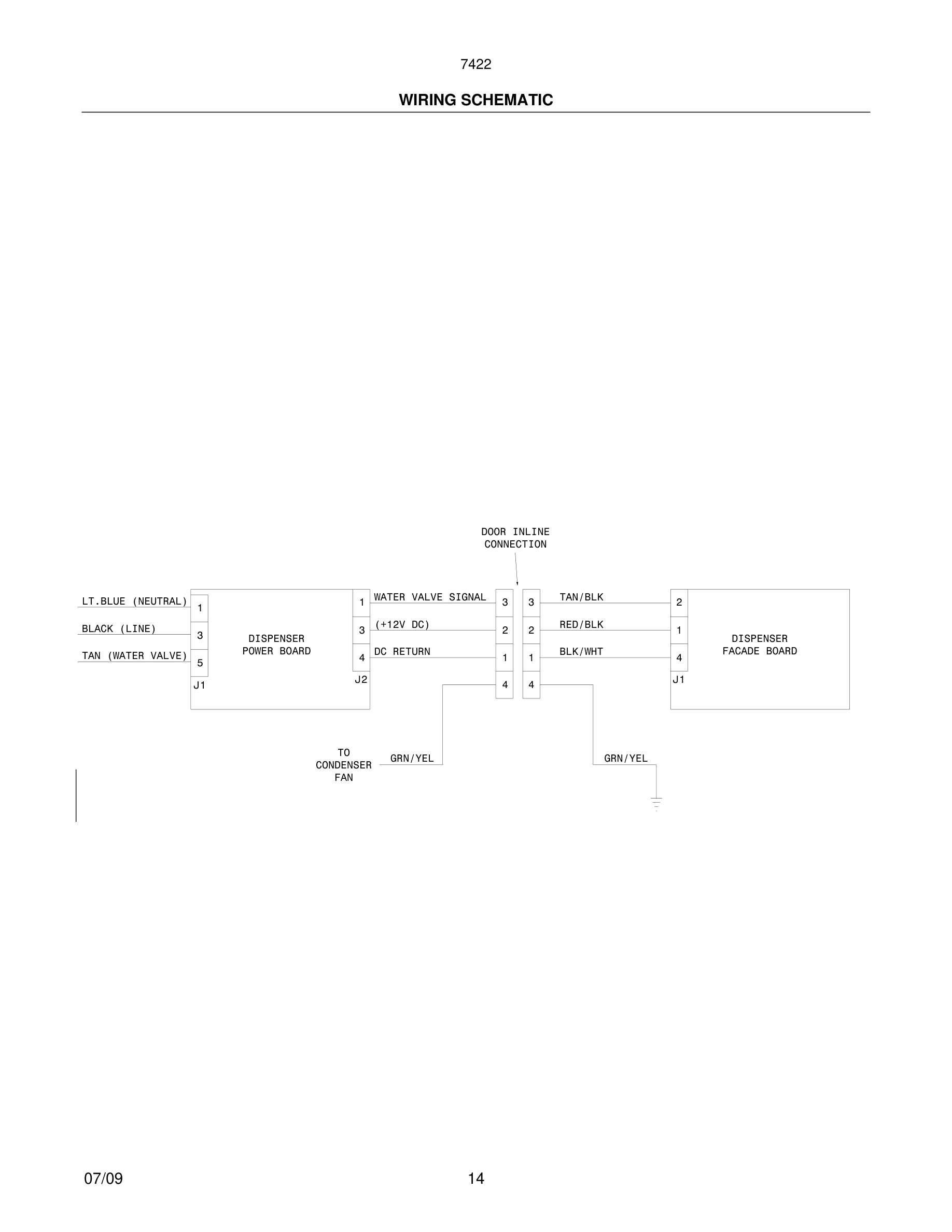

14 - WIRING SCHEMATIC

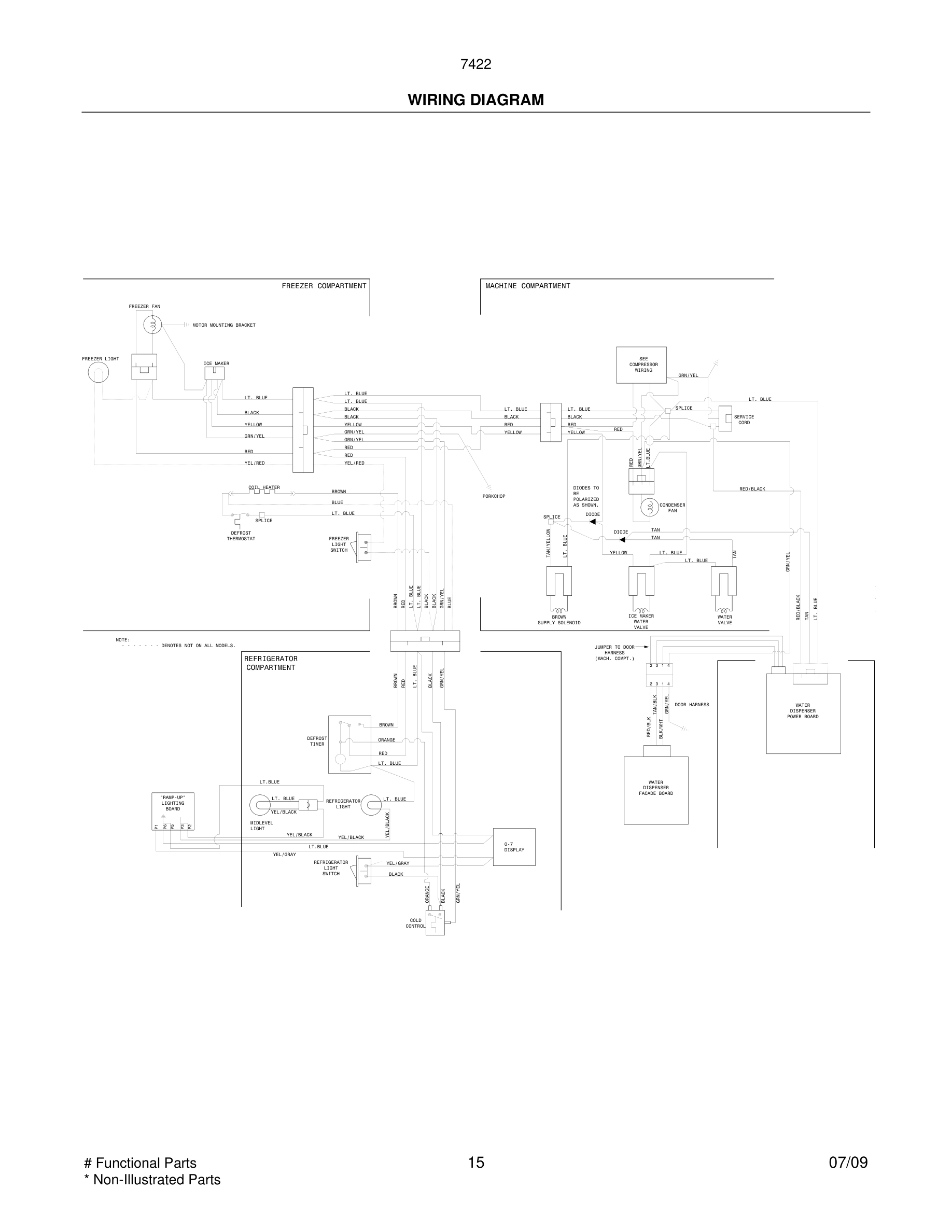

15 - WIRING DIAGRAM
Common parts from model Kenmore 253.74220705 REFRIGERATOR
*
Paint, touch-up, black WCI 5303321321 Contact Us For Availability
*#
Hot Tube Repair Kit, service WCI 5304421289 Contact Us For Availability
1*
Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
2
Spring-shutoff arm, ice maker WCI 5304469396 Contact Us For Availability
3
Nut WCI 5303212803 Contact Us For Availability
4
Damper-fan cover WCI 240367401 Contact Us For Availability
5
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 5304469402 Contact Us For Availability
12#
Harness-wiring WCI 5304469390 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
13
Thermostat Assy, ice maker WCI 5304469387 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312406 Contact Us For Availability
15#
Switch-micro, 2 WCI 5304469388 Contact Us For Availability
15A#
Switch-micro WCI 5304469405 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
16
Housing, control WCI 5304469379 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 5304469384 Contact Us For Availability
21
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
21
Ice Stripper WCI 5304469378 Contact Us For Availability
22
Shut-off Arm WCI 5304469377 Contact Us For Availability
22C
Bearing-hinge, black, upper WCI 240328404 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability
27A
Retainer, tall bottle WCI 241812702 Contact Us For Availability
30*
Cover-lower hinge WCI 241614404 Contact Us For Availability
31
Pan-meat WCI 240530813 Contact Us For Availability
34
Container, ice bin WCI 240385201 Contact Us For Availability
34A
Washer-nylon WCI 241555701 Contact Us For Availability
36
Cover-ice maker WCI 5304469385 Contact Us For Availability
38C#
Board-control WCI 241832802 Contact Us For Availability
41
Screw-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability
42
Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability
48
Bin-door, pseudo, bottom WCI 240338101 Contact Us For Availability
49A
Bin-tilt out, tilt-out WCI 241801401 Contact Us For Availability
53
Board-control, temp control WCI 241826601 Contact Us For Availability
59*
Screw-fan shroud, (2) WCI 240359403 Contact Us For Availability
68
Mounting Plate, assy WCI 5304469398 Contact Us For Availability
74
Shield-light, frzr WCI 240354302 Contact Us For Availability
79
Screw-set, 10-32 x 0.375 WCI 218755402 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
82
Label-module cover, silver metallic WCI 241854203 Contact Us For Availability
86
Spacer-cond tube, black WCI 240409302 Contact Us For Availability
97
Valve-check WCI 241603401 Contact Us For Availability
114#
Switch, light/lamp WCI 240505801 Contact Us For Availability
136
Dispenser-can, white WCI 241657701 Contact Us For Availability
138*
O-ring, wtr filter cup WCI 218904301 Contact Us For Availability
140
Elbow-water tube WCI 240545201 Contact Us For Availability
142
Shield-light Mid Level WCI 241562202 Contact Us For Availability
× ![]()
