Model Kenmore 253.73259300 ROOM AIR CONDITIONER – Common Parts & Diagrams

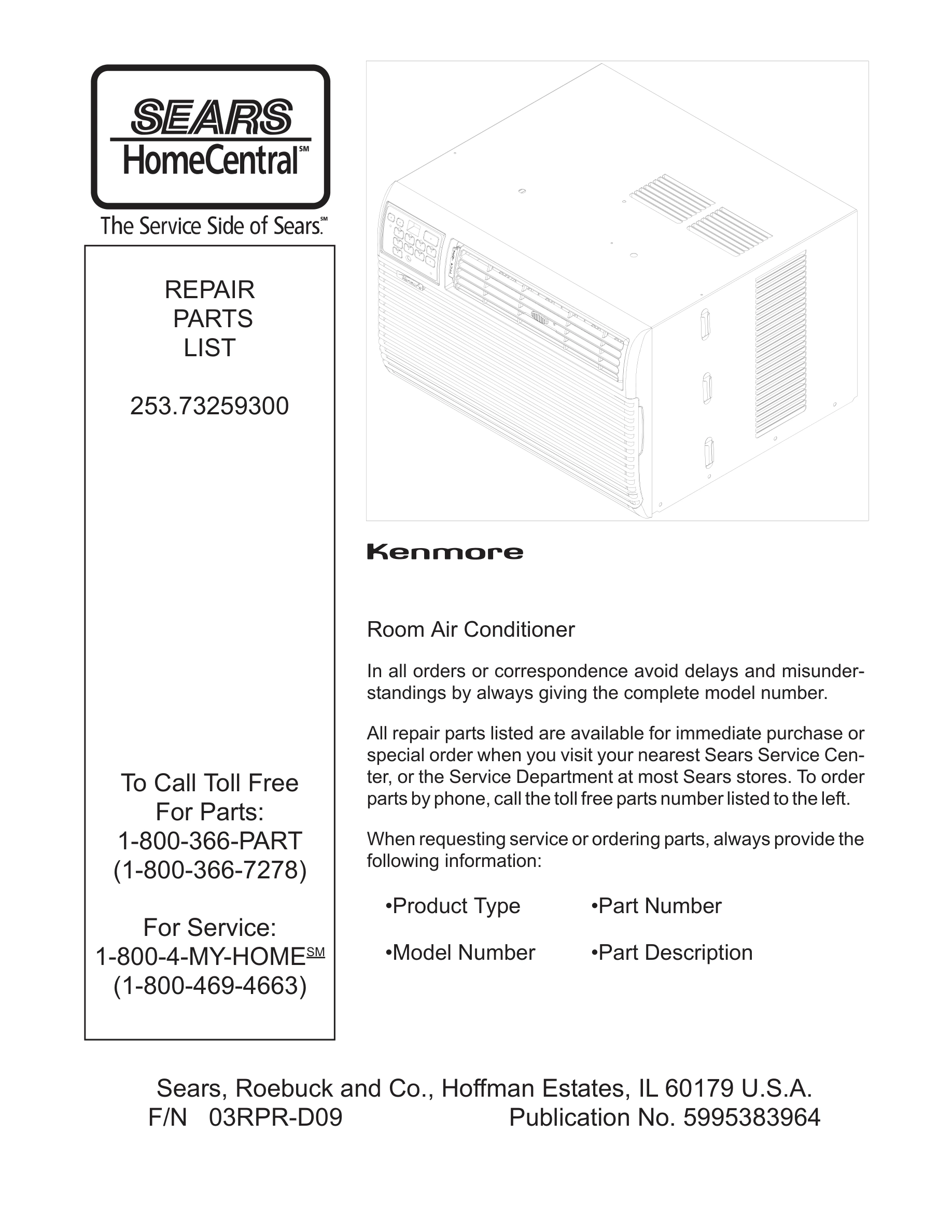

01 - COVER

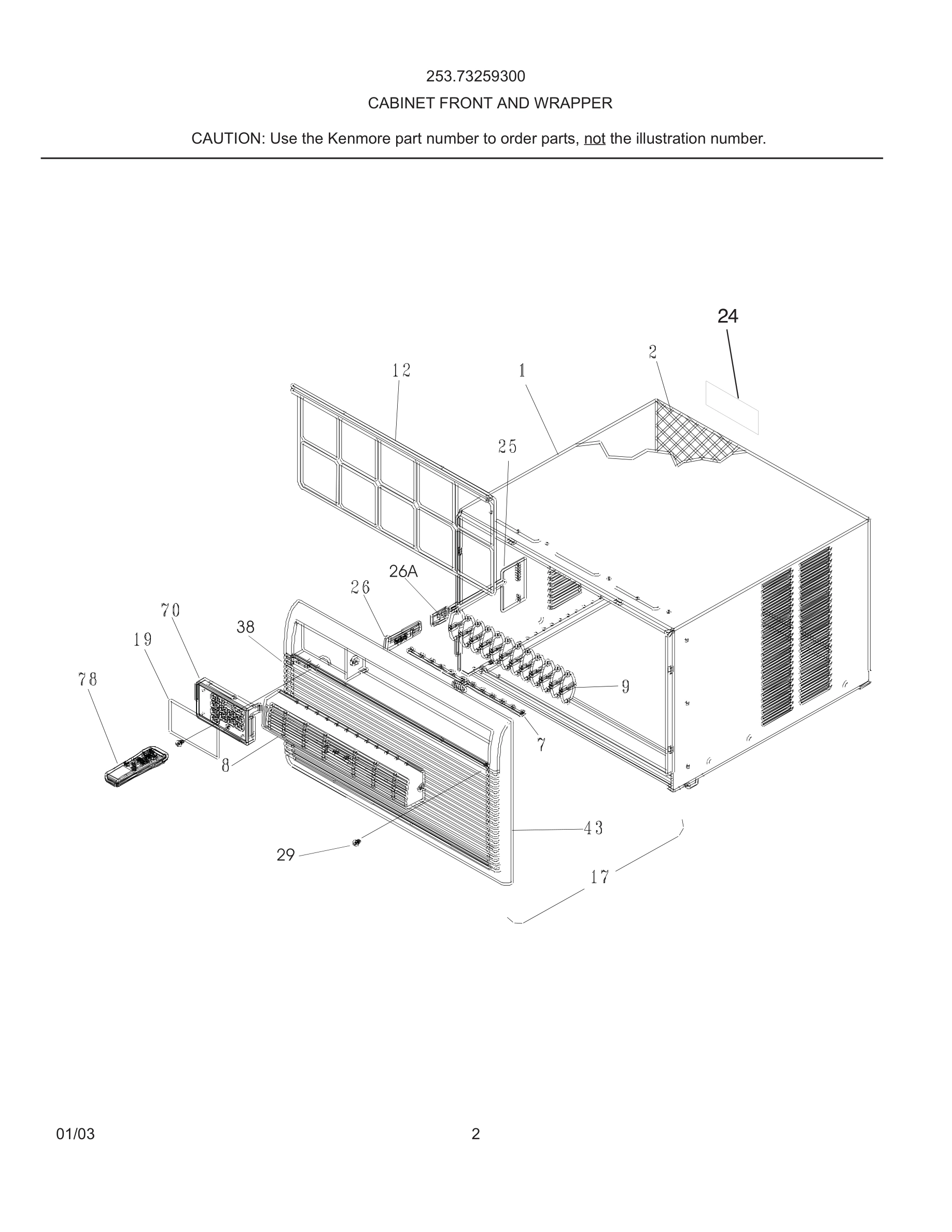

03 - CABINET FRONT AND WRAPPER

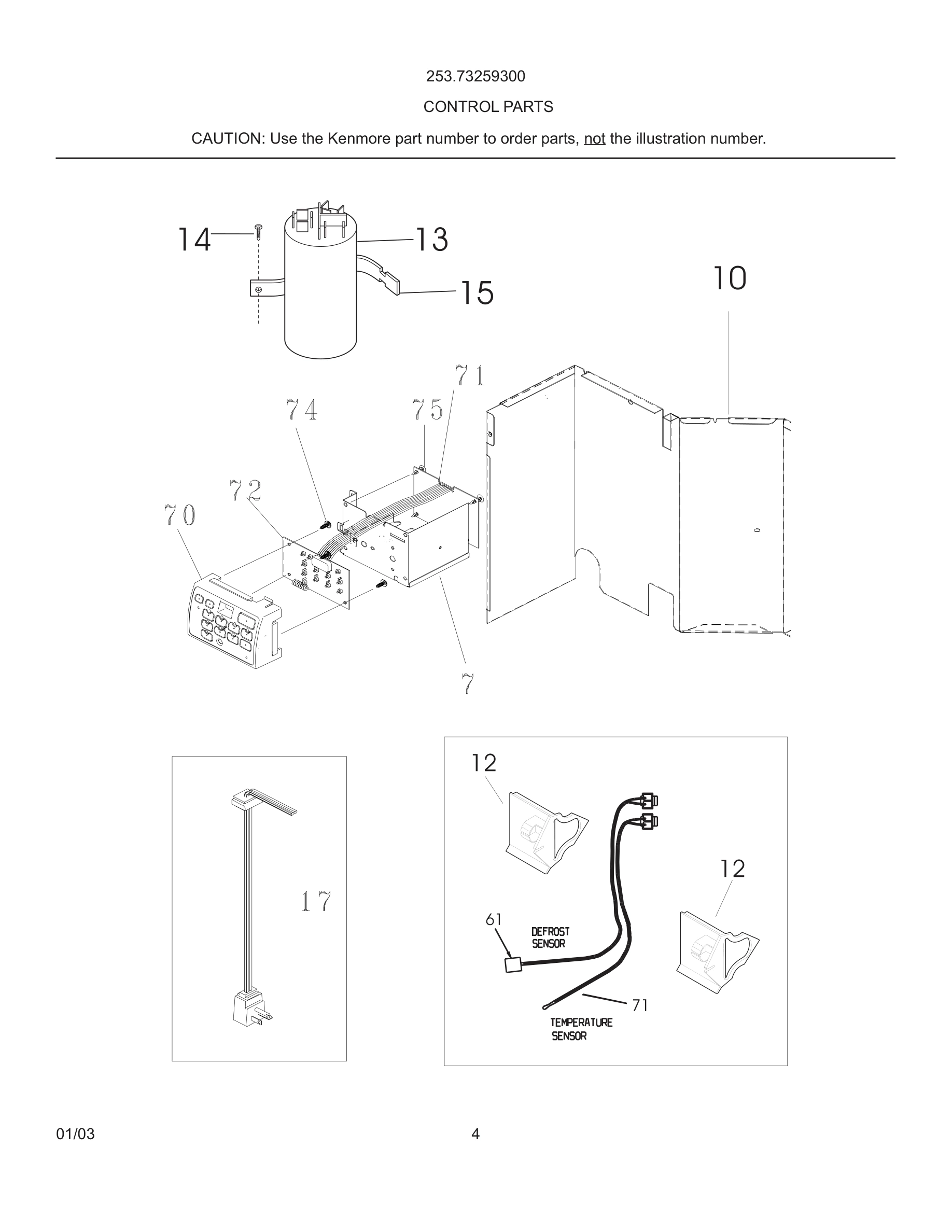

05 - CONTROL PARTS

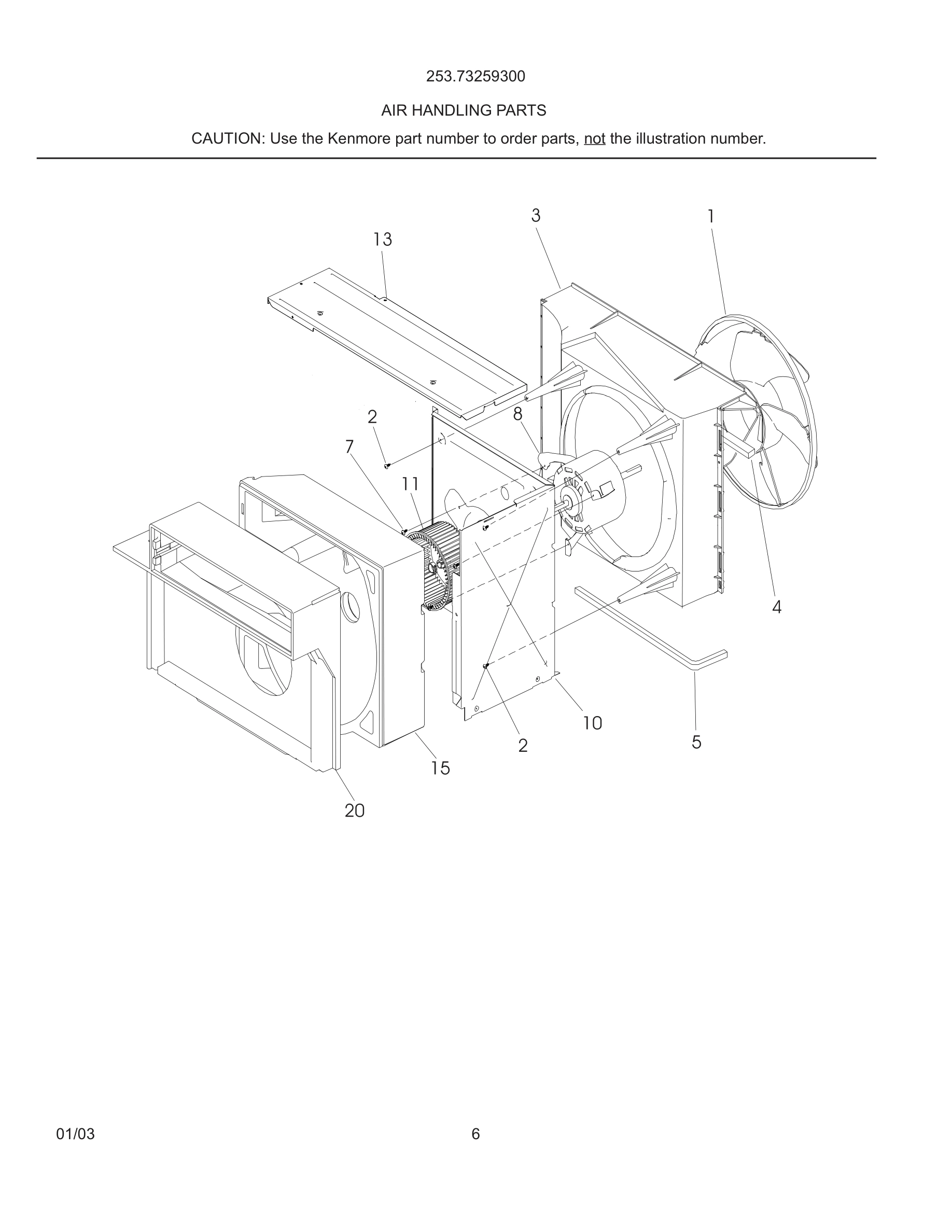

07 - AIR HANDLING PARTS

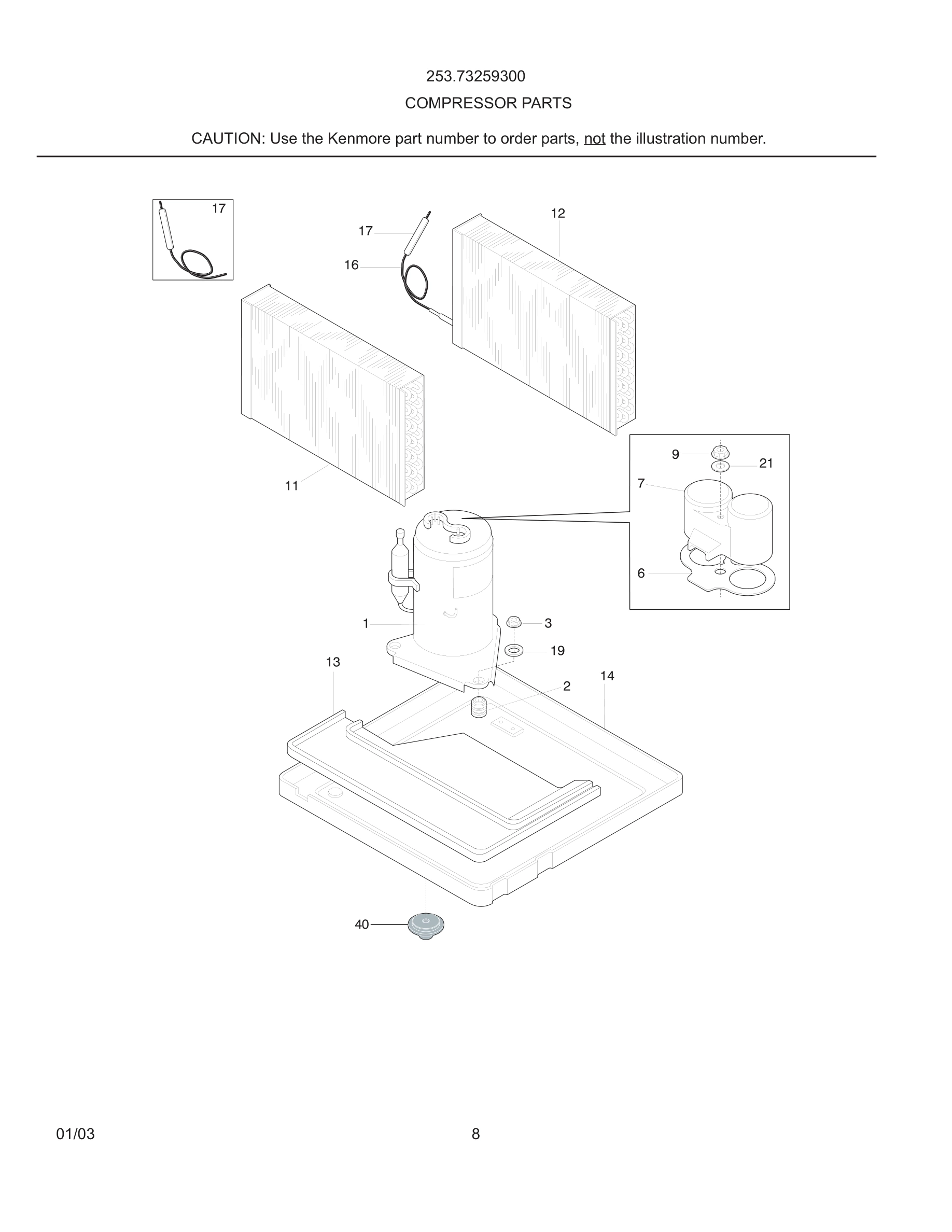

09 - COMPRESSOR PARTS

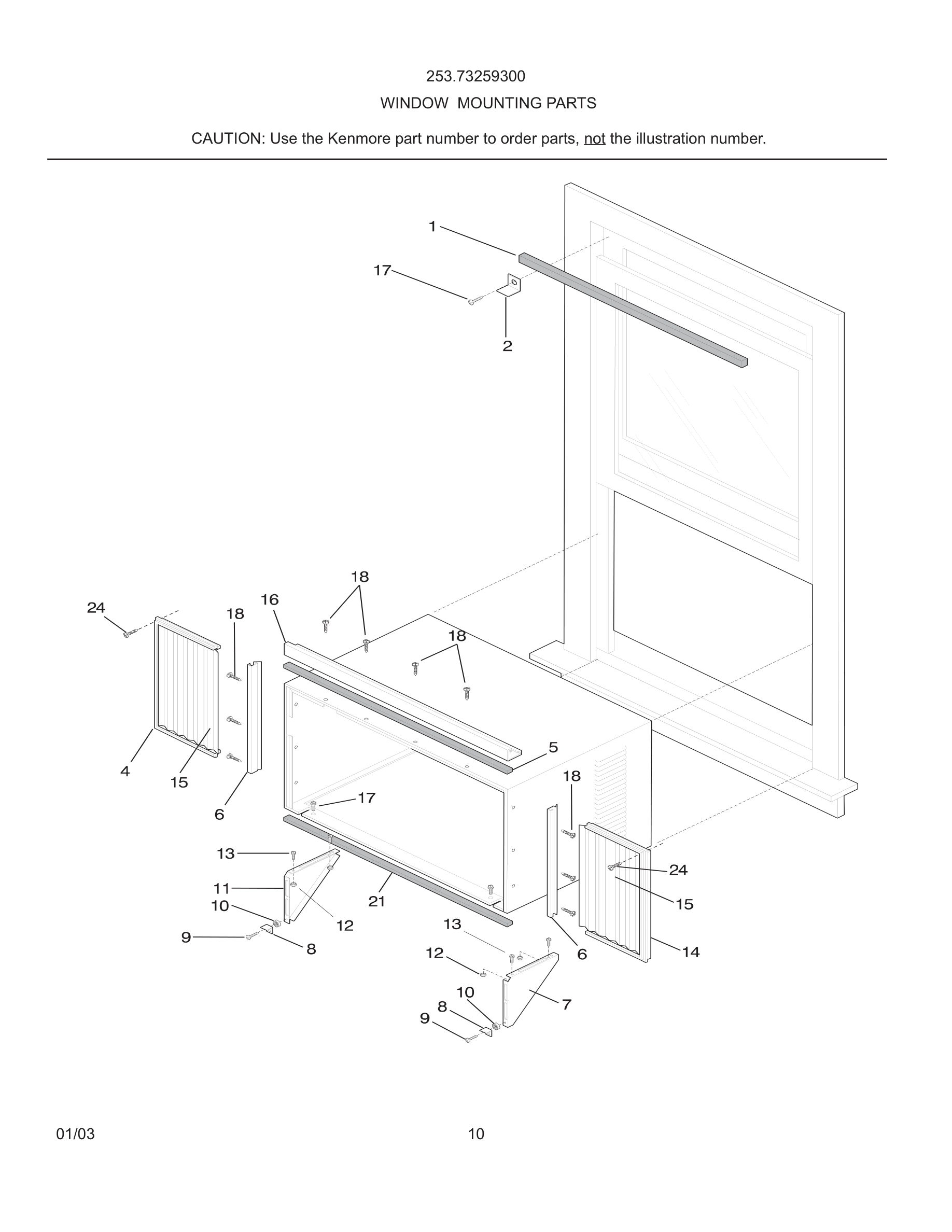

11 - WINDOW MOUNTING PARTS

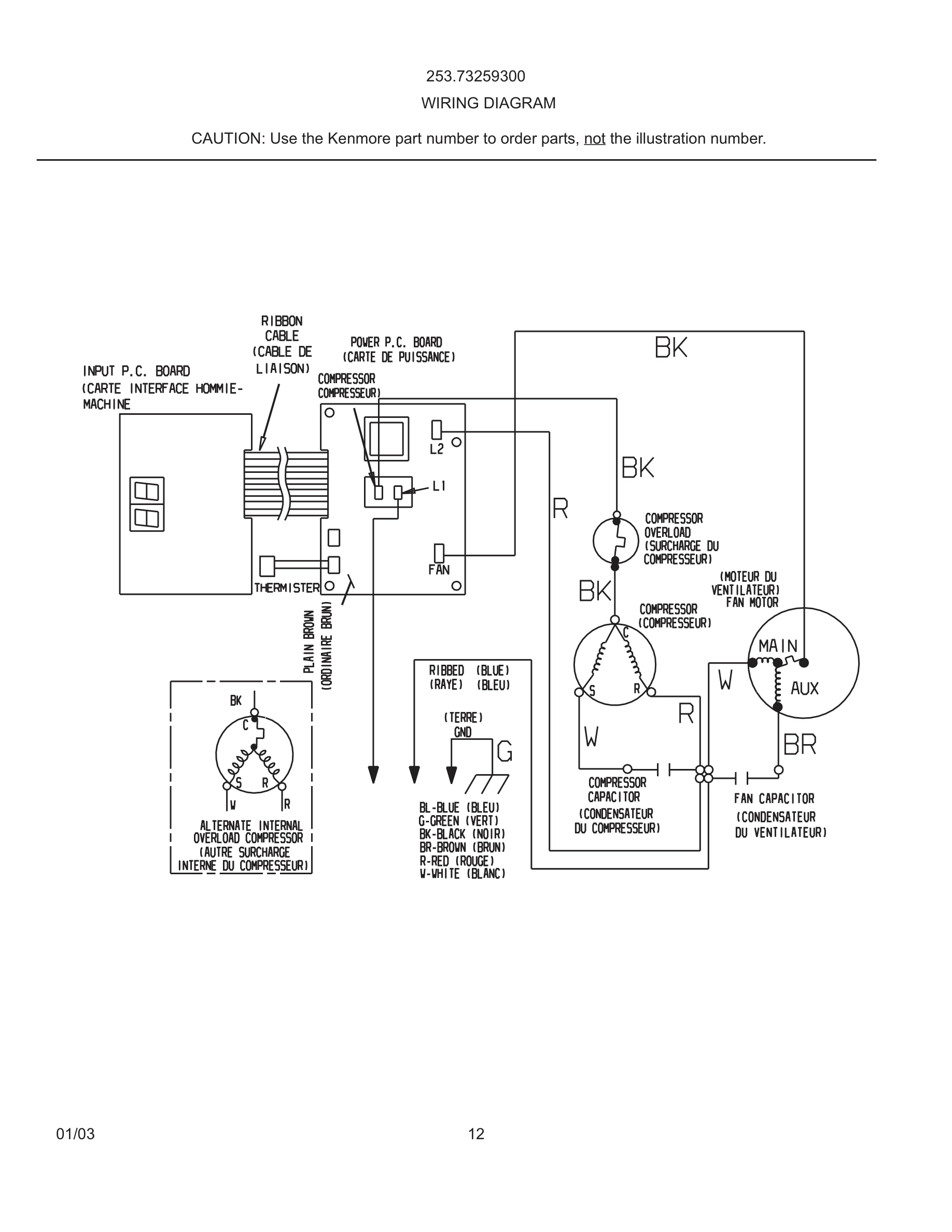

12 - WIRING DIAGRAM
Common parts from model Kenmore 253.73259300 ROOM AIR CONDITIONER
*
Energy Guide,25373259300 WCI 309363125 Contact Us For Availability
*
Window Mounting Kit,heavy duty WCI 309313303 Contact Us For Availability
*
Mounting Support Kit,heavy duty WCI 309313204 Contact Us For Availability
*
Hardware Kit,window mount ,heavy duty WCI 5304409248 Contact Us For Availability
*
Seal,ship screw hole WCI 5304409249 Contact Us For Availability
1
Cabinet,sleeve ,top louvers WCI 309632704 Contact Us For Availability
1#
Fan Blade,with clamp WCI 5304422465 Contact Us For Availability
1#
Compressor,w/overload WCI 309603118 Contact Us For Availability
2
Bracket,sash lock WCI 5303211056 Contact Us For Availability
2
Grille,rear ,with rail WCI 309632804 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Shroud,cond fan motor WCI 309623201 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
4
Extension,sliding frame ,LH ,w/closure panel WCI 5304426345 Contact Us For Availability
5
Seal,fan housing ,19.56" x 0.50" ,lower WCI 5303015311 Contact Us For Availability
5
Seal,top rail/cab WCI 5304409250 Contact Us For Availability
6
Gasket,terminal cover WCI 5304431275 Contact Us For Availability
6
Retainer,accordian mount WCI 5304414933 Contact Us For Availability
7
Link,vertical louver ,with handle WCI 309631104 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
7
Bracket,support ,RH WCI 5304414105 Contact Us For Availability
8
Louver Assy,horizontal ,Includes 7,8,9 WCI 309633306 Contact Us For Availability
8
Louver,horizontal WCI 309633904 Contact Us For Availability
8
Bracket,sill/unit sprt. WCI 3001815 Contact Us For Availability
8#
Motor,fan WCI 309630614 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
9
Screw,1/4-20 x 0.750 WCI 3007756 Contact Us For Availability
10
Bulkhead,control system WCI 309623602 Contact Us For Availability
10
Bulkhead,air system WCI 309623401 Contact Us For Availability
10
Nut,lock ,1/4-20 ,support bracket WCI 3007759 Contact Us For Availability
10*
Grommet,wire protector WCI 309111201 Contact Us For Availability
11
Blower Wheel,plastic ,with clamp WCI 309633001 Contact Us For Availability
11
Bracket,support ,LH WCI 5304414106 Contact Us For Availability
11#
Evaporator WCI 309634203 Contact Us For Availability
12
Filter,framed micro-bi WCI 309639001 Contact Us For Availability
12
Holder,thermistor ,w/seal WCI 5304413782 Contact Us For Availability
12
Holder,thermistor ,w/o seal WCI 5304414108 Contact Us For Availability
12#
Condenser WCI 5303306719 Contact Us For Availability
13
Cover,blower wheel ,top WCI 309630302 Contact Us For Availability
13
Tray,evap drip WCI 309623501 Contact Us For Availability
13
Screw,10-32 x 0.500 ,support WCI 5303281649 Contact Us For Availability
13#
Capacitor,400 V ,40+7.5 mfd WCI 5304431277 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
Base,compressor mtg ,with studs WCI 309632915 Contact Us For Availability
14
Extension,sliding frame ,RH ,w/closure panel WCI 5304426346 Contact Us For Availability
15
Strap-capacitor WCI 5303316589 Contact Us For Availability
15
Housing,blower scroll WCI 309630101 Contact Us For Availability
15
Panel,accordian ,RH/LH ,window closure WCI 5304414930 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
16#
Capillary Tube,37.50 inch long WCI 5304426870 Contact Us For Availability
17
Front Assembly,cabinet WCI 309640502 Contact Us For Availability
17
Screw,wood, type 17 ,10-12 x 0.750 WCI 3002803 Contact Us For Availability
17#
Cord-electric power,Type-D ,12 AWG ,230 V WCI 309343114 Contact Us For Availability
18
Screw,rail WCI 5308012680 Contact Us For Availability
19
Overlay,control WCI 309360107 Contact Us For Availability
19
Washer,metallic WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309630201 Contact Us For Availability
21
Seal,sleeve/shroud ,23.72" x 1.25" ,bottom WCI 5303212504 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
24
Nameplate,Kenmore ,rear grille WCI 5304414348 Contact Us For Availability
24
Screw,8-18B x 0.500 WCI 3002801 Contact Us For Availability
25
Door,vent ,with actuator WCI 309321401 Contact Us For Availability
26
Handle,vent WCI 309330604 Contact Us For Availability
26A
Detent,vent WCI 309330202 Contact Us For Availability
38
Panel,front ,tilt-out WCI 309638901 Contact Us For Availability
40
Grommet,drain ,kit with instr. WCI 5303301031 Contact Us For Availability
43
Frame,cabinet front WCI 309638802 Contact Us For Availability
61#
Thermistor,defrost sensor WCI 5304414095 Contact Us For Availability
70
Enclosure,elec control mt WCI 309361501 Contact Us For Availability
71#
PC Board,power ,w/trans,sensor WCI 309371302 Contact Us For Availability
72#
PC Board,input WCI 309371304 Contact Us For Availability
75
Hardware,PCB support WCI 5304413781 Contact Us For Availability
78
Remote Control,transmitter , WCI 309342608 Contact Us For Availability
× ![]()
